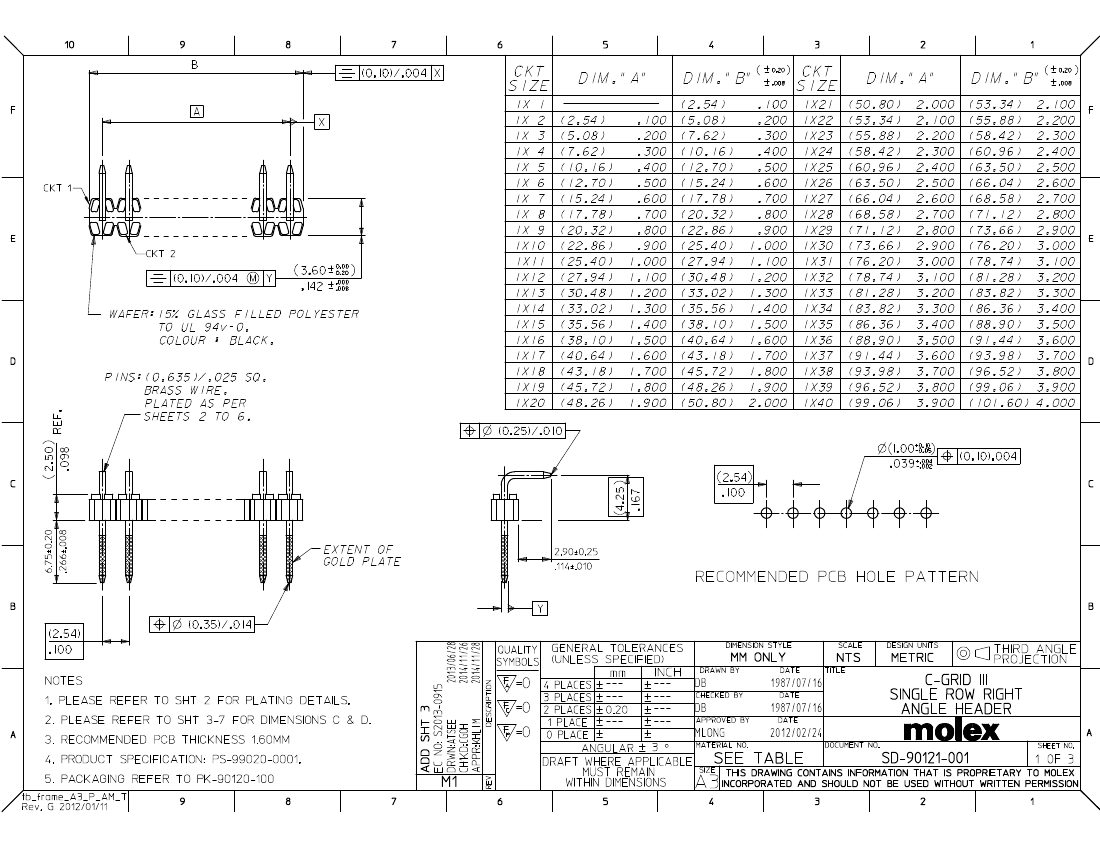

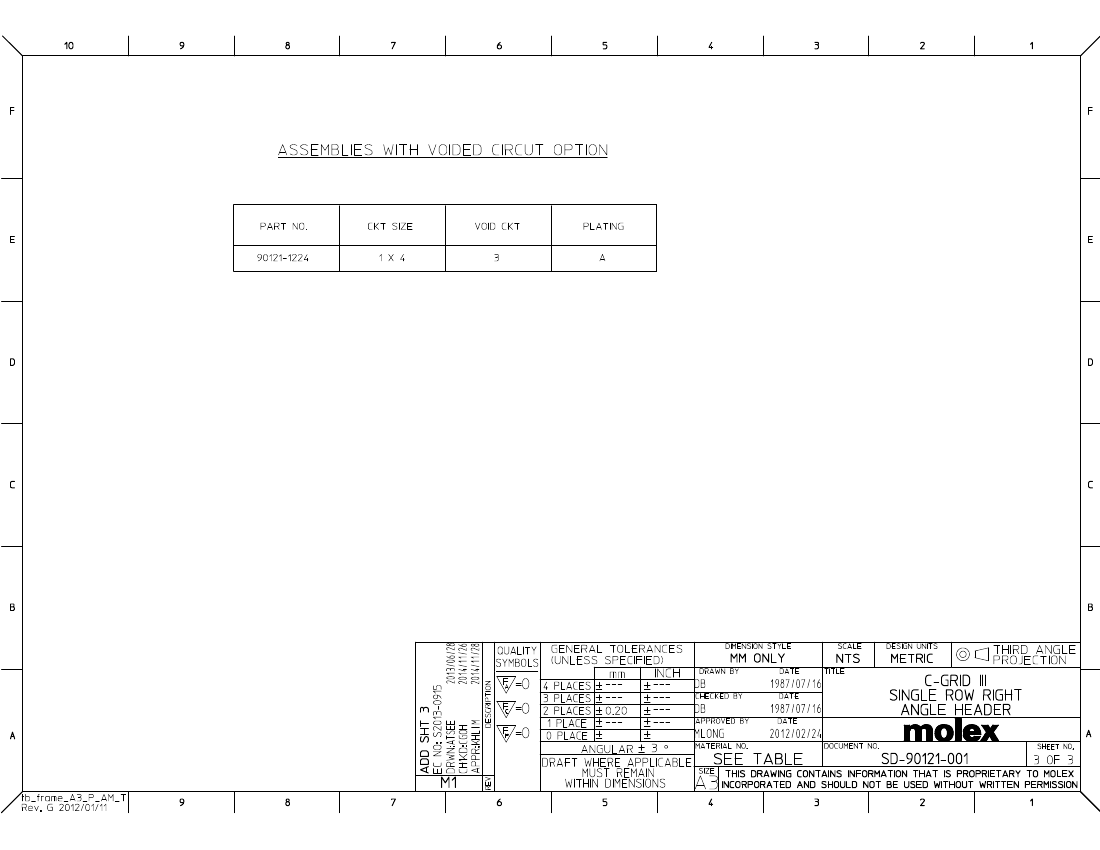

CONN HEADER R/A TIN 22POS

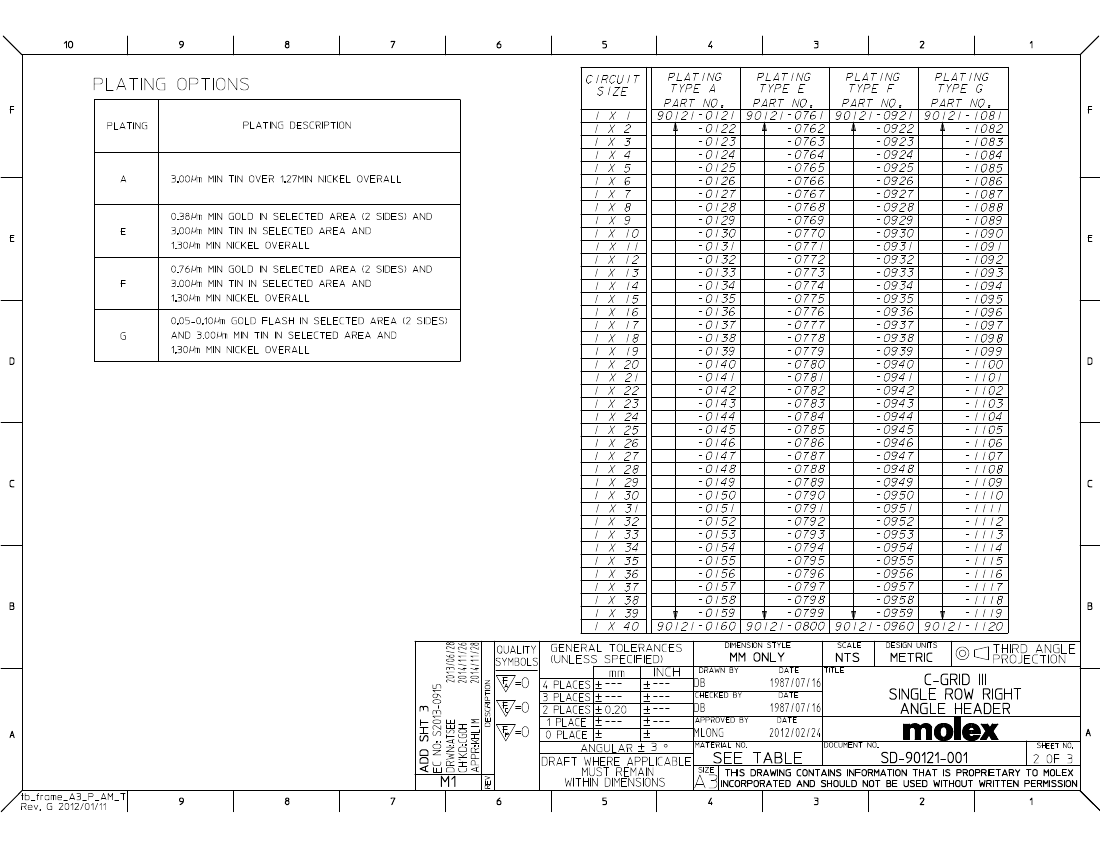

| Parameter Name | Attribute value |
| Connector type | Needle hub, separate |
| Contact type | Male pin |
| Spacing - Mating | 0.100"(2.54mm) |
| Number of pins | 22 |
| Number of rows | 1 |
| Line spacing - patching | - |
| Number of pins loaded | all |
| style | Board to Board or Cable |
| shield | Uncovered |
| Installation type | Through hole, right angle |
| Termination | welding |
| Fastening type | push-pull |
| Contact Length - Mating | 0.266"(6.75mm) |
| Contact length - terminal | 0.114"(2.90mm) |
| Overall contact length | - |
| Insulation height | 0.142"(3.60mm) |
| Contact shape | Square |
| Contact surface treatment - mating | tin |
| Contact Surface Treatment Thickness - Mating | 118.1µin(3.00µm) |
| Contact Surface Preparation - Column | tin |
| Contact material | brass |
| Insulation Materials | Polyester, fiberglass reinforced |
| characteristic | - |
| Operating temperature | - |
| Intrusion protection | - |
| Material flammability rating | UL94 V-0 |
| Insulation color | black |
| Rated current | - |
| Rated voltage | - |
| Joint stack height | - |
| Contact Surface Treatment Thickness - Column | - |
| application | automobile, general |
