SRP4030FA-6R8M

Description
IND,4.1X4.1X2.8MM,6.8UH20%,4A,SH
CategoryPassive components
File Size620KB,4 Pages
ManufacturerBourns
Websitehttp://www.bourns.com
Environmental Compliance
Download Datasheet Parametric Compare View All

SRP4030FA-6R8M Online Shopping

Suppliers Part Number Price MOQ In stock
SRP4030FA-6R8M - - View Buy Now

SRP4030FA-6R8M Overview

IND,4.1X4.1X2.8MM,6.8UH20%,4A,SH

SRP4030FA-6R8M Parametric

Parameter NameAttribute value
typeWinding
Material - Coreiron powder
inductance6.8µH
Tolerance±20%
Rated current4A
Current - saturation value3.5A
shieldshield
DC resistance (DCR)74.1 milliohm max
Q value at different frequencies15 @ 100kHz
Frequency - Self-resonance26MHz
gradeAEC-Q200
Operating temperature-55°C ~ 155°C
Inductor Frequency - Test100kHz
characteristic-
Installation typesurface mount
Package/casingnon-standard
Supplier device packaging-
size/dimensions0.161" long x 0.161" wide (4.10mm x 4.10mm)
Height - Installation (maximum)0.118"(3.00mm)
*R
AE **H oHS
C- AL C
Q2 O O
00 GE MP
CO N F LIA
M RE NT
PL E ,
IA &
NT
8.7 ± 0.25
Features
(.343 ± .010)
(.006)
Shielded construction
1R0 02
17
Metal alloy powder core
0.2
High saturation
12.0±±.008)
current
(.472
Flat wire
100
AEC-Q200 compliant
11.3 ± 0.3
RoHS
.012)
(.445 ±
compliant* and halogen free**
1720

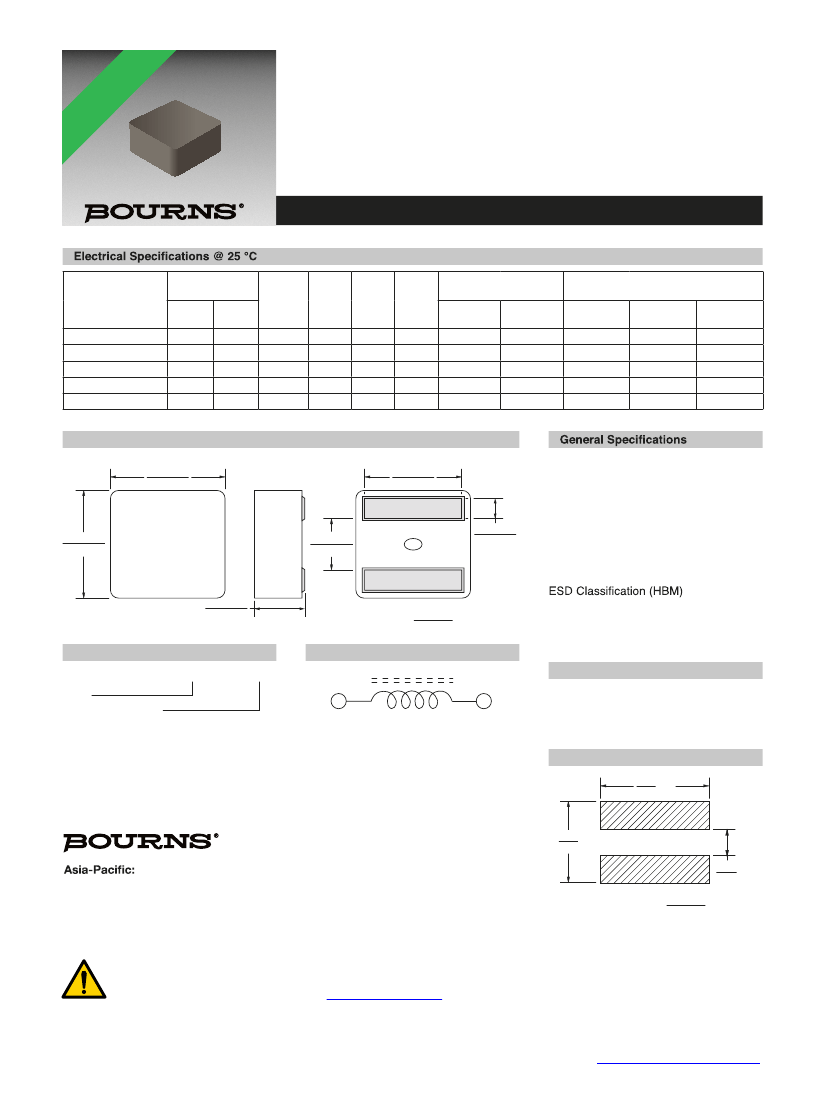

SRP4030FA Series – Shielded Power Inductors
2.8 ± 0.10
(.110 ± .004)
2.3 ± 0.3
(.091 ± .012)
2.5 ± 0.3
(.098 ± .012)
Inductance
@ 100 kHz / 0.1 V
Bourns
Part Number
L (µH)
Tol. %
Q
(Min.) @
100 kHz
SRF
DCR
(MHz)
± 0.10
(mΩ)
2.8
Typ.
± .004)
Typ.
(.110
DCR
(mΩ)
Max.
I rms (A)
Typ.
20 °C
Temp. Rise
1.95
8.2
± 0.15
(.077
8.0
± .006)
3.4
MIN.
(.134)
5.0
I sat (A)
Typ.
10 % L
Drop
20 % L
Drop
30 % L
Drop
40 °C
Temp. Rise
SRP4030FA-R90M
SRP4030FA-1R0M
SRP4030FA-3R3M
SRP4030FA-4R7M
SRP4030FA-6R8M
0.9
1.0
3.3
4.7
6.8
± 20 %
± 20 %
± 20 %
± 20 %
± 20 %
10
10
10
10
15
60
58
28
27
26
9.1
26.0
40.1
67.4
9.1
10.1
10.1
28.6
44.1
74.1
11.2
11.0
6.6
5.1
4.0
5.2
5.0
3.3
2.8
2.3
7.0
6.8
4.8
4.2
3.5
10.0
9.8
6.2
5.5
4.6
3.9
3.1
Product Dimensions
4.1 ± 0.25
(.161 ± .010)
9.60 ± 0.2
(.378 ± .008)
100
1720
3.4 ± 0.3
(.134 ± .012)
4.1 ± 0.25
(.161 ± .010)
6R8
1629
2.8 ± 0.2
(.110 ± .008)
3.4
(.134)
1.6 ± 0.25
(.063 ± .010)
S
F
0.88 ± 0.2
(.035 ± .008)
3.3
(.130)
F
S
1.50
(.059)
Operating Temperature
................................-55 °C to +155 °C
(Temperature rise included)
Storage Temperature (Component)
................................-55 °C to +155 °C
Rated Current ............. Inductance drops
10, 20 or 30 % at Isat
Temperature Rise .................20 or 40 °C
at rated Irms
1
MSL ......................................................1
................. N/A
Note 1: Circuit design, component, PCB trace size
and thickness, airflow and other cooling provisions all
affect the part temperature. Part temperature should be
verified in the end application.
DIMENSIONS:
2.9
(.114)
MM
(INCHES)
9.7
(.382)
How to Order
Schematic
SRP4030FA - 1R0M
Model
Value Code (see table)
Materials
Core ..........................Metal alloy powder
Wire ............................Enameled copper
Terminal Finish ...................................Sn

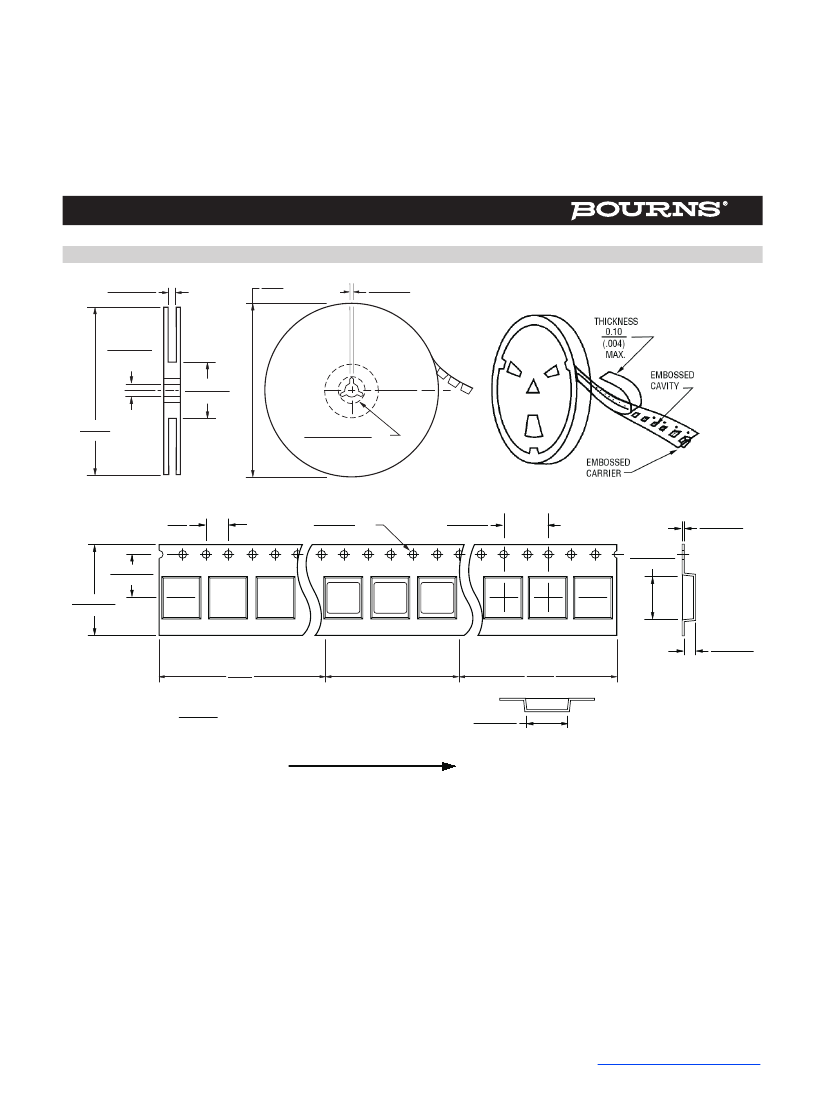

Packaging ..... 2000 pcs. per 13-inch reel
Recommended Layout
3.8 REF.
(.150)
3.4
REF.
(.134)
Tel: +886-2 2562-4117 • Email: asiacus@bourns.com
EMEA:
Tel: +36 88 520 390 • Email: eurocus@bourns.com
The Americas:
Tel: +1-951 781-5500 • Email: americus@bourns.com
www.bourns.com
1.4
REF.
(.055)
DIMENSIONS:
MM
(INCHES)
WARNING Cancer and Reproductive Harm -
www.P65Warnings.ca.gov
* RoHS Directive 2002/95/EC Jan. 27, 2003 including annex and RoHS Recast 2011/65/EU June 8, 2011.
**Bourns considers a product to be “halogen free” if (a) the Bromine (Br) content is 900 ppm or less; (b) the Chlorine
(Cl) content is 900 ppm or less; and (c) the total Bromine (Br) and Chlorine (Cl) content is 1500 ppm or less.
Specifications are subject to change without notice. Users should verify actual device performance in their specific applications.
The products described herein and this document are subject to specific legal disclaimers as set forth on the last page of this document, and at
www.bourns.com/docs/legal/disclaimer.pdf

SRP4030FA-6R8M Related Products

SRP4030FA-6R8M SRP4030FA-4R7M SRP4030FA-R90M SRP4030FA-3R3M SRP4030FA-1R0M
Description IND,4.1X4.1X2.8MM,6.8UH20%,4A,SH IND,4.1X4.1X2.8MM,4.7UH,20%,5.1A IND,4.1X4.1X2.8MM,0.9UH20%,11.2A IND,4.1X4.1X2.8MM,3.3UH,20%,6.6A IND,4.1X4.1X2.8MM,1UH,20%,11A,SH
type Winding Winding Winding Winding Winding
Material - Core iron powder iron powder iron powder iron powder iron powder
inductance 6.8µH 4.7µH 900nH 3.3µH 1µH
Tolerance ±20% ±20% ±20% ±20% ±20%
Rated current 4A 5.1A 11.2A 6.6A 11A
Current - saturation value 3.5A 4.2A 7A 4.8A 6.8A
shield shield shield shield shield shield
DC resistance (DCR) 74.1 milliohm max 44.1 milliohm max 10.01 milliohm max 28.6 milliohms max 10.1 milliohm max
Q value at different frequencies 15 @ 100kHz 10 @ 100kHz 10 @ 100kHz 10 @ 100kHz 10 @ 100kHz
Frequency - Self-resonance 26MHz 27MHz 60MHz 28MHz 58MHz
grade AEC-Q200 AEC-Q200 AEC-Q200 AEC-Q200 AEC-Q200
Operating temperature -55°C ~ 155°C -55°C ~ 155°C -55°C ~ 155°C -55°C ~ 155°C -55°C ~ 155°C
Inductor Frequency - Test 100kHz 100kHz 100kHz 100kHz 100kHz
Installation type surface mount surface mount surface mount surface mount surface mount
Package/casing non-standard non-standard non-standard non-standard non-standard
size/dimensions 0.161" long x 0.161" wide (4.10mm x 4.10mm) 0.161" long x 0.161" wide (4.10mm x 4.10mm) 0.161" long x 0.161" wide (4.10mm x 4.10mm) 0.161" long x 0.161" wide (4.10mm x 4.10mm) 0.161" long x 0.161" wide (4.10mm x 4.10mm)
Height - Installation (maximum) 0.118"(3.00mm) 0.118"(3.00mm) 0.118"(3.00mm) 0.118"(3.00mm) 0.118"(3.00mm)
