SMT Power Inductor
Power Beads - PA2607NL and PA2607AHL Series
Current Rating: Over 90Apk
Inductance Range: 115nH to 300nH
Height: 7.5mm and 7.6mm Max
Footprint: 10.4mm x 7.9mm Max
Halogen Free
Electrical Specifications @ 25°C — Operating Temperature -40°C to +130°C
7
Part
Number
PA2607.121NL
PA2607.151NL
PA2607.181NL
PA2607.211NL
PA2607.231NL
PA2607.271NL
PA2607.301NL
Inductance
1
@ 0A
DC
(nH +/- 15%)
115
150
175
215
230
270
300
Inductance
@Irated
(nH TYP)
115
150
175
195
208
241
260
Irated
(A
DC
)
41
41
41
41
37
31
27
2
DCR
(mΩ nominal)
3
Saturation Current
4
(A TYP)
25°C
94
72
62
48
43
37
32
100°C
80
61
53
41
37
34
28
Heating Current
(A TYP)
Height
mm*
(inches)
7.4*
(.291)
0.29 +/- 7% (.XXNL)
0.29 +/- 5% (.XXXAHL)
41
7.3*
(.287)
NOTES:
1. Inductance measured at 100kHz, 1Vrms @25°C.
2. The rated current as listed is either the saturation current or the heating
current depending on which value is lower.
3. The nominal DCR is measured from point a to point b , as shown below
on the mechanical drawing. The standard part (PA2607.XXXNL) has
a DCR tolerance of +/-7%. A tighter DCR tolerance of +/-5% is avail-
able by changing the NL suffix to AHL (i.e. PA2607.211NL becomes
PA2607.211AHL).
4. The saturation current is the typical current which causes the induc-
tance to drop by 20% at the stated ambient temperatures (25°C and
100°C). This current is determined by placing the component in the
specified ambient environment and applying a short duration pulse current
(to eliminate self-heating effects) to the component.
5. The heating current is the DC current which causes the part temperature
to increase by approximately 40°C.
6. In high volt*time applications, additional heating in the component can
occur due to core losses in the inductor which may neccessitate derat-
ing the current in order to limit the temperature rise of the component. To
determine the approximate total losses (or temperature rise) for a given

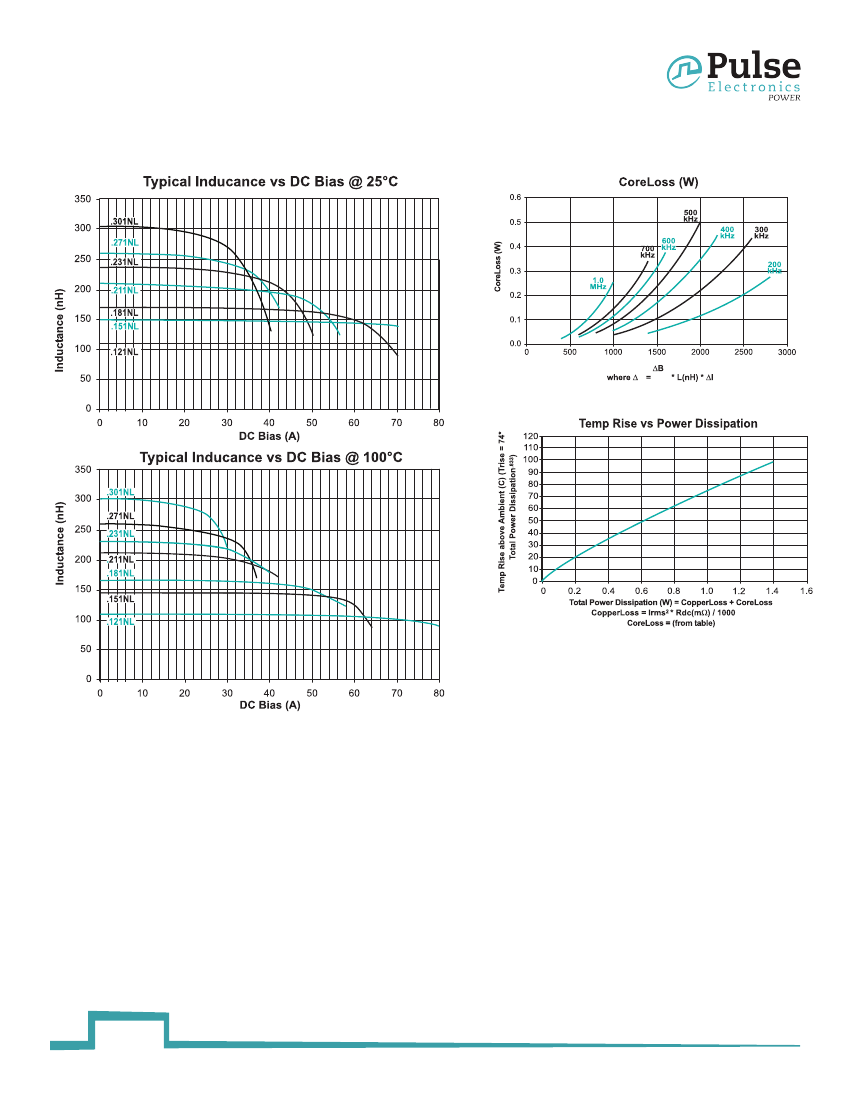

application, the coreloss and temperature rise curves can be used.

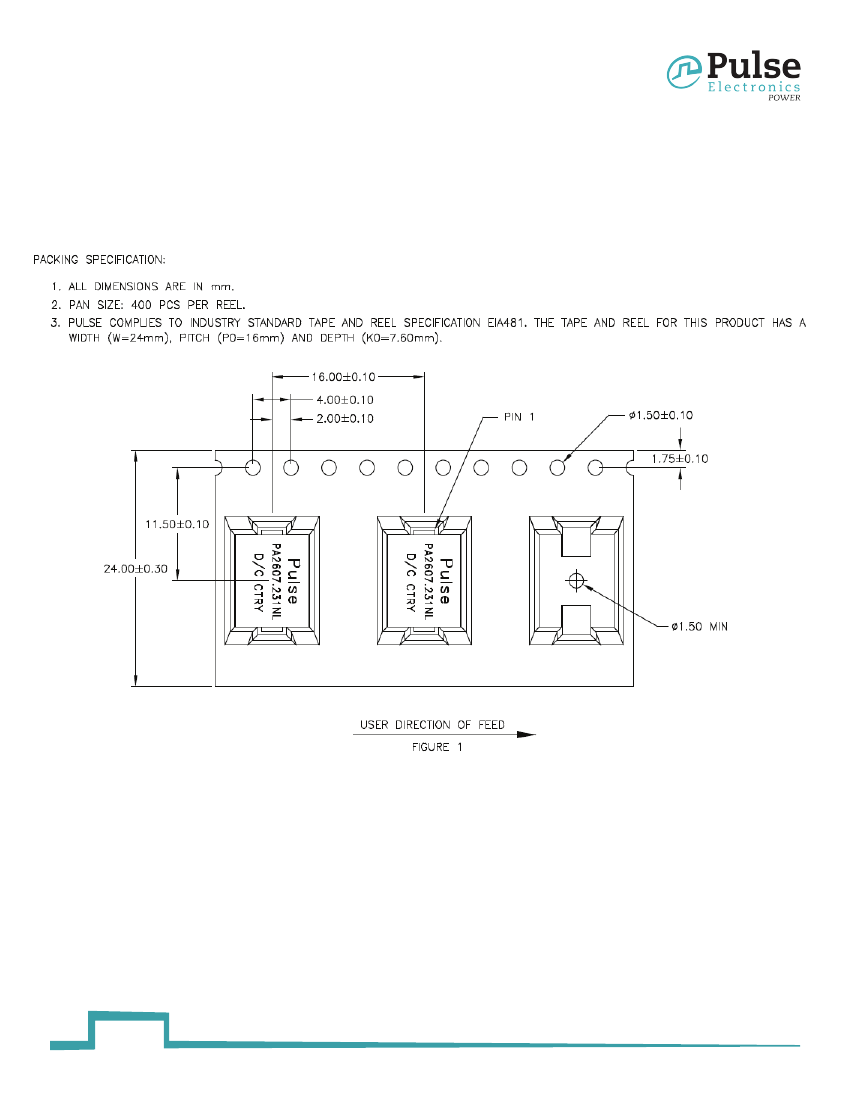

7. Optional Tape & Reel packaging can be ordered by adding a “T” suf-
fix to the part number (i.e. PA2607.211NL becomes PA2607.211NLT).
Pulse complies to industry standard tape and reel specification EIA481.
The tape and reel for this product has a width (W=24mm), pitch
(Po=16.0mm) and depth (Ko=7.6mm).
8. The temperature of the component (ambient plus temperature rise) must
be within the stated operating temperature range.

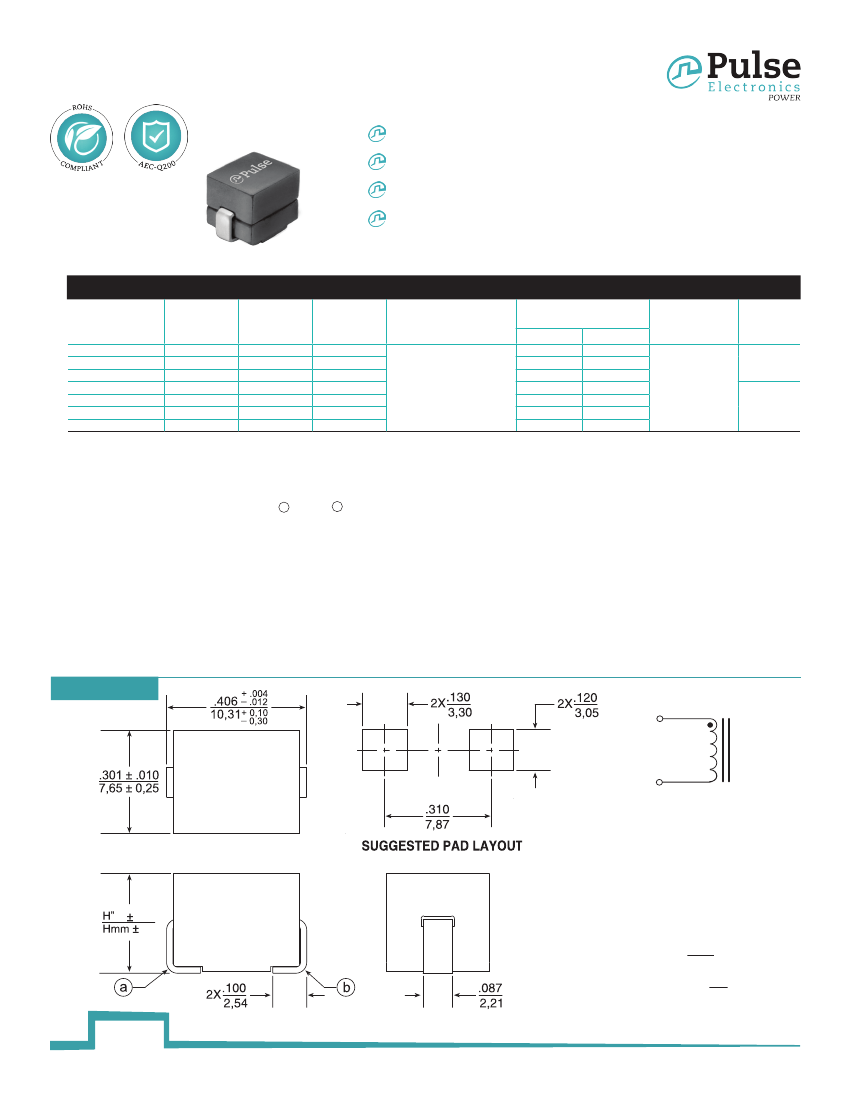

Mechanical
PA2607.XXXNL
Schematic
1
PA2607
.XXXNL
D/C
CTRY
2
* Please note that marking shown is for the
PA2607.XXXNL parts. Marking for AHL parts is
the same except PA2607.XXXNL is replaced by
PA2607.XXXAHL.
.008
0.2
Weight
. . . . . . . . . . . 2.4 grams
Tape & Reel
. . . . . . . . 400/reel
Dimensions:
Inches
mm
Unless otherwise specified,
all tolerances are ± .010
0,25
1
