SMC5K20A-M3/H datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Circuit protection> SMC5K20A-M3/H

SMC5K20A-M3/H: DescriptionTVS DIODE 20V 32.4V DO214AB; CategoryCircuit protection; File Size93KB，5 Pages; ManufacturerVishay; Websitehttp://www.vishay.com; Environmental Compliance

Download Datasheet Parametric View All

SMC5K20A-M3/H Overview

TVS DIODE 20V 32.4V DO214AB

SMC5K20A-M3/H Parametric

Parameter Name	Attribute value
type	Zina
One way channel	1
Voltage - Reverse OFF (Typical)	20V
Voltage - Breakdown (minimum)	22.2V
电压 - 箝位（最大值）@ Ipp	32.4V
Current - Peak Pulse (10/1000µs)	154.3A
Power - Peak Pulse	5000W（5kW）
Power line protection	none
application	Universal
Capacitance at different frequencies	-
Operating temperature	-55°C ~ 150°C（TJ）
Installation type	surface mount
Package/casing	DO-214AB，SMC
Supplier device packaging	DO-214AB（SMCJ）

Preview

Download Datasheet

View All

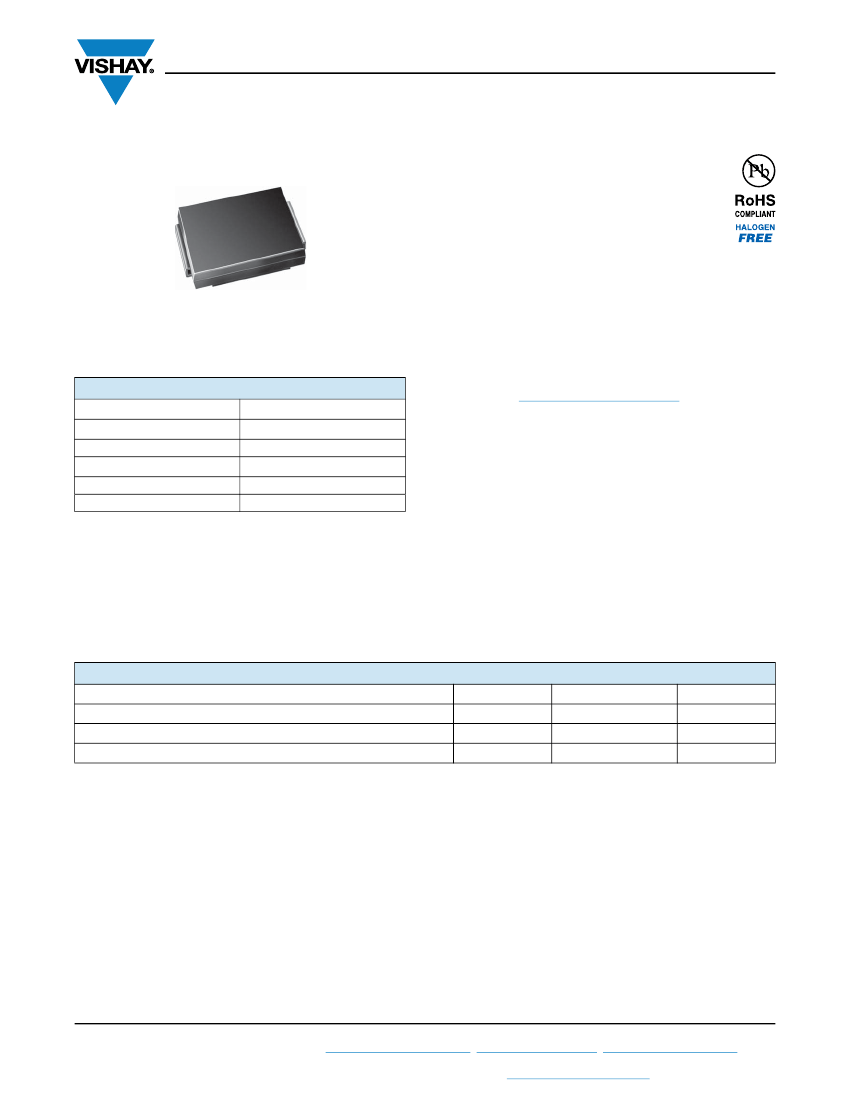

SMC5K10A thru SMC5K85A

www.vishay.com

Vishay General Semiconductor

Surface Mount T

RANS

ORB®

Transient Voltage Suppressors

FEATURES

• Available in uni-directional polarity only

• 5000 W peak pulse power capability with a

10/1000 μs waveform

• Excellent clamping capability

• Very fast response time

• Low incremental surge resistance

• Meets MSL level 1, per J-STD-020, LF maximum peak

of 260 °C

• AEC-Q101 qualified

- Automotive ordering code: base P/NHM3



for SMC5K10A to SMC5K20A

SMC (DO-214AB)

PRIMARY CHARACTERISTICS

PPM

max.

Polarity

Package

11.1 V to 104 V

10 V to 85 V

5000 W

150 °C

Uni-directional

SMC (DO-214AB)

• Material categorization: for definitions of compliance

please see

www.vishay.com/doc?99912

MECHANICAL DATA

Case:

SMC (DO-214AB)

Molding compound meets UL 94 V-0 flammability rating

Base P/N-M3 - halogen-free, RoHS-compliant

Base P/NHM3 - halogen-free, RoHS-compliant, and

AEC-Q101 qualified

Terminals:

matte tin plated leads, solderable per

J-STD-002 and JESD 22-B102

M3 suffix meets JESD 201 class 2 whisker test, HM3 suffix

meets JESD 201 class 2 whisker test

Note

• SMC5K22A to SMC5K85A for industrial grade only

TYPICAL APPLICATIONS

Use in sensitive electronics protection against voltage

transients induced by inductive load switching and lighting

on ICs, MOSFET, signal lines of sensor units for consumer,

computer, industrial, automotive, and telecommunication.

Polarity:

color band denoted cathode end

MAXIMUM RATINGS

= 25 °C unless otherwise noted)

PARAMETER

Peak pulse power dissipation with a 10/1000 μs waveform (fig. 1)

Peak pulse current with a 10/1000 μs waveform (fig 3.)

Operating junction and storage temperature range

Note

(1)

Non-repetitive current pulse, per fig. 3 and derated above T = 25 °C, per fig. 2

SYMBOL

PPM (1)

, T

STG

VALUE

5000

See next table

-55 to +150

UNIT

°C

Revision: 16-Jan-18

Document Number: 87742

For technical questions within your region:

DiodesAmericas@vishay.com, DiodesAsia@vishay.com, DiodesEurope@vishay.com
