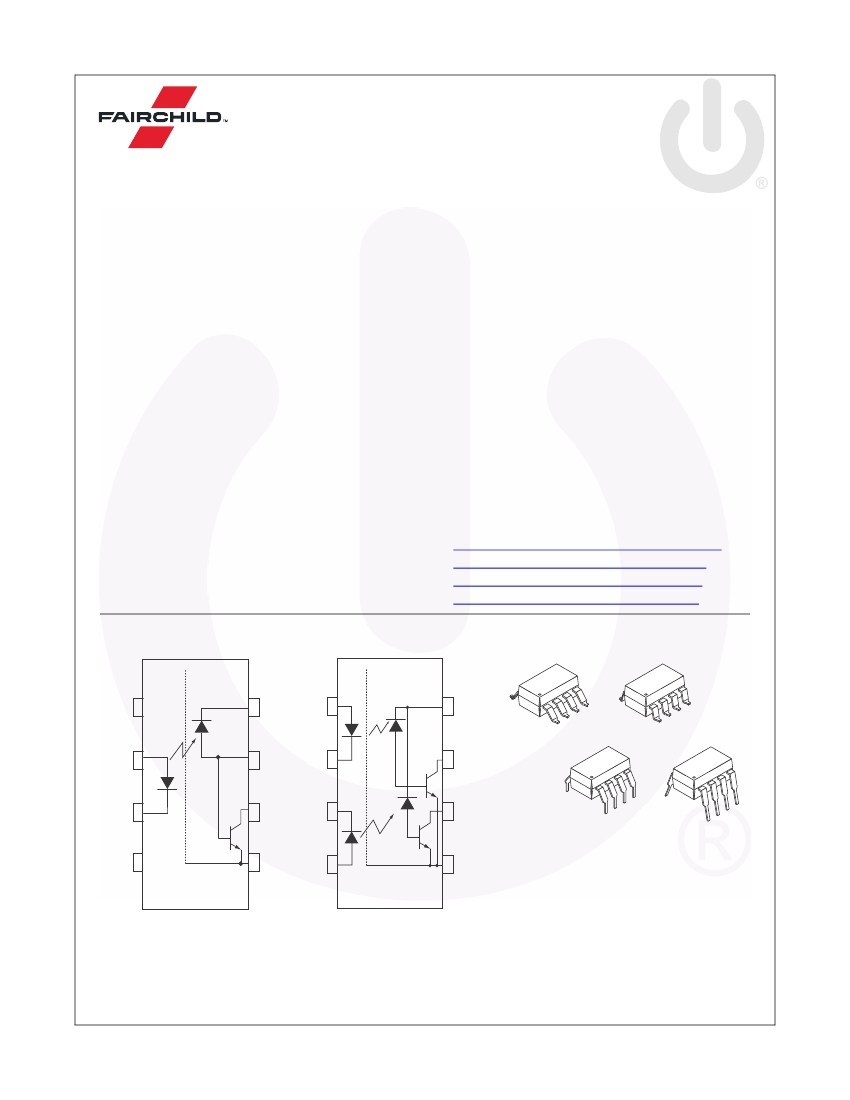

Single-Channel: 6N135M, 6N136M, HCPL4503M
Dual-Channel: HCPL2530M, HCPL2531M
—
8-Pin DIP High Speed Transistor Optocouplers
January 2016
Single-Channel: 6N135M, 6N136M, HCPL4503M
Dual-Channel: HCPL2530M, HCPL2531M
8-Pin DIP High Speed Transistor Optocouplers
Features
High Speed – 1 MBit/s
Dual-Channel: HCPL2530M, HCPL2531M
CTR Guaranteed 0°C to 70°C
No Base Connection for Improved Noise Immunity
(HCPL4503M)
• Superior CMR of 15,000 V/μs Minimum (HCPL4503M)
• Safety and Regulatory Approvals
– UL1577, 5,000 VAC
RMS
for 1 Minute
– DIN EN/IEC60747-5-5
•
•
•
•
Description
The 6N135M, 6N136M, HCPL4503M, HCPL2530M, and
HCPL2531M optocouplers consist of an AlGaAs LED
optically coupled to a high speed photodetector transis-
tor for each channel.
A separate connection for the bias of the photodiode
improves the speed by several orders of magnitude over
conventional phototransistor optocouplers by reducing
the base-collector capacitance of the input transistor.
The HCPL4503M has no internal connection to the pho-
totransistor base for improved noise immunity. An inter-
