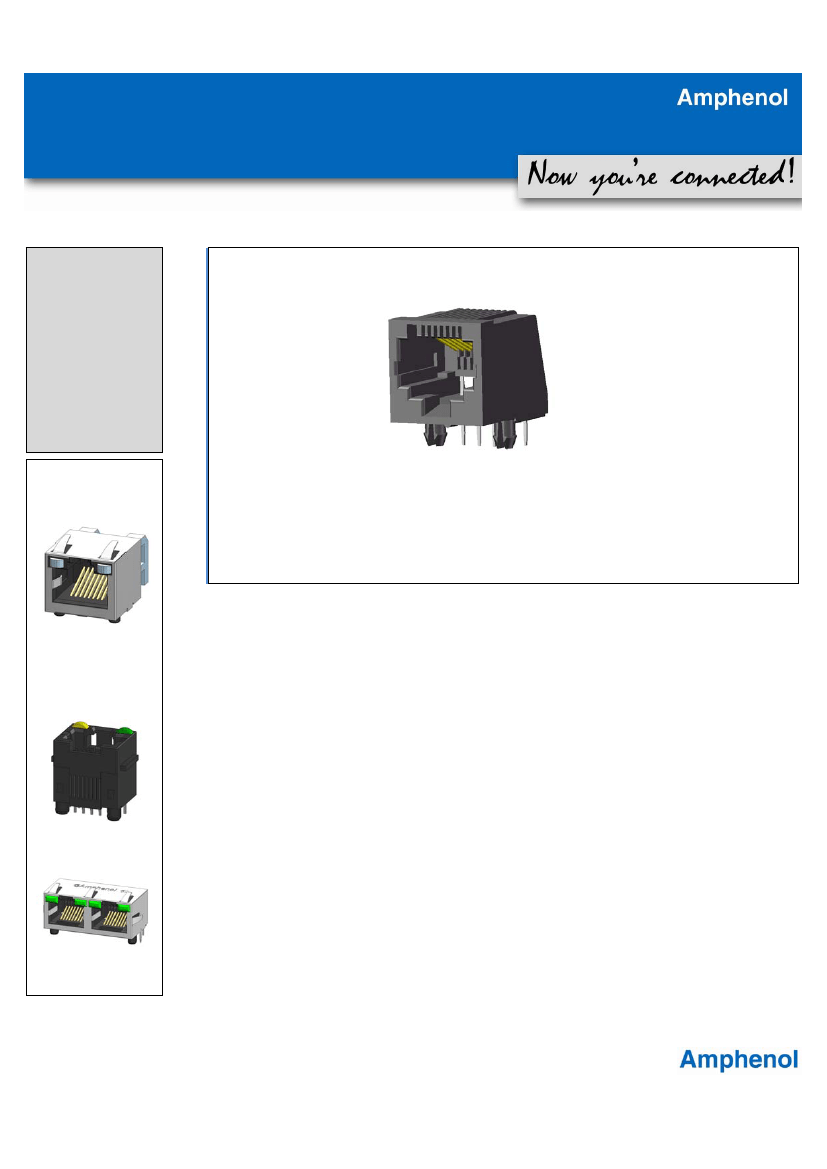

RJE02
Product Specification S6074C Rev 1.0
About Amphenol
Commercial Products
Amphenol’s commercial
connector products are
used in a variety of end
user applications
including networking,
telecom, server &
computer, storage &
HDD, consumer
electronics and
entertainment,
professional audio &
Industrial &
Military/Aerospace.
Related Products
P/N RJE02-188-0X10-H SHOWN
RJSSE
P/N RJSNE‐5385‐08 SHOWN
Overview
P/N RJSSE‐5381 SHOWN
SINGLE PORT, 8 POSITION,
WITH SHIELD AND LIGHT PIPE
This product specification defines the general use and performance parameters for Amphenol’s
RJE02 series of modular jacks.
Availability:Single port available with shielding options.
RJHSE
Usage
The RJE02 series of modular jacks supports Ethernet Protocols. Shielding available for increased
EMI performance and LEDs for Link Activity and Network Speed verification.
Applications
Intended for use in applications such as:
Networking & Telecom
Wireless (WiMAX)
Network servers
Hubs, routers, switches
Office & Home Equipment
PC’s, Laptops, Copiers/Printers
Telephones, modems
Surge Protectors
ATMs, Vending Machines
P/N RJHSE‐3081 SHOWN
SINGLE PORT VERTICAL MOUNT,
NO SHIELD, WITH LEDs
Security Systems
Set Top Boxes
Video Game Systems
Miscellaneous
Multi-Media Equipment
Industrial Equipment
POS Terminals
P/N RJHSE‐5385‐02 SHOWN
TWO PORT REGULAR MOUNT,
WITH SHIELD AND LEDs
Consumer Goods
Revision date: March 13, 2013
Page 1 of 2

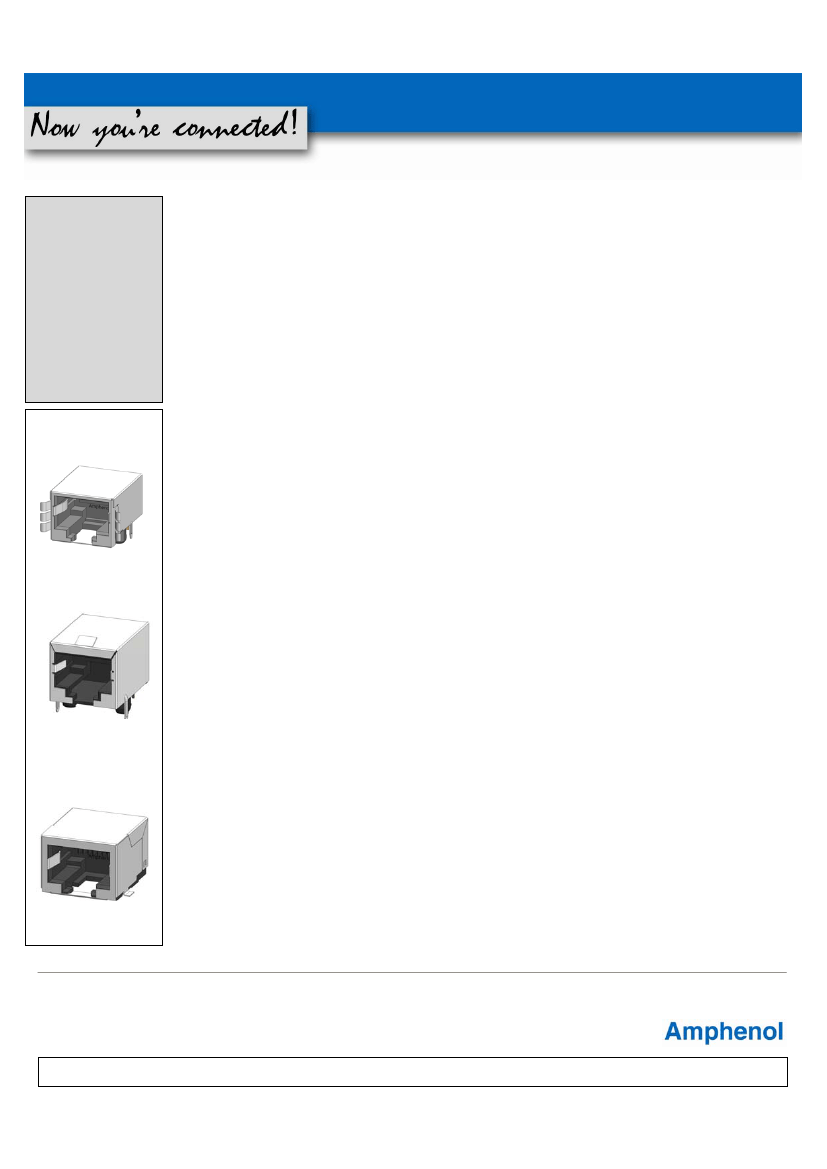

S6074C Rev 1.0
About Amphenol
Commercial Products
Amphenol’s commercial
connector products are
used in a variety of end
user applications
including networking,
telecom, server &
computer, storage &
HDD, consumer
electronics and
entertainment,
professional audio &
Industrial &
Military/Aerospace.
Electrical Characteristics
Contact resistance:
Insulation resistance:
Current rating:
Voltage rating:
DWV
20 mΩ max.
500 MΩ minimum at 500V DC for 2 minutes max.
1.5 Amps
125 Volts AC
1000 VAC, 60 Hz. 1 min.
Mechanical Characteristics
Mating connector insertion force: 5.0 lbs. Maximum.
Mating connector pull retention force: 20 lbs Minimum.
Durability: 750 mating & unmating cycles
Recommended soldering temperature: Wave soldering peaked at 260° C for 5 seconds maximum.
Connectors with high temp. material are suitable for IR Reflow
Operating temperature: -40° C to +85° C
Related Products
RJULE
Material Requirements
RJE02 connectors are RoHS compliant.
Unless otherwise specified, the materials for each component shall be:
Insulator:
Engineering thermoplastic. Complies with UL 94V-0,
Black color.
Contacts:
Phosphor Bronze hard temper with gold thickness options (6µ”, 15µ”, 30µ”, 50µ”) over
50µ” minimum Nickel on contact mating area.
100µ” minimum matte tin plating on soldering tail
Shield:
Copper alloy, Nickel plated with tin dipped tail.
P/N RJULE‐4X182‐01 SHOWN
SINGLE PORT REGULAR MOUNT,
STANDARD SHIELD WITH SMT
FRJAE
Available Documents
Drawing Numbers:
P/N FRJAE‐418 SHOWN
SINGLE PORT, 8 POSITION,
RJLSE
WITH FERRITE FILTER AND
SHIELD (FRONT TABS)
P-RJE02-16X-0X10
P-RJE02-188-0X10-H
P-RJE02-188-0X10
Single port modular jack, 6 position, with contact option.
Single port modular jack, 8 position, 8 contacts, high temp. material.
Single port modular jack, 8 position, 8 contacts.
RJLSE
Contact factory or Authorized Amphenol representative for additional configurations
P/N RJLSE‐41181‐01 SHOWN
SINGLE PORT REGULAR MOUNT,
STANDARD SHIELD WITH SMT
Amphenol Canada Corp.
605 Milner Avenue
Toronto, Ontario, Canada, M1B 5X6
+1 416 291 4401
www.amphenolcanada.com
Page 2 of 2
Copyright © Amphenol Corporation 2013 • All rights reserved
THIS DOCUMENT CONTAINS PROPRIETARY INFORMATION AND SUCH INFORMATION MAY NOT BE DISCLOSED TO OTHERS FOR ANY PURPOSE OR USED FOR MANUFACTURING PURPOSES
WITHOUT WRITTEN PERMISSION FROM AMPHENOL CANADA CORP.
