FEATURES / BENEFITS
Low current draw - uses up to 90% less energy
than incandescent
Long Life - up to 100K hours
True non-polarized configurations available
No heat generated
Mounts directly into industry standard socket
Available in 6, 14, and 28 VDC
Dialight's line of based LED lamps is designed to directly
replace many popular subminiature and miniature incandescent
lamps. The benefits of LED technology over incandescent are
significant: They offer long life, are shock resistant, withstand
vibration and provide energy conservation.

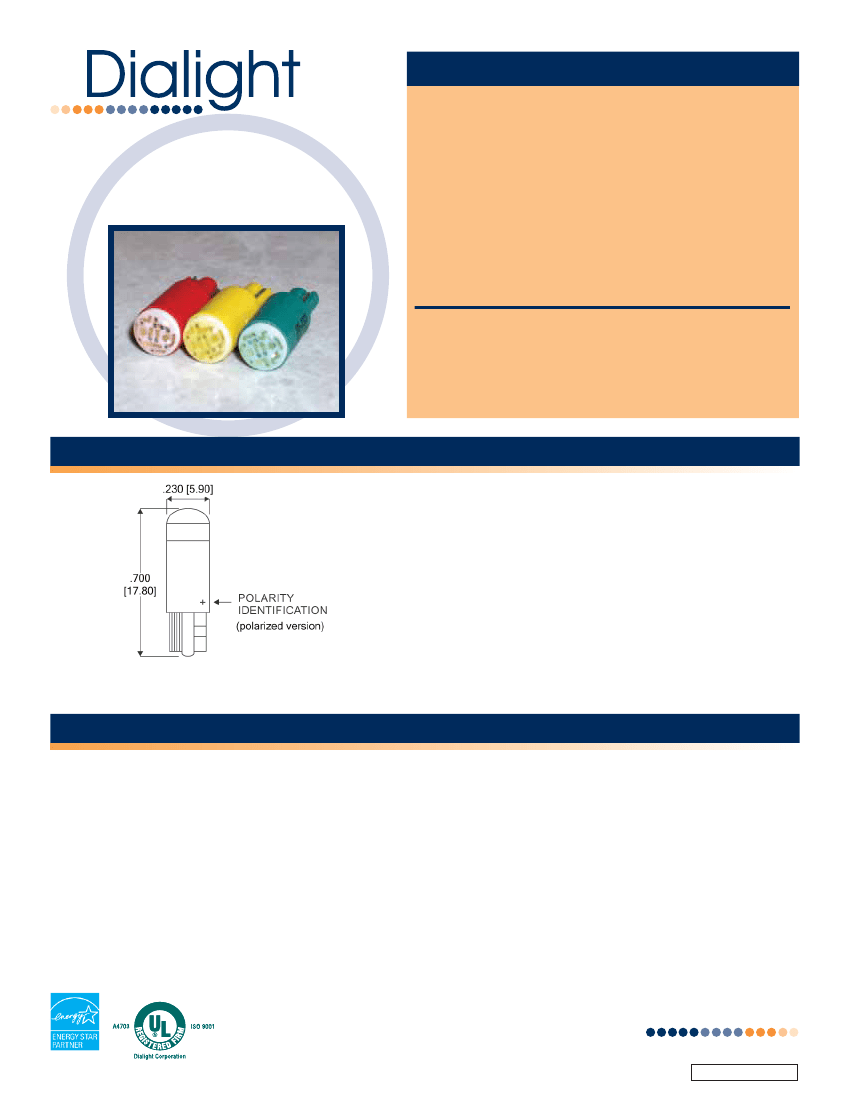

585 Series
Multi-Chip BASED LED
T 1 3/4 Wedge
SPECIFICATIONS
Operating Voltages: 6, 14, and 28 VDC
Polarized and non-polarized available
Operating temperature: -20°C to +60°C
Storage temperature: -30
o
C
to
+100
o
C
Replaces incandescent lamp numbers: 16, 17,
18, 37, 70, 73, 74, 79, 84, 85 and 86.*
* See Dialight’s Incandescent lamp/based LED
cross reference for a complete listing.
Measurements are typical
Dimensions are inches [mm]
CONSIDERATIONS
Since lens caps act as filters for the light emitted from the based LED, it is important to match the emitting color of the
LED. If not matched properly, the overall light output may be substantially reduced. Dialight recommends using transparent lenses,
which will optimize the light output.
If you are unfamiliar with the polarity of the circuit, Dialight recommends using the non-polarized version.
Although these lamps can be operated at a lower voltage, which will increase the life, the intensity will be reduced.
Operation of the based LED at a higher voltage should not exceed 10% above the recommended voltage.
Dialight does not recommend that based LED lamps be used in neon sockets.
Dialight reserves the right to make changes at any time
in order to supply the best product possible.
Dialight Corporation
1501 Route 34 South • Farmingdale, NJ 07727 USA
Tel: (1) 732-919-3119 • Fax: (1) 732-751-5778 • www.dialight.com
a Roxboro Group Company
MDEL585WG001_B
585 Series
Multi-Chip BASED LED
T 1 3/4 Wedge
POLARIZED
Part Number
585-2211
585-2311
585-2411
585-2213
585-2313
585-2413
585-2215
585-2315
585-2415
Color
Red
Green
Yellow
Red
Green
Yellow
Red
Green
Yellow
Peak
Nominal Voltage Forward Current
Wavelength (nm)
(VDC)
TYP. (mA)
660
565
585
660
565
585
660
565
585
6
6
6
14
14
14
28
28
28
50
46
44
30
28
30
16
15
15
Intensity
TYP. (mcd)
67
77
22
60
70
23
64
75
23
NON-POLARIZED
Peak
Nominal Voltage Forward Current
Wavelength (nm)
(VDC)
TYP. (mA)
660
565
585
660
565
585
660
565
585
6
6
6
14
14
14
28
28
28
75
67
73
26
23
24
14
13
13
Part Number
585-2221
585-2321
585-2421
585-2223
585-2323
585-2423
585-2225
585-2325
585-2425
Color
Red
Green
Yellow
Red
Green
Yellow
Red
Green
Yellow
Intensity
TYP. (mcd)
50
56
18
50
56
18
56
65
20
Based LE Ds
SELECTION
With the technological advancements in Light Emitting Diodes (LEDs) brightness can now rival the incandescent lamp when used
in similar packages. These advancements have created a new type of product called the based LED - an LED with the functionality
of an incandescent bulb.
The following styles are currently available in red, green, yellow, blue and white:
T 1 3/4 Midget Flange
T 1 3/4 Bi-Pin
T 1 3/4 Wedge (T5)
T 3 1/4 Miniature Bayonet (BA9s)
T 3 1/4 Miniature Screw (E10)
T 3 1/4 Wedge (T10)
T 2 Telephone Slide
15mm SC Bayonet (BA15s)
Dialight’s line of based LEDs continues to grow. Please visit our website for more information.
www.dialight.com
Dialight reserves the right to make changes at any time
in order to supply the best product possible.
Dialight Corporation
1501 Route 34 South • Farmingdale, NJ 07727 USA
Tel: (1) 732-919-3119 • Fax: (1) 732-751-5778 • www.dialight.com
a Roxboro Group Company
MDEL585WG001_A
