Free NetCommander-AXS management software is available to access and control all NetCommander
IP KVM switches (B070 and B072 Series). Download is available by clicking the Technical Support link
in right-hand column.
Highlights
q
19 in. LCD supports video
resolutions up to 1366 x 768
NetCommander 16-Port Cat5 1U Rack-Mount
Console KVM Switch, 2+1 Users, 19 in. LCD, IP
Remote Access
MODEL NUMBER:
B070-016-19-IP2
q
Cat5e/6 cabling connects
computers/servers up to 100 ft.
away
q
Simultaneous support for 3
users—1 local, 2 remote
q
Supports IPv4 and IPv6
Mounts in 1U of space in EIA-
standard 19 in. rack
q
System Requirements
q
Computer/server with HD15 or
USB port and PS/2
keyboard/mouse ports
q
B078-Series SIU and Cat5e/6
cabling required for each
connected computer/server
q
For computers with Displayport
or HDMI, change to VGA using
Tripp Lite adapters P134-06N-
VGA-V2 or P131-06N.
Maximum video resolutions
using adapters may vary.
1U KVM switch connects up to 16 computers and/or servers and allows up to 3 users to control them
simultaneously. Recommended for IT professionals who need convenient remote and rack-side access to
data center components.
Description

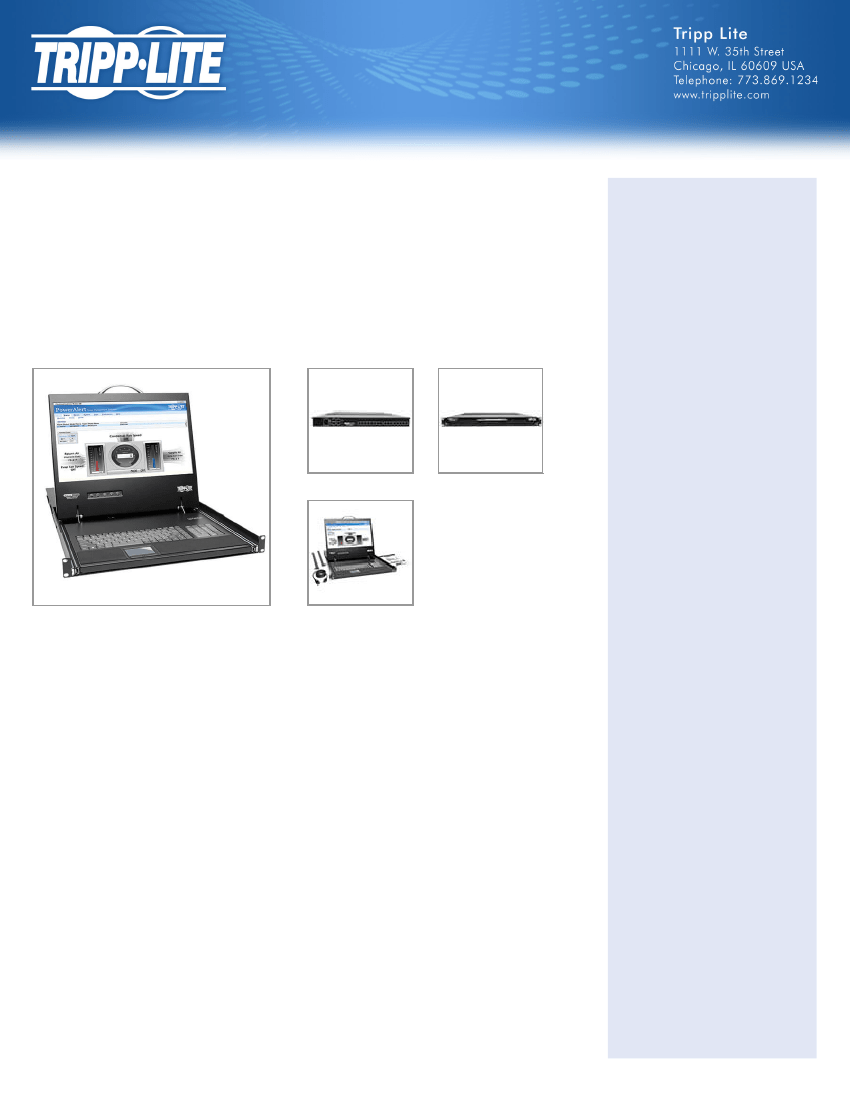

Tripp Lite’s B070-016-19-IP2 NetCommander® 16-Port Cat5 1U Rack-Mount Console KVM Switch
includes a full keyboard, 19-inch LCD screen and touchpad in a 1U rack-mount console. It connects up to
16 computers and/or servers and allows you to control them locally or remotely via LAN, WAN or web
browser.
q
q
Windows or Linux operating
system (Windows required for
remote access)
Currently not compatible with
HP Gen 10 Servers
Connect computers/servers up to 100 feet away using Cat5e/6 cabling and a compatible Tripp Lite B078-
Series server interface unit (B078-101-USB2 required for Fast Virtual Media speeds up to 12 Mbps). Dual
10/100 LAN ports ensure uninterrupted remote access in case one port should fail. A local user and two
remote users can log on simultaneously and switch between the 16 ports using an on-screen display,
hotkeys or remote toolbar. Multi-level password protection prohibits unauthorized access.
q
q
Remote console computers
require minimum Pentium 4 with
2 GB memory
SCHUKO (P054-006) or BS-
1363 (P056-006-10A) power
cords required for international
use
The LCD supports video resolutions up to 1366 x 768. Dual serial ports allow control of serial devices,
such as IP PDUs, firewalls and routers. You can assign individual ports to an IP PDU port to power on/off
the server connected to that port. The heavy-duty steel housing slides neatly into the rack when not in
use.
Package Includes
Free NetCommander-AXS management software is available to access and control your Tripp Lite
1/4
NetCommander IP KVM switches (B070 and B072 Series). From a single interface, you can access
server ports on any of your KVM switches, power cycle or power on/off outlets of IP PDUs, and manage
KVM settings. This software can be found at the Technical Support link in the right-hand column.
q
B070-016-19-IP2
NetCommander 16-Port Cat5
1U Rack-Mount Console KVM
Switch
Features
Includes 16-Port KVM Switch, 19 in. LCD, Keyboard and Touchpad
q
q
C13 to NEMA 5-15P power
cord, 6 ft.
Mounts in 1U of space in EIA-standard 19 in. rack
Connects up to 16 computers/servers up to 100 ft. away via Cat5e/6 cabling and Tripp Lite B078 Series
SIUs
q
q
Rack-mounting hardware
Quick Start Guide
q
q
To convert DisplayPort or HDMI computers to VGA, use Tripp Lite adapters P134-06N-VGA-V2 or
P131-06N. Maximum video resolutions using adapters may vary.
q
Fast Virtual Media KVM system: U.S. Patent #9,417,720
BIOS-level control of any server brand and model
q
IP Remote Access for Fewer Trips to the Server Room
q
Java-based application allows Windows computers to control a target server via web browser from any
location over a secured IP connection
q
A non-browser client is available that allows Windows computers to remotely access the KVM without
the need for a browser and without the need to install Java
q
Up to 3 users (1 local, 2 remote) can sign in simultaneously
Up to 5 users can share a single session
Supports both IPv4 and IPv6
Dual 10/100 Mbps LAN ports for uninterrupted remote access in case one port should fail
q
q
q
Simplifies IT Tasks
q
Users can switch between ports via on-screen display, hotkeys or remote toolbar
Dual RJ45 serial ports for connecting IP devices, such as PDUs, firewalls and routers
Assign individual ports to an IP PDU port to power on/off the server connected to that port
Virtual Media allows .iso file to be mounted to target server and accessed directly
Supports RADIUS and LDAP/S authentication
Log tracks events on your installation
q
q
q
q
q
Large 19 in. LCD Screen
q
Supports video resolutions up to 1366 x 768; 1920 x 1080 remotely
DDC emulation allows for optimal output to LCD
q
Advanced Security Features
q
Multi-level password protection—create administrator accounts with full access and user accounts with
limited access
q
Supports TLS 1.2 security protocol
2/4
Free NetCommander-AXS Management Software
q
Access and manage all of your NetCommander IP KVM switches from one interface
Access server ports on any KVM, power cycle or power on/off outlets of IP PDUs, and manage KVM
settings
q
q
Free download available at Technical Support link in right-hand column
TAA-Compliant
q
Compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases
Specifications
OVERVIEW
UPC Code
Console
037332177315
Yes
INPUT
Nominal Input Voltage(s) Supported
Nominal Input Voltage Description
Input Frequency
Input Current
100V AC; 110V AC; 115V AC; 120V AC; 127V AC; 140V AC; 200V AC; 208V AC; 220V AC; 230V AC; 240V AC
Internal Switching 100-240 VAC 50/60Hz
50/60Hz
120V (1.2A) / 230V (0.7A)
PHYSICAL
Shipping Dimensions (hwd / in.)
Shipping Dimensions (hwd / cm)
Shipping Weight (lbs.)
Shipping Weight (kg)
Unit Dimensions (hwd / in.)
Unit Dimensions (hwd / cm)
Unit Weight (lbs.)
Unit Weight (kg)
Color
LCD Monitor (in.)
LCD Monitor (cm)
4.92 x 22.64 x 32.05
12.50 x 57.51 x 81.41
35.96
16.31
1.71 x 18.79 x 27.26
4.34 x 47.73 x 69.24
28.46
12.91
Black
19
48.26
ENVIRONMENTAL
Storage Temperature Range
Relative Humidity
-20 to 60 C (-4 to 140 F)
0 to 80% RH, Non-Condensing
3/4
Operating Temperature
BTUs
0 to 40 C (32 to 104 F)
(Line Mode) 102 BTU/Hr / (Standby Mode) 17.06 BTU/Hr
COMMUNICATIONS
Port Control
IP Remote Access
Hotkeys, OSD, Remote Toolbar
Yes
CONNECTIONS
Ports
PC/Server Connections
16
PS/2; USB; VGA
FEATURES & SPECIFICATIONS
Autoscan (Y,N)
Number of Users
NIAP-Certified Secure
Cat5 KVM Switch
Technology
N
3
No
Yes
Cat5/5e; Cat6; Cat6a; PS/2; Serial (RS232); USB; VGA/SVGA
CERTIFICATIONS
Certifications
UL 60950-1 (USA), CAN/CSA (Canada), FCC Part 15 Class A, CE, IEC 60950-1
WARRANTY
Product Warranty Period
(Worldwide)
1-year limited warranty
© 2018 Tripp Lite. All rights reserved. All product and company names are trademarks or registered trademarks of their respective holders. Use of them does
not imply any affiliation with or endorsement by them. Tripp Lite has a policy of continuous improvement. Specifications are subject to change without notice.
Tripp Lite uses primary and third-party agencies to test its products for compliance with standards. See a list of Tripp Lite's testing agencies:
https://www.tripplite.com/products/product-certification-agencies
4/4
