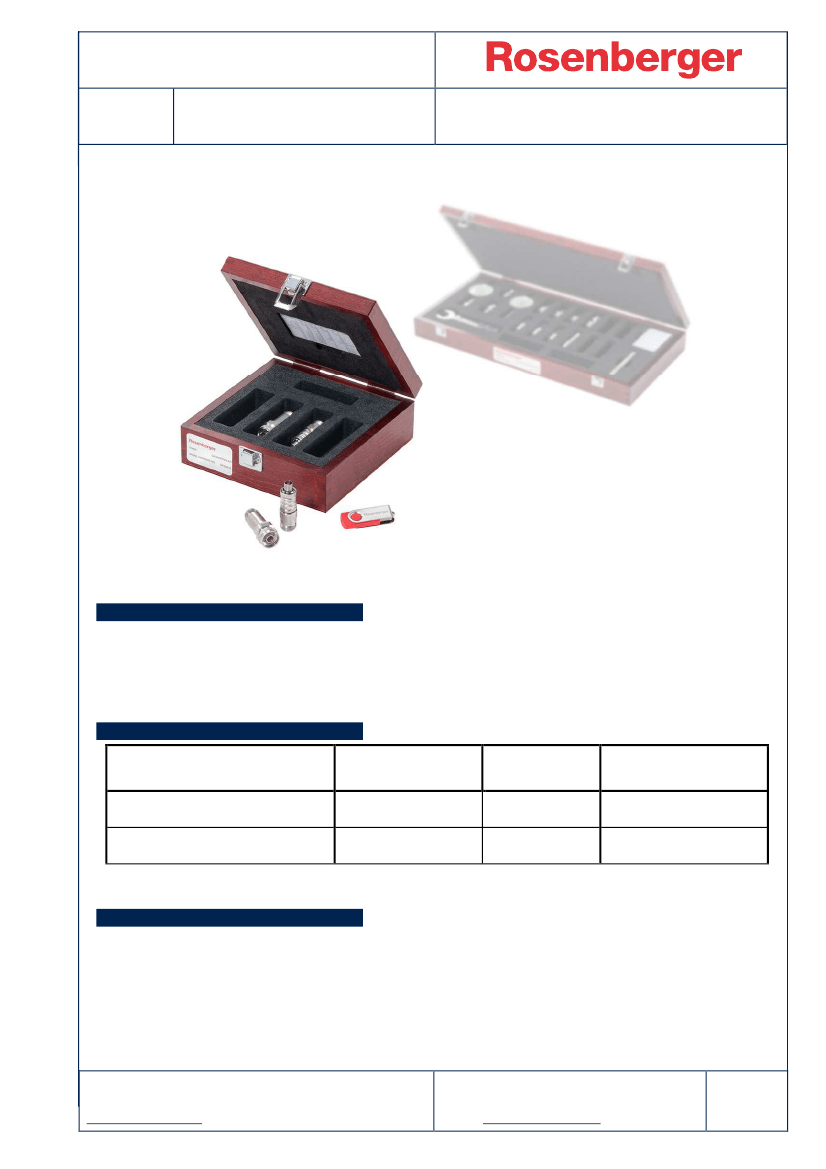

Technical Data Sheet
SnapN
50
Ω
Calibration Kit
Adapter Version
53QCK070-150
Dieses Dokument ist urheberrechtlich geschützt
●
This document is protected by copyright
●
Rosenberger Hochfrequenztechnik GmbH & Co. KG
Usage
Please note: This Calibration Kit includes a set of adaptors only. The full functionality is only given with an
additional RPC-N calibration kit, details see necessary accessory.
Please see application note AN002
“S-Parameter Measurements with Non-Metrology Connector Interfaces”
on the Rosenberger homepage for further, more detailed information.
Contents
Device
Adaptor
SnapN jack to RPC-N plug
Adaptor
SnapN plug to RPC-N jack
a.
Part number
53QK105-S20S3
53QS105-K20S3
Quantity
2
2
Calibration Option
a
FC
FC
See “Declaration of calibration options” for explanation.
Necessary accessory
- Rosenberger Calibration Kit RPC-N
Full Version
or
- Rosenberger Calibration Kit RPC-N
Industrial Version
or
- Equivalent OSLT Type N 50 Ohm Calibration Kit
05CK001-150
05CK010-150
RF_35/05.10/6.1
Rosenberger Hochfrequenztechnik GmbH & Co. KG
P.O.Box 1260
D-84526 Tittmoning
Germany
www.rosenberger.de
Tel. : +49 8684 18-0
Fax : +49 8684 18-499
Email : info@rosenberger.de
Page
1/2
Technical Data Sheet
SnapN
50
Ω
Calibration Kit
Adapter Version
53QCK070-150
Documentation
This
kit is delivered with
•
USB-Stick
Standard Definitions as data files for Vector Network Anaylzer Family PNA (Keysight/Agilent).
Calibration Certificate as PDF-file.
•
Standard Definitions Cards
Printed Standard Definitions that can be used on nearly all Vector Network Analyzers.
•
Kit Info Card
Handling precautions and information for installing Standard Definitions on a Vector Network Analyzer.
•
Calibration Certificate
Details see “Declaration of calibration options”
•
Operating Manual
Dieses Dokument ist urheberrechtlich geschützt
●
This document is protected by copyright
●
Rosenberger Hochfrequenztechnik GmbH & Co. KG
Electrical specifications
This specification covers electrical key values for the main calibration standards of the calibration kit.
Specific datasheets are available for each component among the part number.
Calibration standard
Frequency
DC
> 4 GHz
to
to
≤
4 GHz
≤
11 GHz
Parameter
Specification
≥
36 dB
≥
27 dB
Calibration adaptors
Return Loss
Declaration of calibration options
Factory Calibration
Standard delivery for this kit includes a Factory Calibration. The Calibration Certificate issued reports
individual calibration results,
traceable to Rosenberger standards,
national / international standards are
not available. Model based standard definitions of the calibration standards are reported in an
Agilent/Keysight, Rohde & Schwarz and Anritsu compatible VNA format.
Accredited Calibration
Not available.
For further, more detailed information see application note AN001 on the Rosenberger homepage.
Calibration interval
Recommendation
12 months
Recommended accessories
- Rosenberger Test Port Adaptor
- Rosenberger VNA Test cable kit and Microwave Cable Assemblies
For further, more detailed information please visit our homepage
www.rosenberger.com.
While the information has been carefully compiled to the best of our knowledge, nothing is intended as representation or warranty on
our part and no statement herein shall be construed as recommendation to infringe existing patents. In the effort to improve our
products, we reserve the right to make changes judged to be necessary.
RF_35/05.10/6.1
Draft
M. Scherbauer
Date
27.10.15
Approved
H.Babinger
Date
12.01.18
Rev.
d00
Engineering change number
17-2178
Name
M.Ruf
Date
12.01.18
Rosenberger Hochfrequenztechnik GmbH & Co. KG
P.O.Box 1260
D-84526 Tittmoning
Germany
www.rosenberger.de
Tel. : +49 8684 18-0
Fax : +49 8684 18-499
Email : info@rosenberger.de
Page
2/2
