SG1526J-883B

Description
Voltage Mode PWM Controller 100mA 350kHz 18-Pin CDIP Tube
File Size191KB,9 Pages
ManufacturerMicrosemi
Websitehttps://www.microsemi.com
Download Datasheet Parametric Compare View All

SG1526J-883B Online Shopping

Suppliers Part Number Price MOQ In stock
SG1526J-883B - - View Buy Now

SG1526J-883B Overview

Voltage Mode PWM Controller 100mA 350kHz 18-Pin CDIP Tube

SG1526J-883B Parametric

Parameter NameAttribute value
EU restricts the use of certain hazardous substancesNot Compliant
ECCN (US)EAR99
Part StatusActive
HTS8542.31.00.01
TypeVoltage Mode PWM Controller
Control MethodVoltage
TopologyPush-Pull
Number of PWM Outputs2
Switching Frequency (kHz)350
Maximum Duty Cycle (%)49(Typ)
Rise Time (ns)300
Output Current (mA)100(Max)
Fall Time (ns)100
Operating Supply Voltage (V)4.5 to 35
Minimum Operating Supply Voltage (V)4.5
Maximum Operating Supply Voltage (V)35
Adjustable OutputNo
On/Off PinYes
Synchronous PinYes
Minimum Operating Temperature (°C)-55
Maximum Operating Temperature (°C)125
Supplier Temperature GradeMilitary
PackagingTube
Supplier PackageCDIP
Pin Count18
Standard Package NameDIP
MountingThrough Hole
PCB changed18
Lead ShapeThrough Hole

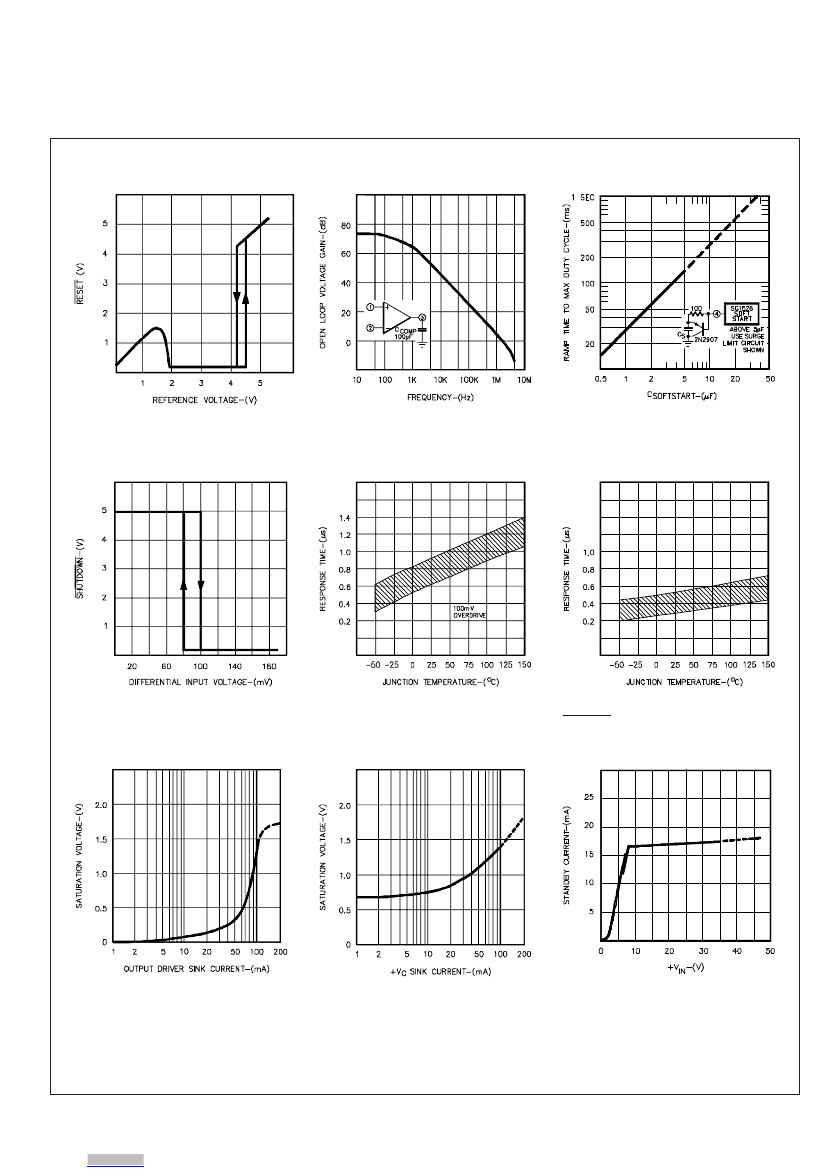

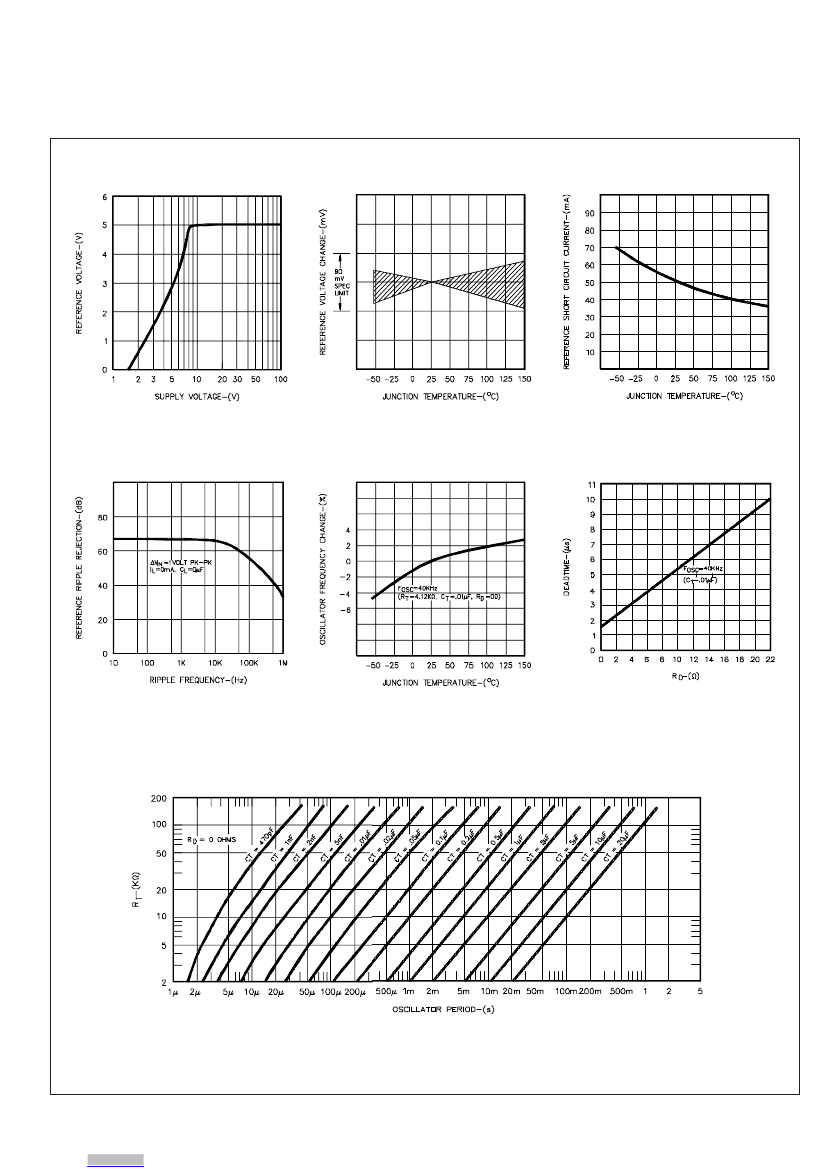

SG1526/SG2526/SG3526
REGULATING PULSE WIDTH MODULATOR
DESCRIPTION
The SG1526 is a high performance monolithic pulse width modulator
circuit designed for fixed-frequency switching regulators and other
power control applications. Included in an 18-pin dual-in-line package
are a temperature compensated voltage reference, sawtooth oscillator,
error amplifier, pulse width modulator, pulse metering and steering logic,
and two low impedance power drivers. Also included are protective
features such as soft-start and undervoltage lockout, digital current
limiting, double pulse inhibit, a data latch for single pulse metering,
adjustable deadtime, and provision for symmetry correction inputs. For
ease of interface, all digital control ports are TTL and B-series CMOS
compatible. Active LOW logic design allows wired-OR connections for
maximum flexibility. This versatile device can be used to implement
single-ended or push-pull switching regulators of either polarity, both
transformerless and transformer coupled. The SG1526 is characterized
for operation over the full military ambient junction temperature range of
-55°C to +150°C. The SG2526 is characterized for operation from -25°C
to +150°C, and the SG3526 is characterized for operation from 0°C to
+125°C.
FEATURES
8 to 35 volt operation
5V reference trimmed to ±1%
1Hz to 350KHz oscillator range
Dual 100mA source/sink outputs
Digital current limiting
Double pulse suppression
Programmable deadtime
Undervoltage lockout
Single pulse metering
Programmable soft-start
Wide current limit common mode range
TTL/CMOS compatible logic ports
Symmetry correction capability
Guaranteed 6 unit synchronization
HIGH RELIABILITY FEATURES - SG1526
Available to MIL-STD-883B and DESC SMD
Radiation data available
LMI level "S"processing available

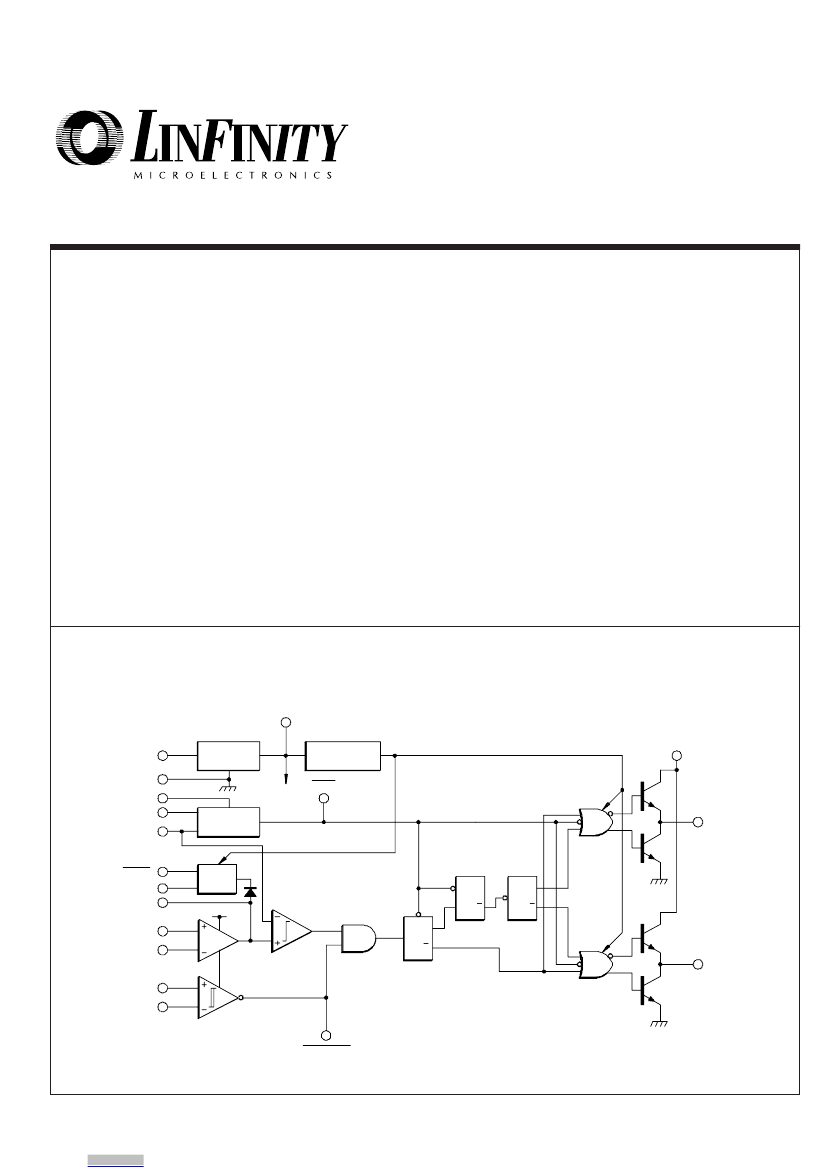

BLOCK DIAGRAM
V
REF
+V
+V
IN
GROUND
R
D
R
T
C
T
Reference
Regulator
Undervoltage
Lockout
SYNC
C
To Internal
Circuitry
Oscillator
OUTPUT A
RESET
C
SOFTSTART
COMPENSATION
+ ERROR
Soft
Start
+V
IN
S
Amp
D
Q
METERING
F/F
Q
S
T
R
Q
Q
Q
TOGGLE
F/F
OUTPUT B
MEMORY
F/F
— ERROR
+ C.S.
— C.S.
SHUTDOWN
Rev 1.1a
3.19.2005
Copyright
©
1994
1
11861 Western Avenue
Garden Grove, CA 92841
(714) 898-8121
FAX: (714) 893-2570
Microsemi Inc.

SG1526J-883B Related Products

SG1526J-883B SG1526J SG3526DW SG2526DW SG2526N SG3526N
Description Voltage Mode PWM Controller 100mA 350kHz 18-Pin CDIP Tube Voltage Mode PWM Controller 100mA 350kHz 18-Pin CDIP Tube Voltage Mode PWM Controller 100mA 350kHz 18-Pin SOIC W Voltage Mode PWM Controller 100mA 350kHz 18-Pin SOIC W Voltage Mode PWM Controller 100mA 350kHz 18-Pin PDIP Voltage Mode PWM Controller 100mA 350kHz 18-Pin PDIP
EU restricts the use of certain hazardous substances Not Compliant Not Compliant Compliant Compliant - Compliant
ECCN (US) EAR99 EAR99 EAR99 EAR99 - EAR99
Part Status Active Active Active Active - Active
HTS 8542.31.00.01 8542.39.00.01 8542.39.00.01 8542.39.00.01 - 8542.39.00.01
Type Voltage Mode PWM Controller Voltage Mode PWM Controller Voltage Mode PWM Controller Voltage Mode PWM Controller - Voltage Mode PWM Controller
Control Method Voltage Voltage Voltage Voltage - Voltage
Topology Push-Pull Push-Pull Push-Pull Push-Pull - Push-Pull
Number of PWM Outputs 2 2 2 2 - 2
Switching Frequency (kHz) 350 350 350 350 - 350
Maximum Duty Cycle (%) 49(Typ) 49(Typ) 49(Typ) 49(Typ) - 49(Typ)
Rise Time (ns) 300 300 300 300 - 300
Output Current (mA) 100(Max) 100(Max) 100(Max) 100(Max) - 100(Max)
Fall Time (ns) 100 100 100 100 - 100
Operating Supply Voltage (V) 4.5 to 35 4.5 to 35 4.5 to 35 4.5 to 35 - 4.5 to 35
Minimum Operating Supply Voltage (V) 4.5 4.5 4.5 4.5 - 4.5
Maximum Operating Supply Voltage (V) 35 35 35 35 - 35
Adjustable Output No No No No - No
On/Off Pin Yes Yes Yes Yes - Yes
Synchronous Pin Yes Yes Yes Yes - Yes
Maximum Operating Temperature (°C) 125 125 70 85 - 70
Supplier Package CDIP CDIP SOIC W SOIC W - PDIP
Pin Count 18 18 18 18 - 18
Standard Package Name DIP DIP SOP SOP - DIP
Mounting Through Hole Through Hole Surface Mount Surface Mount - Through Hole
PCB changed 18 18 18 18 - 18
Lead Shape Through Hole Through Hole Gull-wing Gull-wing - Through Hole
