SMDB03LCC
THRU
SMDB24LCC
Technical Data
Data Sheet N0427, Rev. C
SMDB03LCC THRU SMDB24LCC TVS ARRAY SERIES
Description
The SMDBXXLCC series of TVS array have been
designed to provide bidirectional protection for
sensitive electronics from damage due to voltage
transients caused by electrostatic discharge
(ESD), electrical fast transients (EFT), lightning
and other voltage-induced transient events. The
device can be used to protect combinations of four
bidirectional lines.

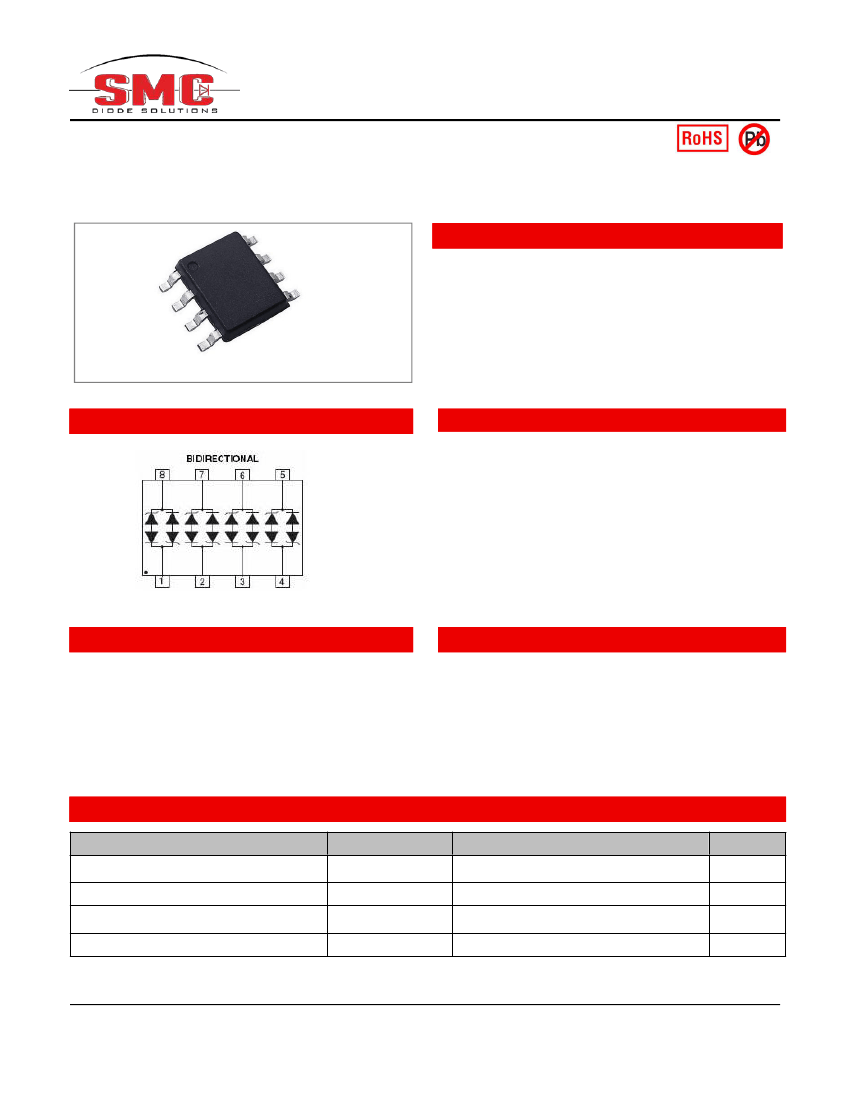

SO-8
Schematic & Pin Configuration
Features
Protects 3.3, 5, 12, 15, 24 V Components
Bidirectional
Provides Electrically Isolated Protection
500 W @ 8/20 us
Protects 4 Lines
SO-8 Packaging
LOW CAPACITANCE: 5PF
“-A” is an AEC-Q101 qualified device
This is a Pb − Free Device
All SMC parts are traceable to the wafer lot
Additional testing can be offered upon request
Mechanical Characteristics
SO-8 Surface Mount Package
Approximate Weight: 0.1 grams
PIN #1 Indicator: DOT on top of package
Packaging: Tubes or Tape & Reel per EIA
Standard 481
Application
RS-232 & RS-422 data lines
Microprocessor Based Equipment
Notebooks, Desktops, & Servers
LAN/WAN Equipment
Serial and Parallel Port
Peripherals
Absolute Maximum Ratings:
Parameter
Peak Pulse Power, 8/20 μs Wave shape
Operating Temperature
Storage Temperature
Lead Soldering Temperature
Symbol
P
T
J
T
stg
T
L
Value
500
-55 to +125
-55 to +150
260 (10 Sec.)
Units
W
C
C
C
China - Germany - Korea - Singapore - United States
http://www.smc-diodes.com - sales@ smc-diodes.com
SMDB03LCC
THRU
SMDB24LCC
Technical Data
Data Sheet N0427, Rev. C
Electrical Characteristics
@25°C
Stand-off
Voltage
Vwm
(V)
Max
3.3
5.0
12.0
15.0
24.0
Breakdown
Voltage
V
BR
@1mA
(V)
Min
4
6
13.3
16.7
26.7
Clamping
Voltage
Vc
@1A
(V)
Max
7
9.8
19
24
43
Leakage
Current
I
R
@ Vwm
(uA)
Max
200
20
1
1
1
Capacitance
(f = 1MHz)
C
@ 0V
(pF)
Max
15
15
15
15
15
Temperature
Coefficient of
V
BR
a(V
BR)
mv/°C
Max
-5
1
8
11
28
Part Number
SMDB03LCC
SMDB05LCC
SMDB12LCC
SMDB15LCC
SMDB24LCC

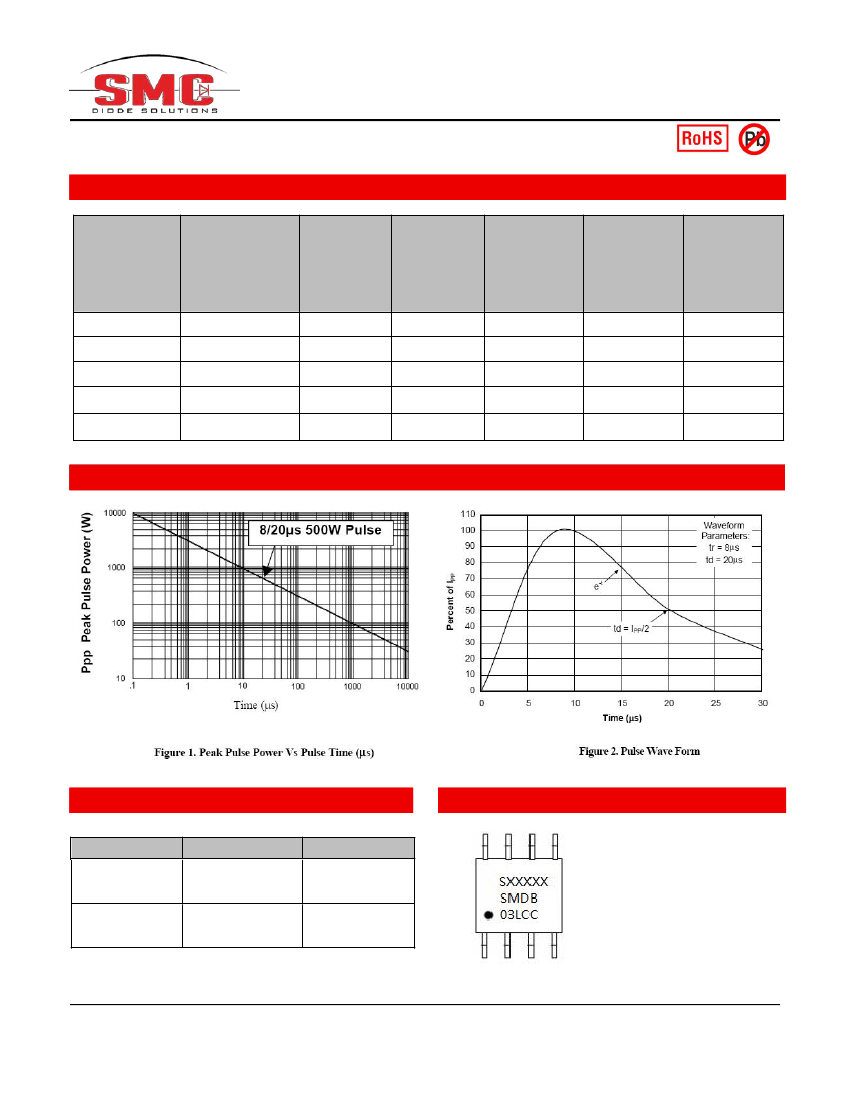

Ratings and Characteristics Curves
Ordering Information
Device
SMDB03LCC
THRU
SMDB24LCC
SMDB03LCCTR
THRU
SMDB24LCCTR
Marking Diagram
Shipping
2500pcs / reel
2500pcs / reel
Where XXXXX is YYWWL
SMDB03LCC
S
YY
WW
L
= Part Number
=S
= Year
= Week
= Lot Number
Package
SO-8
(Pb-Free)
SO-8
(Pb-Free)
For information on tape and reel specifications, including part
orientation and tape sizes, please refer to our tape and reel
packaging specification.
Cautions：Molding
resin
Epoxy resin UL:94V-0
China - Germany - Korea - Singapore - United States
http://www.smc-diodes.com - sales@ smc-diodes.com
SMDB03LCC
THRU
SMDB24LCC
Technical Data
Data Sheet N0427, Rev. C

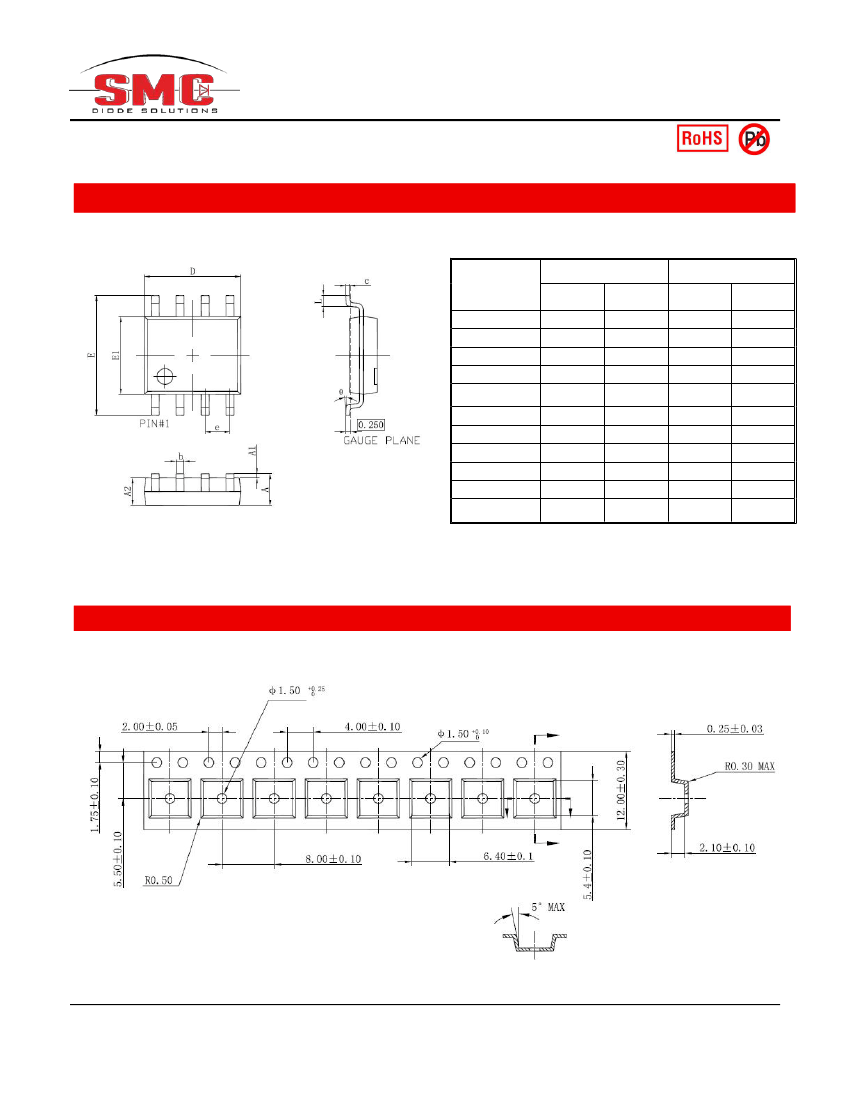

Mechanical Dimensions SO-8
SYMBOL
A
A1
A2
b
c
D
e
E
E1
L
θ
Millimeters
MIN.
1.350
0.100
1.350
0.306
0.150
4.720
1.140
5.700
3.750
0.300
0°
MAX.
1.800
0.250
1.750
0.510
0.300
5.120
1.400
6.300
4.150
1.270
8°
Inches
MIN.
0.053
0.004
0.053
0.012
0.006
0.186
0.045
0.224
0.148
0.012
0°
MAX.
0.071
0.010
0.069
0.020
0.012
0.202
0.055
0.248
0.163
0.050
8°
Carrier Tape Specification SO-8
China - Germany - Korea - Singapore - United States
http://www.smc-diodes.com - sales@ smc-diodes.com
SMDB03LCC
THRU
SMDB24LCC
Technical Data
Data Sheet N0427, Rev. C
DISCLAIMER:
1- The information given herein, including the specifications and dimensions, is subject to change without prior notice to improve product
characteristics. Before ordering, purchasers are advised to contact the SMC Diode Solutions sales department for the latest version of
the datasheet(s).
2- In cases where extremely high reliability is required (such as use in nuclear power control, aerospace and aviation, traffic equipment,
medical equipment , and safety equipment) , safety should be ensured by using semiconductor devices that feature assured safety or by
means of users’ fail-safe precautions or other arrangement .
3- In no event shall
SMC Diode Solutions
be liable for any damages that may result from an accident or any other cause during
operation of the user’s units according to the datasheet(s).
SMC Diode Solution
assumes no responsibility for any intellectual property
claims or any other problems that may result from applications of information, products or circuits described in the datasheets.
4- In no event shall
SMC Diode Solutions
be liable for any failure in a semiconductor device or any secondary damage resulting from use
at a value exceeding the absolute maximum rating.
5- No license is granted by the datasheet(s) under any patents or other rights of any third party or
SMC Diode Solutions.
6- The datasheet(s) may not be reproduced or duplicated, in any form, in whole or part, without the expressed written permission of
SMC
Diode Solutions.
7- The products (technologies) described in the datasheet(s) are not to be provided to any party whose purpose in their application will
hinder maintenance of international peace and safety nor are they to be applied to that purpose by their direct purchasers or any third
party. When exporting these products (technologies), the necessary procedures are to be taken in accordance with related laws and
regulations..
