14KESD8.0 Overview

AXIAL-LEAD TVS

14KESD8.0 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Microsemi
Parts packaging code	DO-41
package instruction	HERMETIC SEALED, GLASS, DO-41, 2 PIN
Contacts	2
Reach Compliance Code	unknown
ECCN code	EAR99
Minimum breakdown voltage	8.89 V
Shell connection	ISOLATED
Maximum clamping voltage	24.8 V
Configuration	SINGLE
Diode component materials	SILICON
Diode type	TRANS VOLTAGE SUPPRESSOR DIODE
JEDEC-95 code	DO-204AL
JESD-30 code	O-LALF-W2
JESD-609 code	e0
Maximum non-repetitive peak reverse power dissipation	4000 W
Number of components	1
Number of terminals	2
Maximum operating temperature	200 °C
Minimum operating temperature	-65 °C
Package body material	GLASS
Package shape	ROUND
Package form	LONG FORM
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
polarity	UNIDIRECTIONAL
Maximum power dissipation	1.5 W
Certification status	Not Qualified
Maximum repetitive peak reverse voltage	8 V
Maximum reverse current	25 µA
surface mount	NO
technology	AVALANCHE
Terminal surface	TIN LEAD
Terminal form	WIRE
Terminal location	AXIAL
Maximum time at peak reflow temperature	NOT SPECIFIED

Preview

Download Datasheet

View All

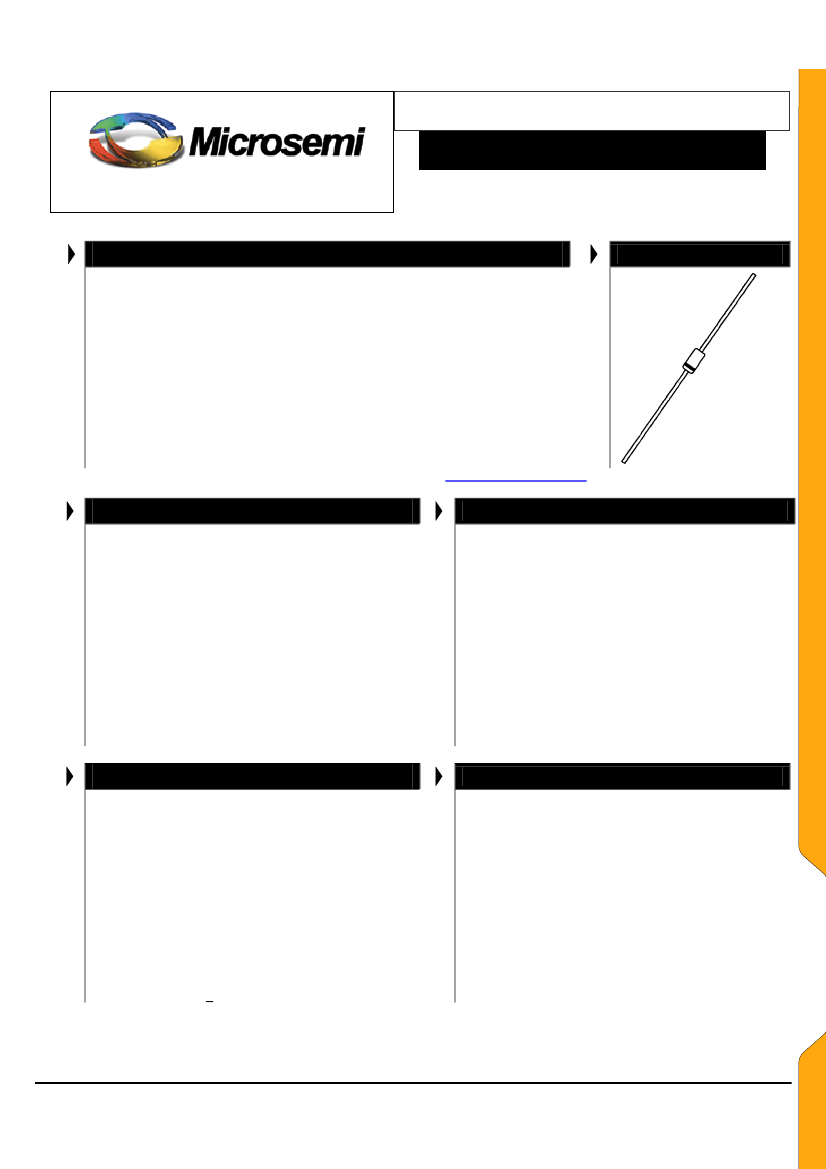

14KESD5.0 thru 14KESD170CA

AXIAL-LEAD TVS

SCOTTSDALE DIVISION

DESCRIPTION

These small axial-leaded TVS devices feature the ability to clamp

dangerous high voltage, short-term transients such as produced by directed

or radiated electrostatic discharge phenomena before entering sensitive

component regions of a circuit design. They are small economical transient

voltage suppressors targeted primarily for short-term transients below a few

microseconds while still achieving significant peak-pulse-power capability

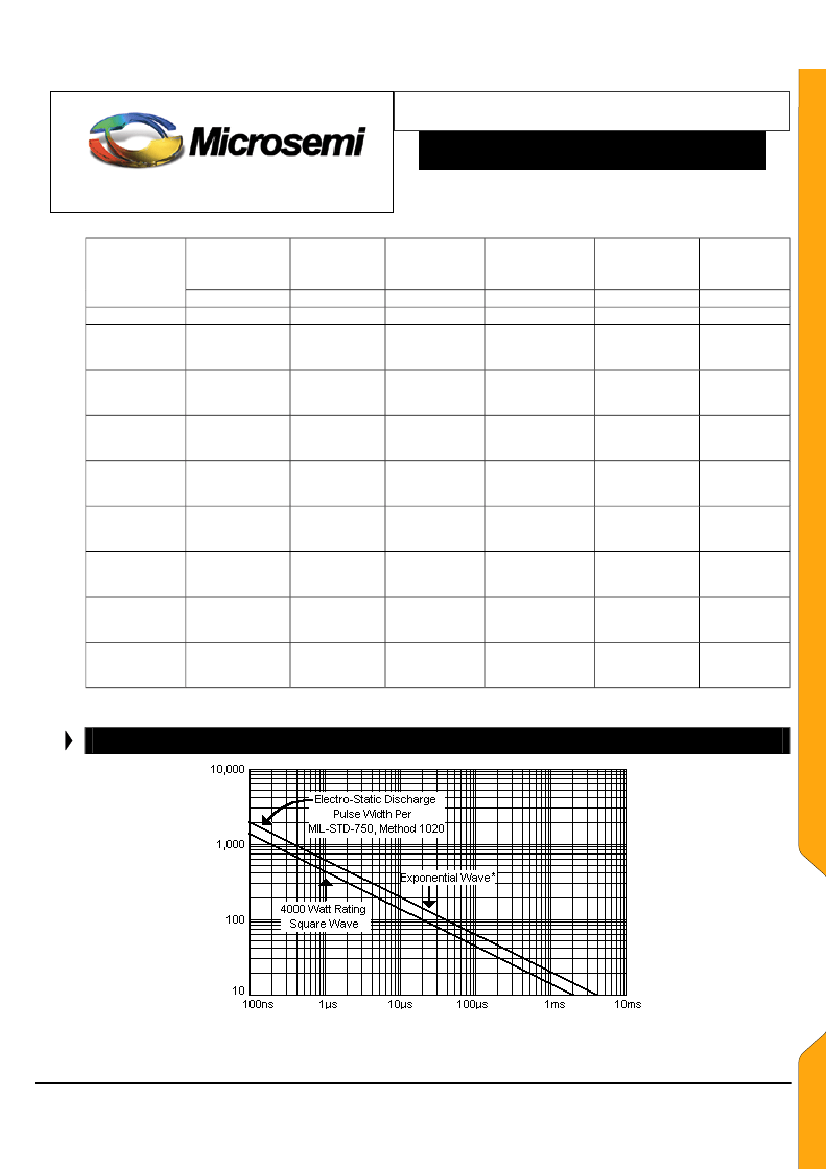

as illustrated in Figure #1.

APPEARANCE

WWW .

Microsemi

DO-41

(DO-204AL)

IMPORTANT:

For the most current data, consult

MICROSEMI’s

website:

http://www.microsemi.com

FEATURES

•

Excellent protection in clamping direct ESD level

transients in excess of 40,000 V per MIL-STD-750,

Method 1020 (approx. 150 ns exponential wave)

Absorbs ESD level transients* of 14,000 Watts per

MIL-STD-750, Method 1020 (approximately 150 ns

exponential wave, or one microsecond transients

up to 4000 watts. See Figure #1 and #2 for overall

transient Peak Pulse Power.

Clamps Transients in less than 100 picoseconds

Working Stand-off Voltage range of 5V to 170V

Hermetic DO-41 Package. Also available in surface

mount DO-213AB MELF package (see separate

data sheet)

•

APPLICATIONS / BENEFITS

Protects Sensitive circuits from short duration fast

rise time transients such as Electrostatic Discharge

(ESD) or Electrical Fast Transients (EFT)

Minimal capacitance (See Figure #3)

Flexible axial-lead mounting terminals

Bidirectional features available by adding a “C” or

“CA” suffix

•

MAXIMUM RATINGS

•

4000 Watts for One Microsecond Square Wave or

14,000 watts per ESD Wave form of MIL-STD-750,

method 1020.

See Surge Rating curve in Figures #1 and 2.

Operating and storage temperature –65

C to 175

THERMAL RESISTANCE: Less than 83

C/Watt

junction to lead at 0.375 inches from body.

DC power dissipation 1500 mW at T

= 75

C at 3/8

inch (10 mm) lead length from body.

Derate at 22.8 W/

C above 25

C for P

(1µs) and

at 15 mW/

C above 75

C for dc power.

Forward Surge Current 500 amps for 1µs at T

25 C (rise time > 100 ns).

•

MECHANICAL AND PACKAGING

CASE: Hermetically sealed axial-lead glass DO-41

(DO-204AL) package

TERMINALS: Leads, tin-lead plated solderable per

MIL-STD-750, method 2026

POLARITY: Banded end is cathode

WEIGHT: 0.378 grams (typical)

MARKING: Part number

TAPE & REEL option: Standard per EIA-296 (add

“TR” suffix to part number)

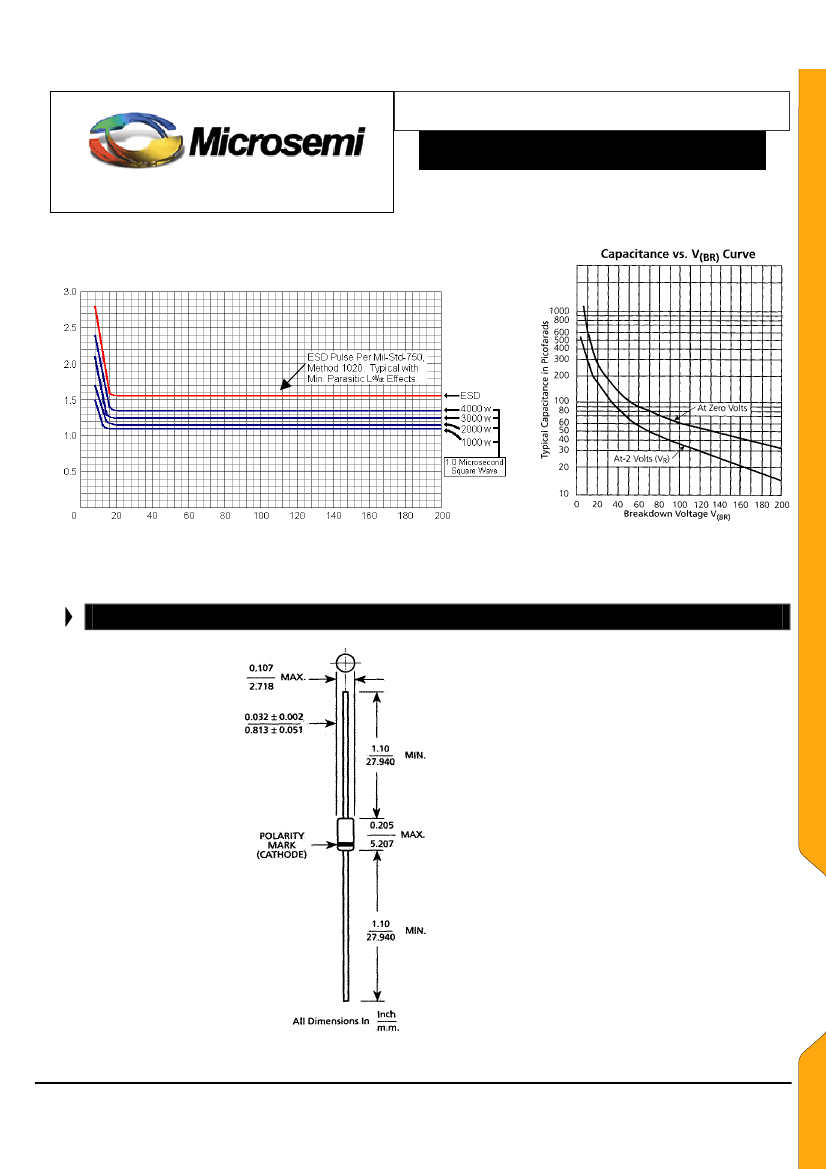

See package dimension on last page

•

14KESD5.0 – 14KESD170CA



2002

10-03-2003 REV A

Microsemi

Scottsdale Division

8700 E. Thomas Rd. PO Box 1390, Scottsdale, AZ 85252 USA, (480) 941-6300, Fax: (480) 947-1503

Page 1
