IDC
SR
CONNECTOR
Emboss Tape
1.0mm
(.039") pitch

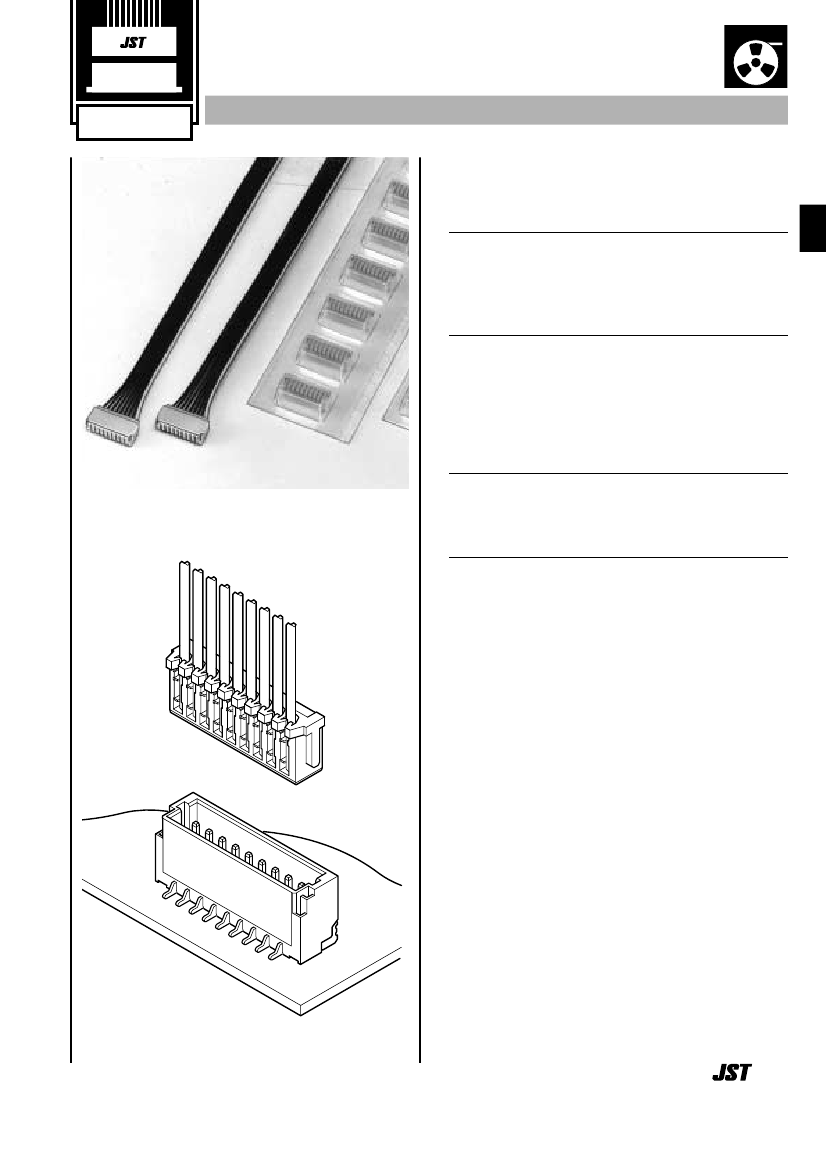

Disconnectable Insulation displacement connectors
Features ––––––––––––––––––––––––
• Ultra-compact insulation displacement
connector
1.0mm (.039") pitch and only 3.0mm (.118") high (side entry
type). This connector is only about 61% as large as the
smallest conventional (JST) IDC designs.
• Header designed for vacuum pick and place
robotics
Although this shrouded header has locking features for its
mating receptacle, there are no holes in the header shroud
that would adversely effect vacuum grippig equipment. Since
there is enough flat surface for secure vacuum gripping, this
miniature surface mount connector is versatile for designers
and economic for manufacturing.
• Twin U-slot insulation displacement section
The insulation displacement section connected to each wire
consists of two tin-plated slots (twin U-slots), which ensures
reliable connection.
• 3-point grip construction
The 3-point insulation grip feature and the strain relief ensure a
firm grip on terminated wires and protection of the insulation
displacement connection from possible damage.
JS
T
9
Specifications –––––––––––––––––––
• Current rating: 0.7A DC
• Voltage rating: 50V DC
• Temperature range: -25˚C to +85˚C(including temperature rise
in applying electrical current)
• Contact resistance: Initial value/20m
Ω
max.
After environmental testing/40m
Ω
max.
• Insulation resistance:
100M
Ω
min.
• Withstanding voltage: 500V AC/minute
• Applicable wire: AWG #30
Conductor/7 strands,
tin-coated annealed copper
Insulation O.D./0.56mm (.022")
* Contact JST for details.
Standards ––––––––––––––––––––––
0
1
Recognized E60389
Certified LR20812
223
SR
CONNECTOR
Receptacle –––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––
Cir-
cuits
2
3
B
2.45(.097)
Model No.
02SR-3S
03SR-3S
04SR-3S
05SR-3S
06SR-3S
07SR-3S
08SR-3S
09SR-3S
10SR-3S
11SR-3S
12SR-3S
13SR-3S
14SR-3S
Dimensions mm(in.)
A
1.0(.039)
2.0(.079)
3.0(.118)
4.0(.157)
5.0(.197)
6.0(.236)
7.0(.276)
8.0(.315)
9.0(.354)
10.0(.394)
11.0(.433)
12.0(.472)
13.0(.512)
B
3.0(.118)
4.0(.157)
5.0(.197)
6.0(.236)
7.0(.276)
8.0(.315)
9.0(.354)
10.0(.394)
11.0(.433)
12.0(.472)
13.0(.512)
14.0(.551)
15.0(.591)
Q’ty / box
3,000
3,000
3,000
2,000
2,000
2,000
2,000
2,000
2,000
2,000
2,000
2,000
2,000
4
5
6
7
3.6(.142)
8
9
10
1.0
(.039)
A
2.1(.083)
11
12
13
14
Material and Finish
Contact: Phosphor bronze, tin-plated
Housing: Polyamide 66, UL94V-0, natural (ivory)
Shrouded header –––––––––––––––––––––––––––––––––––––––––––––––––––––––––
Side entry type
B
Dimensions mm(in.)
Cir-
cuits
2
Top entry
type
BM02B-SRSS-TB
BM03B-SRSS-TB
BM04B-SRSS-TB
BM05B-SRSS-TB
BM06B-SRSS-TB
BM07B-SRSS-TB
BM08B-SRSS-TB
BM09B-SRSS-TB
BM10B-SRSS-TB
BM11B-SRSS-TB
BM12B-SRSS-TB
BM13B-SRSS-TB
BM14B-SRSS-TB
Side entry
type
SM02B-SRSS-TB
SM03B-SRSS-TB
SM04B-SRSS-TB
SM05B-SRSS-TB
SM06B-SRSS-TB
SM07B-S RSS-TB
SM08B-SRSS-TB
SM09B-SRSS-TB
SM10B-SRSS-TB
SM11B-SRSS-TB
SM12B-SRSS-TB
SM13B-SRSS-TB
SM14B-SRSS-TB
A
1.0(.039)
2.0(.079)
3.0(.118)
4.0(.157)
5.0(.197)
6.0(.236)
7.0(.276)
8.0(.315)
9.0(.354)
10.0(.394)
11.0(.433)
12.0(.472)
13.0(.512)
B
4.0(.157)
5.0(.197)
6.0(.236)
7.0(.276)
8.0(.315)
9.0(.354)
10.0(.394)
11.0(.433)
12.0(.472)
13.0(.512)
14.0(.551)
15.0(.591)
16.0(.630)
Q'ty / reel
Side
Top
entry entry
type
type
1,500
1,500
1,500
1,500
1,500
1,500
1,500
1,500
1,500
1,500
1,500
1,500
1,500
3,000
3,000
3,000
3,000
3,000
3,000
3,000
3,000
3,000
3,000
3,000
3,000
3,000
2.9(.114)
3
4
1.0
(.039)
A
1.5
(.059)
4.25(.167)
0.7(.028)
5
6
7
Top entry type
B
8
9
10
11
4.25(.167)
12
13
14
1.0
(.039)
A
0.7(.028)
1.5
(.059)
2.9(.114)
Material and Finish
Contact: Copper alloy, copper-undercoated, tin/lead plated
Wafer: Polyamide, UL94V-0, natural (ivory)
Solder tab: Brass, copper-undercoated, tin/lead plated
Note: 1. The products listed above are supplied on embossed-tape.
2. Contact JST for the top entry type headers with suction cap.
PC board layout
(viewed from component side)
and Assembly layout ––––––––––––––––––
Top entry type
2.9(.114)
0.6
±
0.05
(.024
±
.002)
1.0
±
0.05
(.039
±
.002)
Side entry type
0.6
±
0.05
(.024
±
.002)
1.0
±
0.05
(.039
±
.002)
4.85(.191)
1.8
±
0.1
(.071
±
.004)
Shrouded header
0.7
±
0.1
(.028
±
.004)
1.2
±
0.1
(.047
±
.004)
0.2
±
0.1
(.008
±
.004)
Shrouded header
0.7
±
0.1
(.028
±
.004)
1.2
±
0.1
(.047
±
.004)
224
Note:
1. Tolerances are non-cumulative: ±0.05mm(±.002" ) for all centers.
2. Dimensions above should serve as a guideline. Contact JST for details.
0.2
±
0.1
(.008
±
.004)
1.8
±
0.1
(.071
±
.004)
4.9(.193)
4.0
±
0.1
(.157
±
.004)
2.65
±
0.1
(.104
±
.004)
2.95(.116)
5.55
±
0.1
(.219
±
.004)
4.2
±
0.1
(.165
±
.004)
SR
CONNECTOR

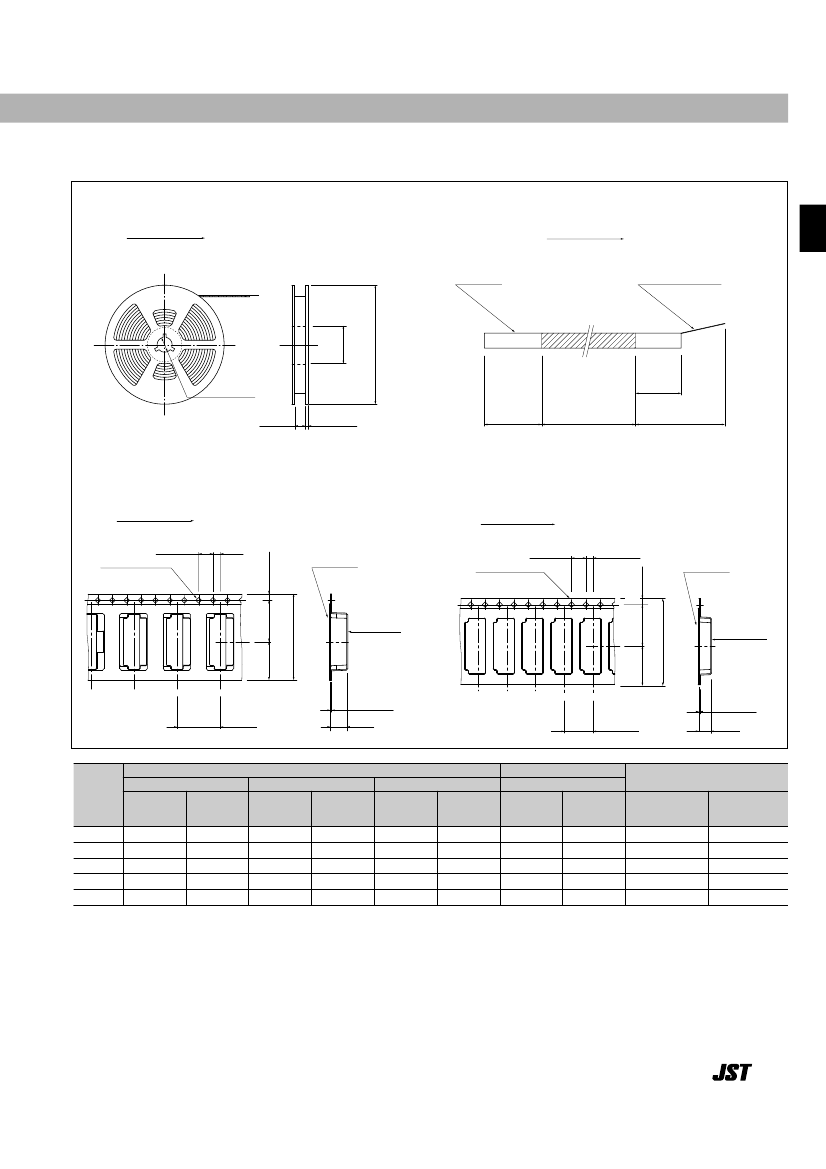

Taping specifications ––––––––––––––––––––––––––––––––––––––––––––––––––––––
Feeding direction
Feeding direction
Carrier tape
Cover tape leader area
380
±
2.0
(14.961
±
.079)dia
[100(3.937)dia.]
13.0(.512)dia.
W1
+2.5
-1.0
(W1
+.098
)
-.039
2.0
±
0.5
(.079
±
.002)
Tail tape
(Unloaded area)
40(1.575)
min.
Connector
loaded area
Lead tape
(Unloaded area)
20 vacancies min.
400(15.748)
min.
Top entry type
Feeding direction
4.0±0.1
(.157±.004)
2.0±0.1
(.079±.004)
1.75±0.1
(.069±.004)
Side entry type
Feeding direction
4.0
±
0.1
(.157
±
.004)
2.0
±
0.1
(.079
±
.004)
1.75
±
0.1
(.069
±
.004)
Cover tape
1.55±0.05
(.061±.002)dia.
Cover tape
1.55
±
0.05
(.061
±
.002)dia.
F±0.1
(.004)
F
±
0.1
(.004)
Carrier tape
W
±
0.3(.012)
W±0.3(.012)
Carrier tape
(S)
(S)
12±0.1
(.315±.004)
0.38±0.05
(.015±.002)
4.55
(.179)
0.38
±
0.05
(.015
±
.002)
8.0
±
0.1
(.315
±
.004)
3.25
(.128)
Cir-
cuits
F
Top
entry
type
5.5(.217)
7.5(.295)
7.5(.295)
11.5(.453)
11.5(.453)
Taping dimensions mm(in.)
S
Side
entry
type
5.5(.217)
5.5(.217)
7.5(.295)
7.5(.295)
11.5(.453)
W
Top
entry
type
12(.472)
16(.630)
16(.630)
24(.945)
24(.945)
Reel dimensions mm(in.)
W1
Side
entry
type
12(.472)
12(.472)
16(.630)
16(.630)
24(.945)
Q'ty / reel
Top
entry
type
1,500
1,500
1,500
1,500
1,500
Top
entry
type
4.75(.187)
6.75(.266)
6.75(.266)
10.75(.423)
10.75(.423)
Side
entry
type
4.75(.187)
4.75(.187)
6.75(.266)
6.75(.266)
10.75(.423)
Top
entry
type
13.5(.531)
17.5(.689)
17.5(.689)
25.5(1.004)
25.5(1.004)
Side
entry
type
13.5(.531)
13.5(.531)
17.5(.689)
17.5(.689)
25.5(1.004)
Side
entry
type
3,000
3,000
3,000
3,000
3,000
2 to 3
4
5 to 7
8
9 to 14
Note:
1. Specifications conform to JIS C 0806. The tape width, connector recess hole dimensions, etc. are determined by the number of circuits and external shape of
the connector to be loaded.
2. Specifications are subject to change without prior notice.
225
