PANEL THICKNESS
essentracomponents.com
2013 Essentra Components. All rights reserved.
Registered in England, Company No. 547495.
Registered Office: Avebury House,
201-249 Avebury Boulevard, Milton Keynes, MK9 1AU
Condition of Sale can be found on our website:
essentra.com.
Essentra Components does not warrant that the files will be
error free and may create new versions ("Upgrades") at any
time, which may correct such errors. Essentra Components
has no obligation to notify you of such upgrades. Any
upgraded file will be published to the website, when it
becomes available.
You are not permitted to load any of the files on to a network
server for the purposes of distribution to one or more other
computer(s) on that network or to effect such distribution.
Essentra Components shall not be liable for any loss or
damage whatsoever or however caused, arising directly or
indirectly from the use of the files
.
D
h
2
UNLESS OTHERWISE STATED
ALL DIMENSIONS IN mm
DO NOT SCALE
LINEAR TOLERANCE
THIRD ANGLE PROJECTION
SIZE
(0.0) (0.00)
(0)
0-10mm
0.10
0.15
0.5
10-30mm
0.15
0.20
0.5
30-50mm
0.20
0.5
0.30
50-100mm
0.25
0.8
0.50
100-200mm
0.40 ANGULAR TOLERANCE 0.5 DEGREES
1.5
0.80
200-300mm
0.80 UNSPECIFIED RADII 0.25mm
2.0
1.20
300-500mm
1.00 DRAFT ANGLE 0.5 DEGREES
3.0
2.00
+500mm
1.50
5.0
3.00
UNCONTROLLED

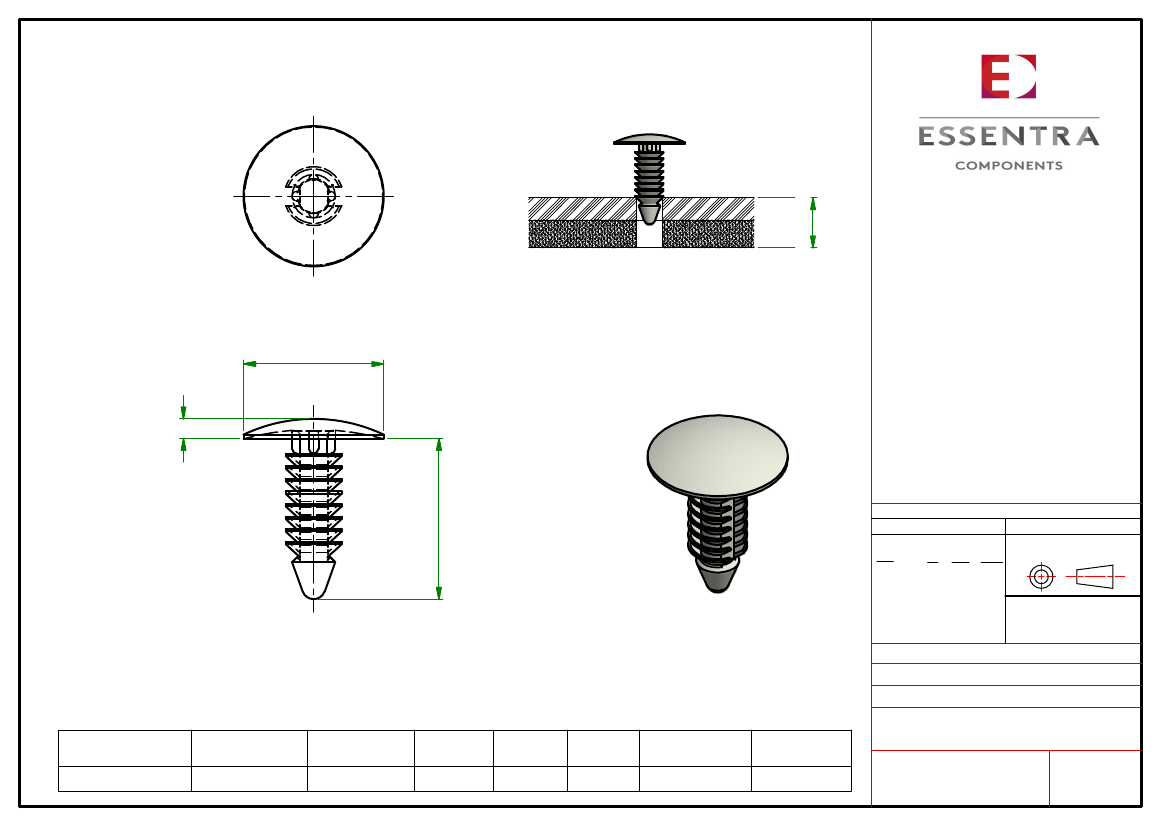

Item
468837
Hole
Dia.
4.8
Max.Panel
Thickness
0.7-13.0
D
11.0
h1
17.3
h2
1.7
Material
NYLON
Colour
NATURAL
h
1
ORG.SCALE
MATERIAL
ITEM No.
TITLE
2:1
NYLON or PP
468837
ISSUE No.
BARBED PUSH FASTENERS
DWG.No.
SR1965-1
1
