REVISION M
DO NOT
SCALE FROM
THIS PRINT
(No OF POS x .050[1.27])
+ .223[5.66] REF
(No OF POS x .050[1.27])
+ .145[3.68] REF
C
L
ISDF-XX-D-X
No OF POSITIONS
-02 THRU -50
(PER ROW)
OPTIONS
ROW SPECIFICATION
-D: DOUBLE
.250 6.35
REF
C
L
.120 3.05
REF
.145 3.68
REF
.180 4.57
REF
(*=NOT AVAILABLE WITH POLARIZATION KEY)
LEAVE BLANK: NO KEY
-M: METAL RETENTION LATCH
(SEE FIG 1)
-S: DUAL SCREW DOWN
(SEE SHT 2, FIG 2)
-C: CHAMFER
(SEE SHT 3, FIG 3)
(7 POSITION ONLY)
-L: FRICTION LOCK
(SEE SHEET 3, FIG 4)
(AVAILABLE ON POS *-05,
*-07,-10 THRU -50)
.050 1.27
REF
ISDF-XX-D-R
.080 2.03 REF
(No OF POS x .050[1.27])
+ .015[0.38] REF
+.008 [+0.20]
(No OF POS x .050[1.27] + .145[3.68]) - .012 [- 0.30]
C
L
.050 1.27
REF
C
.080 2.03
REF
C
L
+0.10
+.004
.065 - .008 1.65 - 0.20
C
.050 1.27 REF
C
PACKAGING VIEW
-M OPTION
.113 2.86
.010 0.25 REF
.440 11.18
REF
.249 6.32
REF
SUB-IM-LTC-07-01-N
(2 PLCS)

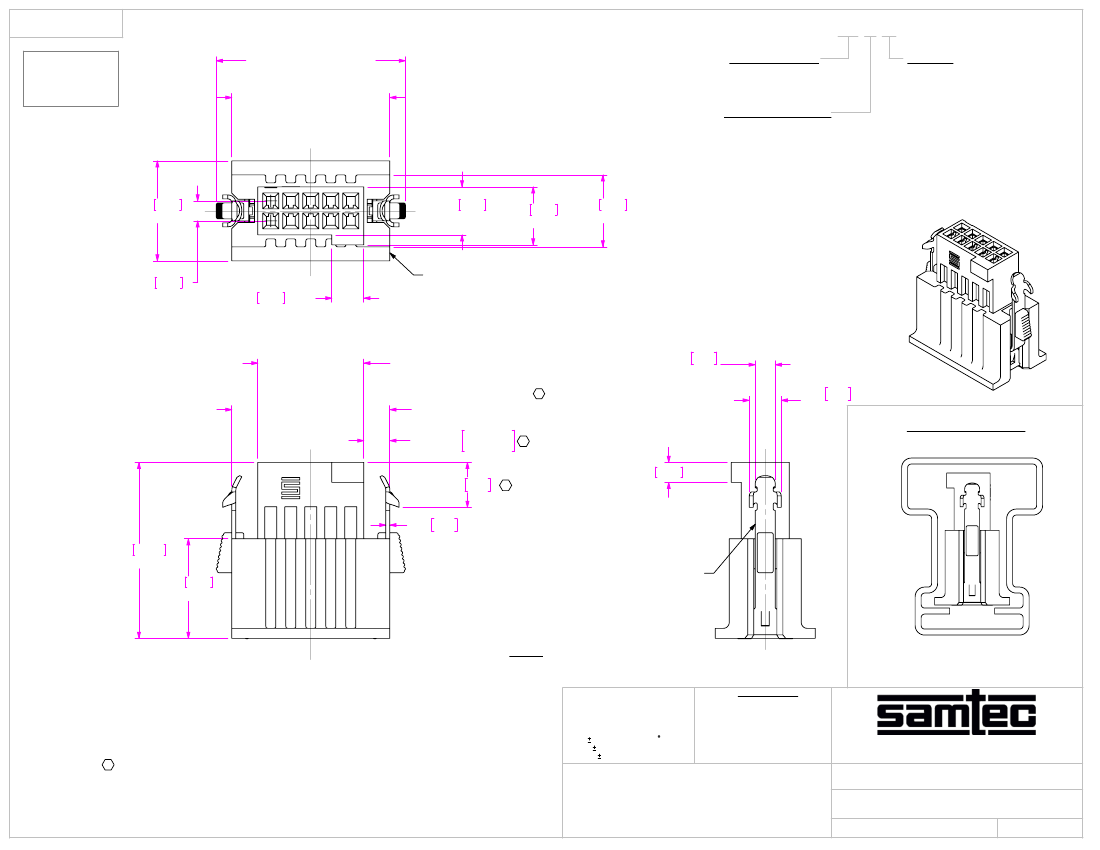

ISDF-05-D-M SHOWN
UNLESS OTHERWISE SPECIFIED,
DIMENSIONS ARE IN INCHES.
TOLERANCES ARE:
DECIMALS
*
PROPRIETARY NOTE
*
FIG 1
TUBE: PT-1-24-02-44
PLUG: TP-03
THIS DOCUMENT CONTAINS CONFIDENTIAL AND
PROPRIETARY INFORMATION AND ALL DESIGN,
MANUFACTURING, REPRODUCTION, USE, PATENT RIGHTS
AND SALES RIGHTS ARE EXPRESSLY RESERVED BY SAMTEC,
INC. THIS DOCUMENT SHALL NOT BE DISCLOSED, IN WHOLE
OR PART, TO ANY UNAUTHORIZED PERSON OR ENTITY NOR
REPRODUCED, TRANSFERRED OR INCORPORATED IN ANY
OTHER PROJECT IN ANY MANNER WITHOUT THE EXPRESS
WRITTEN CONSENT OF SAMTEC, INC.
NOTES:
1.
C
REPRESENTS A CRITICAL DIMENSION.
2. LATCH RETENTION FORCE: .5 LB [2.22N].
3. PARTS TO BE PACKAGED IN TUBES.
.XX: .01 [.3]
2
.XXX: .005 [.13]
.XXXX: .0020 [.051]
ANGLES
520 PARK EAST BLVD, NEW ALBANY, IN 47150
PHONE: 812-944-6733
FAX: 812-948-5047
e-Mail info@SAMTEC.com
code 55322
DESCRIPTION:
MATERIAL:
DO NOT SCALE DRAWING
SHEET SCALE: 2:1
INSULATOR: LCP, UL 94 V-0, COLOR: BLACK
LATCH: NICKEL-PLATED PHOS BRONZE
BUTTON: NYLON, COLOR: WHITE
F:\DWG\MISC\MKTG\ISDF-XX-D-X-MKT.SLDDRW
.050[1.27] DISCRETE WIRE INSULATOR & LATCH ASM
DWG. NO.
ISDF-XX-D-X
SHEET
1
OF
3
BY:
BRATCHER 11/16/2006
REVISION M
((No OF POS X .050 [1.27]) + .600 [15.24])REF
C
((No OF POS X .050 [1.27]) + .360 [9.14])
"B"
"B"
C
L
.125 3.18
REF
.225 5.72
REF
DETAIL 'A'
SCALE 8 : 1
R.057 1.45 REF
ACCRT-01
C
L
.218 5.52 REF
((No OF POS X .050 [1.27]) + .015 [0.38]) REF
CPS-RR-M2-01-X
'A'
C
L
ISDF-XX-D-DS
.079 2.00 REF
C
.145 3.68
.070 1.78 REF
SECTION "B"-"B"
SCALE 8 : 1
.340 8.64
REF
PACKAGING VIEW
-S OPTION
ISDF-10-D-S SHOWN
(DIFFERENT AS SHOWN, OTHERWISE SAME AS FIG 1)

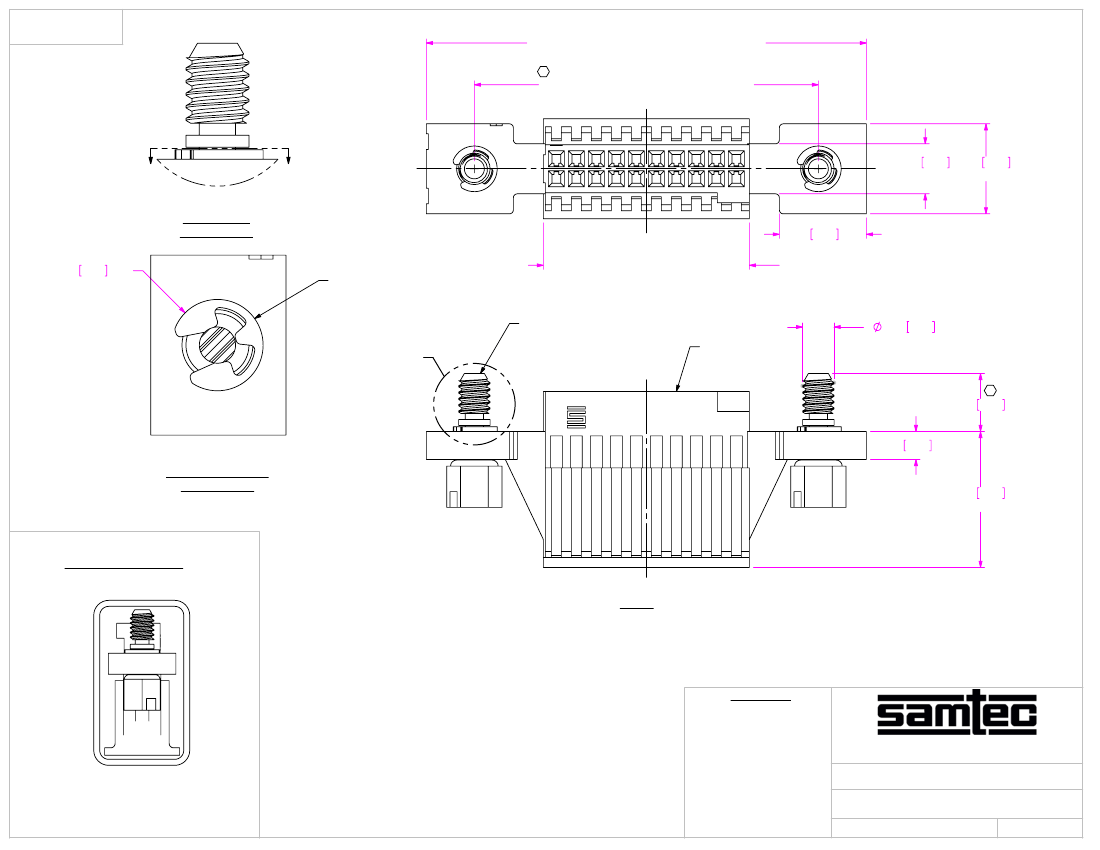

-S: DUAL SCREW DOWN OPTION
FIG 2
THIS DOCUMENT CONTAINS CONFIDENTIAL AND
PROPRIETARY INFORMATION AND ALL DESIGN,
MANUFACTURING, REPRODUCTION, USE, PATENT RIGHTS
AND SALES RIGHTS ARE EXPRESSLY RESERVED BY SAMTEC,
INC. THIS DOCUMENT SHALL NOT BE DISCLOSED, IN WHOLE
OR PART, TO ANY UNAUTHORIZED PERSON OR ENTITY NOR
REPRODUCED, TRANSFERRED OR INCORPORATED IN ANY
OTHER PROJECT IN ANY MANNER WITHOUT THE EXPRESS
WRITTEN CONSENT OF SAMTEC, INC.
*
PROPRIETARY NOTE
*
520 PARK EAST BLVD, NEW ALBANY, IN 47150
PHONE: 812-944-6733
FAX: 812-948-5047
e-Mail info@SAMTEC.com
code 55322
DO NOT SCALE DRAWING
DESCRIPTION:
DWG. NO.
TUBE: PT-1-24-08-15
PLUG: TP-03
F:\DWG\MISC\MKTG\ISDF-XX-D-X-MKT.SLDDRW
.050[1.27] DISCRETE WIRE INSULATOR & LATCH ASM
SHEET SCALE: 4:1
ISDF-XX-D-X
SHEET
2
OF
3
BY:
BRATCHER 11/16/2006
REVISION M
02 04 06 08 10 12 14
01 03 05 07 09 11 13
ISDF-07-D-C SHOWN
(DIFFERENT AS SHOWN, OTHERWISE SAME AS FIG 1)
FIG 3
"C"
"C"
SECTION "C"-"C"
THIS DOCUMENT CONTAINS CONFIDENTIAL AND
PROPRIETARY INFORMATION AND ALL DESIGN,
MANUFACTURING, REPRODUCTION, USE, PATENT RIGHTS
AND SALES RIGHTS ARE EXPRESSLY RESERVED BY SAMTEC,
INC. THIS DOCUMENT SHALL NOT BE DISCLOSED, IN WHOLE
OR PART, TO ANY UNAUTHORIZED PERSON OR ENTITY NOR
REPRODUCED, TRANSFERRED OR INCORPORATED IN ANY
OTHER PROJECT IN ANY MANNER WITHOUT THE EXPRESS
WRITTEN CONSENT OF SAMTEC, INC.
ISDF-25-D-L SHOWN
(DIFFERENT AS SHOWN, OTHERWISE SAME AS FIG 1)
FIG 4
*
PROPRIETARY NOTE
*
520 PARK EAST BLVD, NEW ALBANY, IN 47150
PHONE: 812-944-6733
FAX: 812-948-5047
e-Mail info@SAMTEC.com
code 55322
DO NOT SCALE DRAWING
SHEET SCALE: 4:1
DESCRIPTION:
DWG. NO.
.050[1.27] DISCRETE WIRE INSULATOR & LATCH ASM
ISDF-XX-D-X
11/16/2006
SHEET
3
OF
3
F:\DWG\MISC\MKTG\ISDF-XX-D-X-MKT.SLDDRW
BY:
BRATCHER
