32003192

Description
CONCEALED HINGE STEEL ZN FINISH
Categoryaccessories
File Size111KB，1 Pages
ManufacturerEssentra Components
Environmental Compliance
Download Datasheet Parametric Compare View All

32003192 Online Shopping

Suppliers Part Number Price MOQ In stock
32003192 - - View Buy Now

32003192 Overview

CONCEALED HINGE STEEL ZN FINISH

32003192 Parametric

Parameter NameAttribute value
typepivot pin
color-
size/dimensions-
weight-

Preview

Download Datasheet

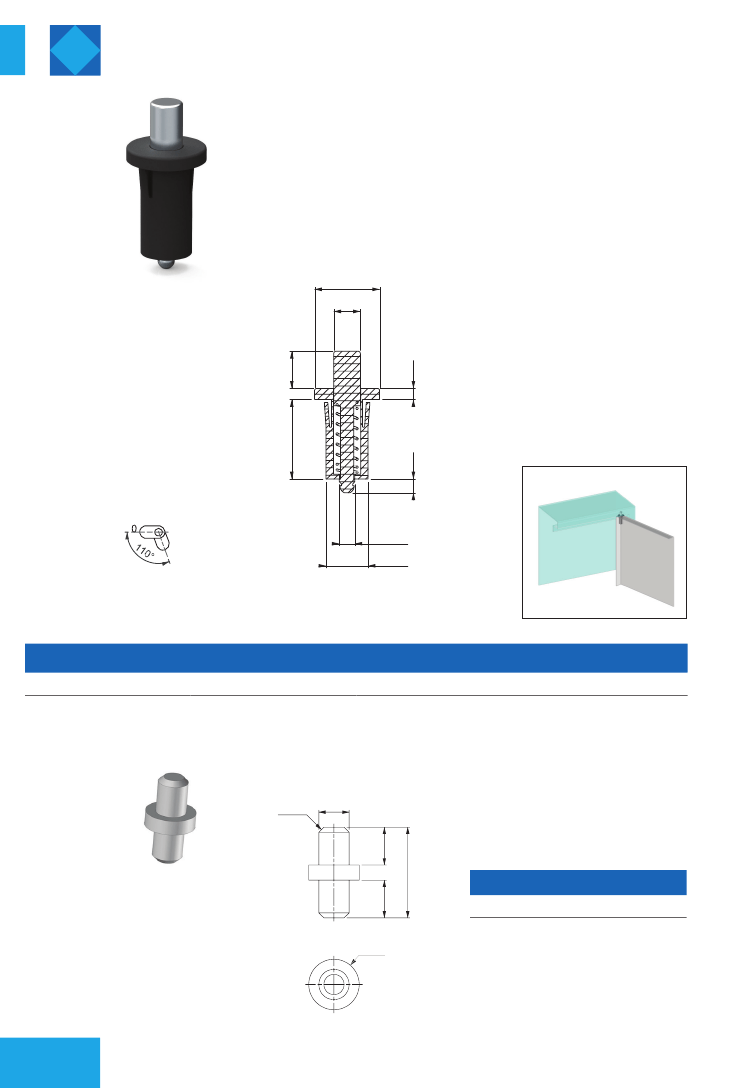

ESSENTRA ACCESS SOLUTIONS
CONCEALED HINGE
Specifications
• Material:
Body: Polyamide DIN-EN ISO1043-1 PA6 GFR 30
Pin: Steel
Features
• For internally mounted doors
• Spring-loaded hinge for easy door removal
• Clip installation for easy assembly
• Available as spring-loaded, up-and-down pair; or spring-loaded
up hinge and fixed bottom hinge
Ø14.7 mm
Ø6.0
mm
A-A
8.4 mm
2.5 mm
Ø3.5 mm
Ø9.5 mm
3.1 mm
Hinge Rotation Angle
Item Number
089
Hinge Rotation
110°
18.0 mm
Material
Nylon
Finish
Black
BOTTOM PIVOT PIN
Ø6.0 mm
1x45°
7.5 mm
18.0 mm
7.5 mm
Item Number
32003192
Ø10.0 mm
