3M Scotchlok
™
™
Moisture Resistant Self-Stripping Electrical
Spring Connector 316IR
Data Sheet
Applications
November 2010
3M™ Scotchlok™ Electrical Spring Connector 316IR is used to electrically connect two
or three wire ends, insulate the connection and provide a moisture-resistant seal
without stripping of the wires.
Meets requirements of:
UL Listed, Standard 486C, UL File E23438
22-16 AWG solid or stranded copper conductors with a maximum insulation diameter
of .160 inches
U-Contact:
Insulator:
Color:
Sealant:
Tin-plated brass, .02 in. (0,5 mm) thick
Flame-retardant nylon
Black cap -White body
Mineral Oil Base
EG-3 grease
600 volts maximum
105 Deg C (221 Deg F)
.0077 lbs (3.49 gm)
Agency Approvals,
Self Certifications,
Mil Specs
Wire Range
Construction
Specifications
Voltage Rating:
Temperature Rating:
Weight:
Engineering/
Architect
Specification
Federal
Specification
W-S610:
A UL Listed self-stripping electrical connector for connecting two or three conductors in
the range of 22 through 16 AWG solid or stranded copper conductors with a maximum
insulation diameter of .160 inches
“Commercial package only”
Type
1
Class
1
Kind
cu
Style
G
Recommended
Installation Tools
3M™ Crimping Tool E-9BM
8” Mechanics (slip joint) pliers
1 of 2
3
3M™ Scotchlok™ Moisture Resistant Self-Stripping Electrical Spring Connector 316IR
Installation
Technique
WARNING
Turn power off before installing or removing terminal. All electrical work should
be done according to appropriate electrical codes.

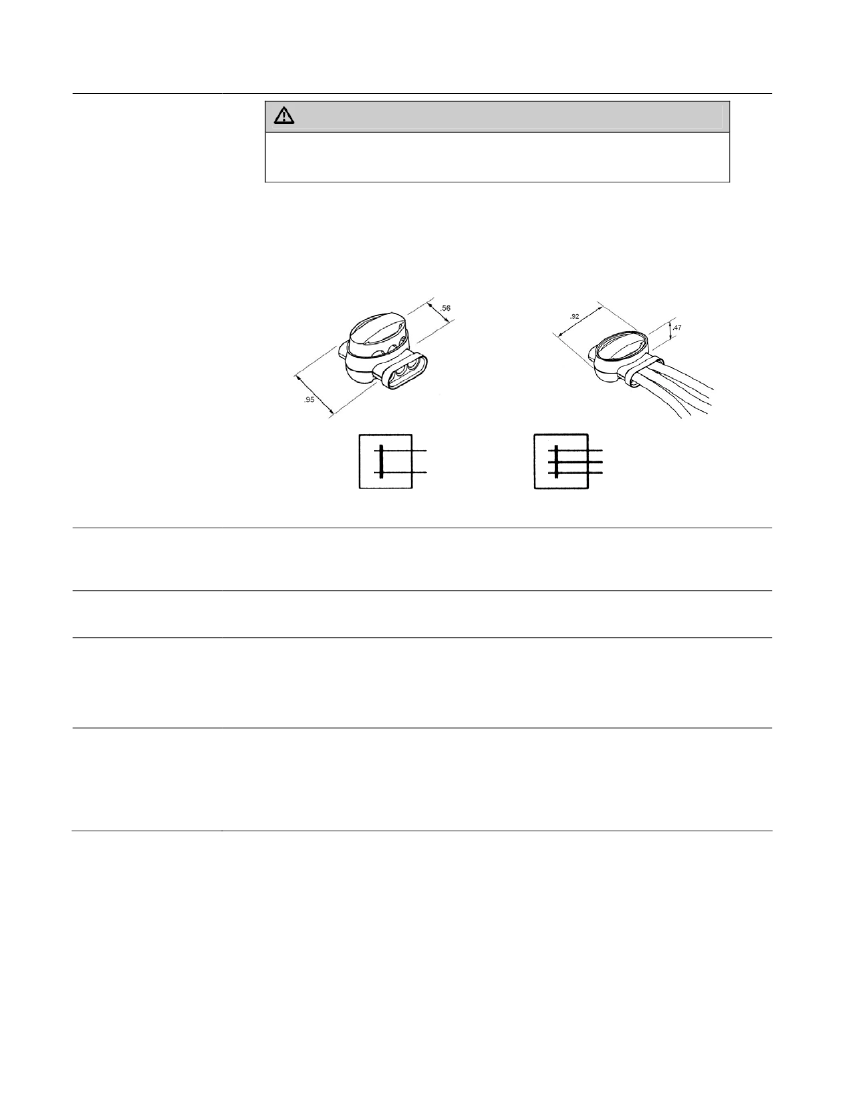

1. Insert 2 or 3 un-stripped conductors completely into connector and check their
position by looking through the translucent body.
2. Hold toll perpendicular to the conductors and make the connection by driving
the cap down flush with the top edge of the connector body.
Parallel Connection
Shelf Life & Storage
Tap/Run Connection
3M™ Scotchlok™ Electrical Spring Connector 316IR has a 5-year shelf life from date
of manufacture when stored in a humidity controlled storage (10°C/50°F to 27°C/80°F
and <75% relative humidity).
Please contact your local distributor; available from 3M.com/electrical [Where to Buy]
or call 1.800.245.3573.
All statements, technical information, and recommendations related to 3M’s products are based on
information believed to be reliable, but the accuracy or completeness is not guaranteed. Before using this
product, you must evaluate it and determine if it is suitable for your intended application. You assume all
risks and liability associated with such use. Any statements related to the product, which are not contained
in 3M’s current publications, or any contrary statements contained on your purchase order, shall have no
force or effect unless expressly agreed upon, in writing, by an authorized officer of 3M.
This product will be free from defects in material and manufacture at the time of purchase. 3M MAKES NO
OTHER WARRANTIES INCLUDING, BUT NOT LIMITED TO, ANY IMPLIED WARRANTY OF
MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. If this product is defective within
the warranty period stated above, your exclusive remedy shall be, at 3M’s option, to replace or repair the
3M product or refund the purchase price of the 3M product. Except where prohibited by law, 3M will not be
liable for any indirect, special, incidental or consequential loss or damage arising from this 3M product,
regardless of the legal theory asserted.
Availability
Important Notice
Warranty; Limited
Remedy; Limited Liability
3M and Scotchlok are trademarks of 3M Company.
3
Electrical Markets Division
6801 River Place Blvd.
Austin, TX 78726-9000
800.245.3573
FAX: 800.245.0329
www.3M.com/electrical
Please recycle
© 3M 2010 All rights reserved
78-8126-5924-7 C
2 of 2
