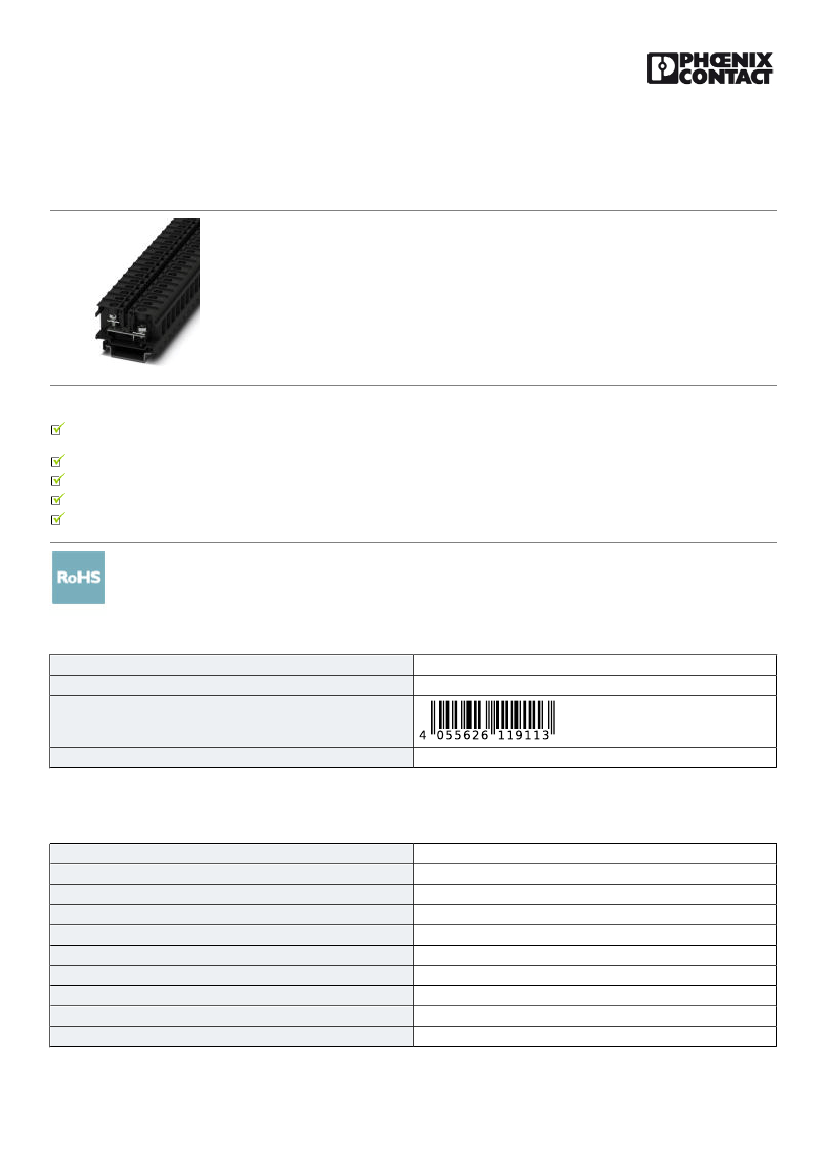

Feed-through terminal block - BT 3,5 - 3281124
Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's
documentation. Our General Terms of Use for Downloads are valid
(http://phoenixcontact.com/download)
Feed-through terminal block, nom. voltage: 690 V, nominal current: 32 A, connection method: Ring cable lug,
number of connections: 2, width: 10 mm, color: black, mounting type: NS 35/7,5, NS 35/15
Your advantages
Convenient ring cable lug connection thanks to the screw connection principle with spring-guided screw; maintenance-free with integrated screw
locking
Easy potential distribution with time-saving jumper system
Safety for users thanks to integrated shock protection
Maximum overview thanks to extensive marking and labeling of every terminal point
Reduction in logistics costs with the uniform CLIPLINE complete system accessories
Key Commercial Data
Packing unit
Minimum order quantity
GTIN
GTIN
4055626119113
50 pc
50 pc
Technical data
General
Number of levels
Number of connections
Potentials
Nominal cross section
Color
Insulating material
Flammability rating according to UL 94
Rated surge voltage
Degree of pollution
Overvoltage category
1
2
1
4 mm²
black
PC
V0
6 kV
3
III
11/11/2018 Page 1 / 6
https://www.phoenixcontact.com/pi/products/3281124
Feed-through terminal block - BT 3,5 - 3281124
Technical data
General
Insulating material group
Maximum power dissipation for nominal condition
Ambient temperature (operation)
Maximum load current
Nominal current I
N
Nominal voltage U
N
Open side panel
Shock protection test specification
Back of the hand protection
Finger protection
Result of surge voltage test
Surge voltage test setpoint
Result of power-frequency withstand voltage test
Power frequency withstand voltage setpoint
Result of the test for mechanical stability of terminal points (5 x
conductor connection)
Result of bending test
Bending test rotation speed
Bending test turns
Bending test conductor cross section/weight
Tensile test result
Conductor cross section tensile test
Tractive force setpoint
Conductor cross section tensile test
Tractive force setpoint
Conductor cross section tensile test
Tractive force setpoint
Result of tight fit on support
Tight fit on carrier
Setpoint
Result of voltage-drop test
Requirements, voltage drop
Result of temperature-rise test
Short circuit stability result
Conductor cross section short circuit testing
Short-time current
Conductor cross section short circuit testing
Short-time current
Result of thermal test
Proof of thermal characteristics (needle flame) effective duration
IIIa
1.02 W
-40 °C ... 110 °C
32 A
32 A
690 V
Yes
DIN EN 50274 (VDE 0660-514):2002-11
guaranteed
guaranteed
Test passed
7.3 kV
Test passed
1.89 kV
Test passed
Test passed
10 rpm
135
0.5 mm² / 0.3 kg
4 mm² / 0.9 kg
Test passed
0.5 mm²
20 N
4 mm²
60 N
3.5 mm²
60 N
Test passed
NS 35
1N
Test passed
≤ 3.2 mV
Test passed
Test passed
4 mm²
0.48 kA
3.5 mm²
0.42 kA
Test passed
30 s
11/11/2018 Page 2 / 6
https://www.phoenixcontact.com/pi/products/3281124
Feed-through terminal block - BT 3,5 - 3281124
Technical data
General
Oscillation, broadband noise test result
Test specification, oscillation, broadband noise
Test spectrum
Test frequency
ASD level
Acceleration
Test duration per axis
Test directions
Shock test result
Test specification, shock test
Shock form
Acceleration
Shock duration
Test directions
Temperature index of insulation material (DIN EN 60216-1 (VDE
0304-21))
Test passed
DIN EN 50155 (VDE 0115-200):2008-03
Service life test category 2, bogie-mounted
f
1
= 5 Hz to f
2
= 250 Hz
6.12 (m/s ) /Hz
3.12 g
5h
X-, Y- and Z-axis
Test passed
DIN EN 50155 (VDE 0115-200):2008-03
Half-sine
30g
18 ms
X-, Y- and Z-axis (pos. and neg.)
130 °C
2 2
Dimensions
Width
Length
Height NS 35/7,5
Height NS 35/15
10 mm
46 mm
38.2 mm
45.7 mm
Connection data
Connection method
Connection in acc. with standard
Conductor cross section flexible min.
Conductor cross section flexible max.
Min. AWG conductor cross section, flexible
Max. AWG conductor cross section, flexible
Cable lug connection according to standard
Min. cross section for cable lug connection
Max. cross section for cable lug connection
AWG min
AWG max
Hole diameter, min.
Cable lug width, max.
Bolt diameter
Screw thread
Tightening torque, min
Tightening torque max
Screw thread
Ring cable lug
IEC 60947-7-1
0.14 mm²
4 mm²
26
10
DIN 46234
0.14 mm²
4 mm²
26
10
4.3 mm
8.8 mm
4 mm
M4
1.4 Nm
2 Nm
M4
11/11/2018 Page 3 / 6
https://www.phoenixcontact.com/pi/products/3281124
Feed-through terminal block - BT 3,5 - 3281124
Technical data
Connection data
Tightening torque, min
Tightening torque max
1.4 Nm
2 Nm
Connection data (JIS standard)
Connection method
Connection in acc. with standard
Single-wire/terminal point, solid diameter min.
Single-wire/terminal point, solid diameter max.
Conductor cross section flexible min.
Conductor cross section flexible max.
Cable lug connection according to standard
Min. cross section for cable lug connection
Max. cross section for cable lug connection
Hole diameter, min.
Cable lug width, max.
Bolt diameter
Screw thread
Tightening torque, min
Tightening torque max
Nominal current I
N
Maximum load current
Nominal voltage U
N
Ring cable lug
JIS 8207-7-1
0.5 mm
2 mm
0.5 mm²
3.5 mm²
JIS 8207-7-1
0.5 mm²
3.5 mm²
4.3 mm
8.8 mm
4 mm
M4
1.4 Nm
2 Nm
30 A
30 A
600 V
Standards and Regulations
Connection in acc. with standard
Flammability rating according to UL 94
IEC 60947-7-1
V0
Environmental Product Compliance
China RoHS
Environmentally friendly use period: unlimited = EFUP-e
No hazardous substances above threshold values
Drawings
Circuit diagram
1
Dimensional drawing
6,8 - 8,2
Ø4,3
8,8
3,6
11/11/2018 Page 4 / 6
https://www.phoenixcontact.com/pi/products/3281124
Feed-through terminal block - BT 3,5 - 3281124
Dimensional drawing
1
6,8 - 8,2
Ø4,3
8,8
Approvals
Approvals
Approvals
DNV GL / CSA / UL Recognized / cUL Recognized / cULus Recognized
Ex Approvals
Approval details
DNV GL
http://exchange.dnv.com/tari/
TAE00001S2
CSA
Nominal voltage UN
Nominal current IN
mm²/AWG/kcmil
B
600 V
30 A
26-10
http://www.csagroup.org/services-industries/product-listing/
C
600 V
30 A
26-10
7,6
13631
UL Recognized
Nominal voltage UN
Nominal current IN
mm²/AWG/kcmil
B
http://database.ul.com/cgi-bin/XYV/template/LISEXT/1FRAME/index.htm
C
600 V
30 A
26-12
FILE E 60425
600 V
30 A
26-12
11/11/2018 Page 5 / 6
