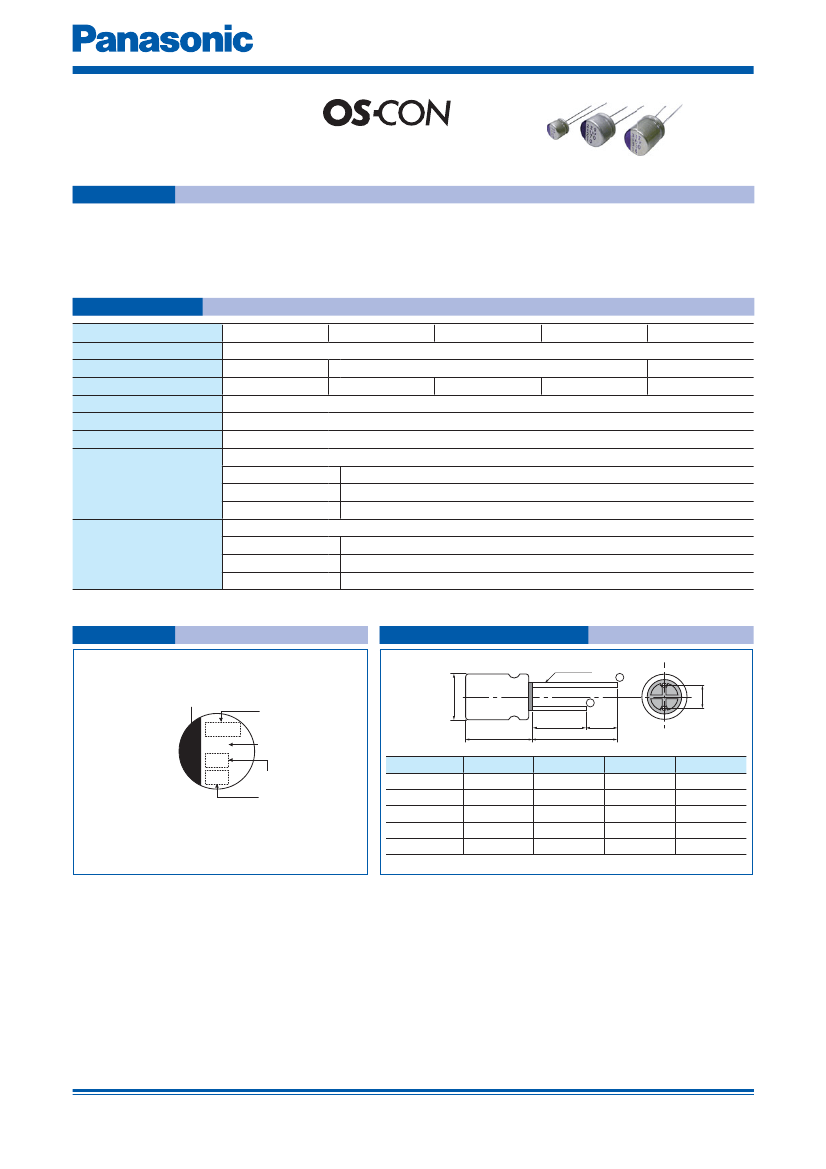

Conductive Polymer Aluminum Solid Capacitors
Radial Lead Type
Series :
SEQP
Features
●
High
voltage (32 V.DC max.)
●
125 °C 1000 h
●
RoHS compliance, Halogen free
Specifications
Size code
C6
E7
F8
E12
F13
Category temperature range
–55 °C to +125 °C
Rated voltage range
4 V.DC to 20 V.DC
4 V.DC to 32 V.DC
4 V.DC to 20 V.DC
Rated capacitance range 22 µF to 150 µF 6.8 µF to 330 µF 15 µF to 680 µF
18 µF to 560 µF 150 µF to 1200 µF
Capacitance tolerance
±20 % (120 Hz / + 20 °C)
Leakage current
Please see the attached characteristics list
Dissipation factor (tan
d)
Please see the attached characteristics list
+125 °C, 1000 h/+105 °C, 5000 h, rated voltage applied
Capacitance change Within ±20 % of the initial value
Endurance
tan
d
<
200 % of the initial limit
DC leakage current Within the initial limit
+60 °C, 90 % to 95 %, 1000 h, No-applied voltage
Capacitance change Within ±20 % of the initial value
Damp heat
(Steady State)
tan
d
<
150 % of the initial limit
DC leakage current Within the initial limit (after voltage processing)
Marking
Dimensions (not to scale)
fd
Polarity marking (−)
Lot. No.
Series
fD
+
–
F
Unit : mm
L
15 min. 4 min.
19 min.
Size code
R. Capacitance
R. Voltage
C6
E7
F8
E12
F13
fD±0.5
6.3
8.0
10.0
8.0
10.0
L max.
6.0
7.0
8.0
12.0
13.0
F±0.5
2.5
3.5
5.0
3.5
5.0
fd±0.05
0.45
0.45
0.50
0.60
0.60
½
Externals of figure are the reference.
Design and specifications are each subject to change without notice. Ask factory for the current technical specifications before purchase and/or use.
Should a safety concern arise regarding this product, please be sure to contact us immediately.
01 Nov. 2015
Conductive Polymer Aluminum Solid Capacitors
Characteristics list
Rated
Rated
Series voltage capacitance
(V.DC)
(µF)
150
330
560
680
1200
82
150
330
470
820
56
120
270
330
560
39
82
150
180
330
22
47
68
100
150
6.8
15
18
Case size (mm)
fD
6.3
8.0
8.0
10.0
10.0
6.3
8.0
10.0
8.0
10.0
6.3
8.0
10.0
8.0
10.0
6.3
8.0
10.0
8.0
10.0
6.3
8.0
10.0
8.0
10.0
8.0
10.0
8.0
L
6.0
7.0
12.0
8.0
13.0
6.0
7.0
8.0
12.0
13.0
6.0
7.0
8.0
12.0
13.0
6.0
7.0
8.0
12.0
13.0
6.0
7.0
8.0
12.0
13.0
7.0
8.0
12.0
Size
code
C6
E7
E12
F8
F13
C6
E7
F8
E12
F13
C6
E7
F8
E12
F13
C6
E7
F8
E12
F13
C6
E7
F8
E12
F13
E7
F8
E12
½1
Specifications
Ripple
Allowable
ESR
½2
current ripple current
tan
d
½3
(mΩ max.)
(mAr.m.s.) (mAr.m.s.)
572
1810
40
0.12
810
2560
35
0.12
1430
4520
13
0.15
1170
3700
25
0.12
1721
5440
12
0.18
537
1700
45
0.12
810
2560
35
0.12
1170
3700
25
0.12
1332
4210
15
0.15
1721
5440
12
0.15
537
1700
45
0.12
810
2560
35
0.12
1170
3700
25
0.12
1250
3950
17
0.15
1655
5230
13
0.15
512
1620
50
0.10
670
2120
40
0.12
955
3020
30
0.12
1151
3640
20
0.15
1493
4720
16
0.15
458
1450
60
0.10
598
1890
45
0.12
759
2400
40
0.12
1050
3320
24
0.15
1367
4320
20
0.15
440
1400
100
0.10
560
1800
80
0.10
790
2500
50
0.12
½1
LC
½4
(µA)
300
660
448
544
960
258
472
416
592
775
280
600
540
660
840
312
656
480
576
792
220
470
272
400
600
44
96
115
Part number
4SEQP150M
4SEQP330M
4SEQP560M
4SEQP680M
4SEQP1200M
6SEQP82M
6SEQP150M
6SEQP330M
6SEQP470M
6SEQP820M
10SEQP56M
10SEQP120M
10SEQP270M
10SEQP330M
10SEQP560M
16SEQP39M
16SEQP82M
16SEQP150M
16SEQP180M
16SEQP330M
20SEQP22M
20SEQP47M
20SEQP68M
20SEQP100M
20SEQP150M
32SEQP6R8M
32SEQP15M
32SEQP18M
4.0
6.3
10
SEQP
16
20
32
½1
Ripple current (100 kHz/ +105 °C < Tx
<
125 °C), Allowable ripple current (100 kHz / Tx
<
105 °C)
½2
ESR (100 kHz to 300 kHz/+20 °C)
½3
tan
d
(120 Hz/+20 °C)
½4
After 2 minutes
◆
Please refer to each page in this catarog for “Flow conditions” and “Taping specifications”.
Frequency correction factor for ripple current
Frequency
Coefficient
120 Hz
<
f < 1 kHz
0.05
1 kHz
<
f < 10 kHz
0.3
10 kHz
<
f < 100 kHz
0.7
100 kHz
<
f < 500 kHz
1
Design and specifications are each subject to change without notice. Ask factory for the current technical specifications before purchase and/or use.
Should a safety concern arise regarding this product, please be sure to contact us immediately.
01 Nov. 2015
