31049102

Description
SCREW TYPE TERMINAL BLOCK, PLUG,
CategoryThe connector
File Size283KB,5 Pages
ManufacturerMETZ CONNECT USA Inc.
Environmental Compliance
Download Datasheet Parametric Compare View All

31049102 Overview

SCREW TYPE TERMINAL BLOCK, PLUG,

31049102 Parametric

Parameter NameAttribute value
typeplug, female socket
Number of pins2
Number of pins per level2
Number of levels1
spacing0.197"(5.00mm)
Needle seat direction-
Plug entrance180°
Terminal typeScrews - Lift Cage Clamp
Installation typefree hanging
Current - IEC-
Current - UL15A
Voltage - UL300V
Wire Gauge or Range - AWG12-22 AWG
Wire gauge or range - mm²0.08-2.5mm²
colorblack
Operating temperature-40°C ~ 105°C
Contact mating surface treatmentgold, nickel alloy
characteristicFixed lock (non-wire side)
Material flammability ratingUL94 V-0
Intrusion protection-
Screw sizeM3
Torque - Screws0.79 Nm(7.0 Lb-In)
Wire stripping length-
Contact materialBeryllium copper
Shell materialPolyamide (PA66), Nylon 6/6
Contact tail length-
Insulation height0.500"(12.70mm)
Data Sheet

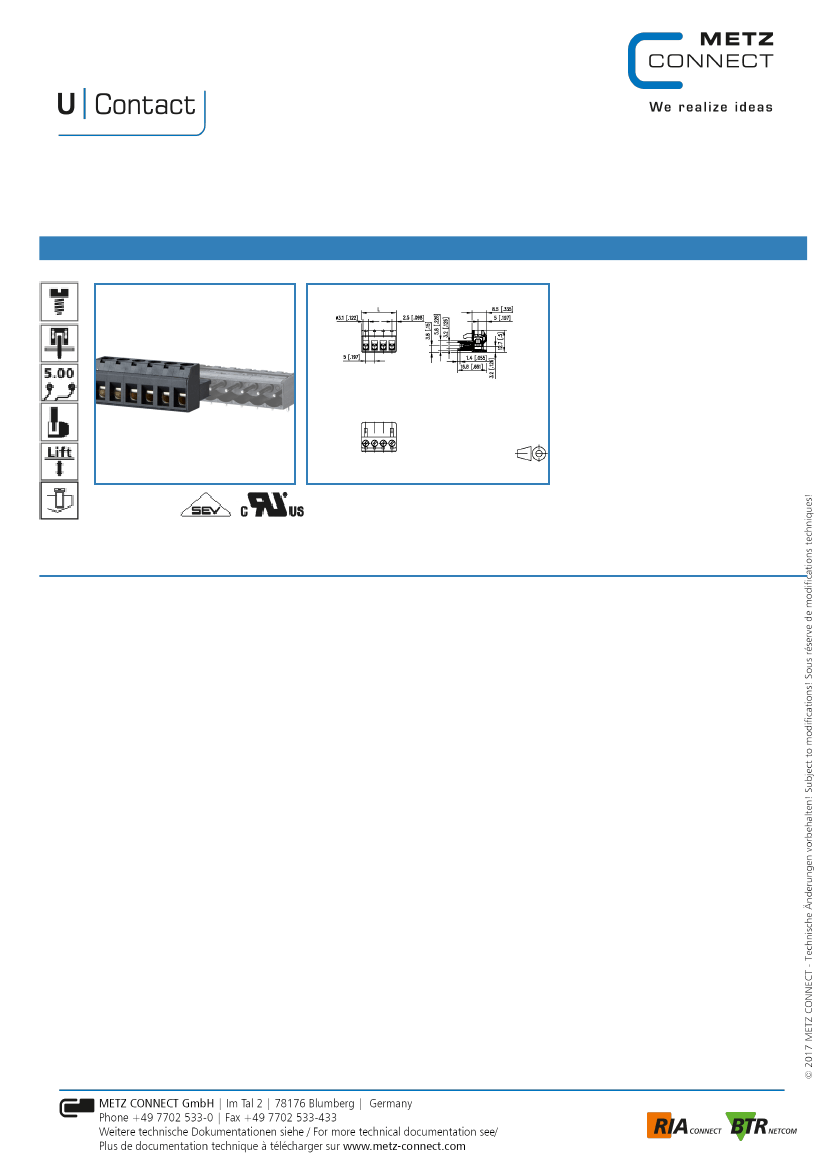

RP015xxWBLC
Illustration
Page 1/5
P/N
310491xx
xx=number of poles
2017/05/04

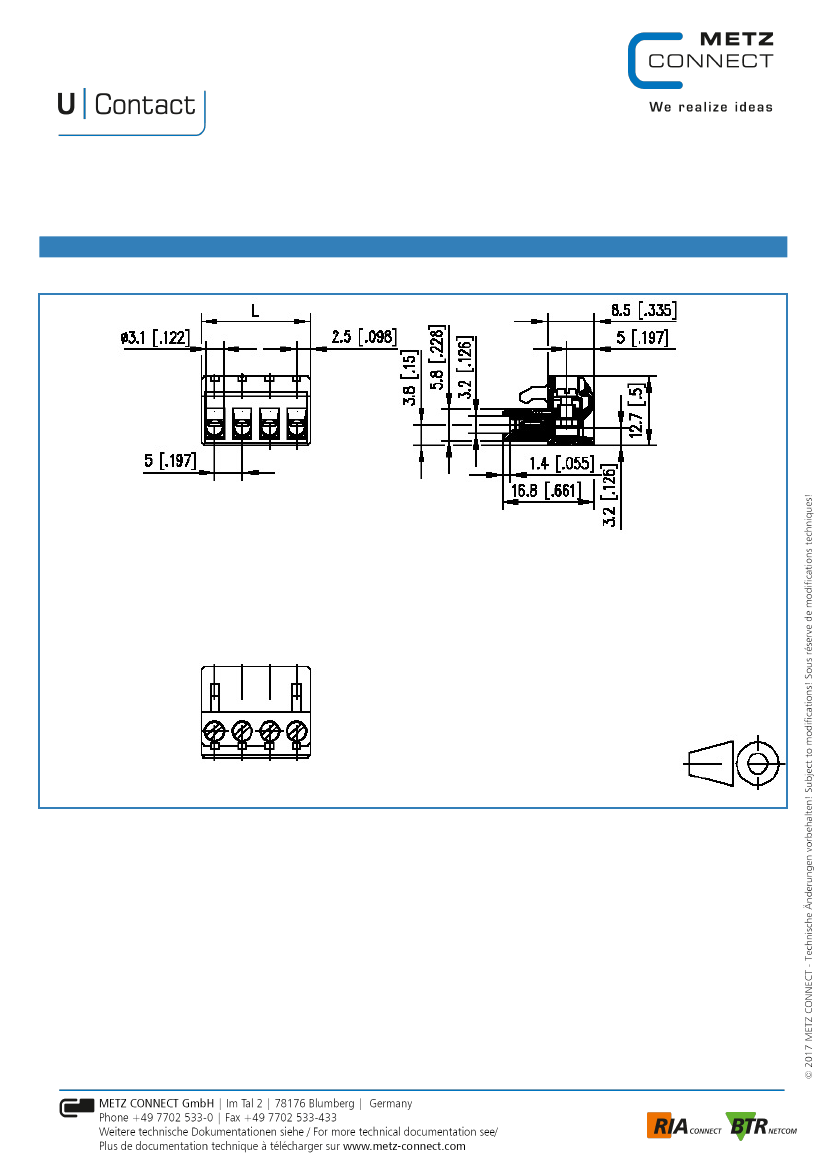

see enlarged drawing at the end of the document
Product specification
• screw type terminal block, pluggable
• centerline 5.00 mm, direction of connection vertical 0°
• lift system, fittable without loss of poles
• color black
• wire entry uncodeable side parallel to plug direction, lamella

31049102 Related Products

31049102 31049103 31049106 31049104
Description SCREW TYPE TERMINAL BLOCK, PLUG, SCREW TYPE TERMINAL BLOCK, PLUG, SCREW TYPE TERMINAL BLOCK, PLUG, SCREW TYPE TERMINAL BLOCK, PLUG,
type plug, female socket plug, female socket plug, female socket plug, female socket
Number of pins 2 3 6 4
Number of pins per level 2 3 6 4
Number of levels 1 1 1 1
spacing 0.197"(5.00mm) 0.197"(5.00mm) 0.197"(5.00mm) 0.197"(5.00mm)
Plug entrance 180° 180° 180° 180°
Terminal type Screws - Lift Cage Clamp Screws - Lift Cage Clamp Screws - Lift Cage Clamp Screws - Lift Cage Clamp
Installation type free hanging free hanging free hanging free hanging
Current - UL 15A 15A 15A 15A
Voltage - UL 300V 300V 300V 300V
Wire Gauge or Range - AWG 12-22 AWG 12-22 AWG 12-22 AWG 12-22 AWG
Wire gauge or range - mm² 0.08-2.5mm² 0.08-2.5mm² 0.08-2.5mm² 0.08-2.5mm²
color black black black black
Operating temperature -40°C ~ 105°C -40°C ~ 105°C -40°C ~ 105°C -40°C ~ 105°C
Contact mating surface treatment gold, nickel alloy gold, nickel alloy gold, nickel alloy gold, nickel alloy
characteristic Fixed lock (non-wire side) Fixed lock (non-wire side) Fixed lock (non-wire side) Fixed lock (non-wire side)
Material flammability rating UL94 V-0 UL94 V-0 UL94 V-0 UL94 V-0
Screw size M3 M3 M3 M3
Torque - Screws 0.79 Nm(7.0 Lb-In) 0.79 Nm(7.0 Lb-In) 0.79 Nm(7.0 Lb-In) 0.79 Nm(7.0 Lb-In)
Contact material Beryllium copper Beryllium copper Beryllium copper Beryllium copper
Shell material Polyamide (PA66), Nylon 6/6 Polyamide (PA66), Nylon 6/6 Polyamide (PA66), Nylon 6/6 Polyamide (PA66), Nylon 6/6
Insulation height 0.500"(12.70mm) 0.500"(12.70mm) 0.500"(12.70mm) 0.500"(12.70mm)
