Part Number

Search

31030106

Description
SHROUDED HEADER, RIGHT ANGLE, PC
CategoryThe connector
File Size318KB,5 Pages
ManufacturerMETZ CONNECT USA Inc.
Environmental Compliance
Download Datasheet Parametric Compare View All

31030106 Overview

SHROUDED HEADER, RIGHT ANGLE, PC

31030106 Parametric

Parameter NameAttribute value
typeConnector, male pins, shrouded (4 sides)
Number of pins6
Number of pins per level6
Number of levels1
spacing0.197"(5.00mm)
Needle seat direction90°, right angle
Plug entrance-
Terminal typewelding
Installation typeThrough hole
Current - IEC-
Current - UL15A
Voltage - UL300V
Wire Gauge or Range - AWG-
Wire gauge or range - mm²-
colorblack
Operating temperature-40°C ~ 105°C
Contact mating surface treatmentgold, nickel alloy
characteristic-
Material flammability ratingUL94 V-0
Intrusion protection-
Screw size-
Torque - Screws-
Wire stripping length-
Contact materialcopper zinc
Shell materialPolyamide (PA66), Nylon 6/6
Contact tail length0.142"(3.60mm)
Insulation height0.327"(8.30mm)

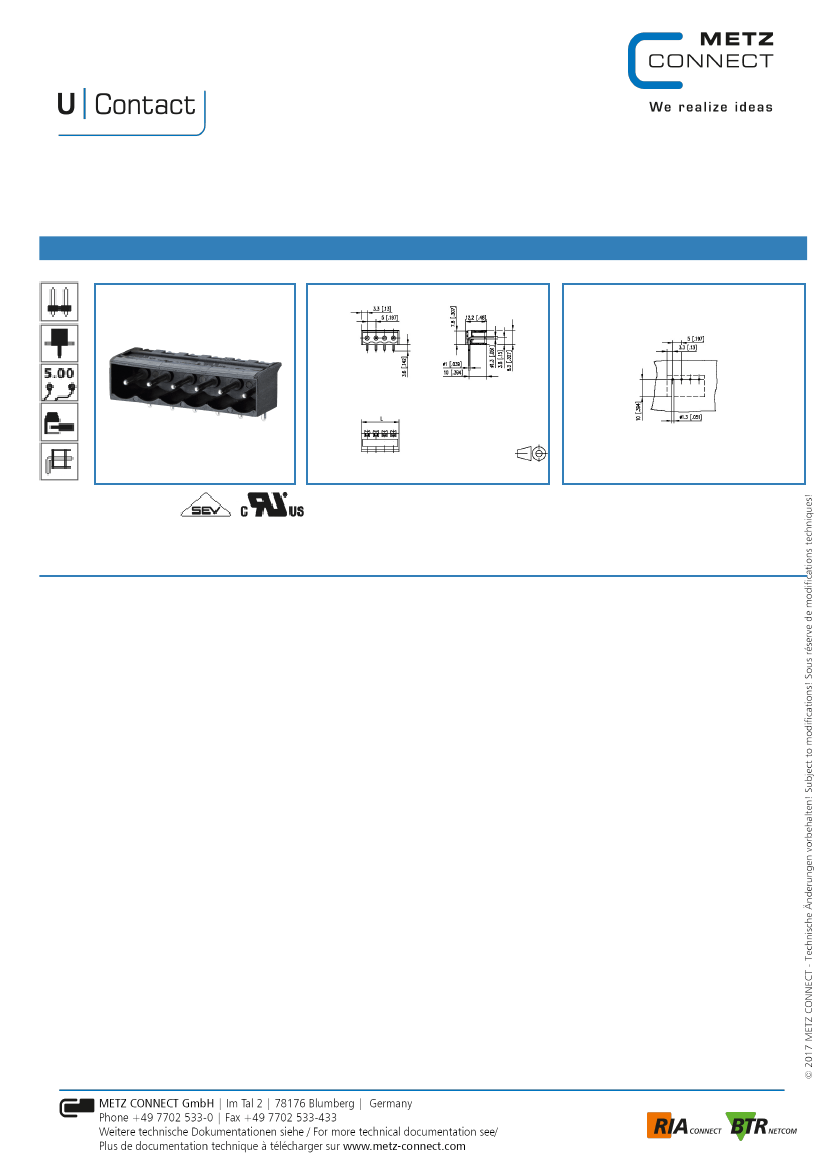

Data Sheet
PT045xxHBBN
Illustration
Page 1/5
P/N
310301xx
xx=number of poles
2017/05/04

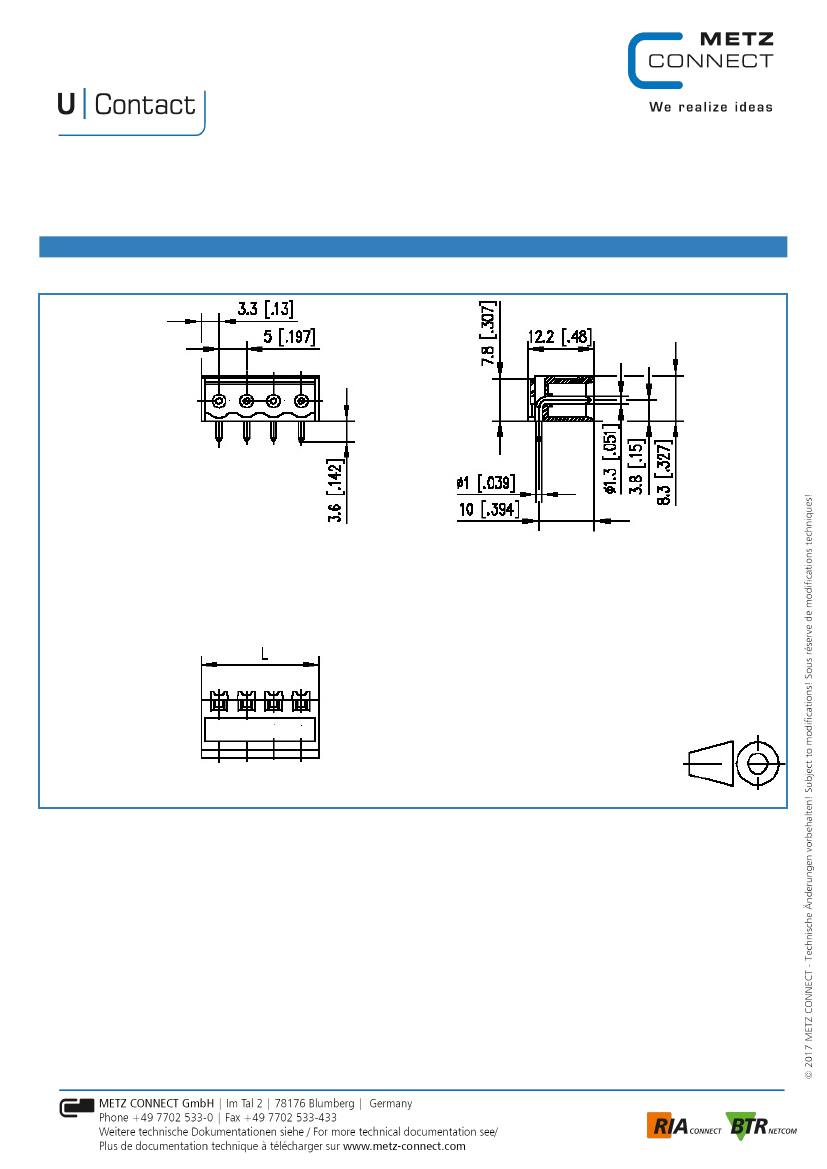

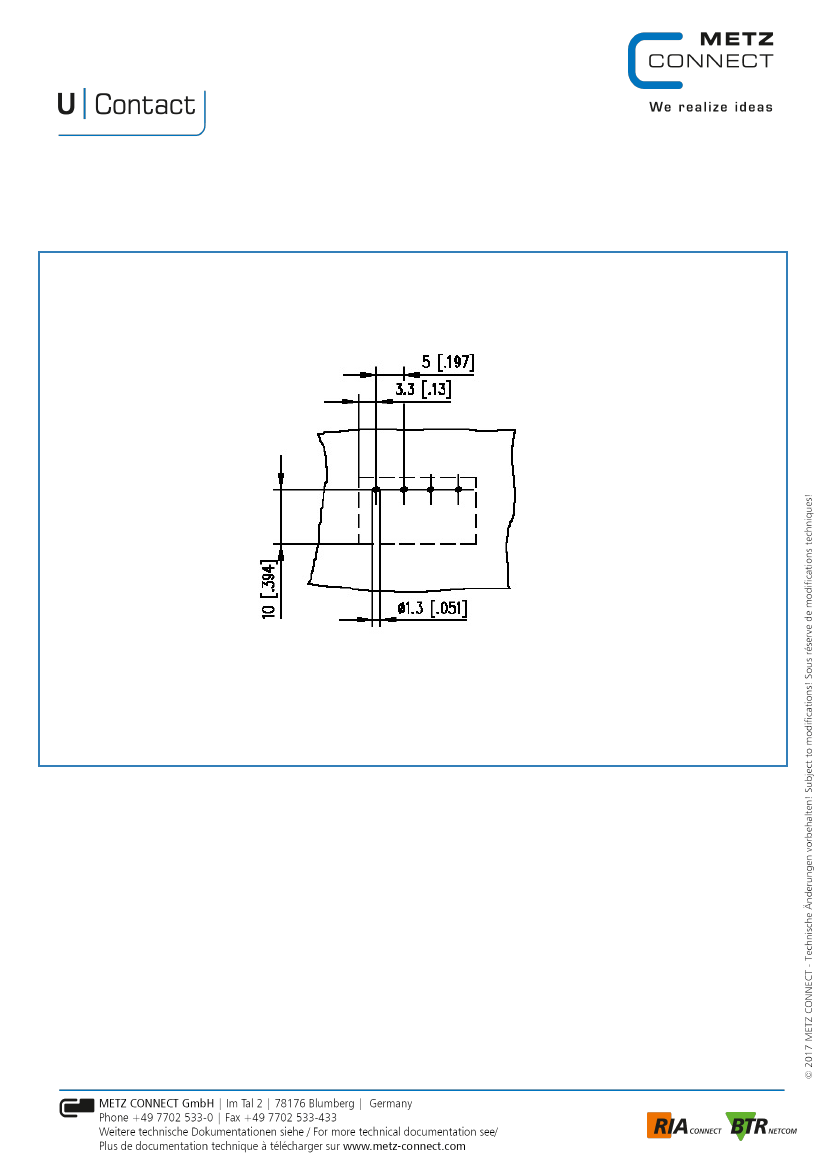

see enlarged drawing at the end of the document
Product specification
• pin header, solderable
• centerline 5.00 mm, direction of connection 90°
• closed ends
• color black
