25JXF2200MEFC12.5X25 datasheet, PDF

Datasheet> All Categories > Passive components> 25JXF2200MEFC12.5X25

25JXF2200MEFC12.5X25: DescriptionCAP ALUM 2200UF 20% 25V T/H; CategoryPassive components; File Size123KB，2 Pages; Manufacturerrubycon; Websitehttp://www.rubycon.co.jp/cn/; Environmental Compliance

Download Datasheet Parametric Compare View All

25JXF2200MEFC12.5X25 Overview

CAP ALUM 2200UF 20% 25V T/H

25JXF2200MEFC12.5X25 Parametric

Parameter Name	Attribute value
capacitance	2200µF
Tolerance	±20%
Voltage - Rated	25V
ESR (equivalent series resistance)	-
Service life at different temperatures	8000 hours at 105°C
Operating temperature	-55°C ~ 105°C
polarization	polarization
grade	-
application	Universal
Ripple current @ low frequency	1.519A @ 120Hz
impedance	30 mOhms
lead spacing	0.197"（5.00mm）
size/dimensions	0.492" diameter (12.50mm)
Height - Installation (maximum)	1.063"（27.00mm）
Surface mount pad dimensions	-
Installation type	Through hole
Package/casing	Radial, Can

Preview

Download Datasheet

View All

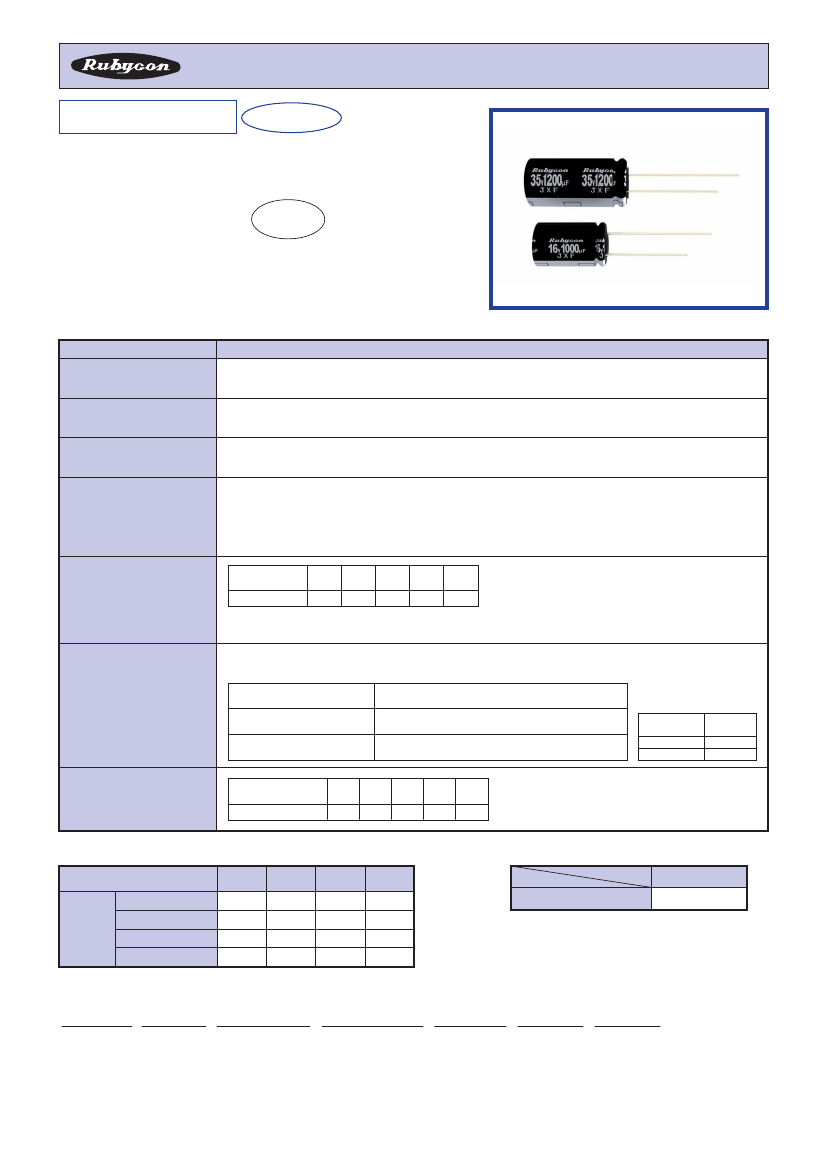

RADIAL LEAD ALUMINUM ELECTROLYTIC CAPACITORS

JXF

SERIES

UPGRADE

105℃ Low Impedance, Wide Temperature Range

・

105℃ 6000∼8000 hours.

・

AEC-Q200.

RoHS

compliance

◆SPECIFICATIONS

Items

Category Temperature Range

Characteristics

−55∼＋105℃

16∼63Vdc

±20％

（20℃，

120Hz）

Rated Voltage Range

Capacitance Tolerance

I＝0.01CV

or 3μA whichever is greater.(After 2 minutes)

Leakage Current(MAX)

I＝

Leakage Current

(μA) C＝

Capacitance

(μF) V＝

Rated Voltage

(Vdc)

Rated Voltage

(Vdc)

tanδ

0.16

0.14

0.12

0.10

0.09

（20℃，

120Hz）

Dissipation Factor(MAX)

(tanδ)

When capacitance is over 1000μF, tanδ shall be added 0.02 to the listed value with increase of every 1000μF.

After applying rated voltage with rated ripple current for speciﬁed time at 105℃,

the capacitors shall meet the following requirements.

Endurance

Capacitance Change

Dissipation Factor

Leakage Current

Within ±30％ of the initial value.

Not more than 300％ of the speciﬁed value.

Not more than the speciﬁed value.

Case Size

φD=10

φD≧12.5

Life Time

(hrs)

6000

8000

Low Temperature Stability

Impedance Ratio(MAX)

Rated Voltage

(Vdc)

（−55℃）（20℃） 3

（120Hz）

◆MULTIPLIER FOR RIPPLE CURRENT

Frequency

（Hz）

◆OPTION

100k≦

1.00

PET Sleeve

Code

120

0.50

0.55

0.60

0.70

0.73

0.77

0.80

0.85

10k

0.92

0.94

0.96

0.98

120∼270μF

Coeﬃcient

EFC

330∼680μF

820∼1800μF

2200∼10000μF

◆PART NUMBER

□□□

Rated Voltage

JXF

Series

□□□□□

Capacitance

Capacitance Tolerance

□□□

Option

□□

Lead Forming

D×L

Case Size

25JXF2200MEFC12.5X25 Related Products

	25JXF2200MEFC12.5X25	25JXF1200MEFC10X25	35JXF1800MEFC12.5X30	16JXF1500MEFC10X20	25JXF1000MEFC10X20	16JXF1800MEFC10X25	35JXF820MEFC10X25	35JXF3300MEFC16X30
Description	CAP ALUM 2200UF 20% 25V T/H	CAP ALUM 1200UF 20% 25V T/H	CAP ALUM 1800UF 20% 35V T/H	CAP ALUM 1500UF 20% 16V T/H	CAP ALUM 1000UF 20% 25V T/H	CAP ALUM 1800UF 20% 16V T/H	CAP ALUM 820UF 20% 35V T/H	CAP ALUM 3300UF 20% 35V T/H
capacitance	2200µF	1200µF	1800µF	1500µF	1000µF	1800µF	820µF	3300µF
Tolerance	±20%	±20%	±20%	±20%	±20%	±20%	±20%	±20%
Voltage - Rated	25V	25V	35V	16V	25V	16V	35V	35V
Service life at different temperatures	8000 hours at 105°C	6000 hours at 105°C	8000 hours at 105°C	6000 hours at 105°C	6000 hours at 105°C	6000 hours at 105°C	6000 hours at 105°C	8000 hours at 105°C
Operating temperature	-55°C ~ 105°C	-55°C ~ 105°C	-55°C ~ 105°C	-55°C ~ 105°C	-55°C ~ 105°C	-55°C ~ 105°C	-55°C ~ 105°C	-55°C ~ 105°C
polarization	polarization	polarization	polarization	polarization	polarization	polarization	polarization	polarization
application	Universal	Universal	Universal	Universal	Universal	Universal	Universal	Universal
Ripple current @ low frequency	1.519A @ 120Hz	1.026A @ 120Hz	1.524A @ 120Hz	894mA @ 120Hz	894mA @ 120Hz	1.026A @ 120Hz	1.026A @ 120Hz	2.142A @ 120Hz
impedance	30 mOhms	37 mOhms	25 mOhms	45 mOhms	45 mOhms	37 mOhms	37 mOhms	19 mOhms
lead spacing	0.197"（5.00mm）	0.197"（5.00mm）	0.197"（5.00mm）	0.197"（5.00mm）	0.197"（5.00mm）	0.197"（5.00mm）	0.197"（5.00mm）	0.295"（7.50mm）
size/dimensions	0.492" diameter (12.50mm)	0.394" diameter (10.00mm)	0.492" diameter (12.50mm)	0.394" diameter (10.00mm)	0.394" diameter (10.00mm)	0.394" diameter (10.00mm)	0.394" diameter (10.00mm)	0.630" diameter (16.00mm)
Height - Installation (maximum)	1.063"（27.00mm）	1.063"（27.00mm）	1.260"（32.00mm）	0.866"（22.00mm）	0.866"（22.00mm）	1.063"（27.00mm）	1.063"（27.00mm）	1.260"（32.00mm）
Installation type	Through hole	Through hole	Through hole	Through hole	Through hole	Through hole	Through hole	Through hole
Package/casing	Radial, Can	Radial, Can	Radial, Can	Radial, Can	Radial, Can	Radial, Can	Radial, Can	Radial, Can
