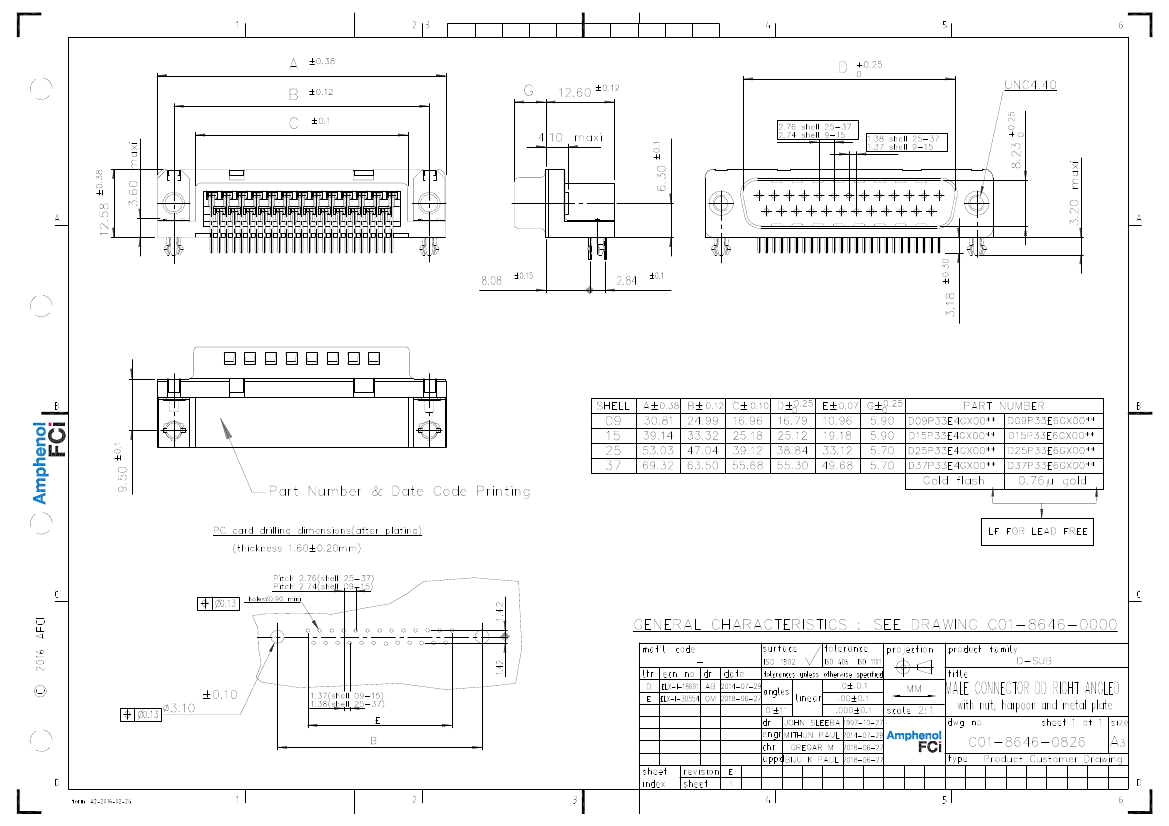

D15P33E6GX00LF |
D09P33E4GX00LF |
D25P33E6GX00LF |
| Description |
CONN D-SUB PLUG 15POS R/A SOLDER |
CONN D-SUB PLUG 9POS R/A SOLDER |
CONN D-SUB PLUG 25POS R/A SOLDER |
| Is it Rohs certified? |
conform to |
conform to |
conform to |
| Maker |
Amphenol |
Amphenol |
Amphenol |
| package instruction |
LEAD FREE |
LEAD FREE |
LEAD FREE |
| Reach Compliance Code |
compliant |
compliant |
compliant |
| Factory Lead Time |
7 weeks |
12 weeks |
12 weeks |
| body width |
0.495 inch |
0.495 inch |
0.495 inch |
| subject depth |
0.496 inch |
0.496 inch |
0.496 inch |
| body length |
1.541 inch |
1.213 inch |
2.088 inch |
| Connector type |
D SUBMINIATURE CONNECTOR |
D SUBMINIATURE CONNECTOR |
D SUBMINIATURE CONNECTOR |
| Contact to complete cooperation |
GOLD FLASH OVER NICKEL |
NOT SPECIFIED |
NOT SPECIFIED |
| Contact point gender |
MALE |
MALE |
MALE |
| Contact material |
NOT SPECIFIED |
NOT SPECIFIED |
NOT SPECIFIED |
| contact mode |
STAGGERED |
STAGGERED |
STAGGERED |
| Contact resistance |
10 mΩ |
10 mΩ |
10 mΩ |
| Contact style |
RND PIN-SKT |
RND PIN-SKT |
RND PIN-SKT |
| DIN compliance |
NO |
NO |
NO |
| Dielectric withstand voltage |
1400VAC V |
1400VAC V |
1400VAC V |
| empty shell |
NO |
NO |
NO |
| Filter function |
NO |
NO |
NO |
| IEC compliance |
NO |
NO |
NO |
| maximum insertion force |
.3058 N |
4.8928 N |
.3058 N |
| insulator material |
POLYESTER |
POLYESTER |
POLYESTER |
| MIL compliance |
NO |
NO |
NO |
| Plug contact pitch |
0.108 inch |
0.108 inch |
0.109 inch |
| Mixed contacts |
NO |
NO |
NO |
| Installation option 1 |
#4-40 |
#4-40 |
#4-40 |
| Installation option 2 |
LOCKING |
INSERT |
LOCKING |
| Installation method |
RIGHT ANGLE |
RIGHT ANGLE |
RIGHT ANGLE |
| Installation type |
BOARD |
BOARD |
BOARD |
| PCB row number |
2 |
2 |
2 |
| Number of rows loaded |
2 |
2 |
2 |
| Maximum operating temperature |
125 °C |
125 °C |
125 °C |
| Minimum operating temperature |
-55 °C |
-55 °C |
-55 °C |
| Options |
GENERAL PURPOSE |
GENERAL PURPOSE |
GENERAL PURPOSE |
| PCB contact pattern |
STAGGERED |
STAGGERED |
STAGGERED |
| PCB contact row spacing |
1.4732 mm |
2.8448 mm |
1.4732 mm |
| Rated current (signal) |
5 A |
5 A |
5 A |
| Guideline |
UL |
UL |
UL |
| reliability |
COMMERCIAL |
COMMERCIAL |
COMMERCIAL |
| Shell surface |
TIN/ZINC CHROMIUM |
TIN/ZINC CHROMIUM |
TIN/ZINC CHROMIUM |
| Shell material |
STEEL |
STEEL |
STEEL |
| Housing size |
2/A |
1/E |
3/B |
| Terminal length |
0.125 inch |
0.125 inch |
0.125 inch |
| Terminal pitch |
2.7432 mm |
2.7432 mm |
2.7686 mm |
| Termination type |
SOLDER |
SOLDER |
SOLDER |
| Total number of contacts |
15 |
9 |
25 |
| UL Flammability Code |
94V-0 |
94V-0 |
94V-0 |
| Evacuation force-minimum value |
.29746 N |
.3058 N |
.29746 N |
| Is it lead-free? |
Lead free |
Lead free |
- |
| Contact completed and terminated |
Tin (Sn) - with Nickel (Ni) barrier |
Matte Tin (Sn) - with Nickel (Ni) barrier |
- |
| JESD-609 code |
e3 |
e3 |
- |
