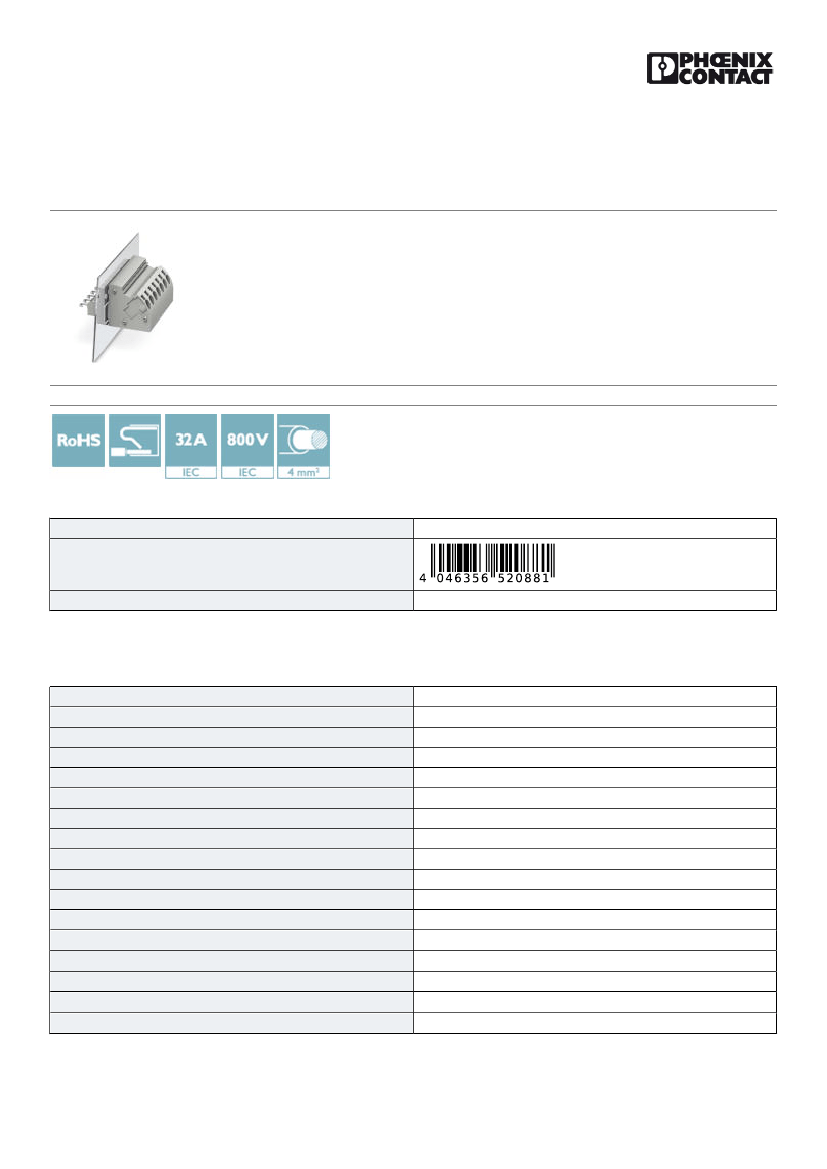

Panel feed-through terminal block - PWO 4-POT-SL/S - 3059728
Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's
documentation. Our General Terms of Use for Downloads are valid
(http://phoenixcontact.com/download)
Panel feed-through terminal block, connection method: Push-in spring connection, Solder connection, number
of positions: 1, load current: 32 A, cross section: 0.2 mm² - 4 mm², AWG 24 - 12, width: 8.1 mm, color: gray
Key Commercial Data
Packing unit
GTIN
GTIN
4046356520881
50 pc
Technical data
General
Number of levels
Number of connections
Nominal cross section
Color
Insulating material
Flammability rating according to UL 94
Maximum load current
Rated surge voltage
Degree of pollution
Overvoltage category
Insulating material group
Ambient temperature (operation)
Connection in acc. with standard
Nominal current I
N
Maximum load current
Nominal voltage U
N
Open side panel
1
2
4 mm²
gray
PA
V0
41 A
8 kV
3
III
I
-40 °C ... 105 °C
IEC 60947-7-1
32 A
32 A
800 V
No
11/11/2018 Page 1 / 4
https://www.phoenixcontact.com/pi/products/3059728
Panel feed-through terminal block - PWO 4-POT-SL/S - 3059728
Technical data
General
Number of positions
1
Dimensions
Width
Pitch
Plate thickness
8.1 mm
8.1 mm
1 mm ... 4 mm
Connection data
Connection side
Connection method
Conductor cross section solid min.
Conductor cross section solid max.
Conductor cross section flexible min.
Conductor cross section flexible max.
Conductor cross section AWG min.
Conductor cross section AWG max.
Conductor cross section flexible, with ferrule without plastic sleeve min.
Conductor cross section flexible, with ferrule with plastic sleeve min.
Conductor cross section flexible, with ferrule with plastic sleeve max.
2 conductors with same cross section, stranded, TWIN ferrules with
plastic sleeve, min.
2 conductors with same cross section, stranded, TWIN ferrules with
plastic sleeve, max.
Stripping length
Internal cylindrical gage
Connection side
Connection method
outside
Push-in spring connection
0.2 mm²
4 mm²
0.2 mm²
6 mm²
24
12
0.25 mm²
0.25 mm²
4 mm²
0.5 mm²
1 mm²
10 mm
A4
inside
Solder connection
Conductor cross section flexible, with ferrule without plastic sleeve max. 6 mm²
Standards and Regulations
Connection in acc. with standard
Flammability rating according to UL 94
UL
IEC 60947-7-1
V0
Environmental Product Compliance
China RoHS
Environmentally friendly use period: unlimited = EFUP-e
No hazardous substances above threshold values
Drawings
11/11/2018 Page 2 / 4
https://www.phoenixcontact.com/pi/products/3059728
Panel feed-through terminal block - PWO 4-POT-SL/S - 3059728

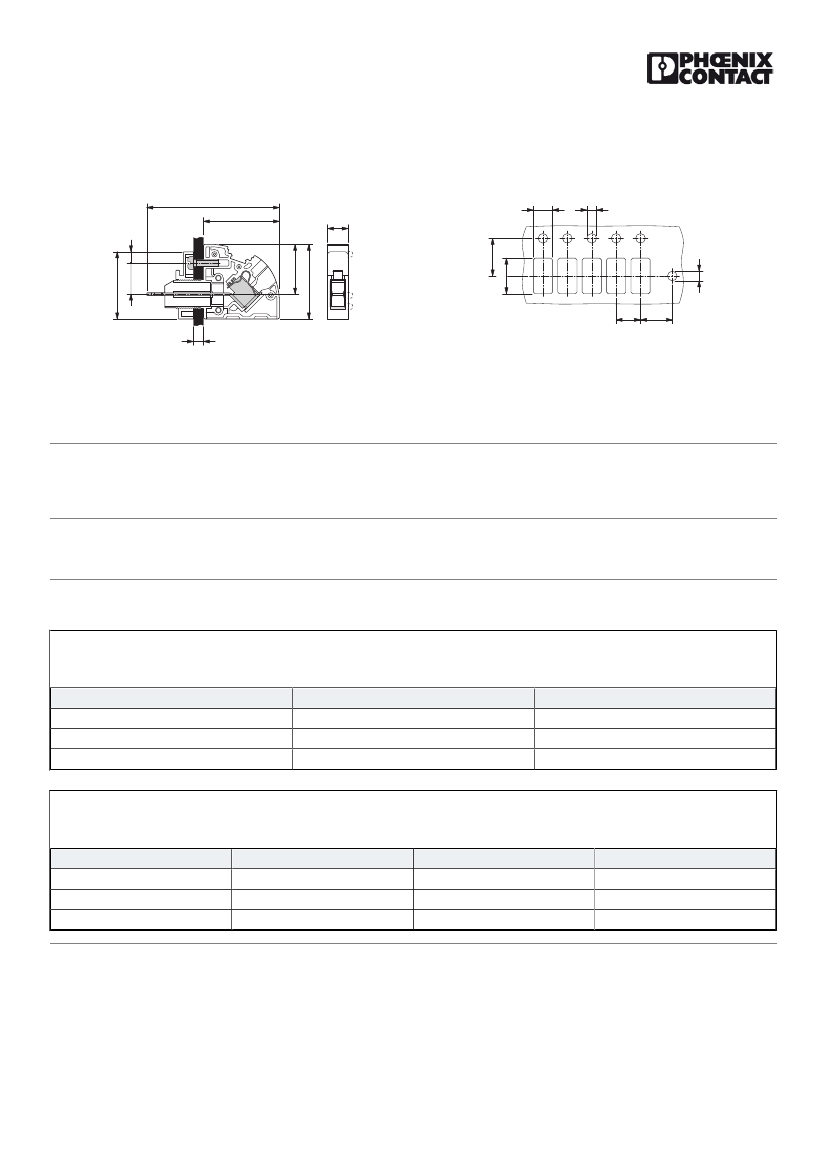

Dimensional drawing
53,2
30,5
8,1
Ø4,5
11,8
8,1
10,55*
Dimensional drawing
6,4
Ø3,2
4,5
12,5
20
27
1-4
30
*Only when using the PW 4-F flange plate
Approvals
Approvals
Approvals
CSA / cULus Recognized
Ex Approvals
Approval details
CSA
Nominal voltage UN
Nominal current IN
mm²/AWG/kcmil
D
300 V
10 A
24-10
http://www.csagroup.org/services-industries/product-listing/
B
300 V
30 A
24-10
12,5
2618381-158887
cULus Recognized
Nominal voltage UN
Nominal current IN
mm²/AWG/kcmil
D
600 V
5A
24-10
http://database.ul.com/cgi-bin/XYV/template/LISEXT/1FRAME/index.htm E60425-20100423
B
300 V
30 A
24-10
C
300 V
30 A
24-10
11/11/2018 Page 3 / 4
