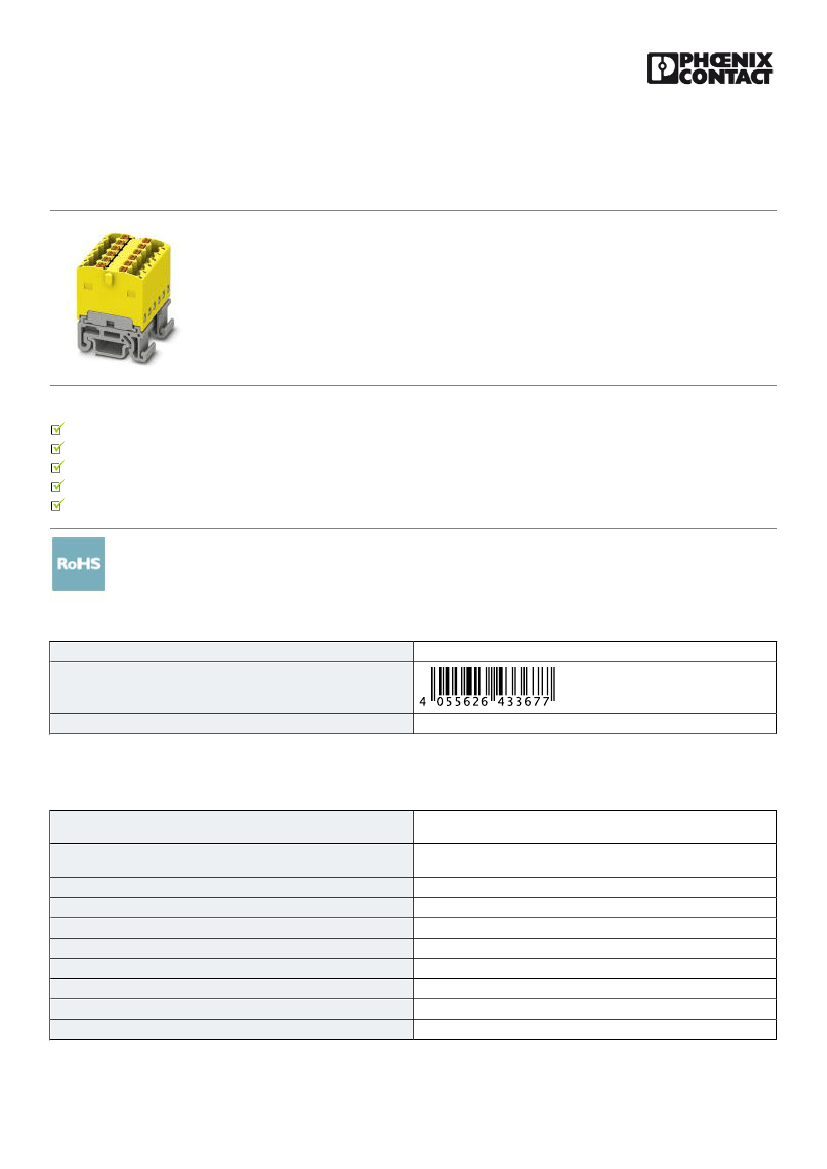

Distribution block - PTFIX 12X1,5-NS15A YE - 3002958
Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's
documentation. Our General Terms of Use for Downloads are valid
(http://phoenixcontact.com/download)
Distribution block, internally jumpered, nom. voltage: 500 V, nominal current: 17.5 A, connection method:
Push-in connection, number of connections: 12, cross section:0.14 mm² - 2.5 mm², AWG: 26 - 14, width: 24.9
mm, color: gray, mounting type: NS 15
Your advantages
Space-saving, thanks to the compact design
Flexible use, thanks to DIN rail and direct mounting
Space-saving potential distribution, thanks to compact micro potential distributors
Convenient test options, thanks to test openings at every terminal point
Clear arrangement thanks to marking of all terminal points
Key Commercial Data
Packing unit
GTIN
GTIN
4055626433677
20 pc
Technical data
General
Note
Notes on operation The blocks can be bridged with one another via the
conductor shaft. For corresponding plug-in bridges, see accessories
Notes on operation The D-PTFIX 1,5 cover (accessory) must be placed
on the end of the terminal strip
Number of levels
Number of connections
Potentials
Nominal cross section
Color
Insulating material
Flammability rating according to UL 94
Rated surge voltage
1
12
1
1.5 mm²
gray
PA
V0
6 kV
11/12/2018 Page 1 / 5
https://www.phoenixcontact.com/pi/products/3002958
Distribution block - PTFIX 12X1,5-NS15A YE - 3002958
Technical data
General
Degree of pollution
Overvoltage category
Insulating material group
Maximum power dissipation for nominal condition
Ambient temperature (operation)
Maximum load current
Maximum total current
Nominal current I
N
Nominal voltage U
N
Open side panel
Shock protection test specification
Back of the hand protection
Finger protection
Result of surge voltage test
Surge voltage test setpoint
Result of power-frequency withstand voltage test
Power frequency withstand voltage setpoint
Result of the test for mechanical stability of terminal points (5 x
conductor connection)
Result of bending test
Bending test rotation speed
Bending test turns
Bending test conductor cross section/weight
Tensile test result
Conductor cross section tensile test
Tractive force setpoint
Conductor cross section tensile test
Tractive force setpoint
Result of tight fit on support
Tight fit on carrier
Setpoint
Result of voltage-drop test
Requirements, voltage drop
Result of temperature-rise test
Short circuit stability result
Conductor cross section short circuit testing
Short-time current
Result of thermal test
Ageing test for screwless modular terminal block temperature cycles
Proof of thermal characteristics (needle flame) effective duration
3
III
I
0.56 W
-60 °C ... 130 °C
26 A
26 A
17.5 A
500 V
No
DIN EN 50274 (VDE 0660-514):2002-11
guaranteed
guaranteed
Test passed
7.3 kV
Test passed
1.89 kV
Test passed
Test passed
10 rpm
135
0.14 mm² / 0.2 kg
1.5 mm² / 0.4 kg
Test passed
0.14 mm²
10 N
1.5 mm²
40 N
Test passed
NS 15
5N
Test passed
≤ 3.2 mV
Test passed
Test passed
1.5 mm²
0.18 kA
Test passed
192
30 s
11/12/2018 Page 2 / 5
https://www.phoenixcontact.com/pi/products/3002958
Distribution block - PTFIX 12X1,5-NS15A YE - 3002958
Technical data
General
Result of aging test
Oscillation, broadband noise test result
Test specification, oscillation, broadband noise
Test spectrum
Test frequency
ASD level
Acceleration
Test duration per axis
Test directions
Shock test result
Test specification, shock test
Shock form
Acceleration
Shock duration
Number of shocks per direction
Test directions
Behavior in fire for rail vehicles (DIN 5510-2)
Flame test method (DIN EN 60695-11-10)
Oxygen index (DIN EN ISO 4589-2)
NF F16-101, NF F10-102 Class I
NF F16-101, NF F10-102 Class F
Surface flammability NFPA 130 (ASTM E 162)
Specific optical density of smoke NFPA 130 (ASTM E 662)
Smoke gas toxicity NFPA 130 (SMP 800C)
Calorimetric heat release NFPA 130 (ASTM E 1354)
Fire protection for rail vehicles (DIN EN 45545-2) R22
Fire protection for rail vehicles (DIN EN 45545-2) R23
Fire protection for rail vehicles (DIN EN 45545-2) R24
Fire protection for rail vehicles (DIN EN 45545-2) R26
Test passed
Test passed
DIN EN 50155 (VDE 0115-200):2008-03
Service life test category 2, bogie-mounted
f
1
= 5 Hz to f
2
= 250 Hz
6.12 (m/s ) /Hz
3.12 g
5h
X-, Y- and Z-axis
Test passed
DIN EN 50155 (VDE 0115-200):2008-03
Half-sine
30g
18 ms
3
X-, Y- and Z-axis (pos. and neg.)
Test passed
V0
>32 %
2
2
passed
passed
passed
28 MJ/kg
HL 1 - HL 3
HL 1 - HL 3
HL 1 - HL 3
HL 1 - HL 3
2 2
Dimensions
Width
Length
Height NS 15
24.9 mm
21.6 mm
27.4 mm
Connection data
Connection method
Connection in acc. with standard
Conductor cross section solid min.
Conductor cross section solid max.
Conductor cross section AWG min.
Push-in connection
IEC 60947-7-1
0.14 mm²
2.5 mm²
26
11/12/2018 Page 3 / 5
https://www.phoenixcontact.com/pi/products/3002958
Distribution block - PTFIX 12X1,5-NS15A YE - 3002958
Technical data
Connection data
Conductor cross section AWG max.
Conductor cross section flexible min.
Conductor cross section flexible max.
Min. AWG conductor cross section, flexible
Max. AWG conductor cross section, flexible
Conductor cross section flexible, with ferrule without plastic sleeve min.
Conductor cross section flexible, with ferrule with plastic sleeve min.
Conductor cross section flexible, with ferrule with plastic sleeve max.
Stripping length
Internal cylindrical gage
14
0.14 mm²
1.5 mm²
24
12
0.14 mm²
0.14 mm²
1.5 mm²
8 mm ... 10 mm
A1 / B1
Conductor cross section flexible, with ferrule without plastic sleeve max. 1.5 mm²
Standards and Regulations
Connection in acc. with standard
Flammability rating according to UL 94
Fire protection for rail vehicles (DIN EN 45545-2) R22
Fire protection for rail vehicles (DIN EN 45545-2) R23
Fire protection for rail vehicles (DIN EN 45545-2) R24
Fire protection for rail vehicles (DIN EN 45545-2) R26
IEC 60947-7-1
V0
HL 1 - HL 3
HL 1 - HL 3
HL 1 - HL 3
HL 1 - HL 3
Environmental Product Compliance
China RoHS
Environmentally friendly use period: unlimited = EFUP-e
No hazardous substances above threshold values
Drawings
Circuit diagram
Approvals
Approvals
Approvals
CSA / UL Recognized / cUL Recognized / cULus Recognized
Ex Approvals
Approval details
11/12/2018 Page 4 / 5
https://www.phoenixcontact.com/pi/products/3002958
Distribution block - PTFIX 12X1,5-NS15A YE - 3002958
Approvals
CSA
Nominal voltage UN
Nominal current IN
mm²/AWG/kcmil
D
150 V
15 A
26-14
http://www.csagroup.org/services-industries/product-listing/
B
300 V
15 A
26-14
C
300 V
15 A
26-14
13631
UL Recognized
Nominal voltage UN
Nominal current IN
mm²/AWG/kcmil
D
150 V
15 A
26-14
http://database.ul.com/cgi-bin/XYV/template/LISEXT/1FRAME/index.htm
B
300 V
15 A
26-14
C
300 V
15 A
26-14
FILE E 60425
cUL Recognized
Nominal voltage UN
Nominal current IN
mm²/AWG/kcmil
D
150 V
15 A
26-14
http://database.ul.com/cgi-bin/XYV/template/LISEXT/1FRAME/index.htm
B
300 V
15 A
26-14
C
300 V
15 A
26-14
FILE E 60425
cULus Recognized
Phoenix Contact 2018 © - all rights reserved
http://www.phoenixcontact.com
PHOENIX CONTACT GmbH & Co. KG
Flachsmarktstr. 8
32825 Blomberg
Germany
Tel. +49 5235 300
Fax +49 5235 3 41200
http://www.phoenixcontact.com
11/12/2018 Page 5 / 5
