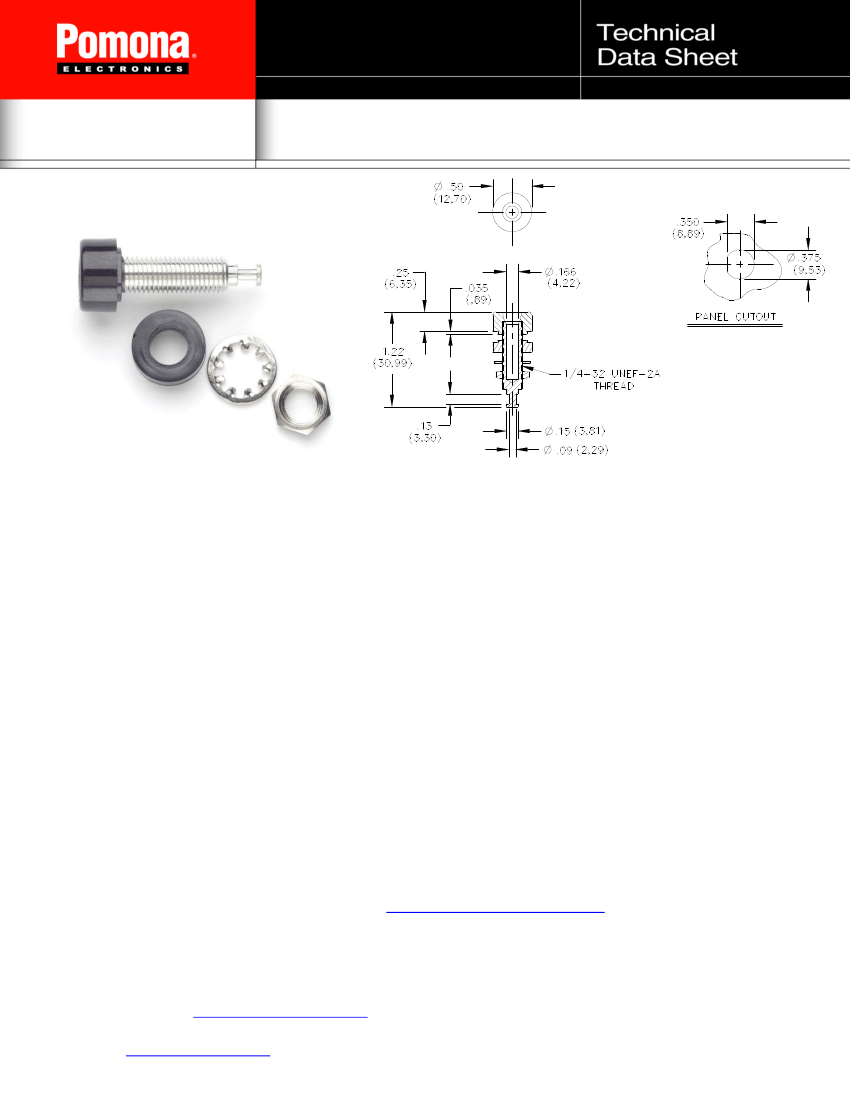

Model 1581, 2854 & 4900
Panel Mount Banana Jack
Features
Banana Jacks mount into panels ranging in thickness from .063” (1.6mm) to .375” (9.5mm).
Model 4900 features Polyphenylene Sulfide for high temperature applications.
Model 2854 features gold plated body for optimum electrical connection.
Model 1581 features bright tin plating.
Materials
Banana Jack: Body – Brass, Nickel Plated, (Model 2854, Brass, Gold Plated)
Insulators: Polycarbonate (Model 4900, High Temperature Polyphenylene Sulfide)
¼ Internal Locking Washer: Steel, Nickel Plated
¼-32 Hex Nut: Brass, Nickel Plated
Ratings
Operating Temperature: +115°C (+239°F), (Model 4900 +220°C (+428°F))
Operating Voltage:
For
CE compliance
and for personal safety, do not hold in hand when voltages exceed 30
Vrms/60 Vdc.
Maximum voltage for
hands free use
in controlled testing environments: 2500 WVDC
Do not use on circuits where transient stresses can exceed the rated voltage.
Current: 15 Amperes
Ordering Information
Model: #-Color Code
1581 Std. Colors: -0 Black, -1 Brown, -2 Red, -3 Orange, -4 Yellow, -5 Green, -6 Blue, -7 Violet, -8 Gray, -9 White
2854 Std. Colors: -0 Black, -1 Brown, -2 Red, -4 Yellow, -5 Green, -6 Blue, -8 Gray, -9 White (Other
colors
available, contact Pomona Technical Support:
technicalsupport@pomonatest.com)
4900 Std. Colors: -0 Black, -6 Blue
Sold unassembled, in packages of 10 per color
Ordering Example: 2854-2 Gold Plated Banana Jack, Color: Red
USA:
Sales: 800-490-2361
Technical Support:
technicalsupport@pomonatest.com
Fax: 425-446-5844
Europe:
31-(0) 40 2675 150
International:
425-446-5500
Where to Buy:
www.pomonaelectronics.com
All dimensions are in inches. Tolerances (except noted): .xx = ±.02” (,51 mm),
.xxx = ± .005” (,127 mm). All specifications are to the latest revisions.
Specifications are subject to change without notice. Registered trademarks are
the property of their respective companies.
Copyright © 2016
D1093719, D1094050, D1094315
Rev. 101 Page 1 of 1
