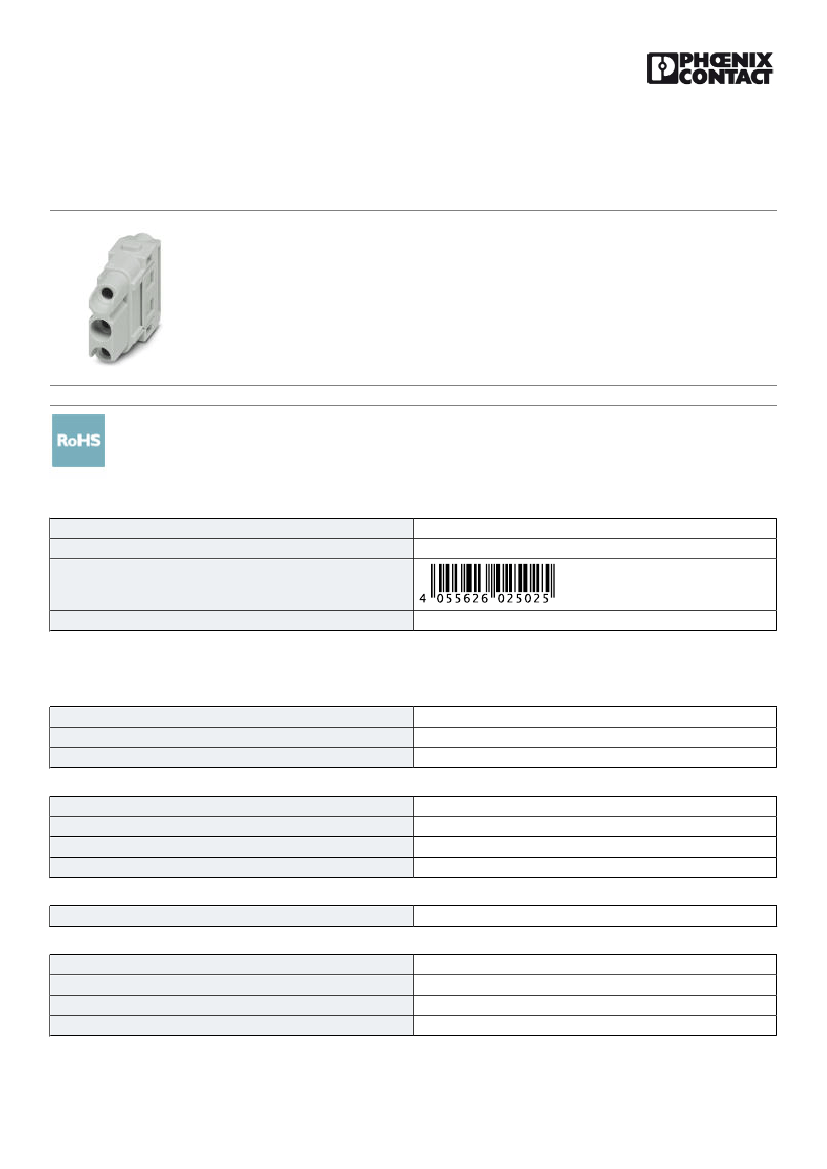

Contact insert module - HC-M-03-CT-F - 1414359
Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's
documentation. Our General Terms of Use for Downloads are valid
(http://phoenixcontact.com/download)
Contact insert module, number of positions: 3, power contacts: 3, control contacts: 0, Socket, Crimp
connection, 690 V, 40 A, 1.5 mm² ... 10 mm², application: Power
Key Commercial Data
Packing unit
Minimum order quantity
GTIN
GTIN
4055626025025
5 pc
5 pc
Technical data
Dimensions
Height
Width
Length
44.7 mm
34.2 mm
14.6 mm
Electrical characteristics
Rated voltage (III/3)
Rated current
Rated surge voltage
Connection profile
690 V
40 A
6 kV
3
Ambient conditions
Ambient temperature (operation)
-40 °C ... 125 °C
Mechanical characteristics
Conductor cross section
Connection cross section AWG
Stripping length of the individual wire
1.5 mm² ... 10 mm²
16 ... 8
9 mm (for 1.5 ... 2.5 mm²)
9.6 mm (for 4 mm² ... 6 mm²)
11/12/2018 Page 1 / 4
https://www.phoenixcontact.com/pi/products/1414359
Contact insert module - HC-M-03-CT-F - 1414359
Technical data
Mechanical characteristics
15 mm (for 10 mm²/conductor ≥ 5 mm diameter)
18 mm (for 10 mm²/conductor ≥ 6.4 mm diameter)
Contact diameter
Wire diameter including insulation
Insertion/withdrawal cycles
Minimum housing height
4 mm
7.5 mm
≥ 500
52 mm
General
Note
Series
Color
Number of module slots
Connection method
Connection in acc. with standard
Contact type
Flammability rating according to UL 94
Degree of pollution
Overvoltage category
Assembly instructions
For HEAVYCON housing type B6 to B48, HC-M-B...MF-... hinged
module carrier frame required, CK4,0...... crimp contacts, crimp contacts
not supplied as standard.
HC-M-03
light gray
1
Crimp connection
IEC / EN
turned
V0
3
III
To ensure correct use, installation in housing with IP54 protection or
better is required
The CK4,0-EWZ tool (order no. 1662735) is required for removing the
crimp contacts.
At every "C" contact chamber, the position of the contact retaining
springs is marked with two black markings on the connection side.
From the connection side, the tool is pushed over the contact in a
position-oriented manner, so that it touches both the retaining springs.
Then insert it up to the limit stop. Do not turn the inserted tool. Push
the conductor out of the insulating body along with the tool from the
connection side.
Connection
Material data
Contact material
Contact surface material
Contact carrier material
Copper alloy
Ag
PC
Standards and Regulations
Flammability rating according to UL 94
V0
Environmental Product Compliance
China RoHS
Environmentally friendly use period: unlimited = EFUP-e
No hazardous substances above threshold values
Drawings
11/12/2018 Page 2 / 4
https://www.phoenixcontact.com/pi/products/1414359
Contact insert module - HC-M-03-CT-F - 1414359
Schematic diagram
14,6
1
Dimensional drawing
44,7
2
3
Connector pin assignment
Approvals
Approvals
Approvals
CSA / UL Recognized / EAC
Ex Approvals
Approval details
CSA
Nominal voltage UN
Nominal current IN
mm²/AWG/kcmil
http://www.csagroup.org/services-industries/product-listing/
600 V
33 A
10
34,1
13631
UL Recognized
Nominal voltage UN
Nominal current IN
mm²/AWG/kcmil
http://database.ul.com/cgi-bin/XYV/template/LISEXT/1FRAME/index.htm
600 V
42 A
10
E118976
EAC
RU C-
DE.AI30.B.01102
11/12/2018 Page 3 / 4
https://www.phoenixcontact.com/pi/products/1414359
Phoenix Contact 2018 © - all rights reserved
http://www.phoenixcontact.com
PHOENIX CONTACT GmbH & Co. KG
Flachsmarktstr. 8
32825 Blomberg
Germany
Tel. +49 5235 300
Fax +49 5235 3 41200
http://www.phoenixcontact.com
11/12/2018 Page 4 / 4
