008383010000010 datasheet, PDF

Datasheet> All Categories > The connector> The connector> 008383010000010

008383010000010: DescriptionCONN HEADER HI TEMP 10POS STR; CategoryThe connector The connector; File Size90KB，2 Pages; ManufacturerAVX; Environmental Compliance

Download Datasheet Parametric View All

008383010000010 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	008383010000010	-	-	View	Buy Now

008383010000010 Overview

CONN HEADER HI TEMP 10POS STR

008383010000010 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	AVX
Reach Compliance Code	compliant
Is Samacsys	N
Other features	NO CLIP OR POLARIZING
body width	0.335 inch
subject depth	0.376 inch
body length	0.784 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	GOLD (30) OVER NICKEL
Contact completed and terminated	Gold (Au) - with Nickel (Ni) barrier
Contact point gender	MALE
Contact material	BRASS
contact mode	RECTANGULAR
Contact resistance	10 mΩ
Contact style	SQ PIN-SKT
DIN compliance	NO
Filter function	NO
IEC compliance	NO
Insulation resistance	1000000000 Ω
insulator material	NYLON
JESD-609 code	e4
MIL compliance	NO
Manufacturer's serial number	8383
Plug contact pitch	0.1 inch
Match contact row spacing	0.1 inch
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation option 1	GUIDE SLOT
Installation option 2	LOCKING
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Options	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR
PCB contact row spacing	2.54 mm
Plating thickness	30u inch
Rated current (signal)	1 A
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.114 inch
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	10
UL Flammability Code	94V-0
Base Number Matches	1

Preview

Download Datasheet

View All

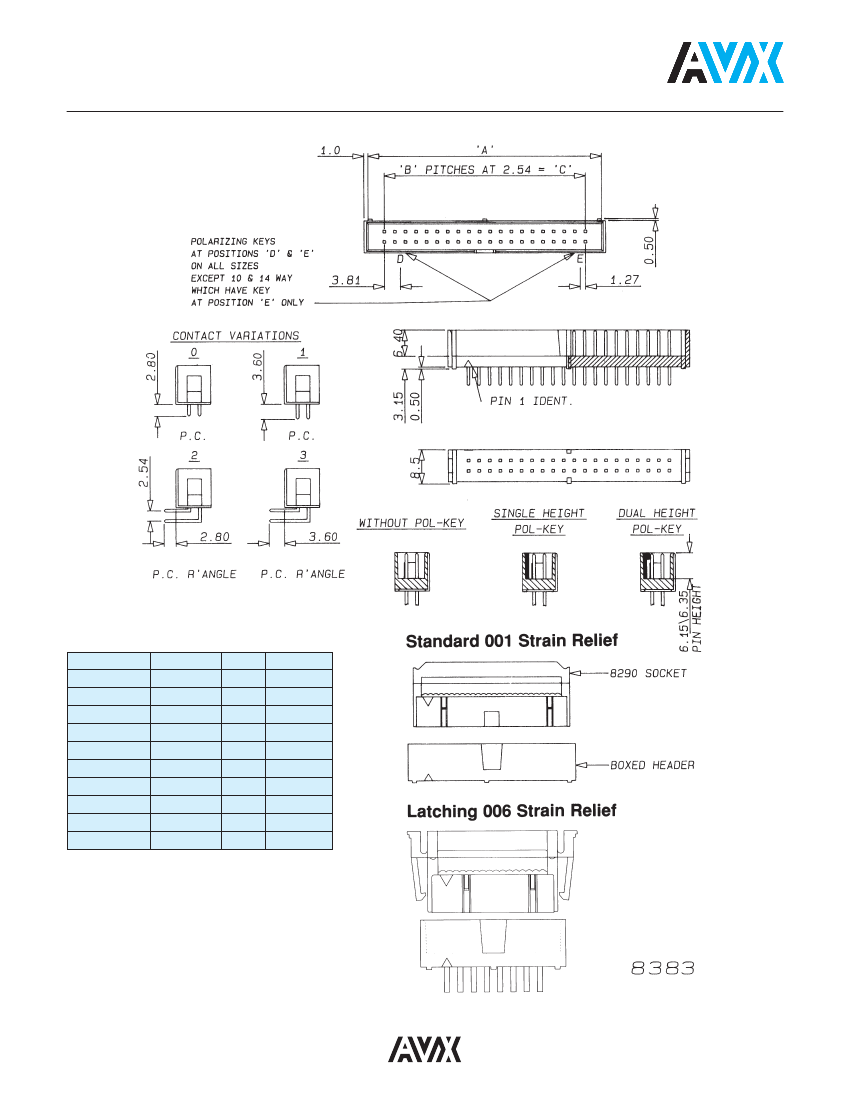

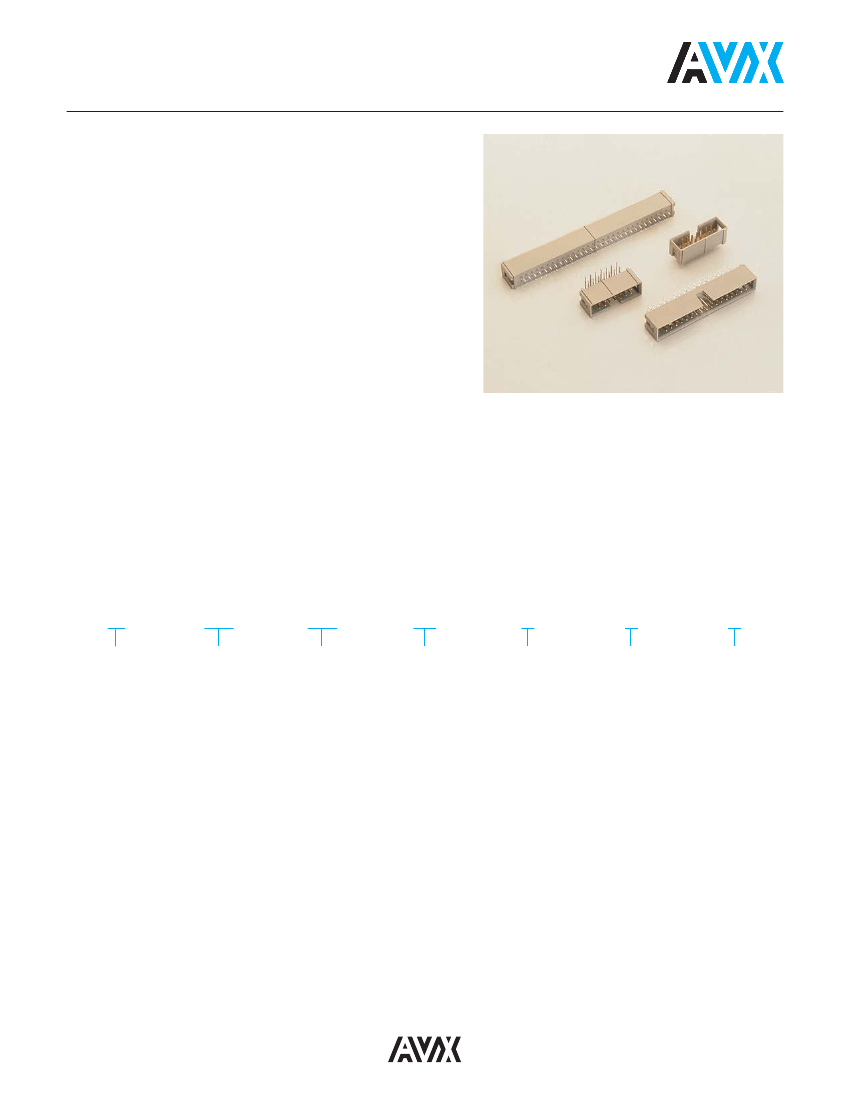

High Temperature Box Header

Series 8383

box headers are designed to be suitable

for applications using either infra red or vapor phase

equipment. These connectors are designed to mate

with Series 8290 IDC sockets as well as other industry

compatible connectors.

TECHNICAL SPECIFICATION

Termination Type:

Plated Through Hole

Termination Pitch:

0.100" (2.54mm)

Material:

Housing - UL94VO rated high thermal

resistant nylon

Contact - Brass

Contact Plating:

Gold over nickel

Contact Resistance:

Initially 10 milliohms maximum

Current Rating:

1 ampere at 70ºC maximum ambient

Insulation Resistance:

>1000 megohms

Voltage Rating:

350V DC or AC peak

Heat Deflection Temperature:

285ºC

ORDERING CODE

Connector Code

Prefix

00 = Standard

Connector

Assembly

8383

Series Number

050

Number of

Contacts

010 = 10 position

014 = 14 position

016 = 16 position

020 = 20 position

026 = 26 position

034 = 34 position

040 = 40 position

050 = 50 position

060 = 60 position

064 = 64 position

000

Contact Variation

000 = Solder PC

Straight

(1.60mm

PCB) Length

2.90mm

001 = Solder PC

Right Angle

(2.40mm

PCB) Length

3.70mm

002 = Solder PC

Right Angle

(1.6mm PCB)

Length

2.90mm

003 = Solder

PC Straight

(2.40mm

PCB) Length

3.70mm

009 = Press Fit

contact for

2.4/3.2mm

PCB or

contact length

4.5mm

Clip Variation

0 = No Clip

Plating Variation

1 = 30µ" Gold

over Nickel

4 = 10µ" Gold

over Nickel

Polarization

0 = No Polarizing
