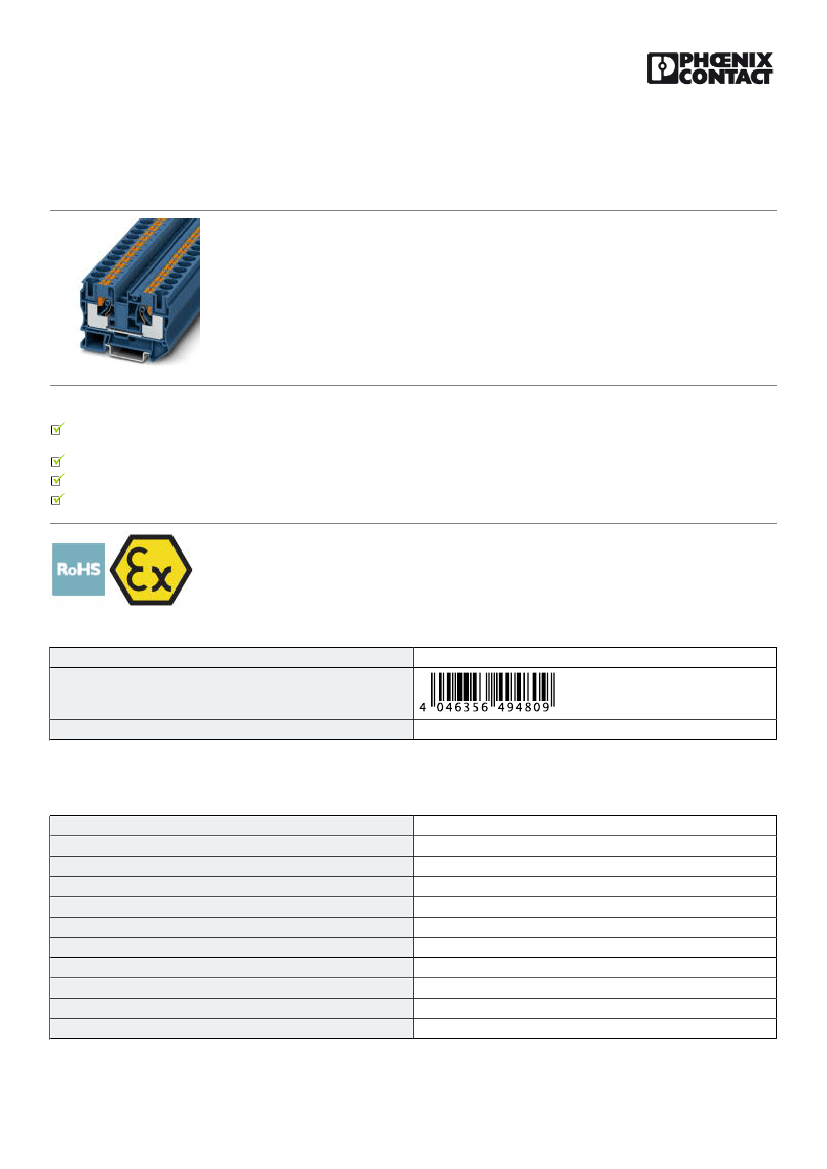

Feed-through terminal block - PT 10 BU - 3212123
Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's
documentation. Our General Terms of Use for Downloads are valid
(http://phoenixcontact.com/download)
Feed-through terminal block, nom. voltage: 1000 V, nominal current: 57 A, connection method: Push-in
connection, number of connections: 2, cross section:0.5 mm² - 16 mm², AWG: 20 - 6, width: 10.2 mm, height:
49.5 mm, color: blue, mounting type: NS 35/7,5, NS 35/15
Your advantages
The Push-in connection terminal blocks are characterized by the system features of the CLIPLINE complete system and by easy and tool-free
wiring of conductors with ferrules or solid conductors
The compact design and front connection enable wiring in a confined space
In addition to the testing facility in the double function shaft, all terminal blocks provide an additional test connection
Tested for railway applications
Key Commercial Data
Packing unit
GTIN
GTIN
4046356494809
50 pc
Technical data
General
Number of levels
Number of connections
Potentials
Nominal cross section
Color
Insulating material
Flammability rating according to UL 94
Area of application
1
2
1
10 mm²
blue
PA
V0
Railway industry
Machine building
Plant engineering
Rated surge voltage
8 kV
11/11/2018 Page 1 / 5
https://www.phoenixcontact.com/pi/products/3212123
Feed-through terminal block - PT 10 BU - 3212123
Technical data
General
Degree of pollution
Overvoltage category
Insulating material group
Maximum power dissipation for nominal condition
Maximum load current
Nominal current I
N
Nominal voltage U
N
Open side panel
Relative insulation material temperature index (Elec., UL 746 B)
Temperature index of insulation material (DIN EN 60216-1 (VDE
0304-21))
Static insulating material application in cold
Behavior in fire for rail vehicles (DIN 5510-2)
Flame test method (DIN EN 60695-11-10)
Oxygen index (DIN EN ISO 4589-2)
NF F16-101, NF F10-102 Class I
NF F16-101, NF F10-102 Class F
Surface flammability NFPA 130 (ASTM E 162)
Specific optical density of smoke NFPA 130 (ASTM E 662)
Smoke gas toxicity NFPA 130 (SMP 800C)
Calorimetric heat release NFPA 130 (ASTM E 1354)
Fire protection for rail vehicles (DIN EN 45545-2) R22
Fire protection for rail vehicles (DIN EN 45545-2) R23
Fire protection for rail vehicles (DIN EN 45545-2) R24
Fire protection for rail vehicles (DIN EN 45545-2) R26
3
III
I
1.82 W
70 A (with 16 mm² conductor cross section)
57 A
1000 V
Yes
130 °C
130 °C
-60 °C
Test passed
V0
>32 %
2
2
passed
passed
passed
28 MJ/kg
HL 1 - HL 3
HL 1 - HL 3
HL 1 - HL 3
HL 1 - HL 3
Dimensions
Width
End cover width
Length
Height
Height NS 35/7,5
Height NS 35/15
10.2 mm
2.2 mm
67.7 mm
49.5 mm
50.5 mm
58 mm
Connection data
Connection method
Connection in acc. with standard
Conductor cross section solid min.
Conductor cross section solid max.
Conductor cross section AWG min.
Conductor cross section AWG max.
Conductor cross section flexible min.
Push-in connection
IEC 60947-7-1
0.5 mm²
16 mm²
20
6
0.5 mm²
11/11/2018 Page 2 / 5
https://www.phoenixcontact.com/pi/products/3212123
Feed-through terminal block - PT 10 BU - 3212123
Technical data
Connection data
Conductor cross section flexible max.
Min. AWG conductor cross section, flexible
Max. AWG conductor cross section, flexible
Conductor cross section flexible, with ferrule without plastic sleeve min.
Conductor cross section flexible, with ferrule with plastic sleeve min.
Conductor cross section flexible, with ferrule with plastic sleeve max.
2 conductors with same cross section, stranded, TWIN ferrules with
plastic sleeve, min.
2 conductors with same cross section, stranded, TWIN ferrules with
plastic sleeve, max.
Stripping length
Internal cylindrical gage
10 mm²
20
8
0.5 mm²
0.5 mm²
10 mm²
1.5 mm²
4 mm²
18 mm
A6
Conductor cross section flexible, with ferrule without plastic sleeve max. 10 mm²
Standards and Regulations
Connection in acc. with standard
Flammability rating according to UL 94
Fire protection for rail vehicles (DIN EN 45545-2) R22
Fire protection for rail vehicles (DIN EN 45545-2) R23
Fire protection for rail vehicles (DIN EN 45545-2) R24
Fire protection for rail vehicles (DIN EN 45545-2) R26
CSA
IEC 60947-7-1
V0
HL 1 - HL 3
HL 1 - HL 3
HL 1 - HL 3
HL 1 - HL 3
Environmental Product Compliance
China RoHS
Environmentally friendly use period: unlimited = EFUP-e
No hazardous substances above threshold values
Drawings
Circuit diagram
Approvals
Approvals
Approvals
DNV GL / CSA / PRS / BV / LR / NK / ABS / UL Recognized / cUL Recognized / IECEE CB Scheme / VDE Zeichengenehmigung / EAC / cULus
Recognized
11/11/2018 Page 3 / 5
https://www.phoenixcontact.com/pi/products/3212123
Feed-through terminal block - PT 10 BU - 3212123
Approvals
Ex Approvals
EAC Ex / IECEx / ATEX / UL Recognized / cUL Recognized / EAC Ex / cULus Recognized
Approval details
DNV GL
http://exchange.dnv.com/tari/
TAE000010T
CSA
Nominal voltage UN
Nominal current IN
mm²/AWG/kcmil
B
600 V
55 A
20-6
http://www.csagroup.org/services-industries/product-listing/
C
600 V
55 A
20-6
13631
PRS
B
600 V
60 A
20-6
http://www.prs.pl/
TE/2107/880590/16
BV
http://www.veristar.com/portal/veristarinfo/generalinfo/
approved/approvedProducts/equipmentAndMaterials
37796/A2 BV
LR
http://www.lr.org/en
12/20038 (E3)
NK
http://www.classnk.or.jp/hp/en/
14ME0913
ABS
http://www.eagle.org/eagleExternalPortalWEB/
16-HG1591536-PDA
UL Recognized
Nominal voltage UN
Nominal current IN
mm²/AWG/kcmil
http://database.ul.com/cgi-bin/XYV/template/LISEXT/1FRAME/index.htm
C
600 V
60 A
20-6
FILE E 60425
11/11/2018 Page 4 / 5
https://www.phoenixcontact.com/pi/products/3212123
Feed-through terminal block - PT 10 BU - 3212123
Approvals
cUL Recognized
Nominal voltage UN
Nominal current IN
mm²/AWG/kcmil
B
http://database.ul.com/cgi-bin/XYV/template/LISEXT/1FRAME/index.htm
C
600 V
60 A
20-6
FILE E 60425
600 V
60 A
20-6
IECEE CB Scheme
Nominal voltage UN
Nominal current IN
http://www.iecee.org/
DE1-60910
1000 V
57 A
VDE Zeichengenehmigung
Nominal voltage UN
Nominal current IN
mm²/AWG/kcmil
http://www2.vde.com/de/Institut/Online-Service/
VDE-gepruefteProdukte/Seiten/Online-Suche.aspx
1000 V
57 A
0.5-10
40038590
EAC
EAC-Zulassung
cULus Recognized
Phoenix Contact 2018 © - all rights reserved
http://www.phoenixcontact.com
PHOENIX CONTACT GmbH & Co. KG
Flachsmarktstr. 8
32825 Blomberg
Germany
Tel. +49 5235 300
Fax +49 5235 3 41200
http://www.phoenixcontact.com
11/11/2018 Page 5 / 5
