REVISION A
DO NOT
SCALE FROM
THIS PRINT
21.00 .827 REF
DESIGNED & DIMENSIONED
IN MILLIMETERS[INCHES]
19.00 .748
REF

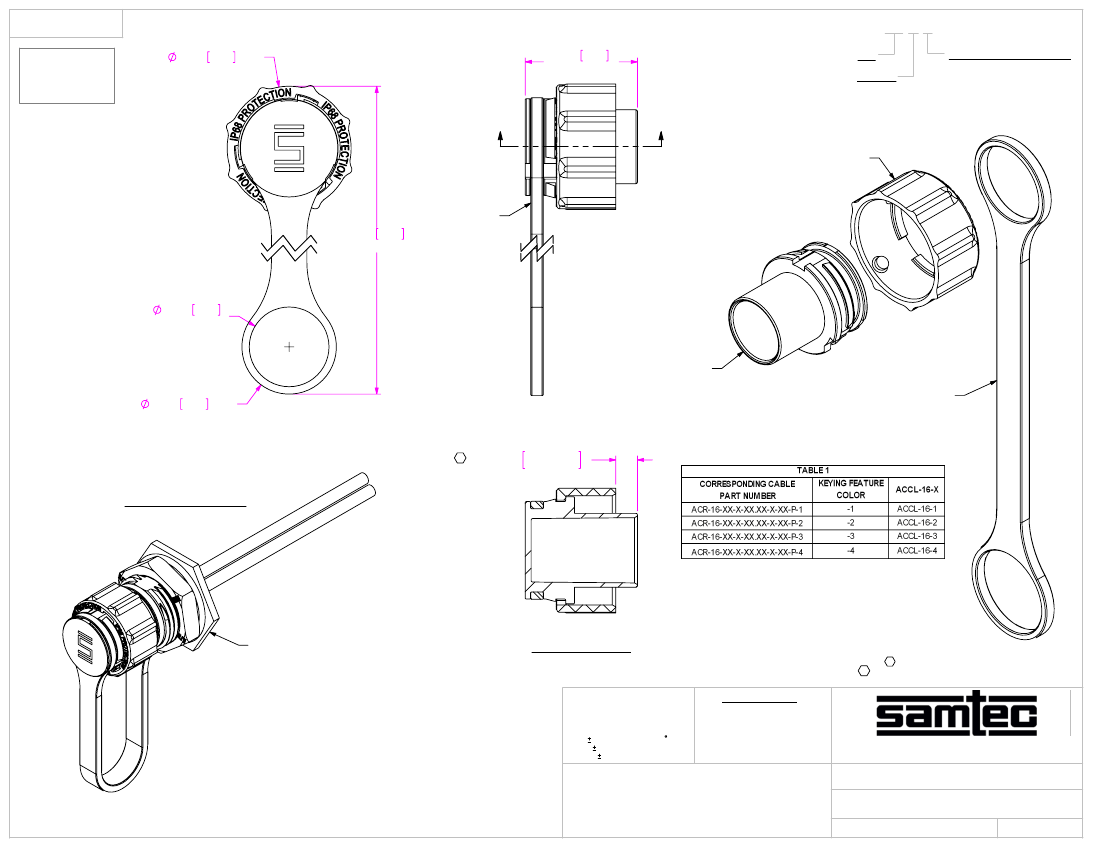

DCA-ACR-16-P-X
SIZE
PLASTIC
KEYING FEATURE COLOR
-1: ORANGE
-2: GREEN
-3: BLUE
-4: YELLOW
"A"
"A"
ACCLS-16-P
(BAYONET)
SEE NOTE 2
103.0 4.06
REF
13.50 .531
REF
DC-ACR-16-P
(DUST CAP)
16.00 .630 REF
ACCL-16-X
(LANYARD)
(SEE TABLE 1)
C
3.650
- 0.105
.1437
- .0041
+0.256
+.0101
APPLICATION VIEW
ACR-16-XX-X-XX.XX-X-XX-P-X
(SEE TABLE 1)
SECTION "A"-"A"
NOTES:
1.
C
REPRESENTS A CRITICAL DIMENSION
C
2. ACCL-16-X MUST SEAT IN GROOVE IN DC-ACR-16-P.
UNLESS OTHERWISE SPECIFIED,
DIMENSIONS ARE IN MILLIMETERS.
TOLERANCES ARE:
DECIMALS
PROPRIETARY NOTE
THIS DOCUMENT CONTAINS INFORMATION
CONFIDENTIAL AND PROPRIETARY TO
SAMTEC, INC. AND SHALL NOT BE REPRODUCED
OR TRANSFERRED TO OTHER DOCUMENTS OR
DISCLOSED TO OTHERS OR USED FOR ANY
PURPOSE OTHER THAN THAT WHICH IT WAS
OBTAINED WITHOUT THE EXPRESSED WRITTEN
CONSENT OF SAMTEC, INC.
X.X: 0.3 [.01]
2
X.XX: 0.08 [.003]
X.XXX: 0.051 [.0020]
ANGLES
MATERIAL:
DO NOT SCALE DRAWING
SHEET SCALE: 1.5:1
520 PARK EAST BLVD, NEW ALBANY, IN 47150
PHONE: 812-944-6733
FAX: 812-948-5047
e-Mail info@SAMTEC.com
code 55322
DESCRIPTION:
DWG. NO.
DC-ACR-16-P: NYLON, COLOR: BLACK
ACCLS-16-P: NYLON, COLOR: BLACK
ACCL-16-X: SILICONE
c:\enterprisevault\DWG\MISC\MKTG\DCA-ACR-16-P-X-MKT.SLDDRW
ACCLIMATE CIRC. PANEL DUST CAP
DCA-ACR-16-P-X
BY:
D.SCHMELZ 04/26/2010
SHEET
1
OF
1
