1
2
3
4
REV.
A
5
ECN NO.
Initial Release
6
DATE
2016-05-07
SIGN
Spring
7
DESCRIPTION
Change Rev.01 To Rev.A
8
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. IT IS CONFIDENTIAL AND A
F
T
A
L
W
CONFIDENTIAL
2016-05-07
R&D DEPT.
25.0
20.6
14.0
3
Pin(10A)
E
0
-0.25
23.8 (Ref.)
D
1"-20 UNEF
QC
QC
n15.45
2.80
#
0.25
#
0.25
2
Pin(5A)
PROPERTY OF Amphenol LTW. DISCLOSURE TO THIRD PARTY HAS TO BE AUTHORIZED BY
QC
5.25
White Printing
6
Liquid Glue
C
Male Pin
14.8
#
0.1
5
4
3
B
Male Pin
Pin Assignments
Front View
Recommended Panel
Cut-Out
TITLE
15.6
6
14.5
1
2
Housing
1
Nut
5
4
Gasket
Note:
* Important Dimension To Check.
QC
* Waterproof Rate: IP68(Unmated)
In 1 meter water within 24 hours
* Working Voltage Rating:
Power: AC/DC 300V
Data: DC 30V
* Working Current:
Power: 10A
Data: 05A
* Housing: Nylon+GF, Black.
* Pin: Copper Alloy, Gold Plated.
* Nut: Nylon+GF, Black.
* Gasket: Silicone, Gray.
* Use without waterproof cap
Panel Thickness Max: 3.6mm
* Use with waterproof cap
Panel Thickness Max: 2.6mm
DRAWN BY
DATE
#
0.1
20.3
A
UNIT:mm
TOLERANCE
.X
# 0.25
.XX
# 0.1
.XXX
# 0.05
ANGLES
# 1 $

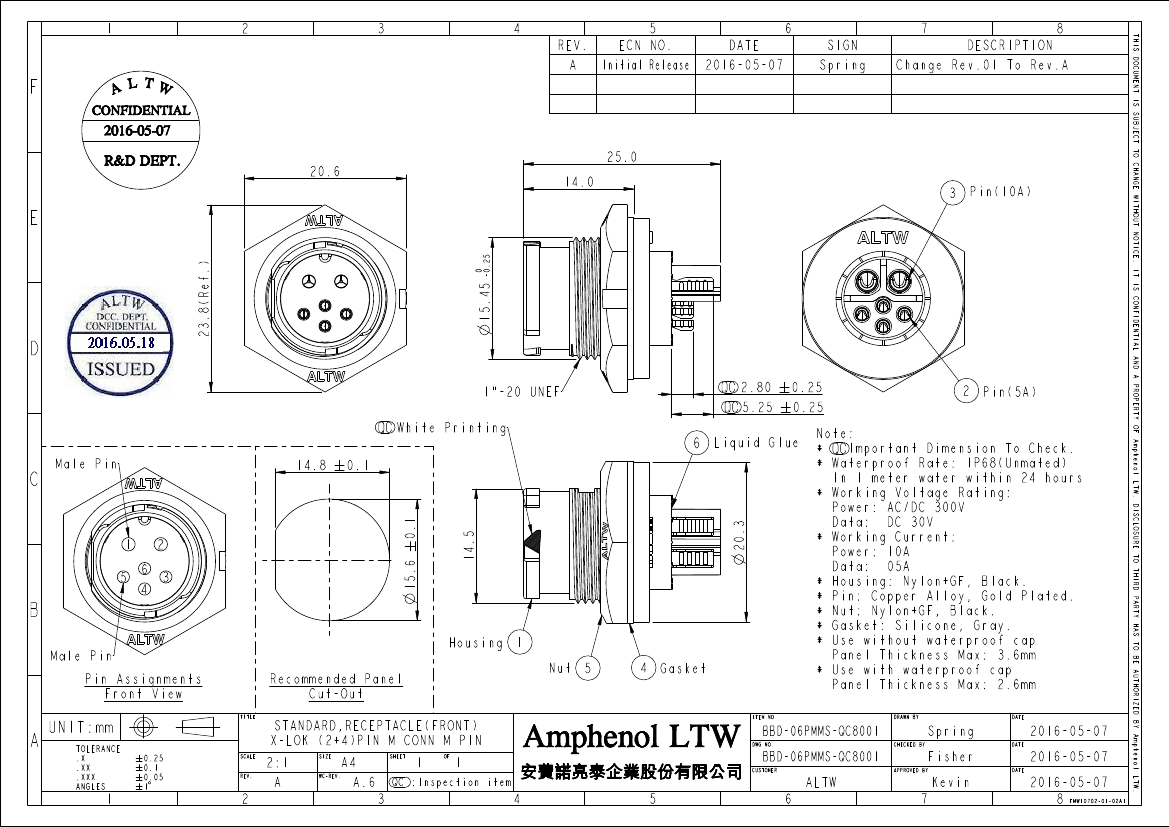

STANDARD,RECEPTACLE(FRONT)
X-LOK (2+4)PIN M CONN M PIN
2:1
A
SIZE
SCALE
A4
A.6
3
SHEET
1
OF
Amphenol LTW
4
5
ITEM NO
BBD-06PMMS-QC8001
DWG NO
CHECKED BY
Spring
DATE
2016-05-07
2016-05-07
DATE
Amphenol LTW.
1
BBD-06PMMS-QC8001
CUSTOMER
APPROVED BY
Fisher
Kevin
7
REV.
WC-REV.
QC :Inspection item
ALTW
6
1
2
2016-05-07
8
FMW10702-01-02A1
