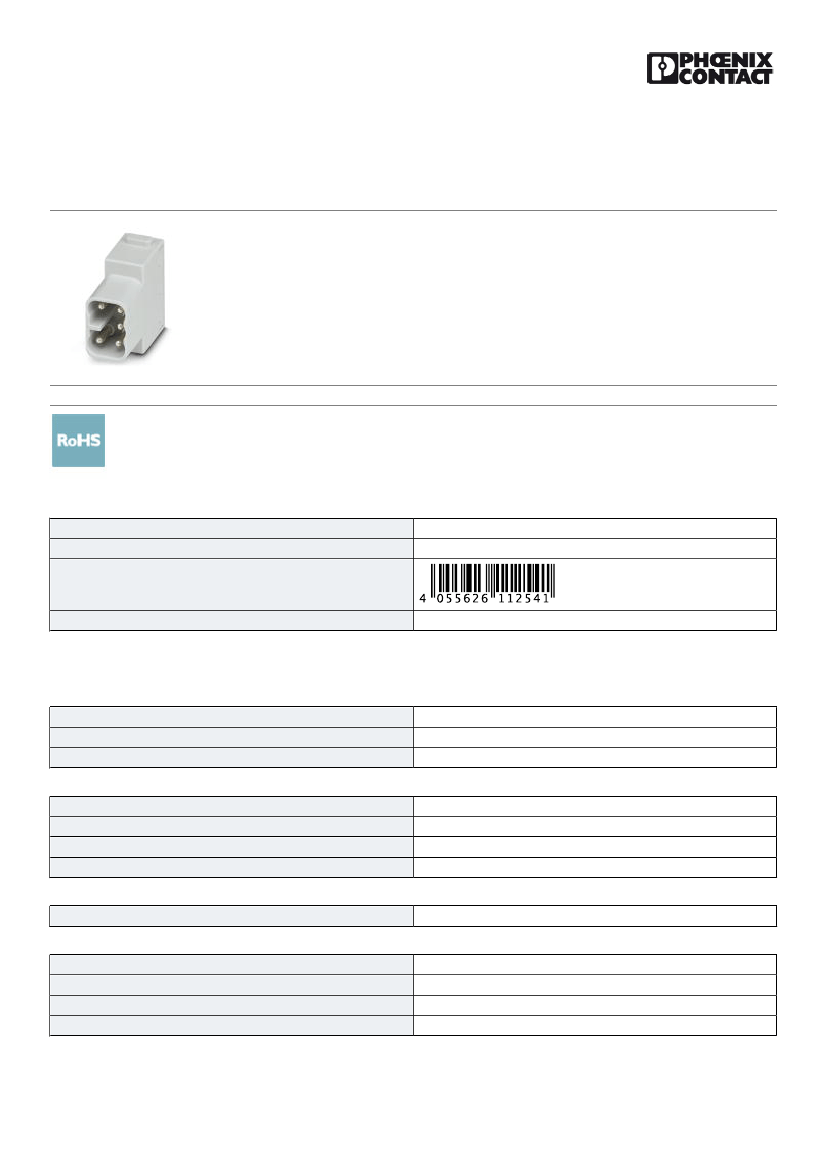

Contact insert module - HC-M-05-PT-M - 1417372
Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's
documentation. Our General Terms of Use for Downloads are valid
(http://phoenixcontact.com/download)
Contact insert module, number of positions: 5, power contacts: 5, control contacts: 0, Pin, Push-in connection,
400 V, 16 A, 0.14 mm² ... 2.5 mm², application: Power
Key Commercial Data
Packing unit
Minimum order quantity
GTIN
GTIN
4055626112541
5 pc
5 pc
Technical data
Dimensions
Height
Width
Length
35.5 mm
34.2 mm
14.6 mm
Electrical characteristics
Rated voltage (III/3)
Rated current
Rated surge voltage
Connection profile
400 V
16 A
6 kV
5
Ambient conditions
Ambient temperature (operation)
-40 °C ... 125 °C
Mechanical characteristics
Conductor cross section
Connection cross section AWG
Stripping length of the individual wire
Contact diameter
0.14 mm² ... 2.5 mm² (with ferrule)
26 ... 14 (with ferrule)
8 mm ±1 mm
2.5 mm
11/11/2018 Page 1 / 4
https://www.phoenixcontact.com/pi/products/1417372
Contact insert module - HC-M-05-PT-M - 1417372
Technical data
Mechanical characteristics
Insertion/withdrawal cycles
Minimum housing height
≥ 500
52 mm
General
Note
For HEAVYCON housing type B6 to B48, HC-M-B…MF... module carrier
frame required
For solid conductors or stranded conductors with ferrules
Series
Color
Number of module slots
Connection method
Contact type
Flammability rating according to UL 94
Degree of pollution
Overvoltage category
Assembly instructions
HC-M-05
light gray
1
Push-in connection
rolled
V0
3
III
To ensure correct use, installation in housing with IP54 protection or
better is required
Material data
Contact material
Contact surface material
Contact carrier material
Copper alloy
Ag
PC
Standards and Regulations
Flammability rating according to UL 94
V0
Environmental Product Compliance
China RoHS
Environmentally friendly use period: unlimited = EFUP-e
No hazardous substances above threshold values
Drawings
Schematic diagram
Current strength [A]
30
25
20
15
10
5
0
0
Diagram
1
2
3
4
5
= 2,5 mm
2
= 1,5 mm
= 1 mm²
10 20 30 40 50 60 70 80 90 100 110 120 130
2
Ambient temperature [°C]
Connector pin assignment, connection side
Derating diagram
11/11/2018 Page 2 / 4
https://www.phoenixcontact.com/pi/products/1417372
Contact insert module - HC-M-05-PT-M - 1417372
Dimensional drawing
14,6
34,5
Approvals
Approvals
Approvals
CSA / UL Recognized / EAC
Ex Approvals
Approval details
CSA
Nominal voltage UN
Nominal current IN
mm²/AWG/kcmil
http://www.csagroup.org/services-industries/product-listing/
600 V
15 A
14
34,1
13631
UL Recognized
Nominal voltage UN
Nominal current IN
mm²/AWG/kcmil
http://database.ul.com/cgi-bin/XYV/template/LISEXT/1FRAME/index.htm
600 V
19 A
14
E118976
EAC
RU C-
DE.AI30.B.01102
11/11/2018 Page 3 / 4
https://www.phoenixcontact.com/pi/products/1417372
Phoenix Contact 2018 © - all rights reserved
http://www.phoenixcontact.com
PHOENIX CONTACT GmbH & Co. KG
Flachsmarktstr. 8
32825 Blomberg
Germany
Tel. +49 5235 300
Fax +49 5235 3 41200
http://www.phoenixcontact.com
11/11/2018 Page 4 / 4
