852X

Description
CONN PLUG MONO 2.46MM 2COND
CategoryThe connector
File Size197KB,1 Pages
ManufacturerSwitchcraft
Environmental Compliance
Download Datasheet Parametric View All

852X Online Shopping

Suppliers Part Number Price MOQ In stock
852X - - View Buy Now

852X Overview

CONN PLUG MONO 2.46MM 2COND

852X Parametric

Parameter NameAttribute value
Connector typephone plug
gendermale head
signal linemono
Industry recognized mating diameter2.46mm ID (0.097")
actual diameter0.097"(2.46mm)
Number of pins/contacts2 wires, 2 contacts
internal switchDoes not include switch
Installation typefree hanging
Terminationwelding eyelet
shieldNo shielding
characteristic-
Insulation color-
Voltage - Rated125VAC
Rated current125mA
Mating length/depth0.450"(11.40mm)
Contact material - platingnickel
Matrix materialcopper alloy
Body colorSilver Black
include2 pieces - 1 connector, 1 handle
Shell materialaluminum
Contact materialbrass
Cable opening0.125"(3.18mm)
Panel hole size-
Thread size-
Operating temperature-20°C ~ 65°C
0.46
11.8
#12-48 NS THREAD
SECTION A-A
1.02
25.9
0.53
13.5
0.26
6.7
0.45
11.4
0.05
1.4
A
0.25
6.4
0.125
3.18
REF
0.097
2.46
0.093
2.35
A
PART NUMBER
852X
857X
882X
HANDLE COLOR
BLACK
RED
CLEAR ANODIZED

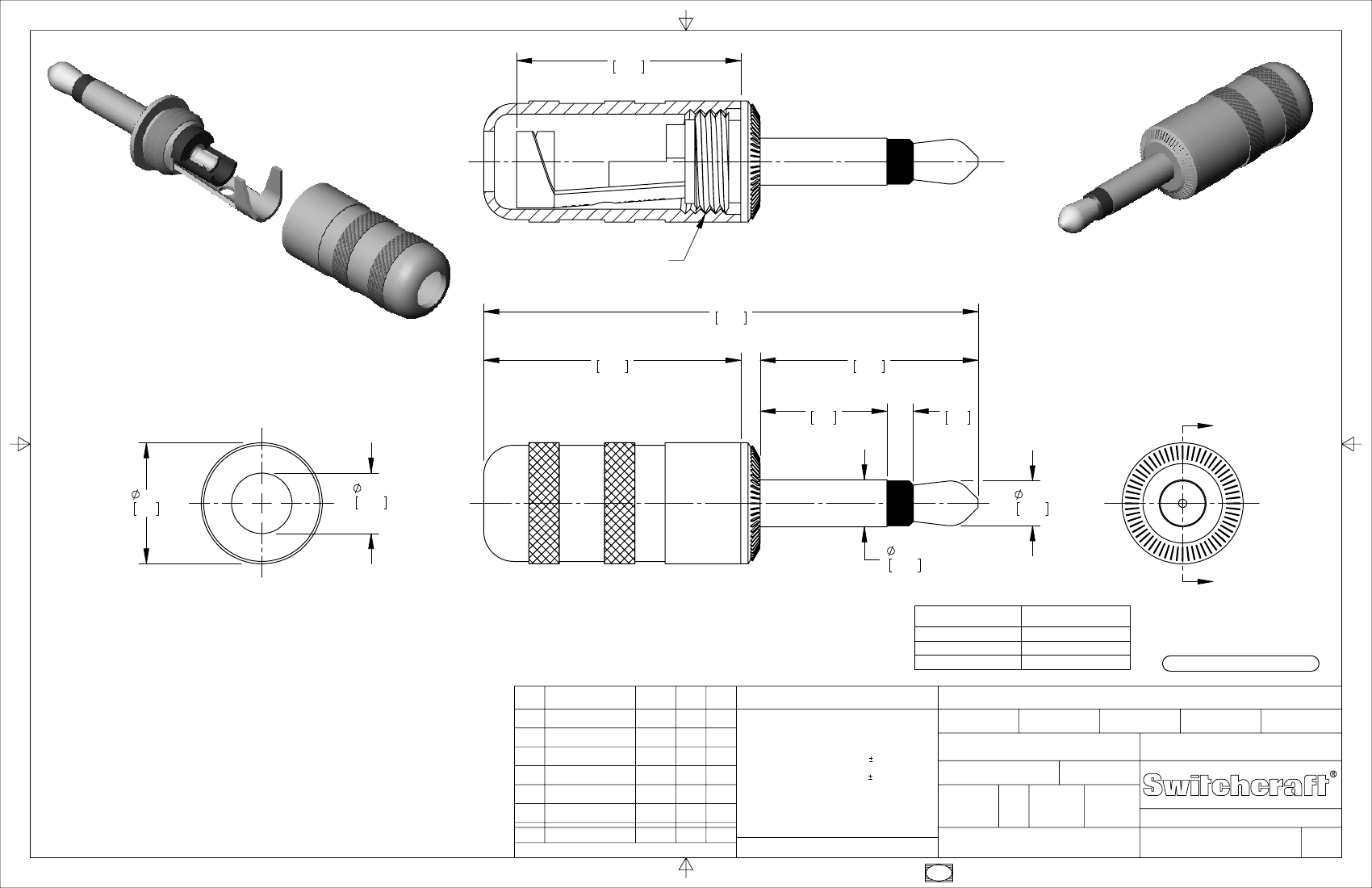

CUSTOMER DRAWING
NOTES:
1. MATERIALS:
TIP AND BODY - COPPER ALLOY, NICKEL PLATED
CLAMP - COPPER ALLOY, TIN PLATED
INSULATION - THERMOPLASTIC, DARK GRAY
HANDLE - ANODIZED ALUMINUM, SEE TABLE FOR COLOR
2. HANDLE SHIPPED UNASSEMBLED.
3. THIS PRODUCT IS RoHS COMPLIANT.
A
REV
THIS DRAWING DESCRIBES A DESIGN CONSIDERED PROPRIETARY IN NATURE, DEVELOPED AND MANUFACTURED
BY SWITCHCRAFT INC. AND IS RELEASED ON A CONFIDENTIAL BASIS FOR IDENTIFICATION PURPOSES ONLY.
UNLESS OTHERWISE SPECIFIED
1. ALL DIMENSIONS IN INCHES [mm]
- TWO PLACE DECIMALS
- THREE PLACE DECIMALS
0.02
[0.5]
SIZE
FINISH
WIDTH
MULT
LBS/M
MATERIAL
SPEC No.
TEMPER
0.005 [0.13]
SPEC No.
FIRST USED ON
DATE DRAWN
BY
CHKD
SCALE
6:1
26062
ECO NUMBER
06-28-06
DATE
TO
BY
TJK
APVD
01-24-08
AH
AH
01-24-08
TJK
01-24-08
PART No.
APVD
SHEET
1
OF
1
REV
REVISIONS
DO NOT SCALE DRAWING
NAME
2 CONDUCTOR
MICRO-PLUG ASSEMBLY, RoHS
852X, 857X, 882X
A
SolidWorks CAD File
B
