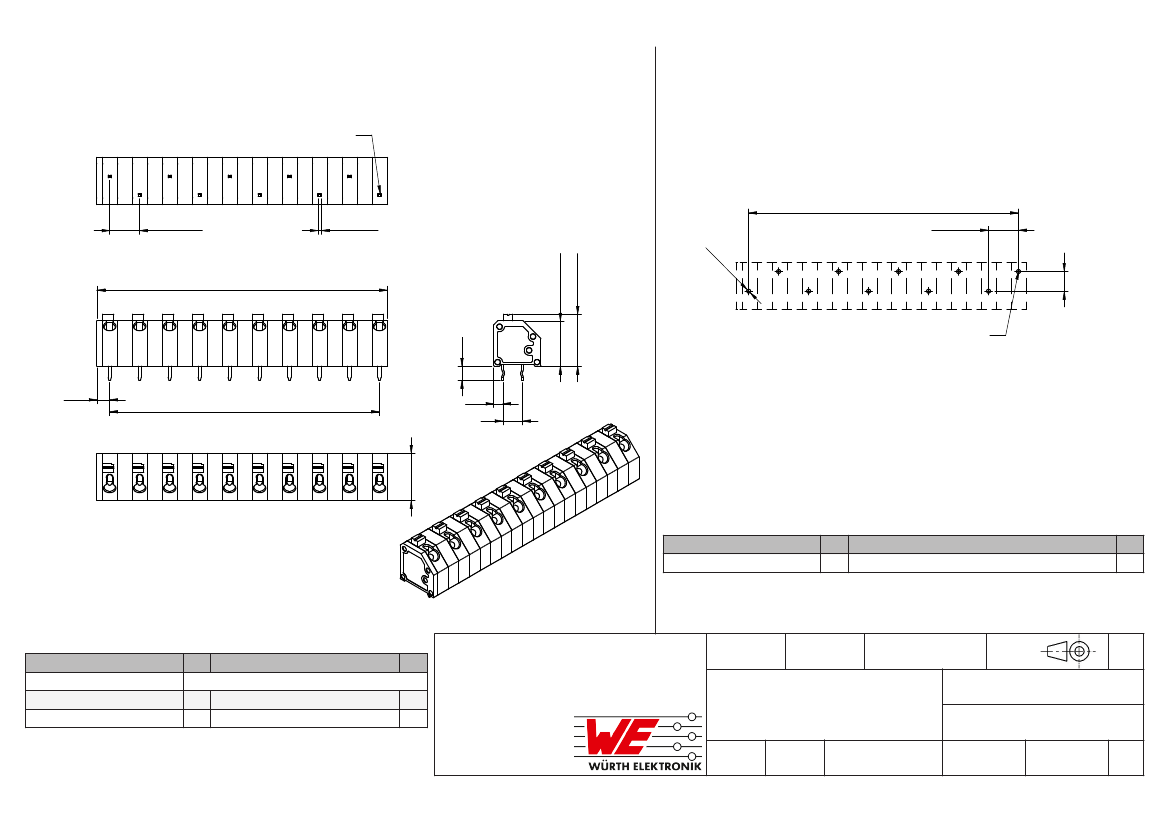

Article Properties:
Pins
2
3
4
5
6
7
8
9
10
11
12
P
l
7.62 mm
15.24 mm
22.86 mm
30.48 mm
38.10 mm
45.72 mm
53.34 mm
60.96 mm
68.58 mm
76.20 mm
83.82 mm
L
12.93 mm
20.55 mm
28.17 mm
35.79 mm
43.41 mm
51.03 mm
58.65 mm
66.27 mm
73.89 mm
81.51 mm
89.13 mm
Order Code
691412420002M
691412420003M
691412420004M
691412420005M
691412420006M
691412420007M
691412420008M
691412420009M
691412420010M
691412420011M
691412420012M
General Properties:
Operating Temperature
Compliance
-30 °C up to +120 °C
Lead free / RoHS
Electrical Properties:
Properties
Rated Current
Working Voltage
Withstanding Voltage
Contact Resistance
1 min
R
Test conditions
I
R
Value
UL
4
300
1600
20
VDE
4
750
2500
Unit
A
V (AC)
V (AC)
mΩ
Mechanical Properties:
Wire Strip Length
7 (mm)
Kind Properties:
Properties
Standard Polarities
1)
Pitch
1)
Delivery
Value
02;03;04;05;06;07;08;09;10;11;12
P
7.62
Unit
mm
Wire Properties:
Solid Wire Section (Imperial)
Solid Wire Section (Metric)
Stranded Wire Section (Imperial)
Stranded Wire Section (Metric)
16 to 30 (AWG)
1.31 to 0.05 (mm²)
16 to 30 (AWG)
1.31 to 0.05 (mm²)
ex stock for standard polarities, non standard have extended leadtimes
Material Properties:
Insulator Material
Insulator Flammability Rating
Insulator Color
Contact Material
Contact Plating
Wire Guard
PA6/66
UL94 V-0
Grey
Phosphor Bronze
Tin
Phosphor Bronze with Tin
Standard:
UL Approval
VDE Approval
E150931 Cat No. MRT24 (3)
40013441 Type MRT24
Packaging Properties:
Packaging
Box
Würth Elektronik eiSos GmbH & Co. KG
EMC & Inductive Solutions
Max-Eyth-Str. 1
74638 Waldenburg
Germany
Tel. +49 (0) 79 42 945 - 0
www.we-online.com
eiSos@we-online.com
CREATED
CHECKED
GENERAL TOLERANCE
PROJECTION
METHOD
Xla
DESCRIPTION
Fbr
DIN ISO 2768-1m
Serie 4124 M - 7.62mm Screwless
45° Entry WR-TBL
REVISION
STATUS
ORDER CODE
691412420010M
DATE (YYYY-MM-DD)
BUSINESS UNIT
PAGE
001.002
Valid
2017-07-17
eiCan
2/5
This electronic component has been designed and developed for usage in general electronic equipment only. This product is not authorized for use in equipment where a higher safety standard and reliability standard is especially required or where a failure of the product is reasonably expected to cause severe personal injury or death, unless the parties have executed an agreement specifically governing such use. Moreover Würth Elektronik eiSos GmbH
& Co KG products are neither designed nor intended for use in areas such as military, aerospace, aviation, nuclear control, submarine, transportation (automotive control, train control, ship control), transportation signal, disaster prevention, medical, public information network etc.. Würth Elektronik eiSos GmbH & Co KG must be informed about the intent of such usage before the design-in stage. In addition, sufficient reliability evaluation checks for safety
must be performed on every electronic component which is used in electrical circuits that require high safety and reliability functions or performance.
Classification Wave Soldering Profile:
t
p
T
p
Classification Wave Soldering Profile:
Profile Feature
Preheat Temperature
Min
1)
T
s min
T
s max
t
s
ΔT
T
p
t
p
Preheat Temperature Typical
Pb-Free Assembly
100 °C
130 °C
70 seconds
150 °C max.
250 °C - 260 °C
max. 10 seconds
max. 5 seconds each wave
~ 2 K/ second
~ 3.5 K/ second
~ 5 K/ second
4 minutes
T
s typical
120 °C
Sn-Pb Assembly
100 °C
120 °C
130 °C
70 seconds
150 °C max.
235 °C - 260 °C
max. 10 seconds
max. 5 seconds each wave
~ 2 K/ second
~ 3.5 K/ second
~ 5 K/ second
4 minutes
First Wave
Second Wave
Preheat Temperature Max
Preheat Time t
s
from T
s min
to T
s max
Ramp-up Rate
Peak temperature
Temperature
Time of actual peak temperature
T
s max
T
s typical
T
s min
Ramp-down Rate, Min
Ramp-down Rate, Typical
Ramp-down Rate, Max
Time 25°C to 25°C
1)
refer
to EN61760-1:2006
refer to EN61760-1:2006
Preheat area
Cool down area
Time
typical temperature procedure
min temperature procedure
max temperature procedure
Würth Elektronik eiSos GmbH & Co. KG
EMC & Inductive Solutions
Max-Eyth-Str. 1
74638 Waldenburg
Germany
Tel. +49 (0) 79 42 945 - 0
www.we-online.com
eiSos@we-online.com
CREATED
CHECKED
GENERAL TOLERANCE
PROJECTION
METHOD
Xla
DESCRIPTION
Fbr
DIN ISO 2768-1m
Serie 4124 M - 7.62mm Screwless
45° Entry WR-TBL
REVISION
STATUS
ORDER CODE
691412420010M
DATE (YYYY-MM-DD)
BUSINESS UNIT
PAGE
001.002
Valid
2017-07-17
eiCan
3/5
This electronic component has been designed and developed for usage in general electronic equipment only. This product is not authorized for use in equipment where a higher safety standard and reliability standard is especially required or where a failure of the product is reasonably expected to cause severe personal injury or death, unless the parties have executed an agreement specifically governing such use. Moreover Würth Elektronik eiSos GmbH
& Co KG products are neither designed nor intended for use in areas such as military, aerospace, aviation, nuclear control, submarine, transportation (automotive control, train control, ship control), transportation signal, disaster prevention, medical, public information network etc.. Würth Elektronik eiSos GmbH & Co KG must be informed about the intent of such usage before the design-in stage. In addition, sufficient reliability evaluation checks for safety
must be performed on every electronic component which is used in electrical circuits that require high safety and reliability functions or performance.
Cautions and Warnings:
The following conditions apply to all goods within the product services of the Connectors
of Würth Elektronik eiSos GmbH & Co. KG:
General:
• This electronic component is designed and developed with the intention for use in general electronics equipment.
• Before incorporating the components into any equipment in the field such as aerospace, aviation, nuclear control, submarine,
transportation, (automotive control, train control, ship control), transportation signal, disaster prevention, medical, public information
network etc. where higher safety and reliability are especially required or if there is possibility of direct damage or injury to human body,
Wurth Elektronik must be asked for a written approval.
• In addition, even electronic component in general electronic equipment, when used in electrical circuits that require high safety,
reliability functions or performance, the sufficient reliability evaluation-check for the safety must be performed by the user before usage.
• The connector is designed and manufactured to be used within the datasheet specified values.
• Do not use the connector outside the datasheet specifications.
• Prevent any damage or scratches on the connector, especially on the actuator.
• Direct mechanical impact to the product shall be prevented (e.g overlapping of the PCB´s).
• The responsibility for the applicability of the customer specific products and use in a particular customer design is always within the
authority of the customer. All technical specification for standard products do also apply to customer specific products.
• The Connectors are designed to be used along with Würth Elektronik counterparts and tools. Würth Elektronik cannot insure the
reliability of these components while being used with other products.
• We recommend to perform tests and to let a part in immersion in the solution 8 to 12 hours and see if there is a degradation.
Storage Conditions:
• The Connectors are considered MSL1 into closed original packaging and are not subject to storage time limits regarding the moisture
sensivity but all products shall be used before the end of the period of 12 months based on the products date code, if not 100%
solderability can’t be warranted.
Handling:
• Do not repeatedly operate the connector with excessive force. It may damage or deforms the contact dome which results in malfunction.
• In the case a product requires particular handling precautions, in addition to the general recommendations mentioned here before, these
will appear on the product datasheet.
Product Specific:
Soldering:
• The solder profile must comply with the WE technical soldering specification, otherwise this will void the warranty.
• Other soldering methods are not verified and have to be validated by the customer at his own risk.
Cleaning and Washing:
• Parts are not constructed for washing, so washing can cause malfunction afterwards.
• Cleaning agent that are used to clean the customer applications might damage or change the characteristics of the component, body,
pins and termination.
• Please do not submerse our washable products into water or cleaning agents or put them in locations exposed to water completely.
• When cleaning by hand (brushing), please do not use excessive force on our connectors to avoid malfunction afterwards, because
customer could deform function relevant areas.
• We recommended a solution without organic acid (preserve the plating against corrosion) volatile, without residues and compatible with
the plastic.
Würth Elektronik eiSos GmbH & Co. KG
EMC & Inductive Solutions
Max-Eyth-Str. 1
74638 Waldenburg
Germany
Tel. +49 (0) 79 42 945 - 0
www.we-online.com
eiSos@we-online.com
CREATED
CHECKED
GENERAL TOLERANCE
PROJECTION
METHOD
Xla
DESCRIPTION
Fbr
DIN ISO 2768-1m
Serie 4124 M - 7.62mm Screwless
45° Entry WR-TBL
REVISION
STATUS
ORDER CODE
691412420010M
DATE (YYYY-MM-DD)
BUSINESS UNIT
PAGE
001.002
Valid
2017-07-17
eiCan
4/5
This electronic component has been designed and developed for usage in general electronic equipment only. This product is not authorized for use in equipment where a higher safety standard and reliability standard is especially required or where a failure of the product is reasonably expected to cause severe personal injury or death, unless the parties have executed an agreement specifically governing such use. Moreover Würth Elektronik eiSos GmbH
& Co KG products are neither designed nor intended for use in areas such as military, aerospace, aviation, nuclear control, submarine, transportation (automotive control, train control, ship control), transportation signal, disaster prevention, medical, public information network etc.. Würth Elektronik eiSos GmbH & Co KG must be informed about the intent of such usage before the design-in stage. In addition, sufficient reliability evaluation checks for safety
must be performed on every electronic component which is used in electrical circuits that require high safety and reliability functions or performance.
Important Notes
The following conditions apply to all goods within the product range of Würth Elektronik
eiSos GmbH & Co. KG:
1. General Customer Responsibility
Some goods within the product range of Würth Elektronik eiSos GmbH & Co. KG contain statements regarding general suitability for certain
application areas. These statements about suitability are based on our knowledge and experience of typical requirements concerning the
areas, serve as general guidance and cannot be estimated as binding statements about the suitability for a customer application. The
responsibility for the applicability and use in a particular customer design is always solely within the authority of the customer. Due to this
fact it is up to the customer to evaluate, where appropriate to investigate and decide whether the device with the specific product
characteristics described in the product specification is valid and suitable for the respective customer application or not.
6. Product Life Cycle
Due to technical progress and economical evaluation we also reserve the right to discontinue production and delivery of products. As a
standard reporting procedure of the Product Termination Notification (PTN) according to the JEDEC-Standard we will inform at an early stage
about inevitable product discontinuance. According to this we cannot guarantee that all products within our product range will always be
available. Therefore it needs to be verified with the field sales engineer or the internal sales person in charge about the current product
availability expectancy before or when the product for application design-in disposal is considered. The approach named above does not
apply in the case of individual agreements deviating from the foregoing for customer-specific products.
7. Property Rights
All the rights for contractual products produced by Würth Elektronik eiSos GmbH & Co. KG on the basis of ideas, development contracts as
well as models or templates that are subject to copyright, patent or commercial protection supplied to the customer will remain with Würth
Elektronik eiSos GmbH & Co. KG. Würth Elektronik eiSos GmbH & Co. KG does not warrant or represent that any license, either expressed or
implied, is granted under any patent right, copyright, mask work right, or other intellectual property right relating to any combination,
application, or process in which Würth Elektronik eiSos GmbH & Co. KG components or services are used.
2. Customer Responsibility related to Specific, in particular Safety-Relevant Applications
It has to be clearly pointed out that the possibility of a malfunction of electronic components or failure before the end of the usual lifetime
cannot be completely eliminated in the current state of the art, even if the products are operated within the range of the specifications.
In certain customer applications requiring a very high level of safety and especially in customer applications in which the malfunction or
failure of an electronic component could endanger human life or health it must be ensured by most advanced technological aid of suitable
design of the customer application that no injury or damage is caused to third parties in the event of malfunction or failure of an electronic
component. Therefore, customer is cautioned to verify that data sheets are current before placing orders. The current data sheets can be
downloaded at www.we-online.com.
8. General Terms and Conditions
Unless otherwise agreed in individual contracts, all orders are subject to the current version of the “General Terms and Conditions of Würth
Elektronik eiSos Group”, last version available at www.we-online.com.
3. Best Care and Attention
Any product-specific notes, cautions and warnings must be strictly observed. Any disregard will result in the loss of warranty.
4. Customer Support for Product Specifications
Some products within the product range may contain substances which are subject to restrictions in certain jurisdictions in order to serve
specific technical requirements. Necessary information is available on request. In this case the field sales engineer or the internal sales
person in charge should be contacted who will be happy to support in this matter.
5. Product R&D
Due to constant product improvement product specifications may change from time to time. As a standard reporting procedure of the
Product Change Notification (PCN) according to the JEDEC-Standard inform about minor and major changes. In case of further queries
regarding the PCN, the field sales engineer or the internal sales person in charge should be contacted. The basic responsibility of the
customer as per Section 1 and 2 remains unaffected.
Würth Elektronik eiSos GmbH & Co. KG
EMC & Inductive Solutions
Max-Eyth-Str. 1
74638 Waldenburg
Germany
Tel. +49 (0) 79 42 945 - 0
www.we-online.com
eiSos@we-online.com
CREATED
CHECKED
GENERAL TOLERANCE
PROJECTION
METHOD
Xla
DESCRIPTION
Fbr
DIN ISO 2768-1m
Serie 4124 M - 7.62mm Screwless
45° Entry WR-TBL
REVISION
STATUS
ORDER CODE
691412420010M
DATE (YYYY-MM-DD)
BUSINESS UNIT
PAGE
001.002
Valid
2017-07-17
eiCan
5/5
This electronic component has been designed and developed for usage in general electronic equipment only. This product is not authorized for use in equipment where a higher safety standard and reliability standard is especially required or where a failure of the product is reasonably expected to cause severe personal injury or death, unless the parties have executed an agreement specifically governing such use. Moreover Würth Elektronik eiSos GmbH
& Co KG products are neither designed nor intended for use in areas such as military, aerospace, aviation, nuclear control, submarine, transportation (automotive control, train control, ship control), transportation signal, disaster prevention, medical, public information network etc.. Würth Elektronik eiSos GmbH & Co KG must be informed about the intent of such usage before the design-in stage. In addition, sufficient reliability evaluation checks for safety
must be performed on every electronic component which is used in electrical circuits that require high safety and reliability functions or performance.
Today is New Year's Eve. I wish you all a happy Chinese New Year.
Today I plan to evaluate a chip temperature collection project according to the project provided in the manual. I have prepared a 1602...
Recently, due to the change of work address, many of the boards in my hands are inconvenient to carry, and I am eager to sell them. Please see the details below. If you are interested, you can Q for d...
Dear forum friends, I was free tonight and checked the header file of g2553. I found that many details were unclear. I searched Baidu all night but couldn't figure it out. So I hope you can help me ex...
As the title says... I don't know where to start~! :Sad: The measured signal is a periodic signal with a frequency range of 20Hz to 200kHz, and an amplitude range of (0.01V to 10V). The frequency, amp...
[font=楷体,楷体_GB2312][size=3]Hello everyone! I would like to ask for the quick information of AD09 software. I would be very grateful. Thank you! [/size][/font]...
Using TL3842 as flyback switching power supplyIt feels more flexible than the integrated power chip. The frequency can be set, the current can be set, and the medium power...
Hardware designers have begun to adopt FPGA technology in high-performance DSP designs because it can provide 10-100 times faster computing than PC-based or microcontroller-based solutions. Previou...[Details]
In early 2002, I started to write a working program for an IC card prepaid electricity meter. The meter used Philips' 8-bit 51-expanded single-chip microcomputer
87LPC764
, and wa...[Details]
With the rapid development of urban economy, elevators are increasingly used as a vertical transportation tool. However, elevator fault detection and maintenance, especially the role of elevator remot...[Details]
LED is the abbreviation of light emitting diode, which is an electric light source made of semiconductor technology. The core part of LED is a chip composed of P-type semiconductor and N-type semi...[Details]
It is well known to automotive suppliers that automakers are demanding more from their supply base. For connector suppliers, this means stricter requirements for product performance, stability and ...[Details]
The era of mobile access to the Internet has arrived, and it will rapidly change the business and infrastructure needs of mobile operators under a whole new trend of requirements. We need 4G LTE to...[Details]
1. Overview
At present, an information revolution is in the ascendant around the world, led by microelectronics, computers and communication technologies, and centered on information technolog...[Details]
1 Introduction
With the improvement of people's quality of life, lamps are no longer just basic indoor lighting tools, but also a kind of practical art for architectural decoration. When ther...[Details]
introduction
At present, measuring instruments are developing towards networking, and each individual embedded instrument will become a node on the Internet. This system realizes the network...[Details]
Overview
By transmitting ultrasonic energy into the human body and receiving and processing the returning reflected signals, phased array ultrasound systems can generate images of organs and s...[Details]
When developing electronic products with processors, how to improve anti-interference ability and electromagnetic compatibility?
1. The following systems should pay special attention to anti-...[Details]
Synchronous buck designs are becoming increasingly difficult, and the selection of suitable ICs is becoming quite narrow. This Design Idea combines a current-mode PWM IC used in a flyback regulator...[Details]
For a long time, my country has implemented "community-style collective heating" for hot water heating, and settled accounts based on the heating area, regardless of whether the user uses heat. Thi...[Details]
1 Introduction
In the process of crude oil pipeline transportation in the oil industry, crude oil needs to be handed over between enterprises, so flow meters are widely used. The measurement ac...[Details]
1. Introduction
With the continuous development of modern urban construction, infrastructure and real estate are becoming increasingly prosperous, and the quality requirements for construction ...[Details]
FPGA/CPLD
京公网安备 11010802033920号
EEWORLD
