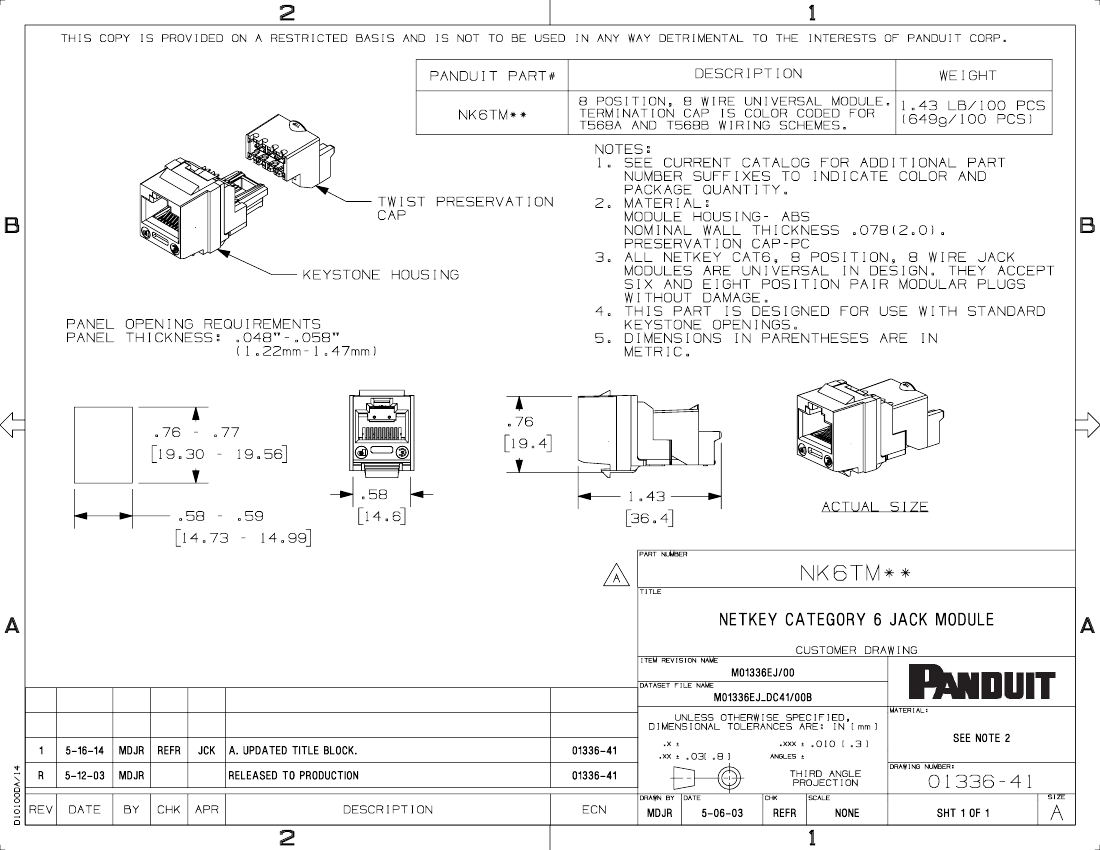

PANDUIT PART#
DESCRIPTION
1
THIS COPY IS PROVIDED ON A RESTRICTED BASIS AND IS NOT TO BE USED IN ANY WAY DETRIMENTAL TO THE INTERESTS OF PANDUIT CORP.
WEIGHT
NK6TM**
8 POSITION, 8 WIRE UNIVERSAL MODULE.
1.43 LB/100 PCS
TERMINATION CAP IS COLOR CODED FOR
(649g/100 PCS)
T568A AND T568B WIRING SCHEMES.
B
TWIST PRESERVATION
CAP
KEYSTONE HOUSING
PANEL OPENING REQUIREMENTS
PANEL THICKNESS: .048"-.058"
(1.22mm-1.47mm)
NOTES:
1. SEE CURRENT CATALOG FOR ADDITIONAL PART
NUMBER SUFFIXES TO INDICATE COLOR AND
PACKAGE QUANTITY.
2. MATERIAL:
MODULE HOUSING- ABS
NOMINAL WALL THICKNESS .078(2.0).
PRESERVATION CAP-PC
3. ALL NETKEY CAT6, 8 POSITION, 8 WIRE JACK
MODULES ARE UNIVERSAL IN DESIGN. THEY ACCEPT
SIX AND EIGHT POSITION PAIR MODULAR PLUGS
WITHOUT DAMAGE.
4. THIS PART IS DESIGNED FOR USE WITH STANDARD
KEYSTONE OPENINGS.
5. DIMENSIONS IN PARENTHESES ARE IN
METRIC.
B
.76 - .77
19.30 - 19.56
.58
.58 - .59
14.73 - 14.99
14.6
.76
19.4
1.43
36.4
PART NUMBER
ACTUAL SIZE
A
TITLE
NK6TM**
NETKEY
CATEGORY
6
JACK
MODULE
CUSTOMER DRAWING
ITEM REVISION NAME
A
DATASET FILE NAME
A
M01336EJ/00
M01336EJ_DC41/00B
MATERIAL:
UNLESS OTHERWISE SPECIFIED,
DIMENSIONAL TOLERANCES ARE: IN [mm]
1
D10100DA/14
5-16-14
5-12-03
DATE
MDJR
MDJR
REFR
JCK
A.
UPDATED
TITLE
BLOCK.
RELEASED
TO
PRODUCTION
01336-41
01336-41
.X
.XX
.XXX
.010 [.3]
SEE
NOTE
DRAWING NUMBER:
2
.03[.8]
ANGLES
R
THIRD ANGLE
PROJECTION
DRAWN BY
DATE
CHK
SCALE
01336-41
SIZE
REV
BY
CHK
APR
DESCRIPTION
ECN
MDJR
5-06-03
REFR
NONE
SHT
1
OF
1
A
2
