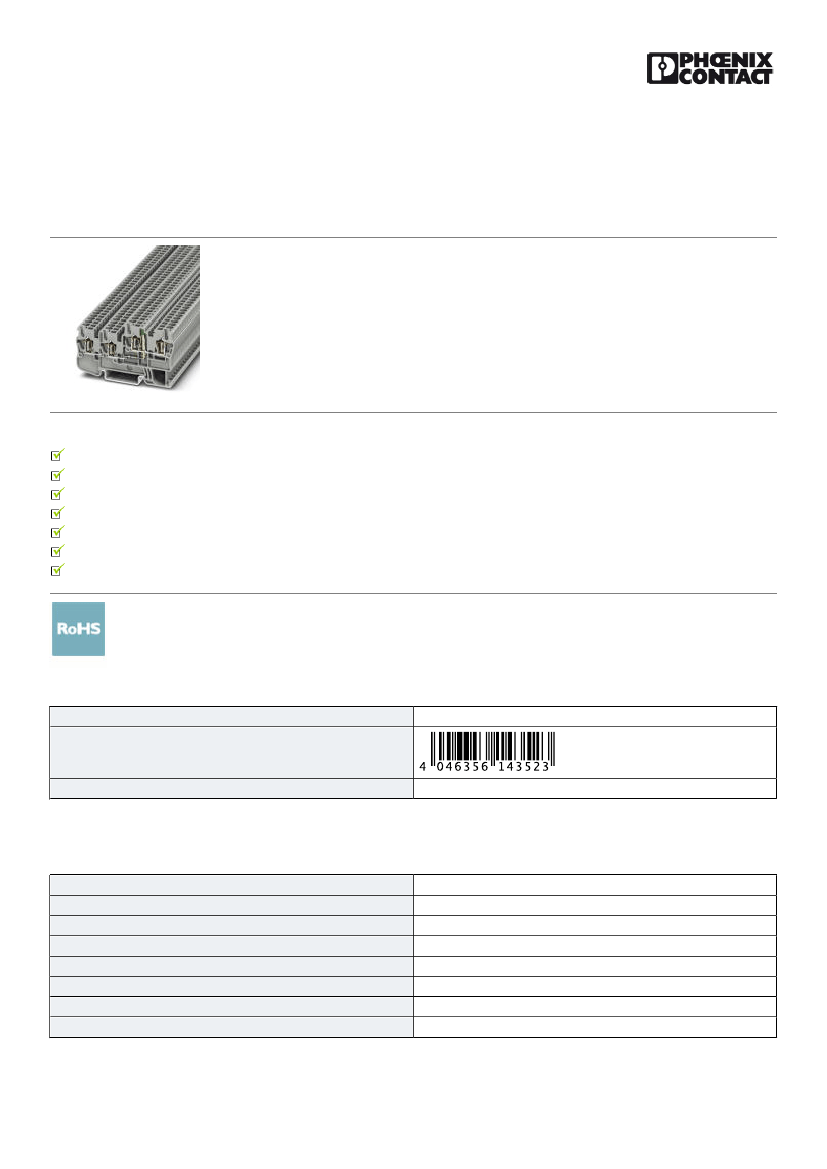

Sensor/actuator terminal block - STIO 2,5/3-2B/L-LA24GN/O-
M - 3209031
Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's
documentation. Our General Terms of Use for Downloads are valid
(http://phoenixcontact.com/download)
Sensor/actuator terminal block, nom. voltage: 24 V, nominal current: 18 A, connection method: Spring-cage
connection, number of connections: 4, cross section:0.08 mm² - 4 mm², AWG: 28 - 12, width: 5.2 mm, color:
gray, mounting type: NS 35/7,5, NS 35/15
Your advantages
Three-conductor output terminal block of the same shape with PE connection in the lower level for wiring actuators
Power terminal blocks can be located at any point on the terminal strip for supply or extension purposes
Versions with LED for indicating the switching states
Easy bridging and potential distribution using the patented plug-in bridges from the CLIPLINE complete system
Potential is supplied via the STIO-IN power terminal blocks
For space and time-saving wiring of three-conductor initiators and actuators
The upper level is for signal wiring, whereas the two lower levels are used to distribute the positive and negative potential
Key Commercial Data
Packing unit
GTIN
GTIN
4046356143523
50 pc
Technical data
General
Number of levels
Number of connections
Nominal cross section
Color
Insulating material
Flammability rating according to UL 94
Rated surge voltage
Degree of pollution
3
4
2.5 mm²
gray
PA
V0
4 kV
3
11/11/2018 Page 1 / 4
https://www.phoenixcontact.com/pi/products/3209031
Sensor/actuator terminal block - STIO 2,5/3-2B/L-LA24GN/O-
M - 3209031
Technical data
General
Overvoltage category
Insulating material group
Maximum power dissipation for nominal condition
Connection in acc. with standard
Nominal current I
N
Maximum load current
Nominal voltage U
N
Open side panel
Relative insulation material temperature index (Elec.; UL 746 B)
Temperature index of insulation material (DIN EN 60216-1 (VDE
0304-21))
Static insulating material application in cold
Behavior in fire for rail vehicles (DIN 5510-2)
Flame test method (DIN EN 60695-11-10)
Oxygen index (DIN EN ISO 4589-2)
NF F16-101, NF F10-102 Class I
NF F16-101, NF F10-102 Class F
Surface flammability NFPA 130 (ASTM E 162)
Specific optical density of smoke NFPA 130 (ASTM E 662)
Smoke gas toxicity NFPA 130 (SMP 800C)
Calorimetric heat release NFPA 130 (ASTM E 1354)
Fire protection for rail vehicles (DIN EN 45545-2) R22
Fire protection for rail vehicles (DIN EN 45545-2) R23
Fire protection for rail vehicles (DIN EN 45545-2) R24
Fire protection for rail vehicles (DIN EN 45545-2) R26
III
I
0.77 W (the value is multiplied when connecting multiple levels)
IEC 60947-7-1
18 A
18 A (with 4 mm² conductor cross section)
24 V (Light indicator, green)
Yes
130 °C
130 °C
-60 °C
Test passed
V0
>32 %
2
2
passed
passed
passed
28 MJ/kg
HL 1 - HL 3
HL 1 - HL 3
HL 1 - HL 3
HL 1 - HL 3
Dimensions
Width
Length
Height NS 35/7,5
Height NS 35/15
5.2 mm
75 mm
44.5 mm
52 mm
Connection data
Connection method
Conductor cross section solid min.
Conductor cross section solid max.
Conductor cross section flexible min.
Conductor cross section flexible max.
Conductor cross section AWG min.
Conductor cross section AWG max.
Conductor cross section flexible, with ferrule without plastic sleeve min.
Spring-cage connection
0.08 mm²
4 mm²
0.08 mm²
2.5 mm²
28
12
0.14 mm²
11/11/2018 Page 2 / 4
https://www.phoenixcontact.com/pi/products/3209031
Sensor/actuator terminal block - STIO 2,5/3-2B/L-LA24GN/O-
M - 3209031
Technical data
Connection data
Conductor cross section flexible, with ferrule without plastic sleeve max. 2.5 mm²
Conductor cross section flexible, with ferrule with plastic sleeve min.
Conductor cross section flexible, with ferrule with plastic sleeve max.
2 conductors with same cross section, stranded, TWIN ferrules with
plastic sleeve, max.
Stripping length
0.14 mm²
2.5 mm²
0.5 mm²
8 mm ... 10 mm
Standards and Regulations
Connection in acc. with standard
Flammability rating according to UL 94
Fire protection for rail vehicles (DIN EN 45545-2) R22
Fire protection for rail vehicles (DIN EN 45545-2) R23
Fire protection for rail vehicles (DIN EN 45545-2) R24
Fire protection for rail vehicles (DIN EN 45545-2) R26
CUL
IEC 60947-7-1
V0
HL 1 - HL 3
HL 1 - HL 3
HL 1 - HL 3
HL 1 - HL 3
Environmental Product Compliance
China RoHS
Environmentally friendly use period: unlimited = EFUP-e
No hazardous substances above threshold values
Drawings
Circuit diagram
Approvals
Approvals
Approvals
UL Recognized / cUL Recognized / EAC / cULus Recognized
Ex Approvals
Approval details
11/11/2018 Page 3 / 4
https://www.phoenixcontact.com/pi/products/3209031
Sensor/actuator terminal block - STIO 2,5/3-2B/L-LA24GN/O-
M - 3209031
Approvals
UL Recognized
Nominal voltage UN
Nominal current IN
mm²/AWG/kcmil
D
300 V
10 A
28-12
http://database.ul.com/cgi-bin/XYV/template/LISEXT/1FRAME/index.htm
B
300 V
10 A
28-12
C
150 V
18 A
28-12
FILE E 60425
cUL Recognized
Nominal voltage UN
Nominal current IN
mm²/AWG/kcmil
D
300 V
10 A
28-12
http://database.ul.com/cgi-bin/XYV/template/LISEXT/1FRAME/index.htm
B
300 V
10 A
28-12
C
150 V
18 A
28-12
FILE E 60425
EAC
EAC-Zulassung
cULus Recognized
