PTT-10478 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Topical application> Mechanical and electrical/engineering/automation> PTT-10478

PTT-10478: DescriptionABS- 4 SIDE TERMINAL BLOCK BOX(6; CategoryTopical application Mechanical and electrical/engineering/automation; File Size88KB，1 Pages; ManufacturerBud Industries

Download Datasheet Parametric Compare View All

PTT-10478 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	PTT-10478	-	-	View	Buy Now

PTT-10478 Overview

ABS- 4 SIDE TERMINAL BLOCK BOX(6

PTT-10478 Parametric

Parameter Name	Attribute value
Container type	Junction Box
size/dimensions	2.570" long x 2.920" wide (65.28mm x 74.17mm)
high	1.690"（42.93mm）
Area (L x W)	7.50 in²（48.4 cm²）
design	Cover included
Material	Plastic - ABS
color	grey
thickness	0.119"（3.02mm）
characteristic	Top release plate, sealing gasket
grade	IP66，IP67，NEMA 4X
Material flammability rating	UL94 V-0
weight	0.228 lbs (103.42g)

Preview

Download Datasheet

View All

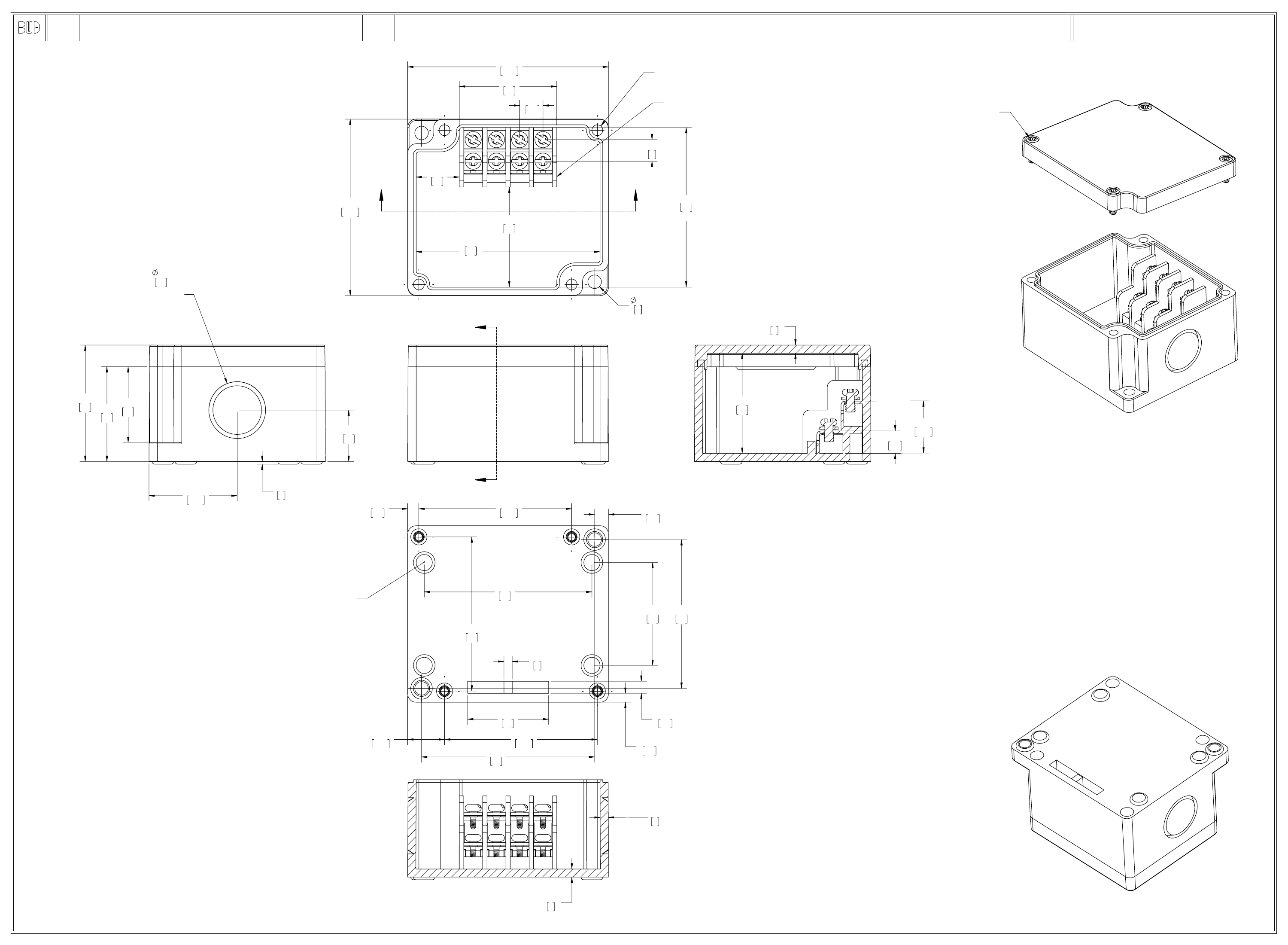

PART

NAME

PTT SERIES 4 SIDE TERMINAL BLOCK BOX

PART

No.

PTT-10478 & PTT-10478-C

2.92

74.2

1.42

REVISION

DATE

10/30/17

WE RESERVE THE RIGHT TO MAKE CHANGES TO OUR

STANDARD PRODUCTS. PLEASE CONSULT WITH BUD INDUSTRIES

PRIOR TO USING THIS DRAWING FOR DESIGN PURPOSE.

DRAWING FOR REFERENCE

M3 X 0.5 THREADED BRASS INSERT 4X

NICKEL PLATED

.34

8.6

4 TERMINAL BLOCK

METALLIC SCREWS

SUPPLIED 4X

.31

.63

2.57

65.2

2.32

INSIDE

1.46

2.68

INSIDE

.83

MOLDED IN

KNOCKOUT

BOTH ENDS

.20 2X

.12

1.69

1.38

1.10

.75

1.46

.33

8.3

.76

19.3

1.28

32.6

.04 PADS TYP.

.16

4.1

2.22

56.5

SECTION B-B

SCALE 2 : 1.25

.20

5.1

NOTES:

1- MATERIAL: BODY - GRAY ABS UL94 V-0

COVER - GRAY ABS OR CLEAR (-C SUFFIX) POLYCARBONATE

2- HIGH IMPACT RESISTANCE IK 07/08

3- TUV RATING IP66/67

4- CONTINUOUS POURED GASKET IN COVER

5- COVER ATTACHES WITH STAINLESS STEEL M3 X 0.5 SCREWS SUPPLIED

6- TEMPERATURE RANGE -40° ~ +70° F.

7- TERMINAL FEATURES:

SURFACE TREATED STEEL TERMINAL SCREWS

RATED INSULATION VOLTAGE 400V

RATED IMPULSE VOLTAGE 4KV

RATED CURRENT CAPACITY .75mm² - 1.5mm²

PADS TYP.

2.44

1.50

2.17

8- DIMENSIONS ARE INCH [MM]

9- OPTIONAL EXTERNAL MOUNTING BRACKETS NOT INCLUDED,

PART NUMBERS NBX-10922 & PIX-4117

2.24

.12

1.18

.54

13.6

2.22

56.5

.13

3.3

.18

4.4

2.52

.12

SECTION A-A

SCALE 2 : 1.25

.12

PTT-10478 Related Products

	PTT-10478	PTT-10478-C
Description	ABS- 4 SIDE TERMINAL BLOCK BOX(6	ABS- 4 SIDE TERMINAL BLOCK BOX(6
Container type	Junction Box	Junction Box
size/dimensions	2.570" long x 2.920" wide (65.28mm x 74.17mm)	2.570" long x 2.920" wide (65.28mm x 74.17mm)
high	1.690"（42.93mm）	1.690"（42.93mm）
Area (L x W)	7.50 in²（48.4 cm²）	7.50 in²（48.4 cm²）
design	Cover included	Cover included
Material	Plastic - ABS	Plastic - ABS
color	grey	grey
thickness	0.119"（3.02mm）	0.119"（3.02mm）
characteristic	Top release plate, sealing gasket	Top release plate, sealing gasket
grade	IP66，IP67，NEMA 4X	IP66，IP67，NEMA 4X
Material flammability rating	UL94 V-0	UL94 V-0
weight	0.228 lbs (103.42g)	0.228 lbs (103.42g)
