Customer Specification
PART NO: 207 Series

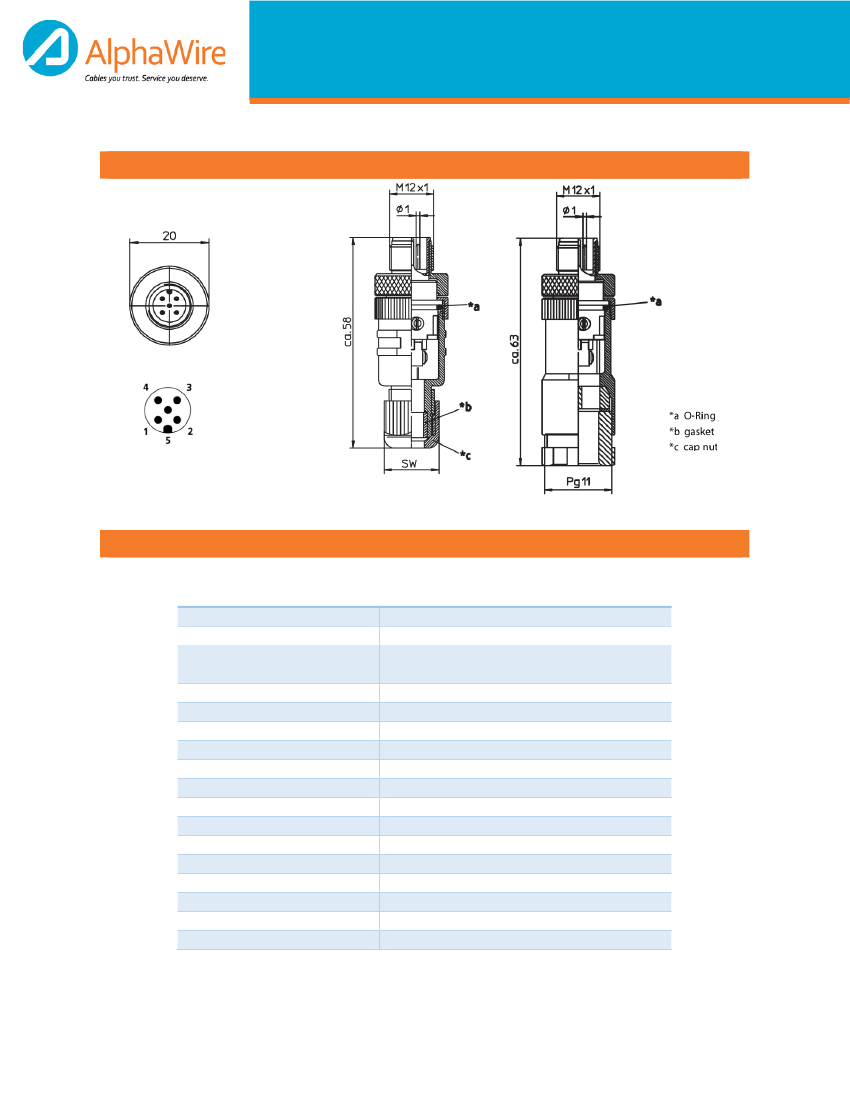

M12-A Male 5 Pin Field Attachable
Drawing
Issue: 1 Issue Date: 4/18/2016 Effective Date: 5/18/2016
206DR7/206DR9
206DR2
Technical Data
Part Number
207DR7
207DR9
207DR2
Mechanical
Housing
Insert
Shell
Contact
O-Ring
Connection
Max AWG
Electrical
Contact Resistance
Nom. Current @ 40°C
Nominal Voltage
Rated Voltage
Test Voltage
Cable Diameter Range
0.118" – 0.256" (3.0 – 6.5 mm/SW 15)
0.157" – 0.315" (4.0 – 8.0 mm/SW 19))
2 x 0.118”/2 x 0.197”
2 x 3.0mm/2 x 5mm
PBT
PBT
Copper Alloy, Nickel Plated
Copper Alloy, Gold Plated
FKM
Screw Terminal
20 (0.75mm
2
)
≤ 5 mΩ
4A
60 V
63 V
1.5 kV eff./60 s
•••••••••••••••••••••••••••••••••••••••
Alpha Wire | 711 Lidgerwood Ave, Elizabeth, NJ 07207
www.alphawire.com | 1-800-52 ALPHA
1
Customer Specification
PART NO: 207 Series
M12-A Male 5 Pin Field Attachable
Insulation Resistance
UL File
Environmental
Degree of Protection
Operating Temperature
Range
CE
> 10
9
Ω
E485156 (Except 207DR2)
IP 67 NEMA 6P
-25C (-13F)/ +90C (+194F)
All materials used in the manufacture of
this part meet the requirements of
European Directive 2011/65/EU regarding
the restriction of use of certain hazardous
substances in electrical and electronic
equipment. Exemption used; 6a.
This product does not contain Substances
of Very High Concern (SVHC) listed on the
European Union’s REACH candidate list in
excess of 0.1% mass of the item.
Package of 5
Package of 5
Each
REACH Regulation (EC
1907/2006)
Ordering Information
207DR7 NC081
207DR9 NC081
207DR2 NC032
Issue: 1 issue Date: 8/4/2016 Effective Date: 8/4/2016
