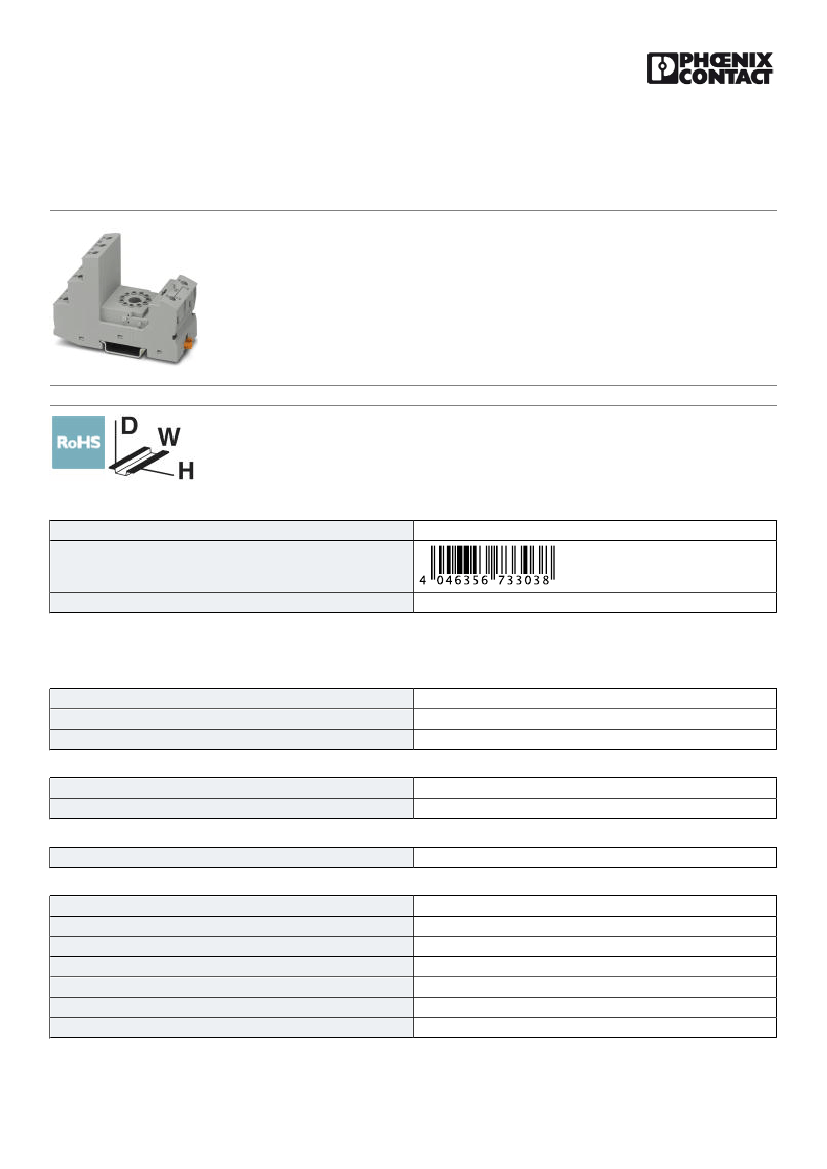

Relay base - RIF-3-BSC/3X21 - 2900936
Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's
documentation. Our General Terms of Use for Downloads are valid
(http://phoenixcontact.com/download)
RIF-3... relay base, for octal relay with 3 changeover contacts, screw connection, plug-in option for input/
interference suppression modules, for mounting on NS 35/7,5
Key Commercial Data
Packing unit
GTIN
GTIN
4046356733038
10 pc
Technical data
Dimensions
Width
Height
Depth with retaining bracket
40 mm
96 mm
90 mm
Ambient conditions
Ambient temperature (operation)
Ambient temperature (storage/transport)
-40 °C ... 85 °C (Depends on application/assembly)
-40 °C ... 85 °C
Input data
Protective circuit
depending on the selected input/suppressor modules
Connection data, input side
Connection name
Connection method
Stripping length
Conductor cross section solid
Conductor cross section flexible
Conductor cross section flexible (2 conductors with same cross section)
Input side
Screw connection
8 mm
0.5 mm² ... 4 mm²
0.5 mm² ... 4 mm²
0.5 mm² ... 4 mm² (Ferrule with plastic sleeve)
0.5 mm² ... 2.5 mm²
11/11/2018 Page 1 / 3
https://www.phoenixcontact.com/pi/products/2900936
Relay base - RIF-3-BSC/3X21 - 2900936
Technical data
Connection data, input side
0.5 mm² ... 1.5 mm² (TWIN ferrule with plastic sleeve)
Conductor cross section AWG
Torque
20 ... 10 (solid)
20 ... 12 (flexible)
0.5 Nm ... 0.6 Nm
Connection data, output side
Connection name
Connection method
Stripping length
Conductor cross section solid
Conductor cross section flexible
Conductor cross section flexible (2 conductors with same cross section)
Conductor cross section AWG
Torque
Contact side
Screw connection
8 mm
0.5 mm² ... 4 mm²
0.5 mm² ... 4 mm²
0.5 mm² ... 4 mm² (Ferrule with plastic sleeve)
0.5 mm² ... 2.5 mm²
0.5 mm² ... 1.5 mm² (TWIN ferrule with plastic sleeve)
20 ... 10 (solid)
20 ... 12 (flexible)
0.5 Nm ... 0.6 Nm
General
Nominal voltage U
N
Nominal current I
N
Protective circuit
Color
Mounting position
250 V AC/DC
max. 10.5 A (Depends on application/assembly)
depending on the selected input/suppressor modules
gray
any
Standards and Regulations
Flammability rating according to UL 94
V2
Environmental Product Compliance
China RoHS
Environmentally Friendly Use Period = 50
For details about hazardous substances go to tab “Downloads”,
Category “Manufacturer's declaration”
Approvals
Approvals
Approvals
DNV GL / CSA / UL Recognized / EAC
Ex Approvals
11/11/2018 Page 2 / 3
https://www.phoenixcontact.com/pi/products/2900936
Relay base - RIF-3-BSC/3X21 - 2900936
Approvals
Approval details
DNV GL
http://exchange.dnv.com/tari/
TAA000018V
CSA
http://www.csagroup.org/services-industries/product-listing/
2607057
UL Recognized
http://database.ul.com/cgi-bin/XYV/template/LISEXT/1FRAME/index.htm
FILE E 113228
EAC
RU C-
DE.A*30.B.01082
