BD-05BFMA-QL8MP0 datasheet, PDF

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > The connector> BD-05BFMA-QL8MP0

Preview

BD-05BFMA-QL8MP0: DescriptionCONN PLUG MALE 5POS CRIMP; CategoryThe connector; File Size265KB，2 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/; Environmental Compliance

Download Datasheet Parametric Compare View All

BD-05BFMA-QL8MP0 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	BD-05BFMA-QL8MP0	-	-	View	Buy Now

BD-05BFMA-QL8MP0 Overview

CONN PLUG MALE 5POS CRIMP

BD-05BFMA-QL8MP0 Parametric

Parameter Name	Attribute value
Connector type	Plug, male pin
Number of pins	5 (data)
Housing Dimensions - Plug-in	B
Housing size, MIL	-
Installation type	free hanging
Termination	crimp
Fastening type	push-pull
towards	Marked
Intrusion protection	IP68 - dust and water resistant
Housing material, plating	Polyamide (PA), nylon, glass fiber reinforced
Contact plating	gold
characteristic	Back shell, stress relieved
Rated current	5A
Voltage - Rated	-
Contact plating thickness	-
Operating temperature	-20°C ~ 80°C

Preview

Download Datasheet

View All

W

T

L

A

W

T

L

A

W

T

L

A

T

A

L

W

T

L

A

W

T

L

A

W

T

L

A

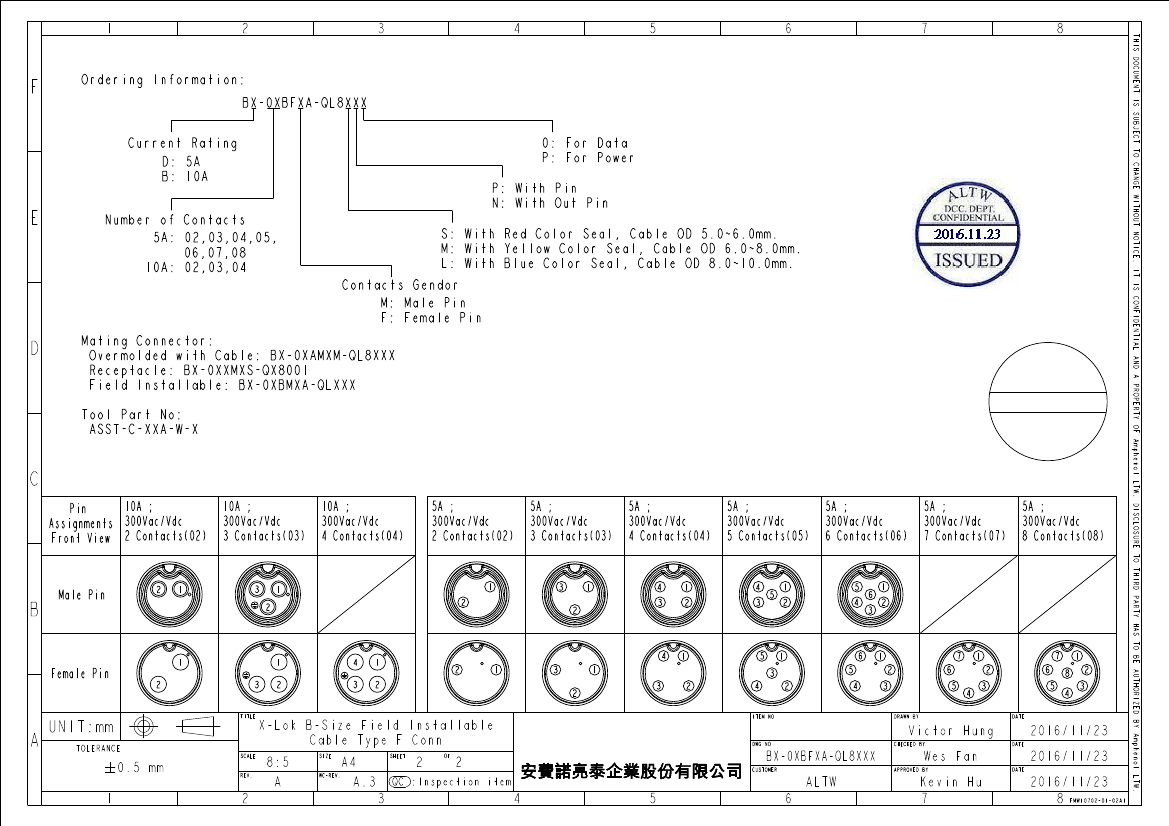

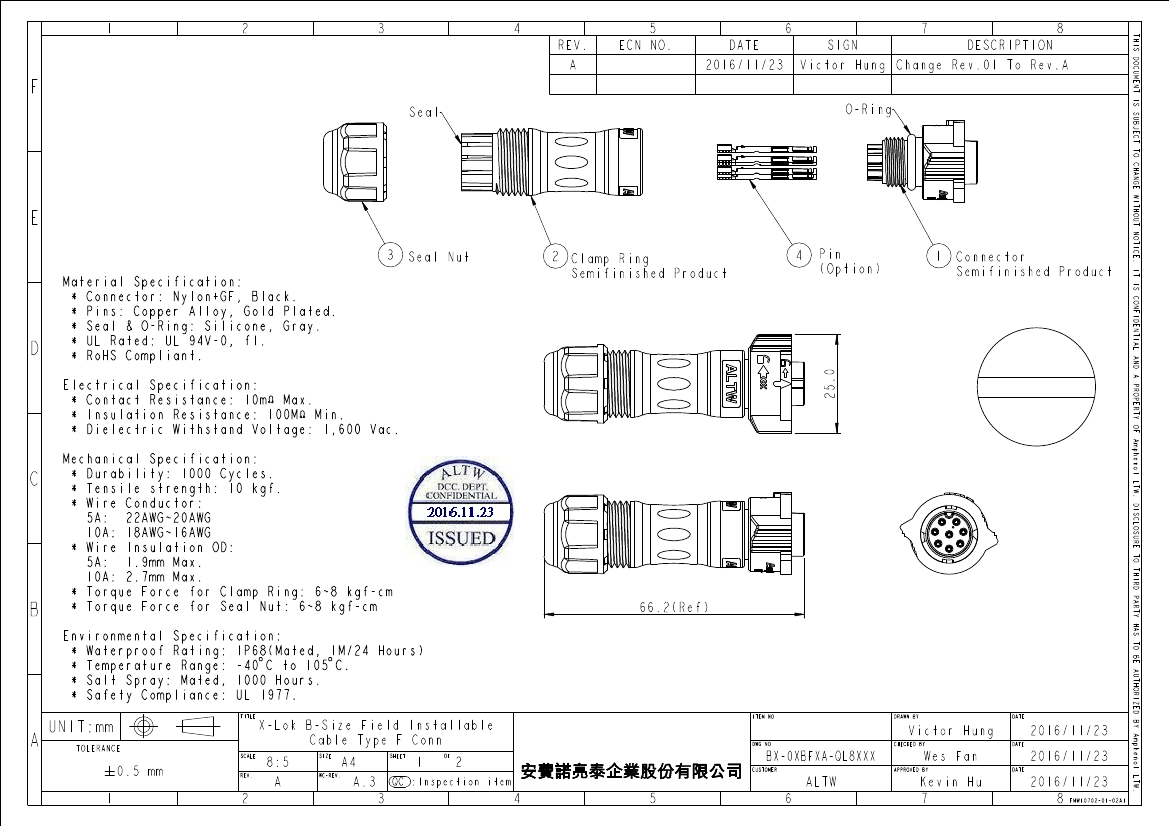

CONFIDENTIAL

2016-11-23

R&D DEPT.

W

T

L

A

Amphenol LTW

W

T

L

A

W

T

L

A

BD-05BFMA-QL8MP0 Related Products

	BD-05BFMA-QL8MP0	BB-04BFFA-QL8SPP	BB-02BFMA-QL8MPP	BD-08BFFA-QL8MP0
Description	CONN PLUG MALE 5POS CRIMP	CONN PLUG FMALE 4POS CRIMP	CONN PLUG MALE 2POS CRIMP	CONN PLUG FMALE 8POS CRIMP
Connector type	Plug, male pin	plug, female socket	Plug, male pin	plug, female socket
Number of pins	5 (data)	4 (power supply)	2 (power supply)	8 (data)
Housing Dimensions - Plug-in	B	B	B	B
Installation type	free hanging	free hanging	free hanging	free hanging
Termination	crimp	crimp	crimp	crimp
Fastening type	push-pull	push-pull	push-pull	push-pull
towards	Marked	Marked	Marked	Marked
Intrusion protection	IP68 - dust and water resistant	IP68 - dust and water resistant	IP68 - dust and water resistant	IP68 - dust and water resistant
Housing material, plating	Polyamide (PA), nylon, glass fiber reinforced	Polyamide (PA), nylon, glass fiber reinforced	Polyamide (PA), nylon, glass fiber reinforced	Polyamide (PA), nylon, glass fiber reinforced
Contact plating	gold	gold	gold	gold
characteristic	Back shell, stress relieved	Back shell, stress relieved	Back shell, stress relieved	Back shell, stress relieved
Rated current	5A	10A	10A	5A
Operating temperature	-20°C ~ 80°C	-20°C ~ 105°C	-20°C ~ 105°C	-20°C ~ 80°C
