RJ2S-CL-D12 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Topical application> Mechanical and electrical/engineering/automation> RJ2S-CL-D12

RJ2S-CL-D12: DescriptionRELAY PLUG-IN DPDT 8A 12VDC; CategoryTopical application Mechanical and electrical/engineering/automation; File Size1MB，10 Pages; ManufacturerIDEC; Environmental Compliance

Download Datasheet Parametric View All

RJ2S-CL-D12 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	RJ2S-CL-D12	-	-	View	Buy Now

RJ2S-CL-D12 Overview

RELAY PLUG-IN DPDT 8A 12VDC

RJ2S-CL-D12 Parametric

Parameter Name	Attribute value
Relay type	Universal
Coil type	No latch
coil current	48mA
coil voltage	12VDC
Contact shape	DPDT（2 Form C）
Rated contact (current)	8A
switching voltage	250VAC - nominal
Turn-on voltage (maximum value)	8.4 VDC
Shut-off voltage (minimum value)	1.2 VDC
operating hours	15ms
release time	10ms
characteristic	LED indicator
Installation type	Plugable
Terminal type	Plug-in
Operating temperature	-40°C ~ 70°C
Contact material	Silver Nickel (AgNi)
Coil power	530 mW
Coil resistance	271 Ohms

Preview

Download Datasheet

View All

Relays & Sockets

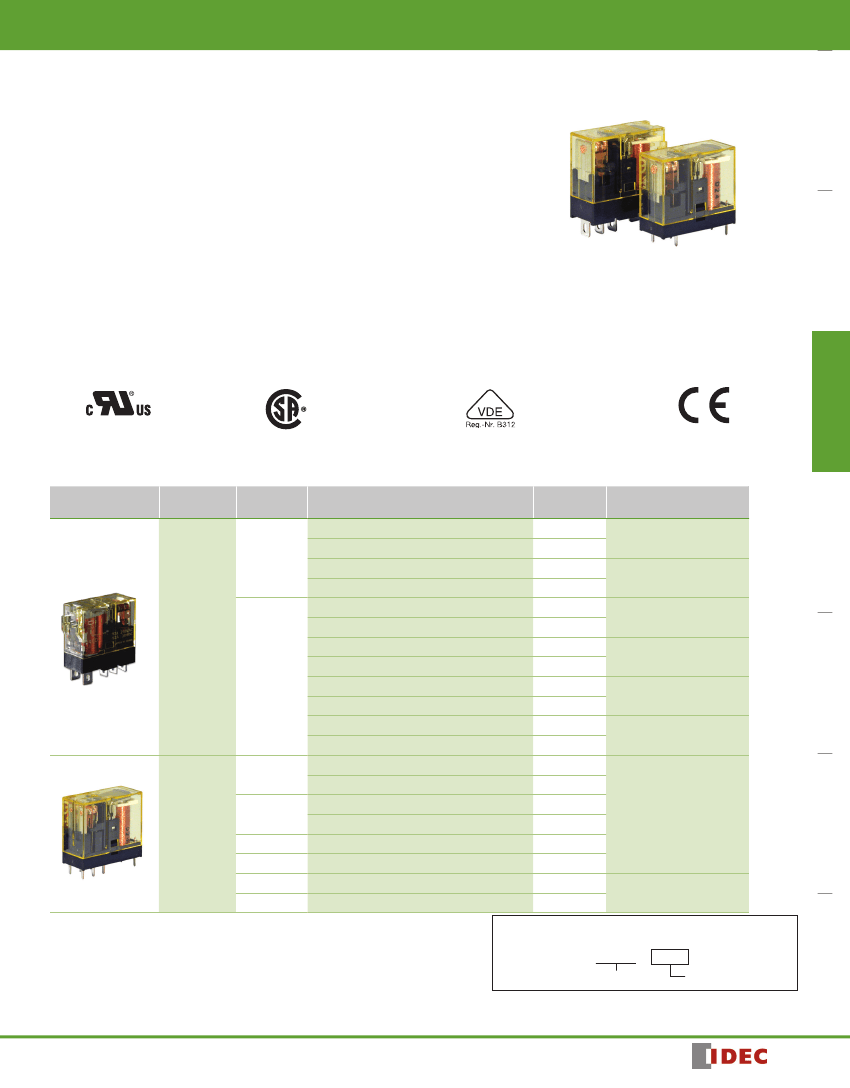

Key features:

Switches & Pilot Lights

RJ Series Slim Power Relays

• Compact and rugged power relays. Large switching capacity

• Compact housing only 12.7-mm wide.

Large contact rating

RJ1 (1-pole): 16A (UL general use rating @250V AC)

RJ2 (2-pole): 8A

• Non-polarized LED indicator available on blade type. IDEC’s unique light guide structure enables

high visibility of coil status from any direction.

Signaling Lights

• The smallest width for 2-pole/bifurcated contact relay

• Excellent electrical and mechanical life.

Electrical life: 200,000 operations (AC load)

Mechanical life: 30 million operations (AC coil)

• RoHS directive compliant (EU directive 2002/95/EC). Contains no lead, cadmium, mercury, hexavalent chromium, PBB or PBDE.

• Diode model:

Diode reverse withstand voltage: 1000V

• UL recognized, CSA certified, EN compliant.

Relays & Sockets

UL508

UL File No. E55996

CSA C22.2 No. 14

1608322

CSA File No. LR35144

EN61810-1

VDE (REG.-Nr B312)

EN61810-1

EC Low Voltage Directive

Part Number Selection

Style

Terminal

Contact

Model

Standard

SPDT

with LED

with Surge Suppresion Diode

with LED & Surge Suppresion Diode

Standard

Blade

DPDT

with LED

with Surge Suppresion Diode

with LED & Surge Suppresion Diode

Standard Bifurcated contacts (without LED indicator)

Bifurated contacts (with LED indicator)

Bifurcated contacts diode (without LED indicator)

Bifurcated contacts diode (with LED indicator)

SPDT

SPST-NO

PCB

DPDT

DPST-NO

DPDT

DPST-NO

Standard

High Capacity

Standard

High Capacity

Standard

Bifurcated contacts

Part Number

RJ1S-C-0

RJ1S-CL-0

RJ1S-CD-0

RJ1S-CLD-0

RJ2S-C-0

RJ2S-CL-0

RJ2S-CD-0

RJ2S-CLD-0

RJ22S-C-0

RJ22S-CL-0

RJ22S-CD-0

RJ22S-CLD-0

RJ1V-C-0

RJ1V-CH-0

RJ1V-A-0

RJ1V-AH-0

RJ2V-C-0

RJ2V-A-0

RJ22V-C-0

RJ22V-A-0

Ordering Information

A12,

A24, A120, A240,

D5, D12,

D24,

D48, D100

Circuit Breakers

A24,

A110,

A120,

A220,

A240,

D5, D6, D12,

D24,

D48, D100

Terminal Blocks

Coil Voltage Code

(Standard Stock in bold)

A24,

A110,

A120,

A220,

A240,

D12,

D24,

D48, D100

D12,

D24,

D48, D100

A24,

A110,

A120,

A220,

A240,

D12,

D24,

D48, D100

D12,

D24,

D48, D100

A12,

A24, A120, A240,

D5, D12,

D24,

D100

D5, D12,

D24,

D48, D100

Contactors

Timers

When ordering, specify the Part No. and coil voltage code:

(example)

RJ1S-C-

Part No.

A120

Coil Voltage Code

1705151135

800-262-IDEC

(4332)

•

USA & Canada

853
