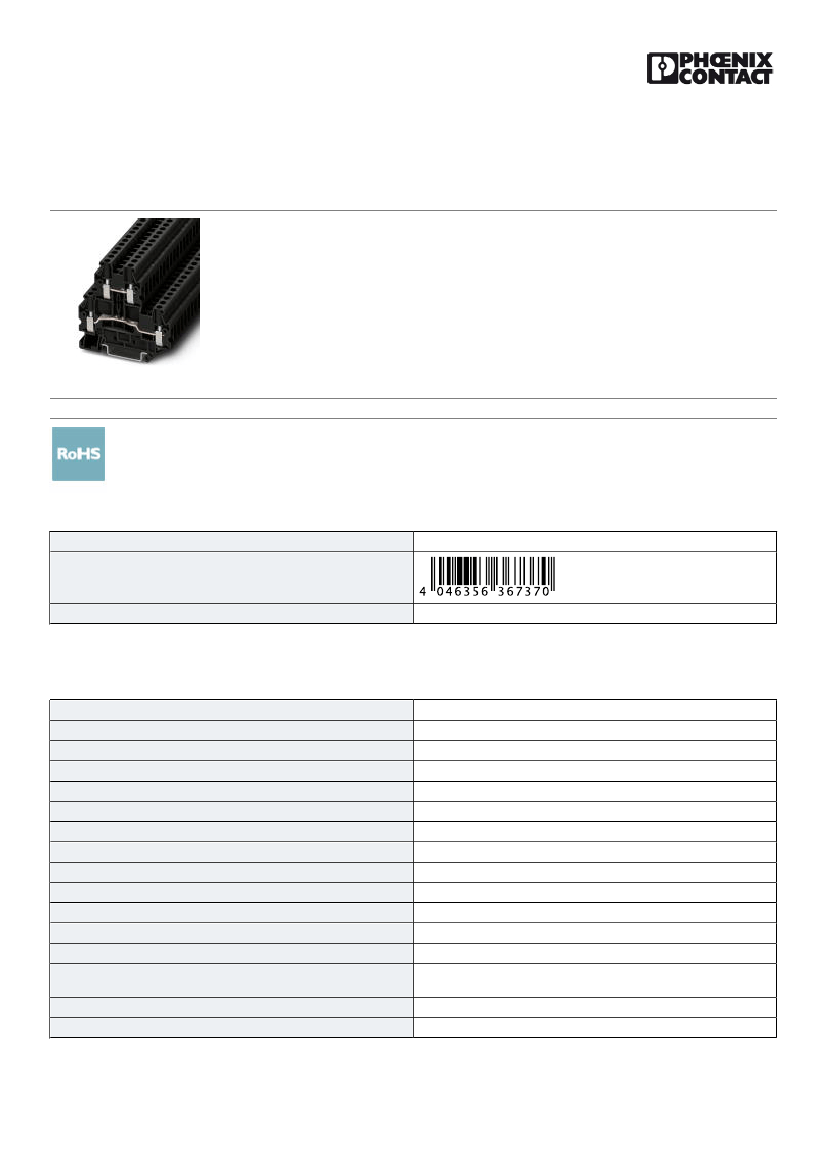

Feed-through terminal block - UTTB 4-PE BK - 3074282
Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's
documentation. Our General Terms of Use for Downloads are valid
(http://phoenixcontact.com/download)
Feed-through terminal block, connection method: Screw connection, cross section: 0.14 mm² - 6 mm², AWG:
26 - 10, width: 6.2 mm, color: black, mounting type: NS 35/7,5, NS 35/15
Similar figure
Key Commercial Data
Packing unit
GTIN
GTIN
4046356367370
50 pc
Technical data
General
Number of levels
Number of connections
Nominal cross section
Color
Insulating material
Flammability rating according to UL 94
Rated surge voltage
Degree of pollution
Overvoltage category
Insulating material group
Connection in acc. with standard
Open side panel
Relative insulation material temperature index (Elec.; UL 746 B)
Temperature index of insulation material (DIN EN 60216-1 (VDE
0304-21))
Static insulating material application in cold
Behavior in fire for rail vehicles (DIN 5510-2)
2
4
4 mm²
black
PA
V0
8 kV
3
III
I
IEC 60947-7-2
Yes
130 °C
130 °C
-60 °C
Test passed
11/11/2018 Page 1 / 4
https://www.phoenixcontact.com/pi/products/3074282
Feed-through terminal block - UTTB 4-PE BK - 3074282
Technical data
General
Flame test method (DIN EN 60695-11-10)
Oxygen index (DIN EN ISO 4589-2)
NF F16-101, NF F10-102 Class I
NF F16-101, NF F10-102 Class F
Surface flammability NFPA 130 (ASTM E 162)
Specific optical density of smoke NFPA 130 (ASTM E 662)
Smoke gas toxicity NFPA 130 (SMP 800C)
Calorimetric heat release NFPA 130 (ASTM E 1354)
Fire protection for rail vehicles (DIN EN 45545-2) R22
Fire protection for rail vehicles (DIN EN 45545-2) R23
Fire protection for rail vehicles (DIN EN 45545-2) R24
Fire protection for rail vehicles (DIN EN 45545-2) R26
V0
>32 %
2
2
passed
passed
passed
28 MJ/kg
HL 1 - HL 3
HL 1 - HL 3
HL 1 - HL 3
HL 1 - HL 3
Dimensions
Width
Length
Height NS 35/7,5
Height NS 35/15
6.2 mm
69.9 mm
65 mm
72.5 mm
Connection data
Note
Connection method
Conductor cross section solid min.
Conductor cross section solid max.
Conductor cross section flexible min.
Conductor cross section flexible max.
Conductor cross section AWG min.
Conductor cross section AWG max.
Conductor cross section flexible, with ferrule without plastic sleeve min.
Conductor cross section flexible, with ferrule with plastic sleeve min.
Conductor cross section flexible, with ferrule with plastic sleeve max.
Stripping length
Internal cylindrical gage
Screw thread
Tightening torque, min
Tightening torque max
Please observe the current carrying capacity of the DIN rails.
Screw connection
0.14 mm²
6 mm²
0.14 mm²
6 mm²
26
10
0.14 mm²
0.14 mm²
4 mm²
9 mm
A4
M3
0.6 Nm
0.8 Nm
Conductor cross section flexible, with ferrule without plastic sleeve max. 4 mm²
Standards and Regulations
Connection in acc. with standard
Flammability rating according to UL 94
Fire protection for rail vehicles (DIN EN 45545-2) R22
IEC 60947-7-2
V0
HL 1 - HL 3
11/11/2018 Page 2 / 4
https://www.phoenixcontact.com/pi/products/3074282
Feed-through terminal block - UTTB 4-PE BK - 3074282
Technical data
Standards and Regulations
Fire protection for rail vehicles (DIN EN 45545-2) R23
Fire protection for rail vehicles (DIN EN 45545-2) R24
Fire protection for rail vehicles (DIN EN 45545-2) R26
HL 1 - HL 3
HL 1 - HL 3
HL 1 - HL 3
Environmental Product Compliance
REACh SVHC
China RoHS
Lead 7439-92-1
Environmentally Friendly Use Period = 50
For details about hazardous substances go to tab “Downloads”,
Category “Manufacturer's declaration”
Drawings
Circuit diagram
Approvals
Approvals
Approvals
DNV GL / PRS / EAC
Ex Approvals
Approval details
DNV GL
http://exchange.dnv.com/tari/
TAE00001S9
PRS
http://www.prs.pl/
TE/2156/880590/17
EAC
EAC-Zulassung
11/11/2018 Page 3 / 4
