OVAL SOLID LAMP
PRELIMINARY SPEC
ATTENTION
OBSERVE PRECAUTIONS
FOR HANDLING
ELECTROSTATIC
DISCHARGE
SENSITIVE
DEVICES
Part Number: WP5604RWW/SD/Z
WHITE
Description
The source color devices are made with InGaN Light
Emitting Diode.
Static electricity and surge damage the LEDS.
It is recommended to use a wrist band or anti-electrostatic
Features
●ULTRA
BRIGHTNESS.
●OUTSTANDING
MATERIAL EFFICIENCY.
●RELIABLE
AND RUGGED.
●IC
COMPATIBLE/LOW CURRENT CAPABILITY.
MOISTURE SENSITIVITY LEVEL : LEVEL 1.
ELECTROSTATIC DISCHARGE THRESHOLD (HBM):1000V.
TYP. COLOR TEMPERATURE:6500K.
COLOR COORDINATES:X=0.33,Y=0.34 ACC. TO
CIE1931(WHITE).
OPTICAL EFFICIENCY:35.9 lm/W(TYP.)
COLOR REPRODUCTION INDEX:80.
RoHS COMPLIANT.
glove when handling the LEDs.
All devices, equipment and machinery must be electrically
grounded.
Applications
Furniture lighting
Outdoor displays
Optical indicators
Signal and symbol luminaire
Marker lights (e.g. steps, exit ways, etc.)
Lighting for special effects (e.g. starry sky)
Substitute for miniature flashlight

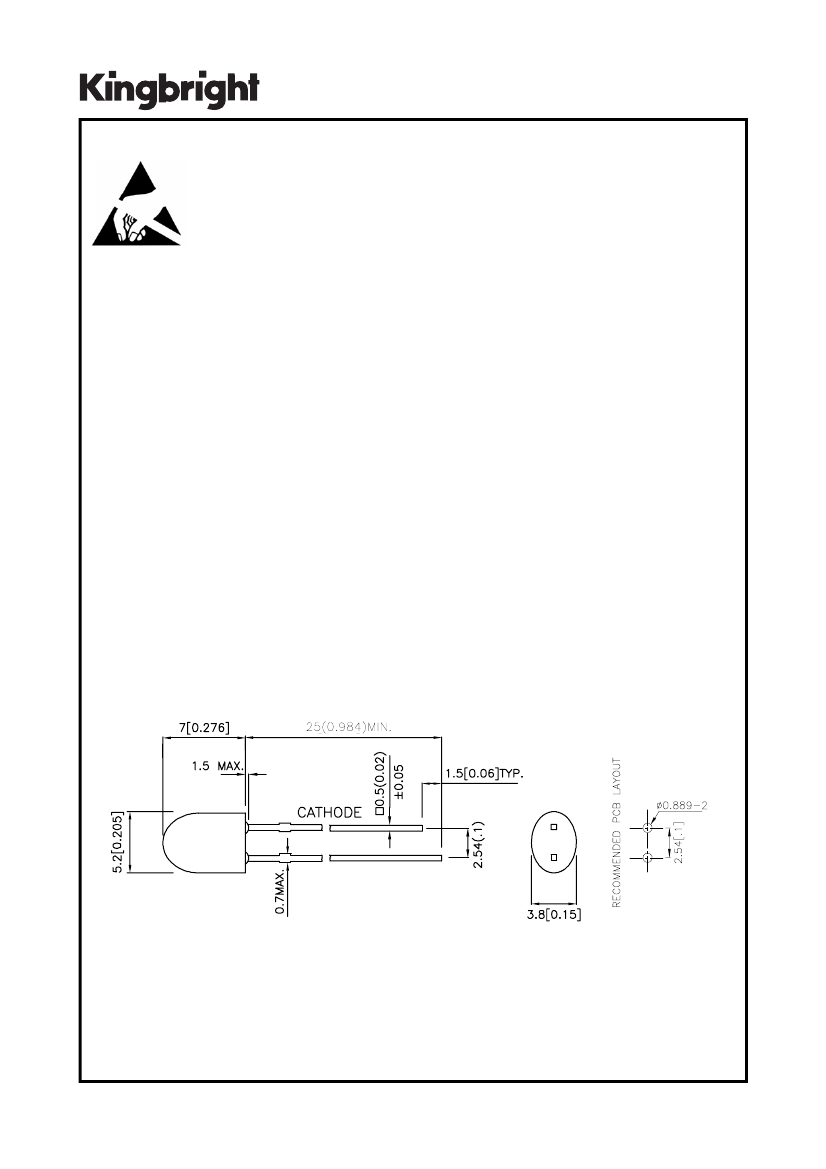

Package Dimensions
Notes:
1. All dimensions are in millimeters (inches).
2. Tolerance is
±0.25(0.01")
unless otherwise noted.
3. Lead spacing is measured where the leads emerge from the package.
4. Specifications are subject to change without notice.
SPEC NO: DSAH1150
APPROVED: J. Lu
REV NO: V.1
CHECKED: Allen Liu
DATE: JAN/09/2007
DRAWN: W.J.ZHU
PAGE: 1 OF 7
ERP: 1101020220
Selection Guide
Part No.
Dice
Lens Type
luminous Intensity
Iv(mcd) @ 20mA
Min.
WP5604RWW/SD/Z WHITE (InGaN)
WHITE SEMI DIFFUSED
900
Typ.
2500
Note2
Φv
(mlm)
@ 20mA
Typ.
2300
Note3
Viewing
Note1
Angle
2θ1/2
65
°(
H
)
35
°(
V
)
Absolute Maximum Ratings at T
A
=25°C
Parameter
Power dissipation
Reverse Voltage
Junction temperature
Operating Temperature
Storage Temperature
DC Forward Current
Peak Forward Current
Thermal resistance
Note5
Junction/ambient
Junction/solder point
Note4
Symbol
P
t
V
R
T
J
Top
Tstg
I
F
I
FM
R
th JA
R
th JS
Value
111
5
110
-40 To +85
-40 To +100
30
100
350
130
Unit
mW
V
°C
°C
°C
mA
mA
°C/W
°C/W
Notes:
1.θ1/2 is the angle from optical centerline where the luminous intensity is 1/2 the optical centerline value.
2.Luminous intensity is measured by a current pulse of 10ms at a tolerance of ±15%.
3.The typical data of Luminous Flux can only reflect statistical figures, actual parameters of individual product could differ from the typical data.
For the purpose of product enhancement, the typical data is subject to change without prior notice.
4.1/10 Duty Cycle, 0.1ms Pulse Width.
5.Rth(J-A) Results from mounting on PC board FR4 (pad size
≥16
mm
2
per pad),
Electrical / Optical Characteristics at T
A
=25°C
Parameter
Chromaticity coordinate x acc.to CIE1931
I
F
=20mA [Typ.]
Chromaticity coordinate y acc.to CIE1931
I
F
=20mA [Typ.]
Forward Voltage I
F
=20mA [Min.]
Forward Voltage I
F
=20mA [Typ.]
Forward Voltage
I
F
=20mA [Max.]
[Typ.]
I
R
Reverse Current (V
R
=5V)
[Max.]
TC x
10
-0.1
Temperature coefficient of x
I
F
=20mA, -10
°
C≤ T≤100
°
C
[Typ.]
Temperature coefficient of y
I
F
=20mA, -10
°
C≤ T≤100
°
C
[Typ.]
Temperature coefficient of V
F
I
F
=20mA, -10
°
C≤ T≤100
°
C
[Typ.]
V
F
Note2
Symbol
X
Y
Note1
Value
0.33
0.34
2.7
3.2
3.7
0.01
Unit
-
-
Note1
V
Reverse Current (V
R
=5V)
μA
10
-3
/
°
C
10
-3
/
°
C
mV/
°
C
TCy
-0.2
TC
V
-2.5
Notes:
1.Chromaticity coordinates are measured by a current pulse of 20ms with a tolerance of ±0.01 in X and Y color coordinates.
2.Forward voltage is measured with a current pulse of 10ms at a tolerance of ± 0.1V.
SPEC NO: DSAH1150
APPROVED: J. Lu
REV NO: V.1
CHECKED: Allen Liu
DATE: JAN/09/2007
DRAWN: W.J.ZHU
PAGE: 2 OF 7
ERP: 1101020220

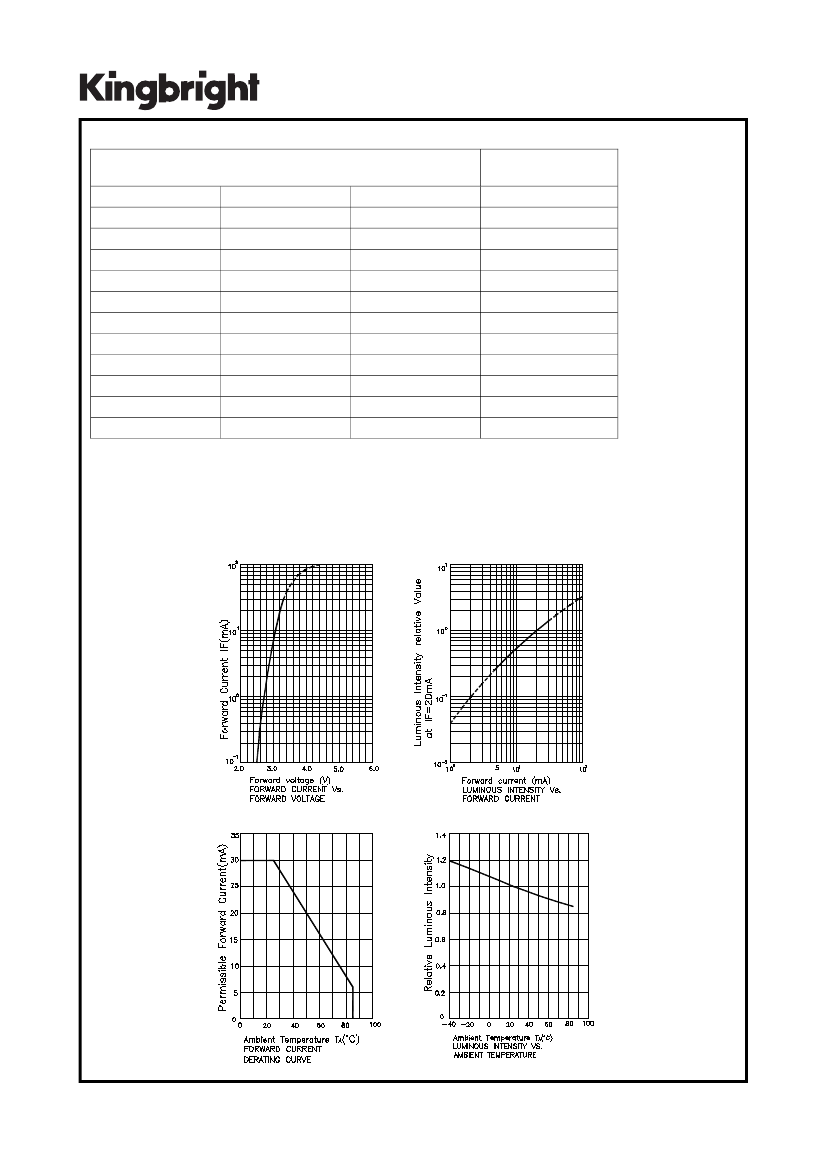

Brightness codes
luminous Intensity
Iv(mcd) @ 20mA
Code.
U
V
W
X
Y
Z
ZA
ZB
ZC
ZD
ZE
Min.
900
1200
1500
1800
2200
2500
2800
3300
3800
4700
5700
Note1
Φv
(mlm)
@ 20mA
Max.
1500
1800
2100
2500
3000
3300
3800
4500
5500
6500
7500
Typ.
1200
1500
1800
2100
2500
2900
3400
3900
4500
5300
6700
Note2
Notes:
1.Luminous intensity is measured by a current pulse of 10ms at a tolerance of ±15%.
2.The typical data of Luminous Flux can only reflect statistical figures, actual parameters of individual product could differ from the
typical data. For the purpose of product enhancement, the typical data is subject to change without prior notice.
White
WP5604RWW/SD/Z
SPEC NO: DSAH1150
APPROVED: J. Lu
REV NO: V.1
CHECKED: Allen Liu
DATE: JAN/09/2007
DRAWN: W.J.ZHU
PAGE: 3 OF 7
ERP: 1101020220

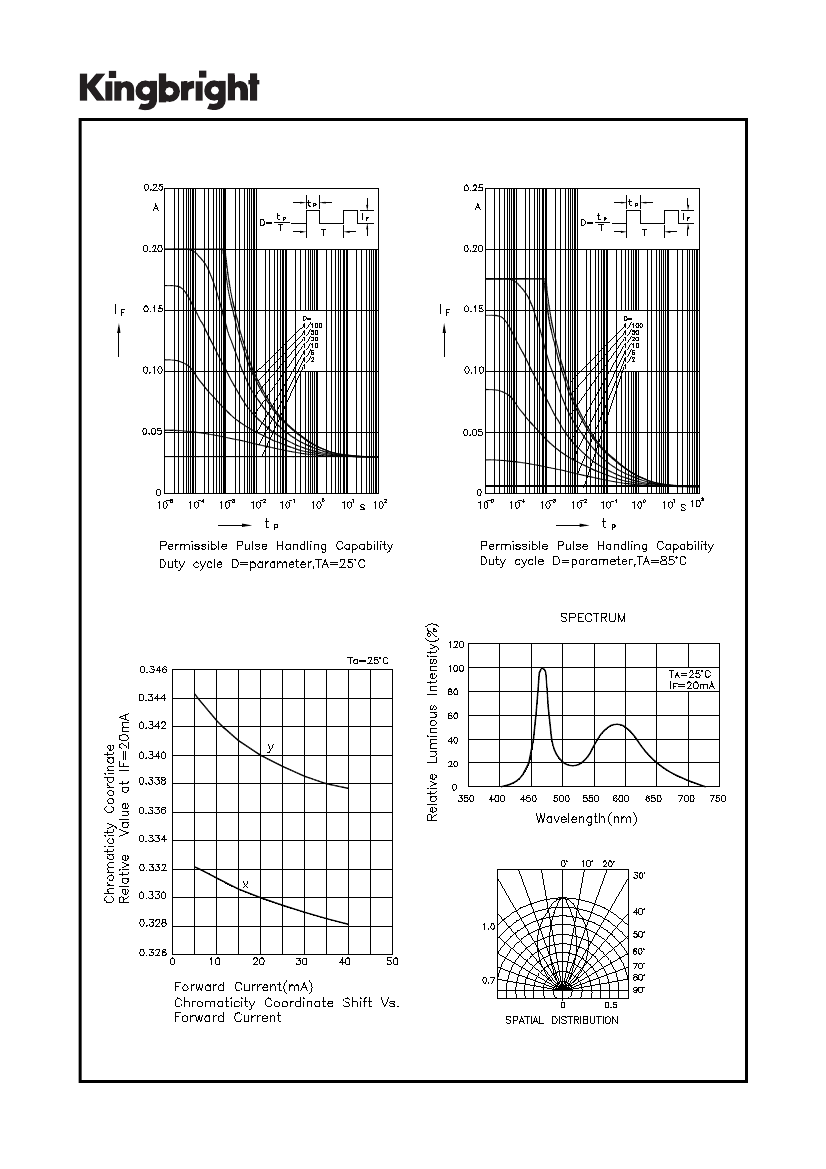

White
WP5604RWW/SD/Z
SPEC NO: DSAH1150
APPROVED: J. Lu
REV NO: V.1
CHECKED: Allen Liu
DATE: JAN/09/2007
DRAWN: W.J.ZHU
PAGE: 4 OF 7
ERP: 1101020220

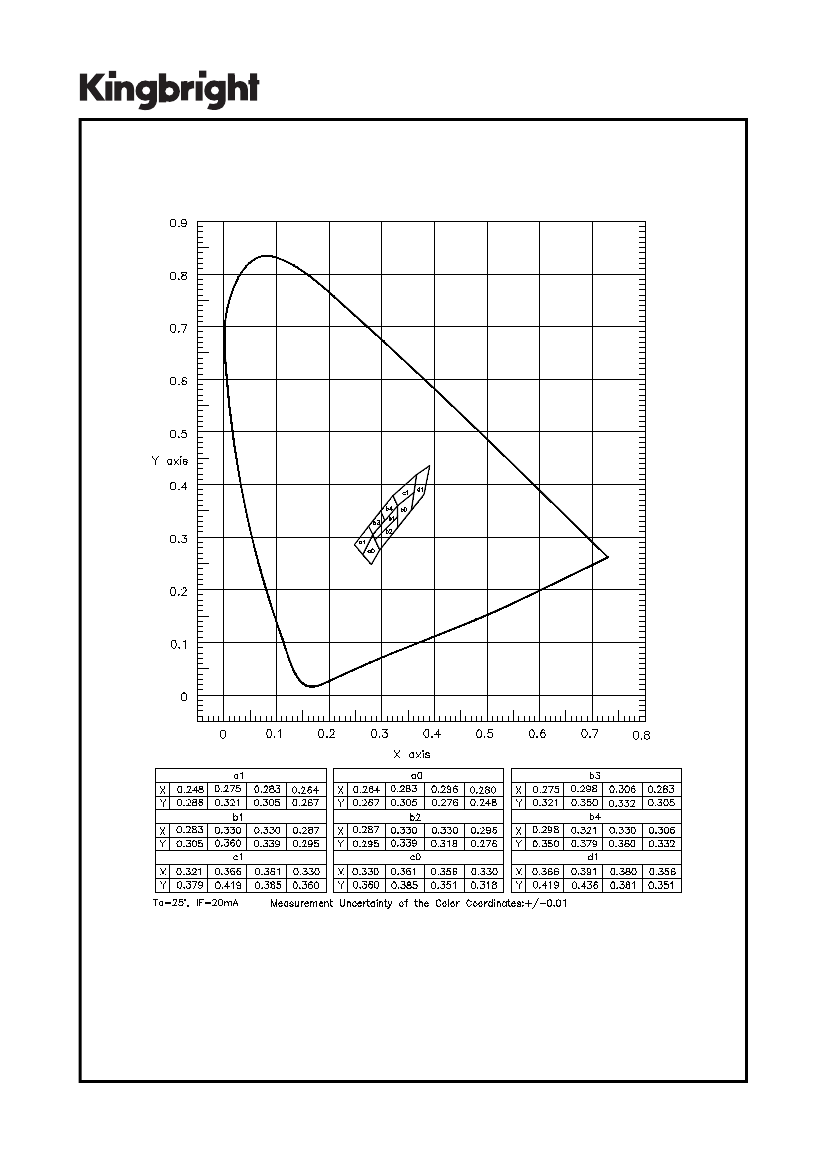

Color Codes
WP5604RWW/SD/Z
SPEC NO: DSAH1150
APPROVED: J. Lu
REV NO: V.1
CHECKED: Allen Liu
DATE: JAN/09/2007
DRAWN: W.J.ZHU
PAGE: 5 OF 7
ERP: 1101020220
