RJ1S-CL-A120 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Topical application> Mechanical and electrical/engineering/automation> RJ1S-CL-A120

RJ1S-CL-A120: DescriptionRELAY PLUG-IN SPDT 12A 120VAC; CategoryTopical application Mechanical and electrical/engineering/automation; File Size2MB，4 Pages; ManufacturerIDEC; Environmental Compliance

Download Datasheet Parametric View All

RJ1S-CL-A120 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	RJ1S-CL-A120	-	-	View	Buy Now

RJ1S-CL-A120 Overview

RELAY PLUG-IN SPDT 12A 120VAC

RJ1S-CL-A120 Parametric

Parameter Name	Attribute value
Relay type	Universal
Coil type	No latch
coil current	7.4mA
coil voltage	120VAC
Contact shape	SPDT（1 Form C）
Rated contact (current)	12A
switching voltage	250VAC - nominal
Turn-on voltage (maximum value)	96 VAC
Shut-off voltage (minimum value)	36 VAC
operating hours	15ms
release time	10ms
characteristic	LED indicator
Installation type	Plugable
Terminal type	Plug-in, QC - 0.187" (4.7mm)
Operating temperature	-40°C ~ 70°C
Contact material	Silver Nickel (AgNi)
Coil power	0.9 VA
Coil resistance	6.4 kOhms

Preview

Download Datasheet

View All

RJ Series Relays

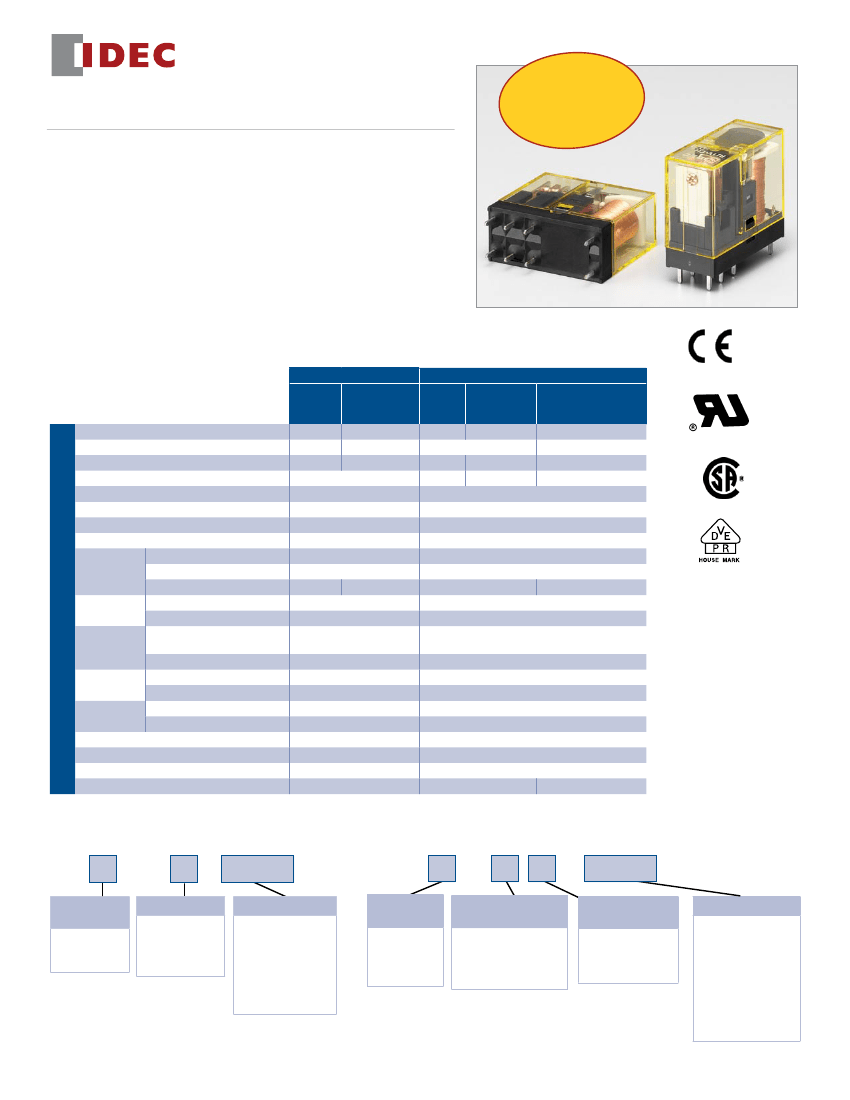

Features

• Compact size:

Blade: 12.7 x 27 x 28.8 mm

PCB: 12.7 x 25.5 x 28.8 mm

•

Contact rating:

Blade: 8A (DPDT), 12A (SPDT)

PCB: 8A (DPDT & DPST-NO), 12A (SPDT & SPST-NO),

16A (SPDT & SPST-NO)

•

Operational life:

200K cycles at full resistive AC load;

50 million cycles, no load

•

Blade model has optional green, non-polarized LED

•

RoHS compliant

PCB Models

Now Available

NEW

Specifications

Blade Models

RJ1S

RJ2S

DPDT

Gerneral Information

No. of poles

Contact Configuration

Contact Rating

Contact Material

Enclosure Ratings

Contact Resistance

Operating Time

Release Time

Between contact & coil

Dielectric

Between contacts of same poles

Strength

Between contacts of different poles

Damage limits

Vibration

Resistance

Operating extremes

Shock

Resistance

Damage limits

SPDT

12A

AgNi

–

50 milliohms max

15ms max

10ms max

5,000V AC, 1 minute

1,000V AC, 1 minute

–

3,000V AC, 1 min.

10-55Hz, amplitude 0.75mm

100m/s

min (10G)

1,000m/s

min (100G)

30,000,000 operations

50,000,000 operations

200,000 operations

100,000 operations

-40 to 70º C

5 to 85% RH

12.7 x 27 x 28.8

19g

Operating extremes

Mechanical

Life

Electrical Life @ AC

Full Rated Load DC

Operating Temperature

Operating Humidity

Dimensions (H x W x D mm)

Weight (Approx.)

PCB Models

RJ1V

(High Capac-

RJ2V

ity)

SPDT, SPST-NO

DPDT, DPST-NO

12A

16A

AgNi

AgSnIn

AgNi

Flux protection

50 milliohms max

Note 1

15ms max

Note 2

10ms max

Note 2

5,000V AC, 1 minute

1,000V AC, 1 minute

–

3,000V AC, 1 min.

10-55Hz, amplitude 0.75mm

NO contact: 200m/s

(20G)

NC contact: 100m/s

(10G)

1,000m/s

min (100G)

30,000,000 operations

50,000,000 operations

200,000 operations

100,000 operations

-40 to 70º C

Note 3

5 to 85% RH

12.7 x 25.5 x 28.8

SPDT: 17g, SPST-NO: 16g

DPDT: 17g, DPST-NO: 16g

Notes:

1. Measured using 5V DC, 1A voltage

drop method.

2. Measured at the rated voltage

(at 20ºC), excluding contact

bounce time.

3. 100% rated voltage.

Ordering Information

Blade Models

PCB Models

Contact

Configuration

1 - SPDT

2 - DPDT

S-C

Options

Coil Voltage

D12 - 12V DC

D24 - 24V DC

D48 - 48V DC

D100 - 100-110V DC

A24 - 24V AC

A120 - 120V AC

A240 - 240V AC

Number of

Poles

1 - SP (Single

Pole)

2 - DP (Double

Pole)

V-

Contact

Configuration

C - FORM C (DT Double

Throw)

A - FORM A (ST Single

Throw)

Contact

Configuration

Blank - Standard

H - High Capacity

Type (RJ1 only)

Coil Voltage

D5 - 5V DC

D6 - 6V DC

D12 - 12V DC

D24 - 24V DC

D48 - 48V DC

D100 - 100-110V DC

A24 - 24V AC

A120 - 120V AC

A240 - 240V AC

Blank - Standard

L - LED

Specifications con’t on following page
