GROUND TERMINAL WIRE
TOP HOUSING
INSULATOR
PLUG ASSEMBLY
MALE HOUSING
SOLDER TABS FOR
GROUND TERMINAL
SLIDE ASSEMBLY IN
SEE NOTE 3
CONTACT WIRES
3 CONDUCTOR SHOWN
SEE NOTE 2
SEE NOTE 6
SEE NOTE 5
SEE NOTE 7
0.13
3.2
0.85
21.6
WIRE STRIPPING DIMENSIONS
SEE NOTE 1
CABLE OD RANGE
0.120 - 0.150IN
BOTTOM HOUSING
GROUND WIRE TO SOLDER
INTO MALE HOUSING TAB
SEE NOTE 4
SEE NOTE 8
PLUG HANDLE
CABLE

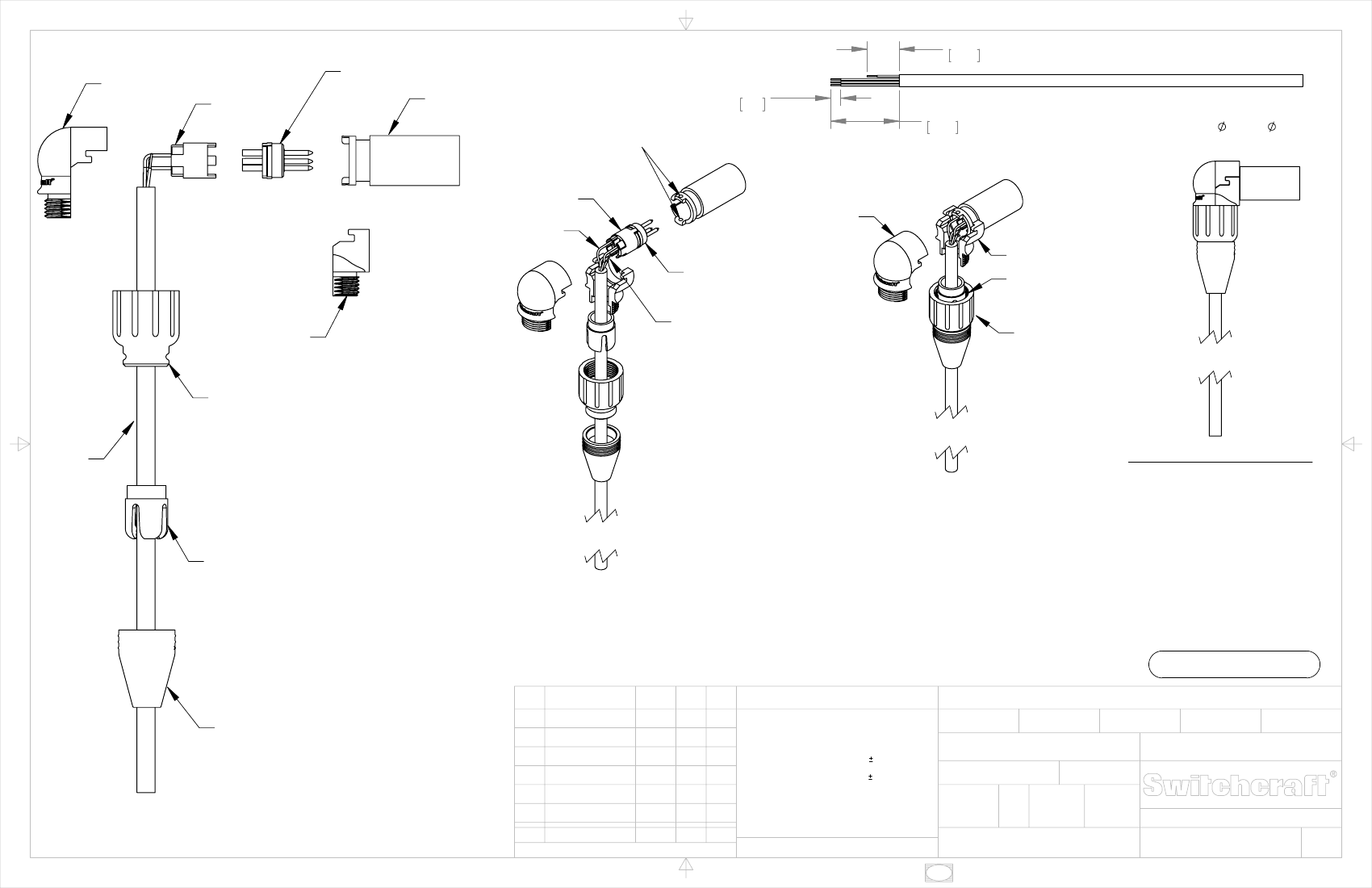

RIGHT ANGLE TINI QG ASSEMBLY
INSTRUCTIONS:
1) CUT THE WIRES ACCORDINGLY AS SHOWN ABOVE.
2) RUN IT THROUGH INSULATOR AND SOLDER THE CONTACT WIRES TO THE PLUG ASSEMBLY. CONNECT
THE INSULATOR TO THE PLUG ASSEMBLY.
3) NOW SLIDE THE CONNECTED PLUG ASEMBLY, INSULATOR INTO THE TINI QG HOUSING. MAKE
SURE THAT THE PLUG ASSEMBLY IS BUTTED UP AGAINST THE FRONT OF THE TINI QG HOUSING.
4) SOLDER THE GROUND TERMINAL WIRE TO THE TINI QG HOUSINGS'S LOWER THRU HOLE AS SHOWN.
5) SLIDE THE BOTTOM PLASTIC HOUSING UP TOWARDS THE MALE HOUSING
6) DROP AND SLIDE THE TOP RIGHT ANGLE HOUSING INTO THE GROVE SUCH AS IT LATCHES WITH THE
BOTTOM PLASTIC AND MALE HOUSING.
7) SLIDE THE CABLE CLAMP THROUGH THE CABLE INTO THE TOP/BOT HOUSINGS AS SHOWN.
8) SCREW THE PLUG HANDLE AND POP IN THE BOOT TO ASSEMBLE FULL PRODUCT.
CABLE CLAMP
PRELIMINARY
CUSTOMER DRAWING
THIS DRAWING DESCRIBES A DESIGN CONSIDERED PROPRIETARY IN NATURE, DEVELOPED AND MANUFACTURED
BY SWITCHCRAFT INC. AND IS RELEASED ON A CONFIDENTIAL BASIS FOR IDENTIFICATION PURPOSES ONLY.
BOOT
UNLESS OTHERWISE SPECIFIED
1. ALL DIMENSIONS IN INCHES [mm]
- TWO PLACE DECIMALS
- THREE PLACE DECIMALS
0.02
[0.5]
SIZE
FINISH
*
WIDTH
0.005 [0.13]
SPEC No.
FIRST USED ON
DATE DRAWN
*
*
*
MULT
*
LBS/M
MATERIAL
SPEC No.
*
TEMPER
*
*
*
*
SCALE
1:1
BY
CHKD
*
REV
*
ECO NUMBER
*
DATE
*
BY
*
APVD
01/03/17
AM
*
*
APVD
*
*
SHEET
PART No.
1
OF
1
REVISIONS
DO NOT SCALE DRAWING
NAME
TINI QG, MALE RA, RoHS
TARA_MX SERIES_CD
0A
REV
SolidWorks CAD File
B
Embedded System
