Part Number

Search

8690180000

Description
RELAY GEN PURPOSE 4PDT 6A 12V
CategoryMechanical and electronic products    relay
File Size248KB,5 Pages
ManufacturerWeidmuller
Websitehttp://www.weidmuller.com/
Download Datasheet Parametric View All

8690180000 Online Shopping

Suppliers Part Number Price MOQ In stock
8690180000 - - View Buy Now

8690180000 Overview

RELAY GEN PURPOSE 4PDT 6A 12V

8690180000 Parametric

Parameter NameAttribute value
MakerWeidmuller
Reach Compliance Codecompliant
ECCN codeEAR99
Factory Lead Time10 weeks
Other featuresWITH LED AND TEST BUTTON
body width22.5 mm
body height29 mm
Body length or diameter28 mm
Maximum coil current (DC)0.063 A
Coil operating voltage (DC)9 V
Coil power750 mW
Coil release voltage (DC)1.2 V
Coil resistance192 Ω
Maximum coil voltage (DC)12 V
Coil/Input Power TypeDC
Contact (AC) maximum rated R load6A@250VAC
Maximum contact current (AC)6 A
Maximum contact voltage (AC)250 V
Contact/Output Power TypeAC
Electrical life100000 Cycle(s)
Installation featuresPANEL MOUNT
operating hours15 ms
Maximum operating temperature70 °C
Minimum operating temperature-40 °C
method of packingBULK
physical size28mm x 22.5mm x 29mm
GuidelineUL; VDE
Relay actionMOMENTARY
Relay function4PDT
Relay typePOWER/SIGNAL RELAY
release time10 ms
sealIP20
surface mountNO
Termination typeSOLDER
Base Number Matches1

Data sheet...

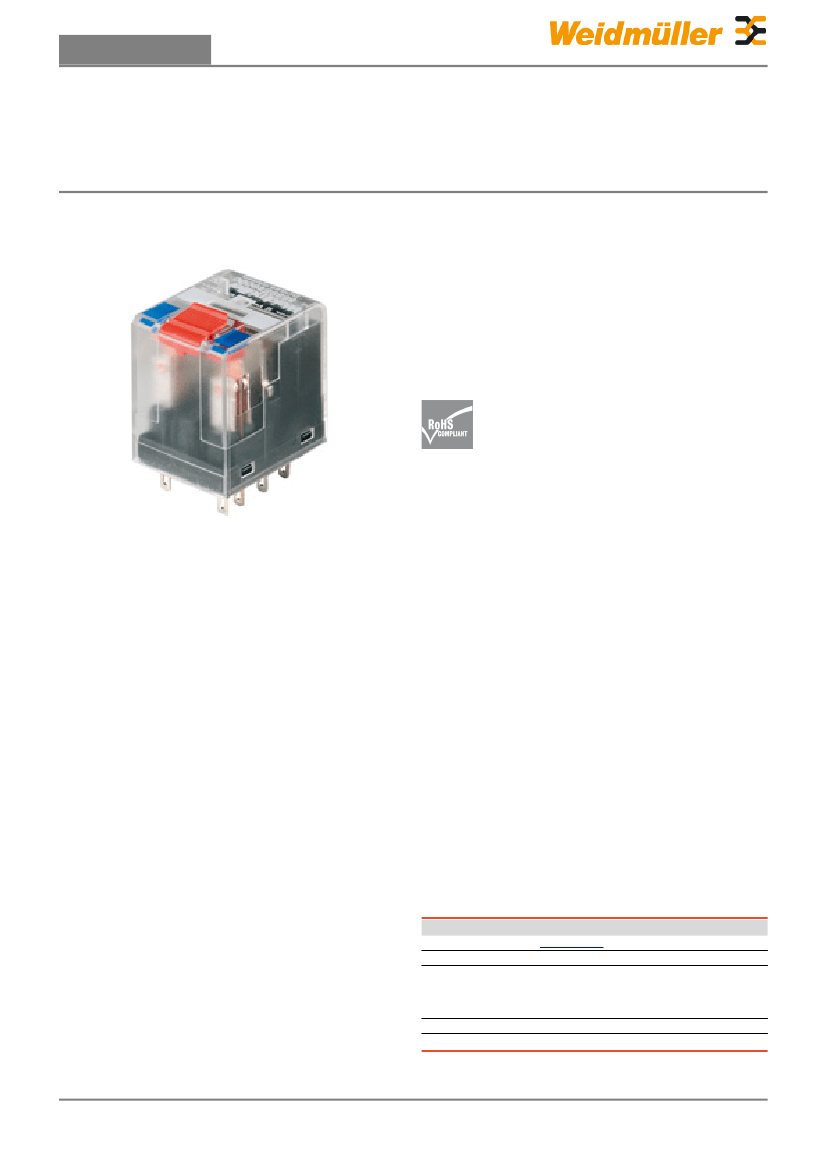

RIDERSERIES
RCM570L12
Weidmüller Interface GmbH & Co. KG
Klingenbergstraße 16
D-32758 Detmold
Germany
Fon: +49 5231 14-0
Fax: +49 5231 14-292083
www.weidmueller.com


Standard relays in the RIDERSERIES RCM
• 4 CO contacts
• Optionally AC or DC coils
• with test button
• Comes optionally with integrated status display
and/or free-wheel diode
General ordering data

Order No.
Type
Version
GTIN (EAN)
Qty.

8690180000
RCM570L12
RIDERSERIES, Relais, No. of contacts: 4, CO
contact with test button, AgNi 90/10, Rated
control voltage: 12 V DC, Continuous current: 6 A,
Plug-in connection
4032248360826
10 pc(s).
Creation date March 11, 2013 5:56:31 PM CET


Catalogue status 20.12.2012 / We reserve the right to make technical changes.
1
