0009483075 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> 0009483075

0009483075: DescriptionCONN RECEPT 7POS .156 R/A PCB; CategoryThe connector; File Size337KB，11 Pages; ManufacturerMolex Premise Network; Environmental Compliance

Download Datasheet Parametric Compare View All

0009483075 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	0009483075	-	-	View	Buy Now

0009483075 Overview

CONN RECEPT 7POS .156 R/A PCB

0009483075 Parametric

Parameter Name	Attribute value
Connector type	socket
Contact type	female socket
style	Board to Board or Cable
Number of pins	7
Number of pins loaded	all
Spacing - Mating	0.156"（3.96mm）
Number of rows	1
Line spacing - patching	-
Installation type	Board edge, through hole, right angle
Termination	welding
Fastening type	Lock pin slide
Contact surface treatment - mating	gold
Contact Surface Treatment Thickness - Mating	15.0µin（0.38µm）
Insulation color	natural
Insulation height	0.308"（7.82mm）
Contact length - terminal	0.145"（3.68mm）
Operating temperature	-40°C ~ 80°C
Material flammability rating	UL94 V-0
Contact Surface Preparation - Column	tin
Joint stack height	-
Intrusion protection	-
characteristic	Plate hook
Rated current	4.5A
Rated voltage	600V
application	Automotive, general, medical, telecommunications
Insulation Materials	polyester
Contact shape	Square
Contact material	brass
Contact Surface Treatment Thickness - Column	100.0µin（2.54µm）

Preview

Download Datasheet

View All

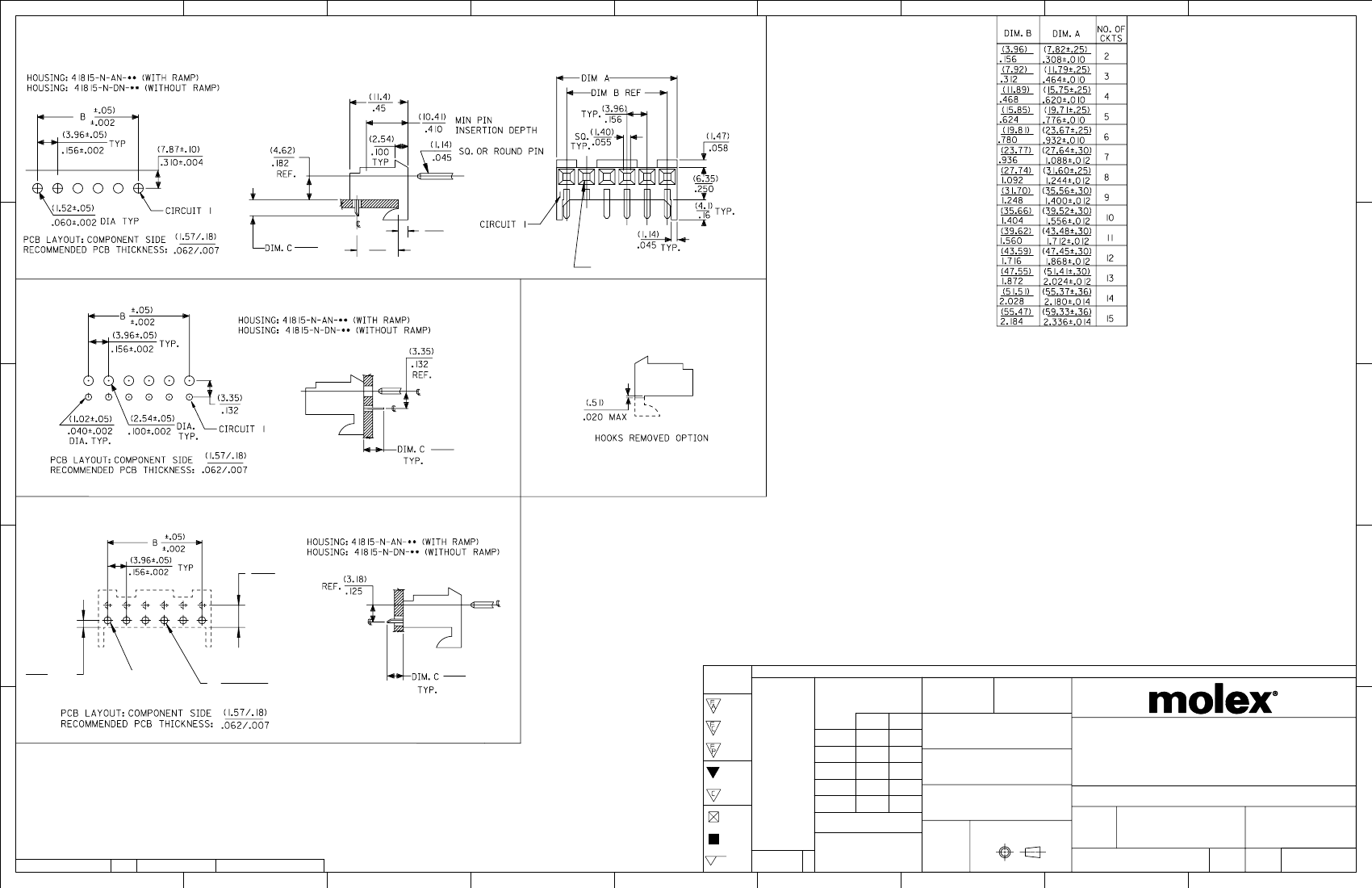

RIGHT ANGLE

+0.97

-0.00

+.038

-.000

(7.9)

.31

REF

(1.91)

.075

OPTIONAL VOIDED CIRCUIT

SEE CHART FOR LOCATION

BOTTOM ENTRY

+0.15

-0.71

+.006

-.028

SEE NOTE 9

(NOT AVAILABLE ON RIGHT ANGLE)

TOP ENTRY

(4.62)REF.

.182

2016/08/22

2016/08/24

2016/08/26

(1.47)REF.

.058

CIRCUIT 1

⌀

(1.52)

0.05 DIA TYP

.060

.002

+0.28

-0.48

+.011

-.019

SEE NOTE 9

NOTES:

1. MATERIAL: HOUSING: POLYESTER, RATED UL 94V-0, COLOR: NATURAL (WHITE)

2. FINISH:

(197) = OVERALL REFLOWED MATTE TIN: 0.00152/.000060 MIN

OVER 0.00127/.000050 MIN NICKEL.

(208) = SELECT GOLD: 0.00038/.000015 MIN,

SELECT TIN: 0.00254/.000100 MIN,

OVERALL NICKEL UNDERPLATE: 0.00127/.000050 MIN.

(228) = SELECT GOLD: 0.00076/.000030 MIN,

SELECT TIN: 0.00254/.000100 MIN,

OVERALL NICKEL UNDERPLATE: 0.00127/.000050 MIN.

(909) = OVERALL TIN: 0.00254/.000100 MIN.

3. PRODUCT SPECIFICATION: PS-08-50

4. PACKAGING: SEE CHARTS

5. FOR TOP ENTRY AND RIGHT ANGLE ASSEMBLIES WITH LOWER INSERTION

FORCE USE SINGLE BEAM CONTACT. (TERMINAL NO. 4244)

6. SOLDERABILITY: WHEN PARTS ARE SOLDERED AT A TEMPERATURE OF 230

(446

F) FOR 5 SECONDS EACH SOLDERED SURFACE SHALL BE A MINIMUM OF 95%

COVERED WITH A SMOOTH CONTINUOUS ADHERENT COATING. FOR ADDITIONAL

INFORMATION SEE SMES-152.

7. PARTS ARE STACKABLE END TO END ON (3.96)/.156 CENTERLINE.

8. THIS PART CONFORMS TO CLASS B REQUIREMENTS OF COSMETIC SPEC PS-45499-002.

9. DIMENSION ‘C” MEASURED WITH TERMINAL PUSHED IN AGAINST THE STOP.

QUALITY THIS DRAWING CONTAINS INFORMATION THAT IS PROPRIETARY TO MOLEX ELECTRONIC TECHNOLOGIES, LLC AND SHOULD NOT BE USED WITHOUT WRITTEN PERMISSION

DIMENSION UNITS

SCALE

SYMBOLS

DIM C TOLERANCE

GENERAL TOLERANCES

(UNLESS SPECIFIED)

MM/IN

DRWN BY

DATE

NTS

INCH

0.01

0.015

4 PLACES

3 PLACES

2 PLACES

0.25

0.38

SAMIEC

CHK'D BY

DATE

1987/01/28

DATE

107740

MKIPPER

JBELL

FSMITH

SAMIEC

APPR BY

KK 156 HOUSING PCB

41815 SERIES

PRODUCT CUSTOMER DRAWING

SERIES

MATERIAL NUMBER

CUSTOMER

1 PLACES

0 PLACES

SAMIEC

DRAWING SIZE

1987/01/28

THIRD ANGLE PROJECTION

EC NO:

DRWN:

CHK'D:

APPR:

ANGULAR TOL

0.5

DRAFT WHERE APPLICABLE

MUST REMAIN

WITHIN DIMENSIONS

RELEASE STATUS

FORMAT: Eng-lega-master-tb-prod-B

REVISION: C

DATE: 2016/04/04

RELEASE DATE

41815

DOCUMENT NUMBER

SEE CHART

GENERAL MARKET

DOC TYPE DOC PART

SHEET NUMBER

SDA-41815

PSD

000

1 OF *

REV

0009483075 Related Products

	0009483075	0009482079	0009481055	0009485144	0009482155	0009485075
Description	CONN RECEPT 7POS .156 R/A PCB	CONN RCPT BOTTOM 7POS TIN PCB	CONN RCPT TOP 5POS GOLD PCB	CONN RCPT R/A 14POS GOLD PCB	CONN RCPT TOP 15POS TIN PCB	CONN RCPT TOP 7POS GOLD PCB
Connector type	socket	socket, bottom entry	socket	socket	socket	socket
Contact type	female socket	female socket	female socket	female socket	female socket	female socket
style	Board to Board or Cable	Board to Board or Cable	Board to Board or Cable	Board to Board or Cable	Board to Board or Cable	Board to Board or Cable
Number of pins	7	7	5	14	15	7
Number of pins loaded	all	all	all	all	all	all
Spacing - Mating	0.156"（3.96mm）	0.156"（3.96mm）	0.156"（3.96mm）	0.156"（3.96mm）	0.156"（3.96mm）	0.156"（3.96mm）
Number of rows	1	1	1	1	1	1
Installation type	Board edge, through hole, right angle	Through hole	Through hole	Board edge, through hole, right angle	Through hole	Through hole
Termination	welding	welding	welding	welding	welding	welding
Fastening type	Lock pin slide	Lock pin slide	Lock pin slide	Lock pin slide	Lock pin slide	Lock pin slide
Contact surface treatment - mating	gold	tin	gold	gold	tin	gold
Contact Surface Treatment Thickness - Mating	15.0µin（0.38µm）	100.0µin（2.54µm）	15.0µin（0.38µm）	15.0µin（0.38µm）	100.0µin（2.54µm）	15.0µin（0.38µm）
Insulation color	natural	natural	natural	natural	natural	natural
Insulation height	0.308"（7.82mm）	0.449"（11.40mm）	0.449"（11.40mm）	0.308"（7.82mm）	0.449"（11.40mm）	0.449"（11.40mm）
Contact length - terminal	0.145"（3.68mm）	0.125"（3.18mm）	0.120"（3.05mm）	0.145"（3.68mm）	0.120"（3.05mm）	0.120"（3.05mm）
Operating temperature	-40°C ~ 80°C	-40°C ~ 105°C	-40°C ~ 105°C	-40°C ~ 105°C	-40°C ~ 80°C	-40°C ~ 105°C
Material flammability rating	UL94 V-0	UL94 V-0	UL94 V-0	UL94 V-0	UL94 V-0	UL94 V-0
Contact Surface Preparation - Column	tin	tin	tin	tin	tin	tin
characteristic	Plate hook	Plate hook	Plate hook	Plate hook	-	Plate hook
Rated current	4.5A	4.5A	5A	5A	4.5A	5A
Rated voltage	600V	600V	600V	600V	600V	600V
application	Automotive, general, medical, telecommunications	Automotive, general, medical, telecommunications	Automotive, general, medical, telecommunications	Automotive, general, medical, telecommunications	Automotive, general, medical, telecommunications	Automotive, general, medical, telecommunications
Insulation Materials	polyester	polyester	polyester	polyester	polyester	polyester
Contact shape	Square	Square	Square	Square	Square	Square
Contact material	brass	Phosphor bronze	Phosphor bronze	Phosphor bronze	brass	Phosphor bronze
Contact Surface Treatment Thickness - Column	100.0µin（2.54µm）	100.0µin（2.54µm）	100.0µin（2.54µm）	100.0µin（2.54µm）	100.0µin（2.54µm）	100.0µin（2.54µm）
