DHS10C datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > accessories> DHS10C

DHS10C: DescriptionSWITCH SLIDE DIP SPST 100MA 6V; Categoryaccessories; File Size56KB，1 Pages; ManufacturerAPEM; Environmental Compliance

Download Datasheet Parametric Compare View All

DHS10C Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	DHS10C	-	-	View	Buy Now

DHS10C Overview

SWITCH SLIDE DIP SPST 100MA 6V

DHS10C Parametric

Parameter Name	Attribute value
circuit	SPST
Number of pins	10
Rated current	100mA
Rated voltage	6VDC
Actuator type	Sliding type (standard)
actuator level	Grooved, hidden
Contact material	copper beryllium
Contact plating	gold
board height	0.087"（2.20mm）
Installation type	surface mount
Terminal type	gullwing
spacing	0.050" (1.27mm), half
washable	yes
characteristic	Tape seal
Operating temperature	-40°C ~ 80°C
Matrix material	Polyphenylene sulfide (PPS), glass fiber reinforced
length	0.568"（14.43mm）
Mechanical life	-
Electrical life	1,000 cycles

Preview

Download Datasheet

View All

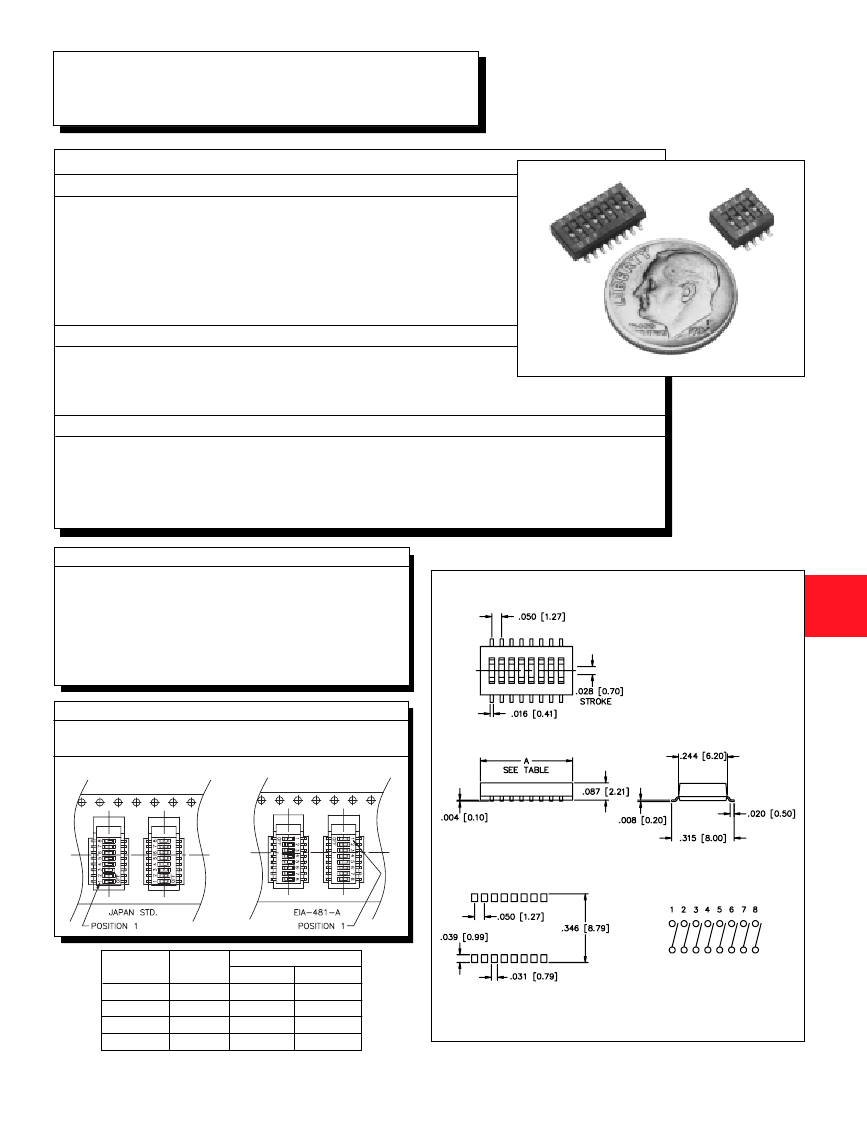

DHS SERIES 1/2 PITCH SPST

SURFACE MOUNT DIP SWITCHES

GENERAL SPECIFICATIONS

ELECTRICALS

SPECIFICATIONS SUBJECT TO CHANGE WITHOUT NOTICE.

FEATURES

Ultra-compact low-profile size.

.050" (1.27mm) terminal spacing.

Self-cleaning twin point contacts.

Auto-insertable and reflow solderable.

Process compatible with std'd. tape seal.

Electrical life

1000 cycles minimum

Contact rating, non-switching

100 mA at 50 VDC

Contact rating, switching

100 mA at 6 VDC

Contact resistance

100 m½ maximum

Insulation resistance

100 M½ minimum

Dielectric strength 250 VDC for 1 min. between adjacent or opposite terminals

Capacitance

5 pf. max. between adjacent or opposite terminals

MECHANICALS, THERMALS

Operating force

400 grams maximum

Vibration

10-55 Hz. per MIL-STD-202F, METHOD 201A

Shock

50 g (peak value) for 11 msec. per MIL-STD-202F, METHOD 213B

Operating temperature range

-40°C to +80°C

SOLDERING & CLEANING RECOMMENDATIONS

Hand soldering

330°C max. for 3 seconds max.(30 watt iron max.)

Reflow soldering

Set oven at 215°C max. for 90 seconds max.

Cleaning

(with standard tape seal in place)

1-1-1 Trichloroethane, Freon TE, Isopropyl alcohol or aqueous

cleaner for 2 minutes max. at 20°C

MATERIALS

Base

Cover

Actuators

Contacts

Terminals

Terminal seal

Tape seal

UL94V-O, glass fiber filled PPS, black

UL94V-O, Polyamide, yellow

Gold plated beryllium copper

Gold plated copper alloy

Epoxy

Polyimide

MECHANICAL OUTLINE

PACKAGING

Supplied in tape & reel packaging.

Reel & tape meets the requirements of EIA-481-A.

Style

SR/TC

Style

MODEL

NO. 0F

A DIMENSION

SCHEMATIC

(8 positions shown)

NUMBER

POS.

IN(± .012) MM(± 0.30)

DHS4S

.268

6.81

DHS6S

.368

9.35

DHS8S

.468

11.89

DHS10S

.568

14.43

Note: S at end of model no. indicates

style pack-

aging. Substitute SR/TC for S for

SR/TC

packaging.

PRINTED CIRCUIT BOARD OUTLINE

(8 positions shown)

APEM

, 63 NECK ROAD, HAVERHILL, MA USA 01835-0788 TOLL FREE: (877) 246-7890 FAX: (781) 245-4531 E-mail: info@apem.com

DHS10C Related Products

	DHS10C	DHS10SR/TC	DHS4SR/TC	DHS8SR/TC
Description	SWITCH SLIDE DIP SPST 100MA 6V	Slide Dip Switch, 10 Switches, SPST, Latched, 0.1A, 6VDC, Solder Terminal, Surface Mount-straight	Slide Dip Switch, 4 Switches, SPST, Latched, 0.1A, 6VDC, Solder Terminal, Surface Mount-straight	Slide Dip Switch, 8 Switches, SPST, Latched, 0.1A, 6VDC, Solder Terminal, Surface Mount-Straight
Electrical life	1,000 cycles	1000 Cycle(s)	1000 Cycle(s)	1000 Cycle(s)
Reach Compliance Code	-	compliant	compliant	compliant
ECCN code	-	EAR99	EAR99	EAR99
body width	-	6.2 mm	6.2 mm	6.2 mm
body height	-	2.21 mm	2.21 mm	2.21 mm
Body length or diameter	-	14.43 mm	6.81 mm	11.89 mm
Maximum contact current (DC)	-	0.1 A	0.1 A	0.1 A
Contact (DC) maximum rated R load	-	.1A@6VDC	.1A@6VDC	.1A@6VDC
Maximum contact voltage (DC)	-	6 V	6 V	6 V
JESD-609 code	-	e4	e4	e4
Installation features	-	SURFACE MOUNT-STRAIGHT	SURFACE MOUNT-STRAIGHT	SURFACE MOUNT-STRAIGHT
Number of switching segments	-	10	4	8
Maximum operating temperature	-	80 °C	80 °C	80 °C
Minimum operating temperature	-	-40 °C	-40 °C	-40 °C
method of packing	-	TAPE AND REEL	TAPE AND REEL	TAPE AND REEL
seal	-	EPOXY TERMINAL SEALED	EPOXY TERMINAL SEALED	EPOXY TERMINAL SEALED
surface mount	-	NO	NO	NO
Switch action	-	LATCHED	LATCHED	LATCHED
switch function	-	SPST	SPST	SPST
Switch type	-	SLIDE DIP SWITCH	SLIDE DIP SWITCH	SLIDE DIP SWITCH
Terminal surface	-	GOLD	Gold (Au)	Gold (Au)
Termination type	-	SOLDER	SOLDER	SOLDER
