H8PPS-1036M datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Wire/cable> H8PPS-1036M

H8PPS-1036M: DescriptionDIP CABLE - HDP10S/AE10M/HDP10S; CategoryWire/cable; File Size300KB，2 Pages; ManufacturerASSMANN WSW components; Environmental Compliance

Download Datasheet Parametric View All

H8PPS-1036M Overview

DIP CABLE - HDP10S/AE10M/HDP10S

H8PPS-1036M Parametric

Parameter Name	Attribute value
Connector type	DIP to DIP, reverse
Number of pins	10
Number of rows	2
Pitch - Connector	0.100"（2.54mm）
Spacing - Cable	0.050"（1.27mm）
length	3.00'（914.40mm）
characteristic	-
color	Multiple strands, strips
shield	No shielding
use	Jack (0.3"), onboard
Cable termination	IDC
Contact plating	tin
Contact plating thickness	-

Preview

Download Datasheet

View All

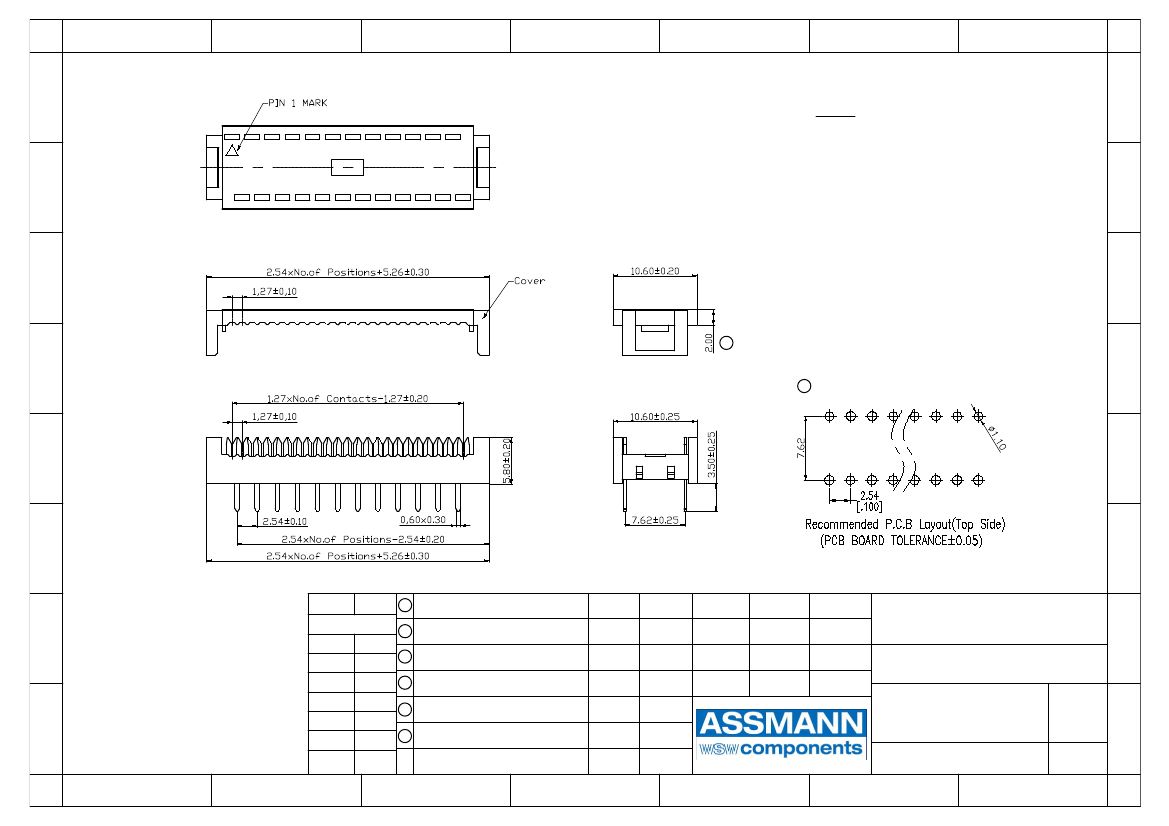

NOTES:

MATERIAL

1.Insulator Material:PBT+30%GF(UL94V-0),Black

2.Contact Material : Brass

3.Contact Plating : Sn Over Ni

ELECTRICAL

1.Current Rating : 3.0AMP

2.Withstand Voltage : 1000V AC/DC

XXP

ENVIRONMENTAL

2.Packing : Tray

Order Information(2.54x7.62):

contacts xx : 08,10,14,16,18,20

Scale

1:1

Id.

Update

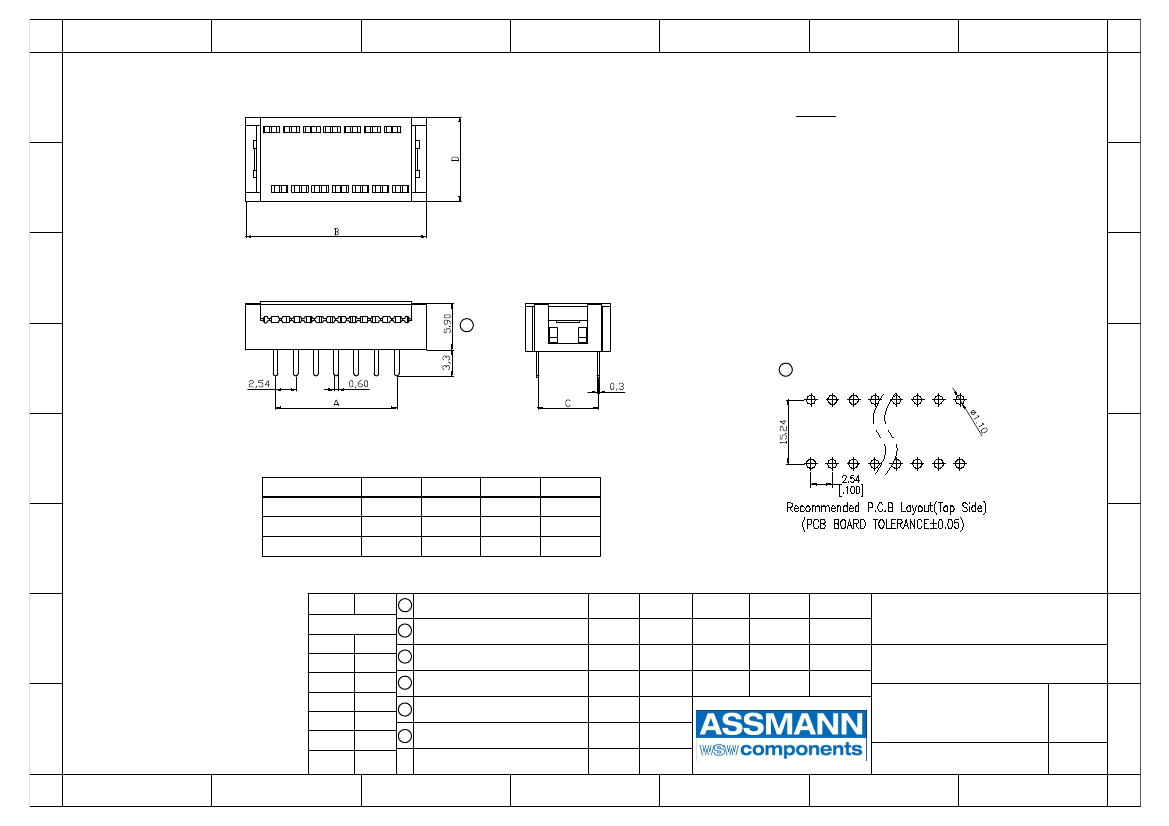

Add recommended PCB layout

Add sheet 2

Modify drawing

Update

Drawn

Modification

15.06.2018

16.07.2015

21.01.2010

28.12.2009

02.07.2009

25.01.2006

Date

Xavier

Ray

Dean

Drawing-No.

Dean

Alex

Name

Drawn

Approved

Date

25.01.2006

15.06.2018

Name

Alex

Winnie

ASSMANN WSW-No.

Customer-No.

RoHS compliant

TOLERANCE

X.X

X.XX

X.XXX

Angle

ADIP xx Z-LC

ASS 2320 CO

Replace

rev06

Sheet

1/2
