TA75S01F
TOSHIBA Bipolar Linear Integrated Circuit
Silicon Monolithic
TA75S01F
Single Operational Amplifier
Features
In the linear mode the input common mode voltage range includes
ground.
The internally compensated Operational Amplifier is small package.
Low power dissipation and power drain suitable for battery operation.
Differential input voltage range equal to the power supply voltage.
Wide power supply voltage range and single power supply is possible.
Single supply 3V
DC
to 12V
DC
or dual supplies ±1.5V
DC
to ±6V
DC
.
Large output voltage swing: 0V
DC
to 3.4V
DC
(V
DC
= 5V)

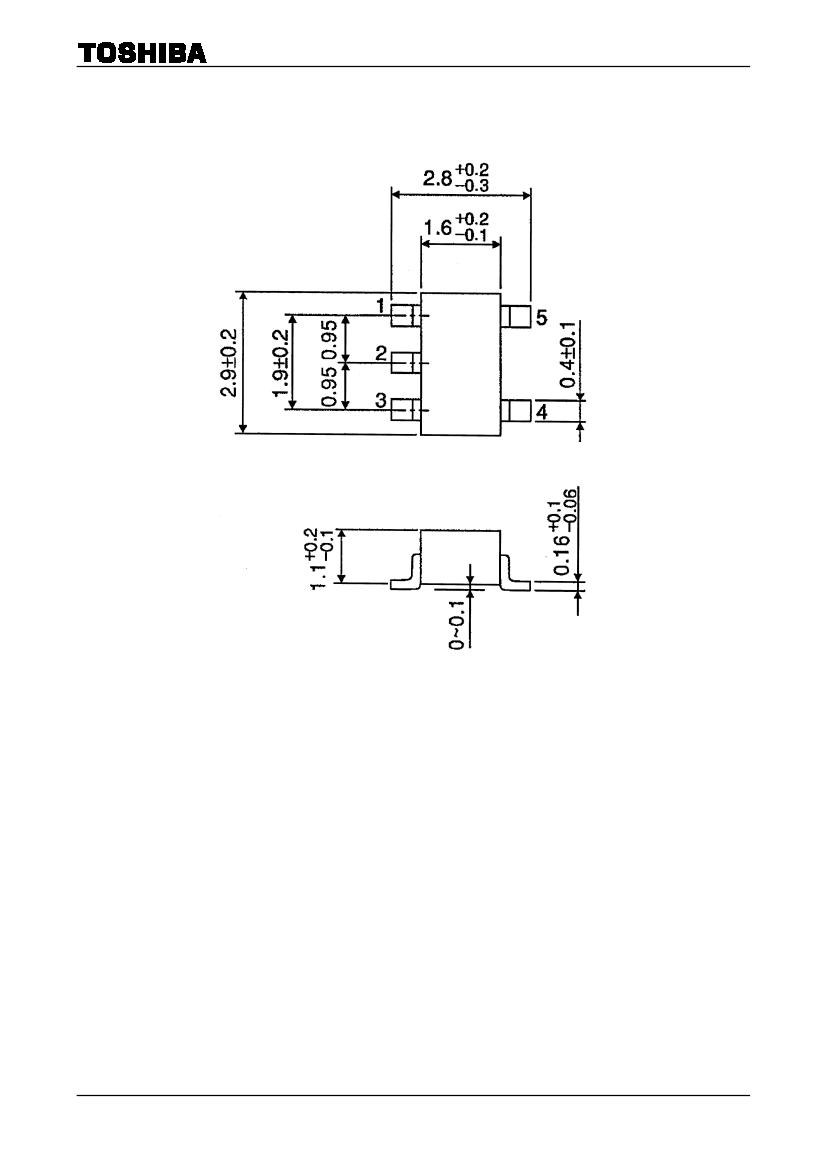

Unit: mm
Marking
(Top View)
Weight:0.014g (typ.)
Pin
Connection
(Top View)
Start of commercial production
1991-02
1
2017-10-03
TA75S01F

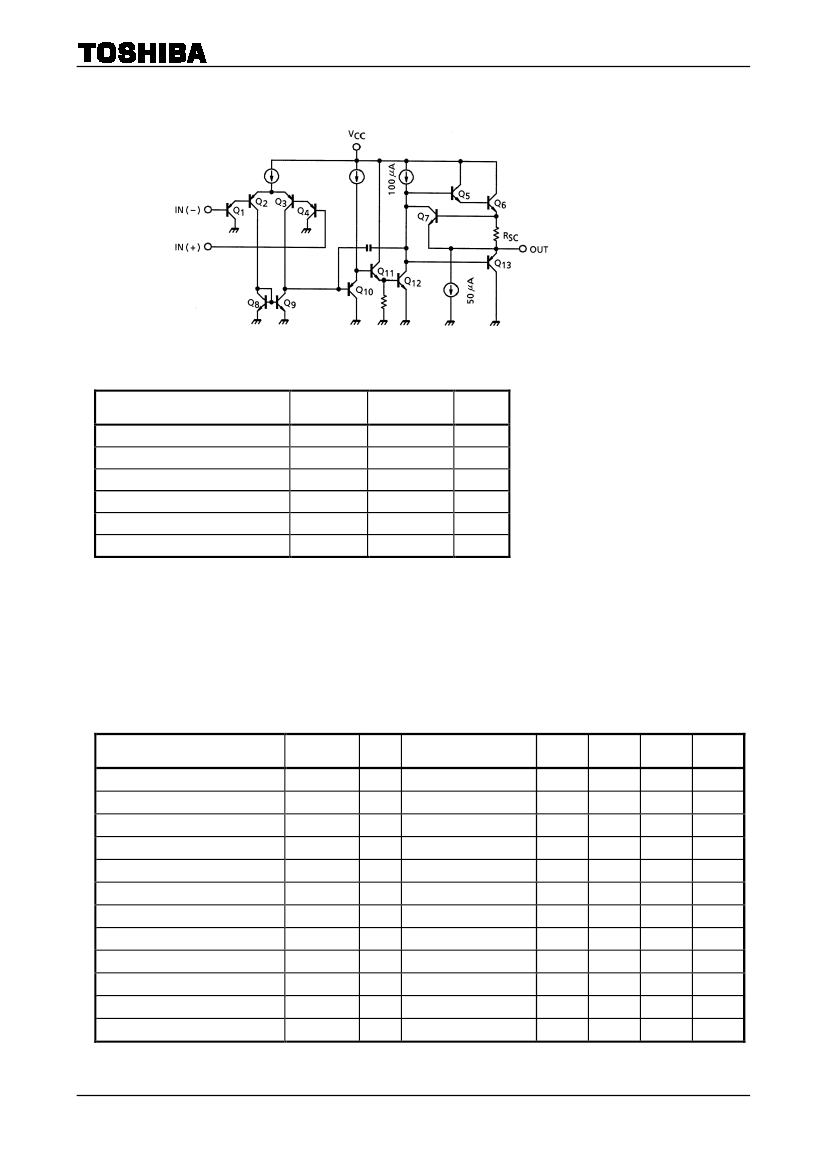

Equivalent Circuit
Absolute Maximum Ratings
(Ta = 25°C)
Characteristic
Supply voltage
Differential input voltage
Input voltage
Power dissipation
Operating temperature
Storage temperature
Symbol
V
CC
, V
EE
DV
IN
V
IN
P
D
T
opr
T
stg
Rating
±6 or 12
±12
−0.3
to V
CC
200
−40
to 85
−55
to 125
Unit
V
V
V
mW
°C
°C
Note: Using continuously under heavy loads (e.g. the application of high temperature/current/voltage and the
significant change in temperature, etc.) may cause this product to decrease in the reliability significantly even
if the operating conditions (i.e. operating temperature/current/voltage, etc.) are within the absolute maximum
ratings and the operating ranges.
Please design the appropriate reliability upon reviewing the Toshiba Semiconductor Reliability Handbook
(“Handling Precautions”/“Derating Concept and Methods”) and individual reliability data (i.e. reliability test
report and estimated failure rate, etc).

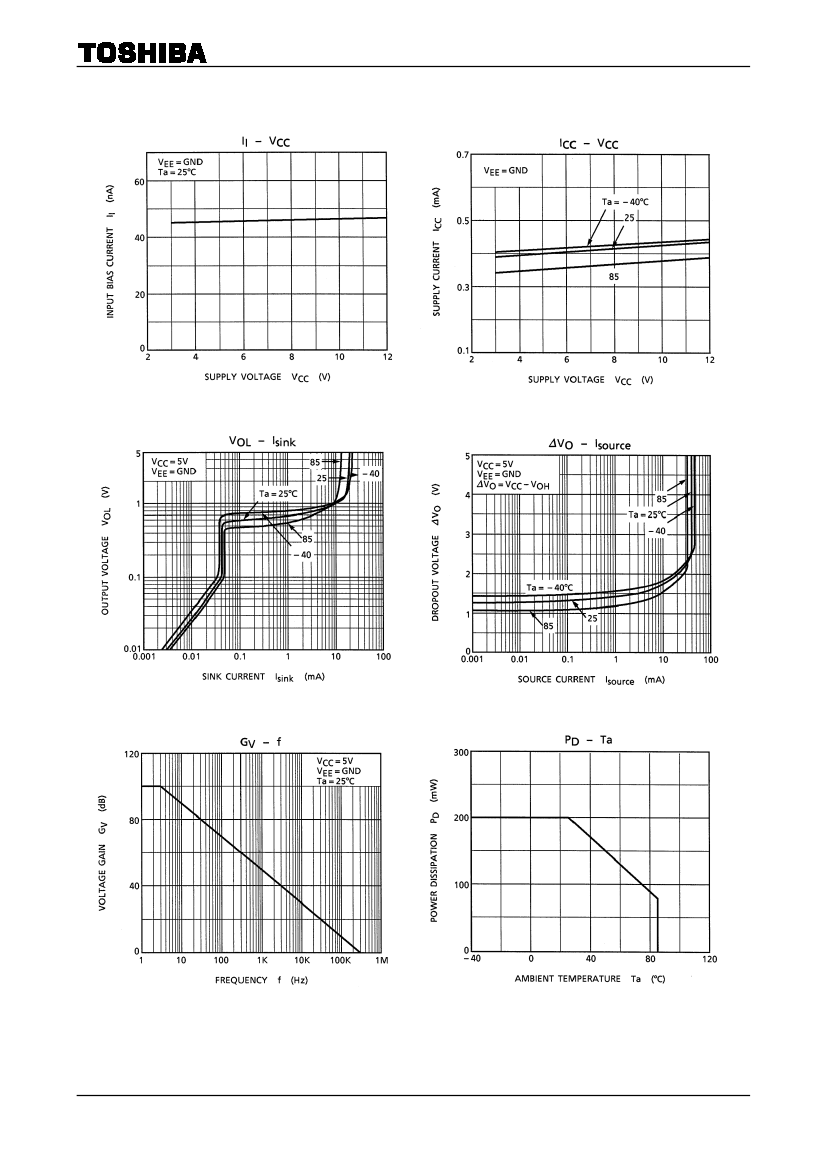

Electrical Characteristics
(V
CC
= 5V, V
EE
= GND, Ta = 25°C)
Characteristic
Input offset voltage
Input offset current
Input bias current
Common mode input voltage
Supply current
Voltage gain
Maximum output voltage swing
Common mode rejection ratio
Supply voltage rejection ratio
Source current
Sink current
Unity gain cross frequency
Symbol
V
IO
I
IO
I
I
CMV
IN
I
CC
G
V
V
op-p
CMRR
SVRR
I
source
I
sink
f
T

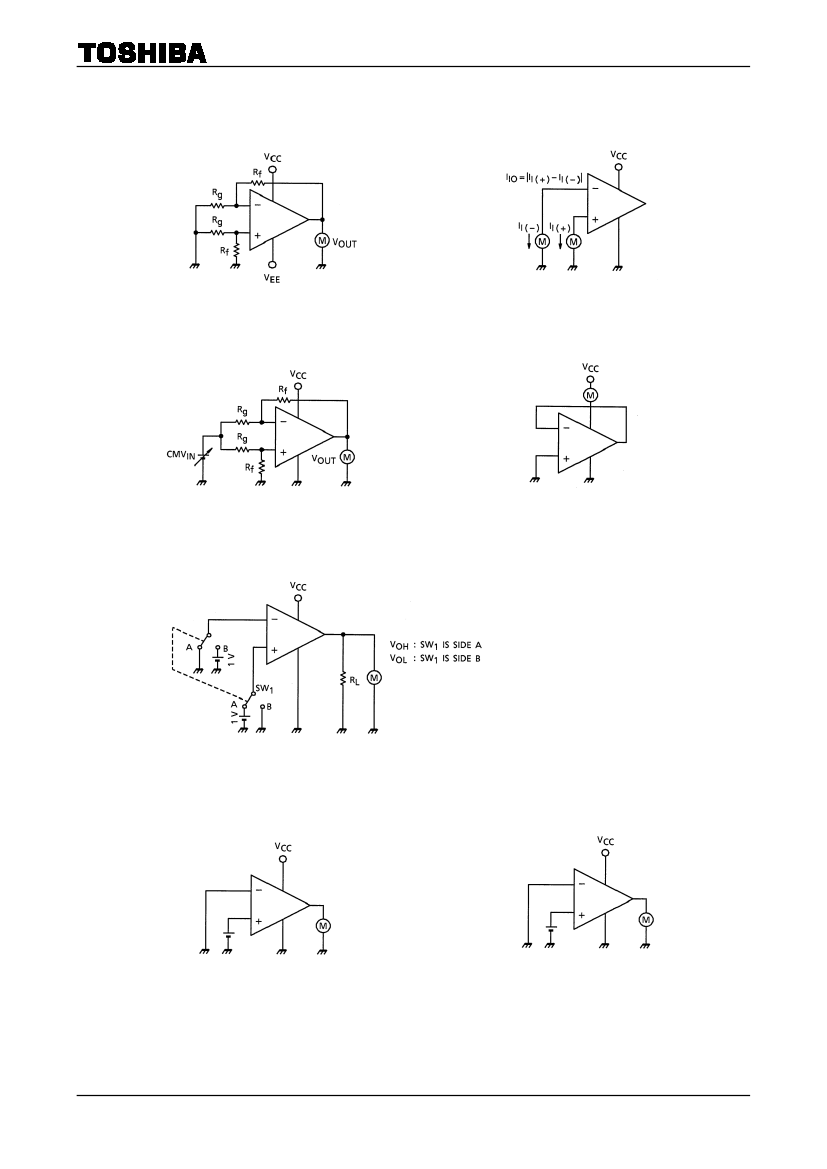

Test
Circuit
1
2
2
3
4
―
5
3
―
6
7
―
Rg = 10kΩ
IN (−) = 0V, IN (+) = 1V
IN (−) = 1V, IN (+) = 0V
―
RL≥2kΩ
RL = 2kΩ
―
Test Condition
Rg≤10kΩ
―
―
―
―
Min
―
―
―
0
―
86
0
65
65
20
10
―
Typ.
2
5
45
―
0.4
100
―
85
100
40
20
0.3
Max
7
50
250
V
CC
−1.5
0.8
―
3.4
―
―
―
―
―
Unit
mV
nA
nA
V
mA
dB
V
dB
dB
mA
mA
MHz
2
2017-10-03
